IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. WH 7803

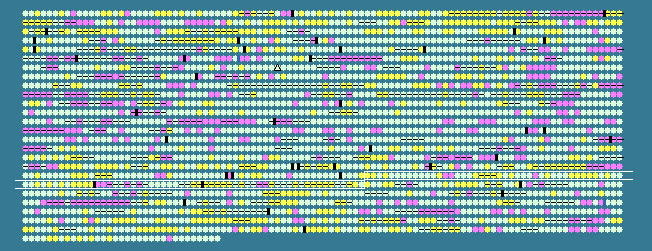

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.32 STD DEV: 4.87
Synechococcus sp. WH 7803, complete genome - 1..2366980
2533 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1858	 63.84	0	1702612..1703283	-	223	148240194	ispD	SynWH7803_1858	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
1859	 65.34	+1	1703356..1704183	+	275	148240195	-	SynWH7803_1859	-	glycosyltransferase family protein
1860	 62.75	0	1704183..1705304	+	373	148240196	-	SynWH7803_1860	-	putative potassium channel
1861	 64.01	0	1705352..1706104	+	250	148240197	fabG	SynWH7803_1861	-	3-oxoacyl-[acyl-carrier-protein] reductase
1862	 59.32	0	1706126..1706302	-	58	148240198	-	SynWH7803_1862	-	hypothetical protein
1863	 61.49	0	1706431..1708092	+	553	148240199	groEL	SynWH7803_1863	-	chaperonin GroEL
1864	 60.11	0	1708129..1708311	-	60	148240200	-	SynWH7803_1864	-	hypothetical protein
1865	 61.59	0	1708330..1709019	-	229	148240201	nanE	SynWH7803_1865	-	N-acetylmannosamine-6-phosphate 2-epimerase
1866	 63.29	0	1709019..1709462	-	147	148240202	-	SynWH7803_1866	-	hypothetical protein
1867	 61.77	0	1709467..1710324	-	285	148240203	-	SynWH7803_1867	-	ABC-type multidrug transport system, permease component
1868	 61.54	0	1710362..1711375	-	337	148240204	-	SynWH7803_1868	-	ABC-type multidrug transport system, ATPase component
1869	 62.77	0	1711406..1712407	-	333	148240205	ctaB	SynWH7803_1869	-	Protoheme IX farnesyltransferase
1870	 65.68	+1	1712400..1713314	-	304	148240206	-	SynWH7803_1870	-	hypothetical protein
1871	 54.79	-1	1713555..1714379	+	274	148240207	-	SynWH7803_1871	-	cytochrome c oxidase subunit II
1872	 55.06	-1	1714376..1716046	+	556	148240208	-	SynWH7803_1872	-	cytochrome c oxidase subunit I
1873	 57.21	0	1716043..1716645	+	200	148240209	-	SynWH7803_1873	-	cytochrome c oxidase subunit III
1874	 59.79	0	1716741..1717118	+	125	148240210	-	SynWH7803_1874	-	hypothetical protein
1875	 59.73	0	1717201..1717791	-	196	148240211	-	SynWH7803_1875	-	hypothetical protein
1876	 66.51	+1	1717865..1718512	-	215	148240212	ribE	SynWH7803_1876	-	riboflavin synthase subunit alpha
1877	 64.99	0	1718570..1719166	+	198	148240213	-	SynWH7803_1877	-	hypothetical protein
1878	 65.28	+1	1719163..1720320	+	385	148240214	-	SynWH7803_1878	-	aldo/keto reductase family protein
1879	 65.97	+1	1720309..1721319	-	336	148240215	-	SynWH7803_1879	-	hypothetical protein
1880	 67.00	+1	1721329..1722528	-	399	148240216	-	SynWH7803_1880	-	hypothetical protein
1881	 62.02	0	1722500..1723144	-	214	148240217	-	SynWH7803_1881	-	hypothetical protein
1882	 64.33	0	1723144..1723656	-	170	148240218	-	SynWH7803_1882	-	hypothetical protein
1883	 62.21	0	1723656..1726373	-	905	148240219	topA	SynWH7803_1883	-	DNA topoisomerase I
1884	 62.02	0	1726501..1728072	+	523	148240220	ndhB	SynWH7803_1884	-	NAD(P)H-quinone oxidoreductase subunit 2
1885	 63.01	0	1728065..1728802	+	245	148240221	-	SynWH7803_1885	-	ABC transporter ATP-binding protein
1886	 55.60	0	1728834..1729574	+	246	148240222	-	SynWH7803_1886	-	two-component system response regulator
1887	 62.65	0	1729563..1730534	-	323	148240223	-	SynWH7803_1887	-	putative metalloendopeptidase
1888	 67.32	+1	1730565..1731335	-	256	148240224	birA	SynWH7803_1888	-	biotin-(acetyl-CoA carboxylase) ligase
1889	 63.48	0	1731335..1732528	-	397	148240225	-	SynWH7803_1889	-	aspartate/tyrosine/aromatic aminotransferase
1890	 60.55	0	1732515..1732841	-	108	148240226	trxA	SynWH7803_1890	-	thioredoxin
1891	 62.24	0	1732896..1733663	-	255	148240227	pspA	SynWH7803_1891	-	Phage shock protein A
1892	 67.59	+1	1733747..1734289	+	180	148240228	-	SynWH7803_1892	-	hypothetical protein
1893	 65.17	0	1734283..1737231	-	982	148240229	-	SynWH7803_1893	-	glycosyltransferase of family UDP-glucose:tetrahydrobiopterin glucosyltransferase
1894	 64.07	0	1737228..1738190	-	320	148240230	-	SynWH7803_1894	-	DMT family permease
1895	 64.33	0	1738244..1739056	+	270	148240231	sppA	SynWH7803_1895	-	periplasmic serine proteases (ClpP class)
1896	 64.83	0	1739053..1739433	+	126	148240232	aroH	SynWH7803_1896	-	chorismate mutase
1897	 59.90	0	1739532..1740122	+	196	148240233	-	SynWH7803_1897	-	hypothetical protein
1898	 66.67	+1	1740177..1740314	+	45	148240234	rpmH	SynWH7803_1898	-	50S ribosomal protein L34
1899	 61.36	0	1740339..1740734	+	131	148240235	rnpA	SynWH7803_1899	-	ribonuclease P protein component
1900	 60.65	0	1740731..1741162	+	143	148240236	-	SynWH7803_1900	-	hypothetical protein
1901	 59.98	0	1741238..1742389	+	383	148240237	yidC	SynWH7803_1901	-	putative inner membrane protein translocase component YidC
1902	 61.44	0	1742386..1742940	+	184	148240238	-	SynWH7803_1902	-	metal-binding protein
1903	 66.00	+1	1742933..1744432	+	499	148240239	-	SynWH7803_1903	-	AAA family ATPase
1904	 63.58	0	1744505..1744666	+	53	148240240	-	SynWH7803_1904	-	hypothetical protein
1905	 64.08	0	1744725..1746002	+	425	148240241	serS	SynWH7803_1905	-	seryl-tRNA synthetase
1906	 63.45	0	1746022..1747110	+	362	148240242	-	SynWH7803_1906	-	membrane-associated Zn-dependent protease
1907	 64.03	0	1747154..1747456	+	100	148240243	rpsN	SynWH7803_1907	-	30S ribosomal protein S14
1908	 62.70	0	1747618..1749783	+	721	148240244	pnp	SynWH7803_1908	-	polynucleotide phosphorylase/polyadenylase
1909	 65.02	0	1749796..1750707	-	303	148240245	cysQ	SynWH7803_1909	-	3'-phosphoadenosine 5'-phosphosulfate (PAPS) 3'-phosphatase
1910	 67.01	+1	1750731..1751597	+	288	148240246	-	SynWH7803_1910	-	tetrapyrrole methylase family protein
1911	 64.58	0	1751608..1751847	+	79	148240247	-	SynWH7803_1911	-	hypothetical protein
1912	 64.15	0	1751849..1752604	-	251	148240248	-	SynWH7803_1912	-	hypothetical protein
1913	 54.42	-1	1752848..1753141	-	97	148240249	-	SynWH7803_1913	-	hypothetical protein
1914	 51.02	-1	1754158..1754649	-	163	148240250	-	SynWH7803_1914	-	hypothetical protein
1915	 49.45	-2	1755042..1755953	-	303	148240251	-	SynWH7803_1915	-	hypothetical protein
1916	 57.36	0	1756212..1756469	+	85	148240252	-	SynWH7803_1916	-	hypothetical protein
1917	 59.56	0	1756506..1756688	+	60	148240253	-	SynWH7803_1917	-	hypothetical protein
1918	 53.17	-1	1756999..1757865	-	288	148240254	-	SynWH7803_1918	-	hypothetical protein
1919	 56.90	0	1758034..1758330	-	98	148240255	-	SynWH7803_1919	-	hypothetical protein
1920	 53.80	-1	1758711..1759052	-	113	148240256	-	SynWH7803_1920	-	hypothetical protein
1921	 63.43	0	1759130..1759654	-	174	148240257	-	SynWH7803_1921	-	hypothetical protein
1922	 57.97	0	1759666..1759872	-	68	148240258	-	SynWH7803_1922	-	hypothetical protein
1923	 59.07	0	1759946..1760182	+	78	148240259	-	SynWH7803_1923	-	hypothetical protein
1924	 61.60	0	1760186..1760422	-	78	148240260	-	SynWH7803_1924	-	hypothetical protein
1925	 62.78	0	1760505..1760813	-	102	148240261	-	SynWH7803_1925	-	hypothetical protein
1926	 58.06	0	1760960..1761145	-	61	148240262	-	SynWH7803_1926	-	hypothetical protein
1927	 62.47	0	1761224..1762153	-	309	148240263	-	SynWH7803_1927	-	glutamyl-tRNA synthetase-related protein
1928	 58.70	0	1762173..1762448	-	91	148240264	hup	SynWH7803_1928	-	DNA-binding protein HU
1929	 67.26	+1	1762603..1763277	-	224	148240265	-	SynWH7803_1929	-	hypothetical protein
1930	 64.35	0	1763437..1765419	+	660	148240266	-	SynWH7803_1930	-	alpha-glucosidase
1931	 65.03	0	1765598..1767001	+	467	148240267	-	SynWH7803_1931	-	Na+/galactoside symporter
1932	 64.47	0	1766998..1767771	+	257	148240268	-	SynWH7803_1932	-	ABC-type transport system, permease component
1933	 65.71	+1	1767784..1768200	+	138	148240269	-	SynWH7803_1933	-	hypothetical protein
1934	 68.52	+1	1768300..1769271	+	323	148240270	-	SynWH7803_1934	-	hypothetical protein
1935	 66.67	+1	1769271..1769882	+	203	148240271	-	SynWH7803_1935	-	hypothetical protein
1936	 57.79	0	1769991..1771724	-	577	148240272	cphA	SynWH7803_1936	-	putative cyanophycin synthetase
1937	 64.02	0	1772032..1772220	+	62	148240273	-	SynWH7803_1937	-	hypothetical protein
1938	 61.83	0	1772636..1773649	+	337	148240274	-	SynWH7803_1938	-	hypothetical protein
1939	 57.35	0	1773689..1775137	-	482	148240275	-	SynWH7803_1939	-	TPR repeat-containing protein
1940	 46.51	-2	1775282..1776571	+	429	148240276	-	SynWH7803_1940	-	TPR repeat-containing protein
1941	 47.56	-2	1776583..1777362	+	259	148240277	-	SynWH7803_1941	-	hypothetical protein
1942	 68.03	+1	1777578..1778309	-	243	148240278	pyrF	SynWH7803_1942	-	orotidine 5'-phosphate decarboxylase
1943	 62.35	0	1778286..1778795	+	169	148240279	-	SynWH7803_1943	-	cupin, RmlC-type superfamily protein
1944	 61.40	0	1778918..1779145	+	75	148240280	-	SynWH7803_1944	-	hypothetical protein
1945	 58.64	0	1779145..1779555	+	136	148240281	-	SynWH7803_1945	-	hypothetical protein
1946	 65.70	+1	1779545..1780789	-	414	148240282	tyrS	SynWH7803_1946	-	tyrosyl-tRNA synthetase
1947	 59.63	0	1780831..1781157	-	108	148240283	-	SynWH7803_1947	-	hypothetical protein
1948	 67.08	+1	1781283..1782008	+	241	148240284	-	SynWH7803_1948	-	two-component system response regulator
1949	 69.28	+1	1782043..1782615	+	190	148240285	-	SynWH7803_1949	-	hypothetical protein
1950	 67.52	+1	1782620..1783207	+	195	148240286	-	SynWH7803_1950	-	hypothetical protein
1951	 66.87	+1	1783245..1784726	+	493	148240287	pepA	SynWH7803_1951	-	leucyl aminopeptidase
1952	 65.06	0	1784751..1784999	+	82	148240288	-	SynWH7803_1952	-	hypothetical protein
1953	 60.66	0	1784996..1785178	-	60	148240289	-	SynWH7803_1953	-	hypothetical protein
1954	 63.52	0	1785335..1785970	-	211	148240290	msrA	SynWH7803_1954	-	peptide methionine sulfoxide reductase
1955	 66.08	+1	1785970..1787163	-	397	148240291	lpxB	SynWH7803_1955	-	lipid-A-disaccharide synthase
1956	 64.13	0	1787163..1787990	-	275	148240292	lpxA	SynWH7803_1956	-	UDP-N-acetylglucosamine acyltransferase
1957	 61.49	0	1788020..1788463	-	147	148240293	fabZ	SynWH7803_1957	-	(3R)-hydroxymyristoyl-ACP dehydratase
60.32	MEAN

4.87	STD DEV
