IslandPath Analysis: Synechococcus sp. WH 7803

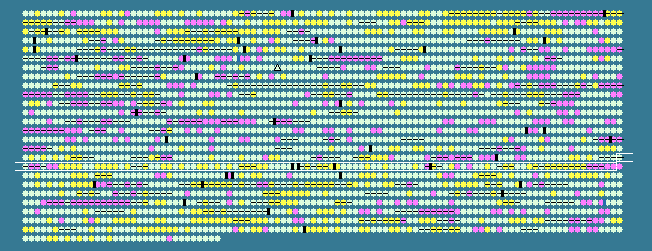

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.32 STD DEV: 4.87
Synechococcus sp. WH 7803, complete genome - 1..2366980
2533 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1700	 63.66	0	1554607..1554939	-	110	148240036	-	SynWH7803_1700	-	hypothetical protein
1701	 59.00	0	1554899..1555576	-	225	148240037	-	SynWH7803_1701	-	hypothetical protein
1702	 42.64	-2	1556247..1556783	+	178	148240038	-	SynWH7803_1702	-	putative transcriptional regulator
1703	 51.44	-1	1556784..1557827	-	347	148240039	-	SynWH7803_1703	-	hypothetical protein
1704	 57.35	0	1558054..1558998	+	314	148240040	-	SynWH7803_1704	-	hypothetical protein
1705	 52.88	-1	1559023..1560030	-	335	148240041	-	SynWH7803_1705	-	hypothetical protein
1706	 52.82	-1	1560222..1561340	-	372	148240042	-	SynWH7803_1706	-	hypothetical protein
1707	 67.15	+1	1561471..1562724	+	417	148240043	cobL	SynWH7803_1707	-	precorrin-6Y methylase
1708	 64.24	0	1562937..1563389	-	150	148240044	-	SynWH7803_1708	-	hypothetical protein
1709	 64.08	0	1563389..1564084	-	231	148240045	-	SynWH7803_1709	-	two-component sytem response regulator
1710	 64.05	0	1564081..1564998	-	305	148240046	ppnK	SynWH7803_1710	-	inorganic polyphosphate/ATP-NAD kinase
1711	 63.38	0	1565077..1566720	-	547	148240047	-	SynWH7803_1711	-	protein kinase
1712	 63.49	0	1566819..1567826	-	335	148240048	pheS	SynWH7803_1712	-	phenylalanyl-tRNA synthetase alpha subunit
1713	 65.06	0	1567898..1568707	+	269	148240049	surE	SynWH7803_1713	-	5'-nucleotidase SurE
1714	 63.99	0	1568692..1569252	-	186	148240050	-	SynWH7803_1714	-	hypothetical protein
1715	 66.77	+1	1569312..1570238	+	308	148240051	ribF	SynWH7803_1715	-	riboflavin biosynthesis protein ribF (riboflavin kinase / FMN adenylyltransferase)
1716	 66.29	+1	1570375..1571436	+	353	148240052	thiE	SynWH7803_1716	-	thiamine-phosphate pyrophosphorylase
1717	 58.94	0	1571451..1571657	+	68	148240053	thiS	SynWH7803_1717	-	sulfur transfer protein involved in thiamine biosynthesis
1718	 64.92	0	1571683..1572657	+	324	148240054	-	SynWH7803_1718	-	hypothetical protein
1719	 61.31	0	1572754..1572921	+	55	148240055	-	SynWH7803_1719	-	hypothetical protein
1720	 59.65	0	1572999..1573169	+	56	148240056	-	SynWH7803_1720	-	hypothetical protein
1721	 65.47	+1	1573166..1573831	-	221	148240057	cpmA	SynWH7803_1721	-	circadian phase modifier CpmA-like protein
1722	 63.60	0	1573828..1574283	-	151	148240058	-	SynWH7803_1722	-	hypothetical protein
1723	 60.87	0	1574280..1574762	-	160	148240059	ispF	SynWH7803_1723	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
1724	 64.47	0	1574763..1575491	-	242	148240060	trmD	SynWH7803_1724	-	tRNA-(guanine-N1)-methyltransferase
1725	 65.15	0	1575498..1575959	-	153	148240061	-	SynWH7803_1725	-	hypothetical protein
1726	 63.58	0	1575984..1576922	-	312	148240062	era	SynWH7803_1726	-	GTP-binding protein Era
1727	 64.18	0	1576995..1577516	+	173	148240063	-	SynWH7803_1727	-	hypothetical protein
1728	 61.22	0	1577902..1578636	-	244	148240064	-	SynWH7803_1728	-	integral membrane protein
1729	 62.11	0	1578689..1579720	-	343	148240065	-	SynWH7803_1729	-	PhoH-like hosphate starvation-inducible protein
1730	 64.03	0	1579729..1580145	-	138	148240066	rpsP	SynWH7803_1730	-	30S ribosomal protein S16
1731	 64.06	0	1580221..1581792	-	523	148240067	ffh	SynWH7803_1731	-	Signal recognition particle protein
1732	 63.36	0	1581791..1583482	+	563	148240068	-	SynWH7803_1732	-	MFS superfamily sulfate permease
1733	 64.70	0	1583467..1585602	-	711	148240069	-	SynWH7803_1733	-	DnaJ domain-containing protein
1734	 62.74	0	1585649..1586743	+	364	148240070	pdhA	SynWH7803_1734	-	pyruvate dehydrogenase E1 component alpha subunit
1735	 64.04	0	1586745..1587659	-	304	148240071	-	SynWH7803_1735	-	histone deacetylase family protein
1736	 57.86	0	1587697..1588638	-	313	148240072	rpoD	SynWH7803_1736	-	RNA polymerase sigma factor, sigma-70 family
1737	 66.28	+1	1588796..1590346	-	516	148240073	-	SynWH7803_1737	-	fused sugar kinase/uncharacterized domain-containing protein
1738	 64.36	0	1590406..1591575	+	389	148240074	trmU	SynWH7803_1738	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1739	 65.41	+1	1591499..1593010	-	503	148240075	lnt	SynWH7803_1739	-	apolipoprotein N-acyltransferase
1740	 64.24	0	1593064..1593393	+	109	148240076	-	SynWH7803_1740	-	hypothetical protein
1741	 64.19	0	1593429..1594034	+	201	148240077	fkpA	SynWH7803_1741	-	FKBP-type peptidyl-prolyl cis-trans isomerase
1742	 61.00	0	1594105..1594704	+	199	148240078	sodB	SynWH7803_1742	-	superoxide dismutase
1743	 60.23	0	1594750..1595634	-	294	148240079	trpC	SynWH7803_1743	-	indole-3-glycerol-phosphate synthase
1744	 62.04	0	1595657..1597105	-	482	148240080	lpdA	SynWH7803_1744	-	dihydrolipoamide dehydrogenase
1745	 63.24	0	1597102..1597977	-	291	148240081	spoU	SynWH7803_1745	-	rRNA methylase
1746	 62.05	0	1598495..1599793	+	432	148240082	murA	SynWH7803_1746	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1747	 62.57	0	1599995..1601215	+	406	148240083	argD	SynWH7803_1747	-	acetylornithine aminotransferase
1748	 66.10	+1	1601212..1602456	+	414	148240084	folC	SynWH7803_1748	-	FolC bifunctional protein (folylpolyglutamate synthase / dihydrofolate synthase)
1749	 62.10	0	1602479..1603003	+	174	148240085	-	SynWH7803_1749	-	pentapeptide repeat-containing protein
1750	 65.09	0	1602993..1604324	-	443	148240086	-	SynWH7803_1750	-	FAD/FMN-containing dehydrogenase
1751	 66.83	+1	1604352..1605581	-	409	148240087	codA	SynWH7803_1751	-	cytosine deaminase
1752	 64.61	0	1605578..1606063	-	161	148240088	-	SynWH7803_1752	-	hypothetical protein
1753	 64.60	0	1606138..1607199	-	353	148240089	-	SynWH7803_1753	-	hypothetical protein
1754	 63.34	0	1607199..1608281	-	360	148240090	-	SynWH7803_1754	-	L-alanine-DL-glutamate epimerase
1755	 61.90	0	1608409..1609773	+	454	148240091	miaB	SynWH7803_1755	-	2-methylthioadenine synthetase
1756	 63.75	0	1609812..1610873	+	353	148240092	ddl	SynWH7803_1756	-	D-alanine--D-alanine ligase
1757	 60.05	0	1610902..1611309	+	135	148240093	-	SynWH7803_1757	-	hypothetical protein
1758	 63.85	0	1611309..1612160	+	283	148240094	ftsQ	SynWH7803_1758	-	cell division protein FtsQ
1759	 61.23	0	1612267..1613388	+	373	148240095	ftsZ	SynWH7803_1759	-	cell division protein FtsZ
1760	 63.61	0	1613580..1614398	+	272	148240096	panB	SynWH7803_1760	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
1761	 65.05	0	1614274..1615572	-	432	148240097	hemN	SynWH7803_1761	-	oxygen independent coproporphyrinogen III oxidase
1762	 62.68	0	1615596..1616798	+	400	148240098	-	SynWH7803_1762	-	integral membrane protein
1763	 59.38	0	1616829..1617500	+	223	148240099	clpP	SynWH7803_1763	-	ATP-dependent Clp protease-like protein
1764	 59.54	0	1617546..1618148	+	200	148240100	clpP	SynWH7803_1764	-	ATP-dependent Clp protease proteolytic subunit
1765	 60.84	0	1618205..1619200	+	331	148240101	ilvC	SynWH7803_1765	-	ketol-acid reductoisomerase
1766	 65.76	+1	1619229..1620224	+	331	148240102	cobD/cbiB	SynWH7803_1766	-	cobalamin biosynthesis protein CobD/CbiB
1767	 60.68	0	1620240..1620974	-	244	148240103	-	SynWH7803_1767	-	sugar transferase
1768	 55.81	0	1621195..1621452	+	85	148240104	-	SynWH7803_1768	-	hypothetical protein
1769	 67.18	+1	1621592..1623547	-	651	148240105	-	SynWH7803_1769	-	membrane metal-binding protein
1770	 61.73	0	1623601..1624491	-	296	148240106	glyQ	SynWH7803_1770	-	glycyl-tRNA synthetase subunit alpha
1771	 61.21	0	1624541..1624888	-	115	148240107	-	SynWH7803_1771	-	hypothetical protein
1772	 64.10	0	1624975..1625676	-	233	148240108	ubiE	SynWH7803_1772	-	menaquinone biosynthesis methyltransferase ubiE
1773	 55.56	0	1625673..1625906	-	77	148240109	-	SynWH7803_1773	-	hypothetical protein
1774	 62.75	0	1625964..1626755	-	263	148240110	hisF	SynWH7803_1774	-	imidazole glycerol phosphate synthase subunit HisF
1775	 56.62	0	1626810..1627028	+	72	148240111	-	SynWH7803_1775	-	hypothetical protein
1776	 60.27	0	1627040..1627993	+	317	148240112	chlG	SynWH7803_1776	-	bacteriochlorophyll/chlorophyll a synthase
1777	 63.04	0	1627990..1630029	+	679	148240113	-	SynWH7803_1777	-	glycosyltransferase
1778	 66.74	+1	1630007..1631350	-	447	148240114	rsmB	SynWH7803_1778	-	ribosomal RNA small subunit methyltransferase B
1779	 56.93	0	1631487..1633109	+	540	148240115	-	SynWH7803_1779	-	porin-like protein
1780	 62.81	0	1633038..1633478	-	146	148240116	-	SynWH7803_1780	-	methylated DNA-protein cysteine methyltransferase
1781	 67.87	+1	1633478..1633810	-	110	148240117	-	SynWH7803_1781	-	hypothetical protein
1782	 64.35	0	1633953..1634642	+	229	148240118	spoU	SynWH7803_1782	-	tRNA (guanosine-2'-O-)-methyltransferase
1783	 61.67	0	1634693..1635412	+	239	148240119	-	SynWH7803_1783	-	glutaredoxine domain-containing protein
1784	 62.45	0	1635447..1635707	-	86	148240120	-	SynWH7803_1784	-	hypothetical protein
1785	 65.86	+1	1635728..1636600	-	290	148240121	dppC	SynWH7803_1785	-	ABC-type dipeptide/oligopeptide/nickel transport system, permease component
1786	 64.47	0	1636666..1638075	+	469	148240122	-	SynWH7803_1786	-	two-component system sensor histidine kinase
1787	 61.29	0	1638075..1638446	+	123	148240123	-	SynWH7803_1787	-	hypothetical protein
1788	 63.87	0	1638394..1639857	-	487	148240124	-	SynWH7803_1788	-	two-component system sensor histidine kinase
1789	 63.95	0	1639951..1640538	-	195	148240125	-	SynWH7803_1789	-	hypothetical protein
1790	 67.80	+1	1640546..1641073	-	175	148240126	-	SynWH7803_1790	-	pili subunit superfamily protein
1791	 66.67	+1	1641070..1641474	-	134	148240127	-	SynWH7803_1791	-	hypothetical protein
1792	 70.08	+2	1641474..1641971	-	165	148240128	-	SynWH7803_1792	-	hypothetical protein
1793	 63.84	0	1642048..1642755	+	235	148240129	-	SynWH7803_1793	-	two-component system response regulator
1794	 64.80	0	1642730..1644016	-	428	148240130	-	SynWH7803_1794	-	two-component system sensor histidine kinase
1795	 49.68	-2	1644150..1644614	+	154	148240131	-	SynWH7803_1795	-	pili subunit superfamily protein
1796	 47.42	-2	1644983..1645486	+	167	148240132	-	SynWH7803_1796	-	pili subunit superfamily protein
1797	 47.24	-2	1645501..1647477	+	658	148240133	-	SynWH7803_1797	-	hypothetical protein
1798	 48.64	-2	1647606..1648121	+	171	148240134	-	SynWH7803_1798	-	pili subunit superfamily protein
1799	 47.04	-2	1648118..1648810	+	230	148240135	-	SynWH7803_1799	-	pili subunit superfamily protein
60.32	MEAN

4.87	STD DEV
