IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. WH 7803

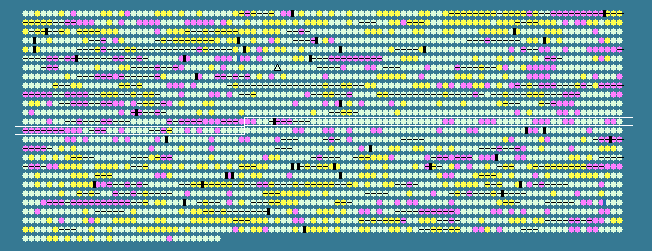

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.32 STD DEV: 4.87
Synechococcus sp. WH 7803, complete genome - 1..2366980
2533 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1238	 49.26	-2	1128705..1130606	-	633	148239574	htpG	SynWH7803_1238	-	heat shock protein 90
1239	 44.44	-2	1130717..1130941	-	74	148239575	-	SynWH7803_1239	-	ferredoxin
1240	 58.44	0	1130966..1132144	-	392	148239576	hisZ	SynWH7803_1240	-	ATP phosphoribosyltransferase regulatory subunit
1241	 59.66	0	1132166..1133050	-	294	148239577	suhB	SynWH7803_1241	-	inositol-1-monophosphatase
1242	 59.56	0	1133050..1133415	-	121	148239578	petF	SynWH7803_1242	-	ferredoxin
1243	 54.17	-1	1133646..1134461	-	271	148239579	pstB	SynWH7803_1243	-	ABC-type phosphate transport system ATPase component
1244	 52.19	-1	1134500..1135411	-	303	148239580	pstA	SynWH7803_1244	-	ABC-type phosphate transport system permease component
1245	 51.90	-1	1135414..1136361	-	315	148239581	pstC	SynWH7803_1245	-	ABC-type phosphate transport system permease component
1246	 59.22	0	1136507..1138507	+	666	148239582	dnaK	SynWH7803_1246	-	chaperone protein DnaK
1247	 61.24	0	1138491..1139411	+	306	148239583	dnaJ	SynWH7803_1247	-	chaperone protein DnaJ
1248	 58.21	0	1139452..1139853	+	133	148239584	-	SynWH7803_1248	-	hypothetical protein
1249	 61.62	0	1139850..1140800	+	316	148239585	murQ	SynWH7803_1249	-	N-acetylmuramic acid-6-phosphate etherase
1250	 61.66	0	1140773..1141690	-	305	148239586	-	SynWH7803_1250	-	5'-methylthioadenosine phosphorylase
1251	 57.58	0	1141766..1142194	+	142	148239587	ppiB	SynWH7803_1251	-	peptidyl-prolyl cis-trans isomerase
1252	 57.75	0	1142182..1143864	-	560	148239588	ribA	SynWH7803_1252	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
1253	 60.09	0	1143905..1144969	+	354	148239589	argC	SynWH7803_1253	-	N-acetyl-gamma-glutamyl-phosphate reductase
1254	 59.88	0	1144960..1145652	-	230	148239590	purN	SynWH7803_1254	-	phosphoribosylglycinamide formyltransferase
1255	 60.80	0	1145662..1146036	+	124	148239591	-	SynWH7803_1255	-	hypothetical protein
1256	 57.41	0	1146036..1147742	+	568	148239592	-	SynWH7803_1256	-	protease
1257	 57.10	0	1147724..1148632	+	302	148239593	-	SynWH7803_1257	-	N-acetylmuramoyl-L-alanine amidase
1258	 58.30	0	1148657..1149445	-	262	148239594	-	SynWH7803_1258	-	hypothetical protein
1259	 59.53	0	1149552..1151162	+	536	148239595	pgi	SynWH7803_1259	-	glucose-6-phosphate isomerase
1260	 59.95	0	1151169..1153805	-	878	148239596	leuS	SynWH7803_1260	-	leucyl-tRNA synthetase
1261	 57.21	0	1153860..1154081	-	73	148239597	-	SynWH7803_1261	-	hypothetical protein
1262	 59.98	0	1154109..1155215	+	368	148239598	dapF	SynWH7803_1262	-	diaminopimelate epimerase
1263	 62.61	0	1155202..1156383	+	393	148239599	nifS	SynWH7803_1263	-	cysteine desulfurase
1264	 61.06	0	1156428..1157123	+	231	148239600	-	SynWH7803_1264	-	hypothetical protein
1265	 59.50	0	1157169..1157684	+	171	148239601	-	SynWH7803_1265	-	hypothetical protein
1266	 59.95	0	1157681..1158991	+	436	148239602	dacB	SynWH7803_1266	-	D-alanyl-D-alanine carboxypeptidase
1267	 59.25	0	1158936..1159865	-	309	148239603	-	SynWH7803_1267	-	hypothetical protein
1268	 57.03	0	1159862..1160359	-	165	148239604	coaD	SynWH7803_1268	-	phosphopantetheine adenylyltransferase
1269	 57.27	0	1160418..1162376	+	652	148239605	uvrC	SynWH7803_1269	-	excinuclease ABC subunit C
1270	 61.06	0	1162373..1162675	+	100	148239606	-	SynWH7803_1270	-	hypothetical protein
1271	 55.91	0	1162678..1164165	+	495	148239607	-	SynWH7803_1271	-	deoxyribodipyrimidine photolyase-like protein protein
1272	 56.22	0	1164202..1164756	+	184	148239608	-	SynWH7803_1272	-	hypothetical protein
1273	 60.73	0	1164780..1165436	+	218	148239609	-	SynWH7803_1273	-	metal-dependent phosphoesterase
1274	 57.77	0	1165464..1166036	+	190	148239610	-	SynWH7803_1274	-	hypothetical protein
1275	 60.74	0	1166045..1169821	-	1258	148239611	cobN	SynWH7803_1275	-	aerobic cobaltochelatase CobN subunit
1276	 58.82	0	1169894..1170811	+	305	148239612	ilvE	SynWH7803_1276	-	branched-chain amino acid aminotransferase
1277	 55.17	-1	1170894..1174511	+	1205	148239613	metH	SynWH7803_1277	-	methionine synthase (5-methyltetrahydrofolate--homocysteine methyltransferase)
1278	 56.04	0	1174557..1174829	+	90	148239614	-	SynWH7803_1278	-	hypothetical protein
1279	 55.84	0	1174857..1175087	-	76	148239615	-	SynWH7803_1279	-	hypothetical protein
1280	 57.35	0	1175199..1175606	+	135	148239616	-	SynWH7803_1280	-	hypothetical protein
1281	 58.30	0	1175588..1176316	-	242	148239617	-	SynWH7803_1281	-	dehydrogenase
1282	 58.81	0	1176341..1177282	+	313	148239618	-	SynWH7803_1282	-	hypothetical protein
1283	 59.21	0	1177272..1178183	+	303	148239619	-	SynWH7803_1283	-	ATP adenylyltransferase
1284	 58.14	0	1178185..1178817	+	210	148239620	-	SynWH7803_1284	-	DNA-directed RNA polymerase specialized sigma subunit
1285	 57.38	0	1178799..1178981	-	60	148239621	-	SynWH7803_1285	-	hypothetical protein
1286	 54.53	-1	1179088..1180743	+	551	148239622	-	SynWH7803_1286	-	hypothetical protein
1287	 55.95	0	1180779..1181804	+	341	148239623	-	SynWH7803_1287	-	chaperone
1288	 55.35	-1	1182304..1182798	-	164	148239624	apcD	SynWH7803_1288	-	allophycocyanin subunit alpha
1289	 57.82	0	1182879..1184279	+	466	148239625	-	SynWH7803_1289	-	putative RNA methyltransferase
1290	 58.40	0	1184248..1186704	-	818	148239626	pheT	SynWH7803_1290	-	phenylalanyl-tRNA synthetase beta subunit
1291	 51.79	-1	1186832..1187026	+	64	148239627	rpmG	SynWH7803_1291	-	50S ribosomal protein L33
1292	 56.31	0	1187077..1187298	+	73	148239628	rpsR	SynWH7803_1292	-	30S ribosomal protein S18
1293	 58.92	0	1187410..1189359	+	649	148239629	-	SynWH7803_1293	-	exoribonuclease R/ribonuclease II
1294	 59.23	0	1189368..1189730	-	120	148239630	-	SynWH7803_1294	-	hypothetical protein
1295	 60.73	0	1189732..1190304	-	190	148239631	-	SynWH7803_1295	-	hypothetical protein
1296	 58.58	0	1190301..1191017	-	238	148239632	pgl	SynWH7803_1296	-	6-phosphogluconolactonase
1297	 57.08	0	1191028..1192446	-	472	148239633	gnd	SynWH7803_1297	-	6-phosphogluconate dehydrogenase
1298	 54.86	-1	1192534..1193829	-	431	148239634	glgC	SynWH7803_1298	-	glucose-1-phosphate adenylyltransferase
1299	 56.64	0	1193924..1195240	-	438	148239635	hemA	SynWH7803_1299	-	glutamyl-tRNA reductase
1300	 59.90	0	1195272..1196276	-	334	148239636	glpX	SynWH7803_1300	-	fructose 1,6-bisphosphatase II
1301	 56.29	0	1196420..1197103	+	227	148239637	-	SynWH7803_1301	-	ribulose-phosphate 3-epimerase
1302	 45.90	-2	1197474..1197656	+	60	148239638	-	SynWH7803_1302	-	hypothetical protein
1303	 55.66	0	1197703..1198665	-	320	148239639	ccmC	SynWH7803_1303	-	ABC-type transport system involved in cytochrome c biogenesis permease component
1304	 47.21	-2	1198963..1199625	+	220	148239640	-	SynWH7803_1304	-	hypothetical protein
1305	 47.76	-2	1199750..1201309	-	519	148239641	-	SynWH7803_1305	-	major facilitator superfamily permease
1306	 42.36	-2	1201312..1202607	-	431	148239642	-	SynWH7803_1306	-	hypothetical protein
1307	 44.95	-2	1202713..1203375	+	220	148239643	-	SynWH7803_1307	-	hypothetical protein
1308	 44.99	-2	1203415..1204263	-	282	148239644	-	SynWH7803_1308	-	hypothetical protein
1309	 47.52	-2	1204409..1205296	-	295	148239645	-	SynWH7803_1309	-	hypothetical protein
1310	 55.18	-1	1205491..1206657	-	388	148239646	-	SynWH7803_1310	-	permease
1311	 57.63	0	1206654..1207295	-	213	148239647	-	SynWH7803_1311	-	ABC transporter ATP-binding component
1312	 57.25	0	1207379..1207792	-	137	148239648	-	SynWH7803_1312	-	hypothetical protein
1313	 55.20	-1	1207872..1208246	-	124	148239649	-	SynWH7803_1313	-	hypothetical protein
1314	 56.55	0	1208243..1210051	-	602	148239650	typA	SynWH7803_1314	-	GTP-binding protein TypA/BipA-like protein
1315	 58.91	0	1210116..1212680	-	854	148239651	-	SynWH7803_1315	-	peptidase
1316	 58.17	0	1212683..1213435	-	250	148239652	-	SynWH7803_1316	-	D-alanyl-D-alanine carboxypeptidase
1317	 56.40	0	1213545..1214918	+	457	148239653	chlP	SynWH7803_1317	-	geranylgeranyl hydrogenase ChlP
1318	 57.13	0	1214970..1217129	-	719	148239654	glyS	SynWH7803_1318	-	glycyl-tRNA synthetase beta subunit
1319	 58.57	0	1217248..1219014	+	588	148239655	sir	SynWH7803_1319	-	sulfite reductase subunit beta
1320	 61.67	0	1218936..1219715	-	259	148239656	ddpX	SynWH7803_1320	-	D-ala-D-ala dipeptidase
1321	 59.32	0	1219756..1222287	-	843	148239657	recG	SynWH7803_1321	-	ATP-dependent DNA helicase
1322	 61.21	0	1222039..1222203	+	54	148239658	-	SynWH7803_1322	-	hypothetical protein
1323	 61.99	0	1222355..1222525	+	56	148239659	-	SynWH7803_1323	-	hypothetical protein
1324	 42.04	-2	1222540..1223343	-	267	148239660	-	SynWH7803_1324	-	hypothetical protein
1325	 64.30	0	1223452..1223958	+	168	148239661	proA	SynWH7803_1325	-	gamma-glutamyl phosphate reductase
1326	 61.24	0	1223986..1224372	+	128	148239662	proA	SynWH7803_1326	-	gamma-glutamyl phosphate reductase
1327	 58.18	0	1224417..1225535	-	372	148239663	-	SynWH7803_1327	-	hypothetical protein
1328	 56.06	0	1225586..1226245	-	219	148239664	tsf	SynWH7803_1328	-	elongation factor Ts
1329	 58.19	0	1226333..1227052	-	239	148239665	rpsB	SynWH7803_1329	-	30S ribosomal protein S2
1330	 56.16	0	1227186..1228118	-	310	148239666	-	SynWH7803_1330	-	glycosyl transferase family protein
1331	 58.97	0	1228205..1228360	-	51	148239667	-	SynWH7803_1331	-	hypothetical protein
1332	 59.97	0	1228396..1229127	-	243	148239668	devA	SynWH7803_1332	-	DevA-like ABC transporter ATPase component
1333	 53.03	-1	1229127..1230299	-	390	148239669	devC	SynWH7803_1333	-	DevC-like ABC transporter permease component
1334	 59.82	0	1230296..1231201	-	301	148239670	devB	SynWH7803_1334	-	DevB-like secretion protein
1335	 58.23	0	1231201..1231935	-	244	148239671	pcyA	SynWH7803_1335	-	phycocyanobilin:ferredoxin oxidoreductase
1336	 59.56	0	1231960..1233267	+	435	148239672	-	SynWH7803_1336	-	Zn-dependent peptidase
1337	 60.77	0	1233264..1234517	+	417	148239673	-	SynWH7803_1337	-	Zn-dependent peptidase
60.32	MEAN

4.87	STD DEV
