IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. WH 7803

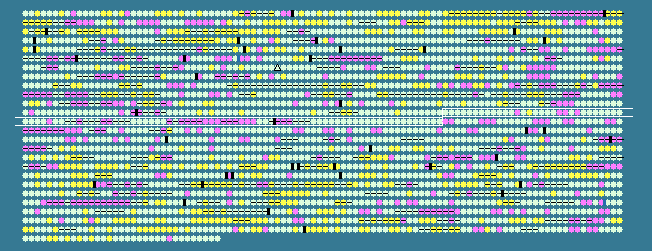

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.32 STD DEV: 4.87
Synechococcus sp. WH 7803, complete genome - 1..2366980
2533 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1171	 63.29	0	1069317..1069997	-	226	148239507	-	SynWH7803_1171	-	ICC-like phosphoesterase
1172	 61.38	0	1070085..1070273	+	62	148239508	-	SynWH7803_1172	-	hypothetical protein
1173	 59.78	0	1070355..1071428	+	357	148239509	-	SynWH7803_1173	-	hypothetical protein
1174	 59.07	0	1071452..1071688	-	78	148239510	-	SynWH7803_1174	-	hypothetical protein
1175	 58.29	0	1071776..1072372	+	198	148239511	-	SynWH7803_1175	-	hypothetical protein
1176	 58.22	0	1072369..1072581	+	70	148239512	-	SynWH7803_1176	-	hypothetical protein
1177	 57.41	0	1072569..1072730	-	53	148239513	-	SynWH7803_1177	-	hypothetical protein
1178	 60.14	0	1072815..1074284	-	489	148239514	-	SynWH7803_1178	-	porin-like protein
1179	 60.74	0	1074323..1075132	-	269	148239515	-	SynWH7803_1179	-	ABC transporter ATPase component
1180	 61.11	0	1075168..1075383	+	71	148239516	-	SynWH7803_1180	-	Zn-ribbon protein
1181	 61.43	0	1075380..1075799	-	139	148239517	-	SynWH7803_1181	-	NUDIX hydrolase
1182	 57.14	0	1075807..1076058	-	83	148239518	-	SynWH7803_1182	-	hypothetical protein
1183	 56.51	0	1076404..1076925	-	173	148239519	-	SynWH7803_1183	-	hypothetical protein
1184	 59.02	0	1076930..1077400	-	156	148239520	-	SynWH7803_1184	-	hypothetical protein
1185	 64.67	0	1077454..1078155	+	233	148239521	-	SynWH7803_1185	-	hypothetical protein
1186	 58.42	0	1078163..1078768	-	201	148239522	-	SynWH7803_1186	-	hypothetical protein
1187	 63.38	0	1078765..1079952	-	395	148239523	chrA	SynWH7803_1187	-	chromate transporter
1188	 62.28	0	1079980..1082370	-	796	148239524	-	SynWH7803_1188	-	putative ATP-dependent helicase
1189	 57.62	0	1082424..1082633	-	69	148239525	-	SynWH7803_1189	-	hypothetical protein
1190	 50.86	-1	1082692..1083678	+	328	148239526	-	SynWH7803_1190	-	hypothetical protein
1191	 56.16	0	1083675..1083950	+	91	148239527	-	SynWH7803_1191	-	hypothetical protein
1192	 60.01	0	1083977..1085524	+	515	148239528	speE	SynWH7803_1192	-	spermidine synthase
1193	 51.48	-1	1085623..1086129	+	168	148239529	-	SynWH7803_1193	-	hypothetical protein
1194	 61.13	0	1086126..1087823	-	565	148239530	lig	SynWH7803_1194	-	ATP-dependent DNA ligase
1195	 62.18	0	1087849..1088205	-	118	148239531	-	SynWH7803_1195	-	hypothetical protein
1196	 62.37	0	1088234..1089211	-	325	148239532	-	SynWH7803_1196	-	RNA processing exonuclease
1197	 57.72	0	1089293..1090891	+	532	148239533	-	SynWH7803_1197	-	putative multicopper oxidase
1198	 57.56	0	1090911..1091843	-	310	148239534	nadA	SynWH7803_1198	-	quinolinate synthetase
1199	 63.52	0	1091953..1092747	+	264	148239535	-	SynWH7803_1199	-	phosphoesterase
1200	 62.65	0	1092747..1093841	+	364	148239536	-	SynWH7803_1200	-	hypothetical protein
1201	 58.06	0	1094066..1094809	+	247	148239537	-	SynWH7803_1201	-	muramidase
1202	 61.07	0	1094842..1095645	-	267	148239538	-	SynWH7803_1202	-	hypothetical protein
1203	 60.67	0	1095681..1096913	+	410	148239539	-	SynWH7803_1203	-	hypothetical protein
1204	 58.51	0	1096885..1097988	-	367	148239540	aroB	SynWH7803_1204	-	3-dehydroquinate synthase
1205	 54.21	-1	1098060..1098950	+	296	148239541	-	SynWH7803_1205	-	ABC-type sugar transport systems, permease component
1206	 59.87	0	1098967..1100202	+	411	148239542	purK	SynWH7803_1206	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1207	 59.06	0	1100392..1100667	-	91	148239543	-	SynWH7803_1207	-	hypothetical protein
1208	 58.77	0	1100746..1100973	+	75	148239544	-	SynWH7803_1208	-	hypothetical protein
1209	 57.70	0	1100980..1102362	-	460	148239545	-	SynWH7803_1209	-	major facilitator superfamily permease
1210	 54.88	-1	1102398..1102694	-	98	148239546	clpS	SynWH7803_1210	-	ATP-dependent Clp protease adaptor
1211	 56.86	0	1102765..1102866	+	33	148239547	petN	SynWH7803_1211	-	cytochrome b6-f complex subunit PetN
1212	 59.22	0	1103007..1104416	+	469	148239548	-	SynWH7803_1212	-	hypothetical protein
1213	 57.12	0	1104407..1105087	-	226	161347491	-	SynWH7803_1213	-	Thf1-like protein
1214	 52.12	-1	1105168..1105758	+	196	148239550	clpP	SynWH7803_1214	-	ATP-dependent Clp protease proteolytic subunit
1215	 45.30	-2	1105827..1106060	-	77	148239551	-	SynWH7803_1215	-	hypothetical protein
1216	 56.95	0	1106103..1108016	-	637	148239552	ftsH	SynWH7803_1216	-	cell division protein FtsH
1217	 57.56	0	1108080..1109309	-	409	148239553	-	SynWH7803_1217	-	peptide ABC transporter permease
1218	 58.15	0	1109324..1111108	-	594	148239554	pykF	SynWH7803_1218	-	pyruvate kinase
1219	 57.88	0	1111165..1111494	+	109	148239555	-	SynWH7803_1219	-	MazG family pyrophosphatase
1220	 57.76	0	1111498..1111800	-	100	148239556	-	SynWH7803_1220	-	hypothetical protein
1221	 58.24	0	1111825..1112370	-	181	148239557	-	SynWH7803_1221	-	transcriptional regulator
1222	 60.01	0	1112425..1113957	-	510	148239558	ilvA	SynWH7803_1222	-	threonine dehydratase
1223	 57.36	0	1114035..1115978	+	647	148239559	dxs	SynWH7803_1223	-	1-deoxy-D-xylulose-5-phosphate synthase
1224	 58.14	0	1116030..1116287	-	85	148239560	psaK	SynWH7803_1224	-	photosystem I reaction center subunit X
1225	 56.01	0	1116355..1116645	-	96	148239561	-	SynWH7803_1225	-	hypothetical protein
1226	 57.41	0	1116645..1116968	-	107	148239562	-	SynWH7803_1226	-	hypothetical protein
1227	 49.05	-2	1117015..1118121	+	368	148239563	-	SynWH7803_1227	-	hypothetical protein
1228	 42.94	-2	1118150..1119169	-	339	148239564	sphX	SynWH7803_1228	-	ABC transporter, substrate binding protein, phosphate
1229	 41.90	-2	1119229..1120383	-	384	148239565	corA	SynWH7803_1229	-	Mg2+/Co2+ transporter
1230	 40.33	-2	1120461..1122332	-	623	148239566	-	SynWH7803_1230	-	hypothetical protein
1231	 46.19	-2	1122356..1123327	-	323	148239567	malK	SynWH7803_1231	-	ABC-type sugar transport system, ATPase component
1232	 44.98	-2	1123324..1124139	-	271	148239568	ugpE	SynWH7803_1232	-	ABC-type sugar transport system, permease component
1233	 46.96	-2	1124136..1125008	-	290	148239569	ugpA	SynWH7803_1233	-	ABC-type sugar transport system, permease component
1234	 45.12	-2	1125005..1126285	-	426	148239570	ugpB	SynWH7803_1234	-	ABC-type sugar transport system, periplasmic component
1235	 43.06	-2	1126291..1127781	-	496	148239571	-	SynWH7803_1235	-	glycosyltransferase of family trehalose-phosphate synthase
1236	 51.81	-1	1127843..1128394	-	183	148239572	ccp	SynWH7803_1236	-	peroxiredoxin
1237	 54.85	-1	1128411..1128647	-	78	148239573	rpmB	SynWH7803_1237	-	50S ribosomal protein L28
1238	 49.26	-2	1128705..1130606	-	633	148239574	htpG	SynWH7803_1238	-	heat shock protein 90
1239	 44.44	-2	1130717..1130941	-	74	148239575	-	SynWH7803_1239	-	ferredoxin
1240	 58.44	0	1130966..1132144	-	392	148239576	hisZ	SynWH7803_1240	-	ATP phosphoribosyltransferase regulatory subunit
1241	 59.66	0	1132166..1133050	-	294	148239577	suhB	SynWH7803_1241	-	inositol-1-monophosphatase
1242	 59.56	0	1133050..1133415	-	121	148239578	petF	SynWH7803_1242	-	ferredoxin
1243	 54.17	-1	1133646..1134461	-	271	148239579	pstB	SynWH7803_1243	-	ABC-type phosphate transport system ATPase component
1244	 52.19	-1	1134500..1135411	-	303	148239580	pstA	SynWH7803_1244	-	ABC-type phosphate transport system permease component
1245	 51.90	-1	1135414..1136361	-	315	148239581	pstC	SynWH7803_1245	-	ABC-type phosphate transport system permease component
1246	 59.22	0	1136507..1138507	+	666	148239582	dnaK	SynWH7803_1246	-	chaperone protein DnaK
1247	 61.24	0	1138491..1139411	+	306	148239583	dnaJ	SynWH7803_1247	-	chaperone protein DnaJ
1248	 58.21	0	1139452..1139853	+	133	148239584	-	SynWH7803_1248	-	hypothetical protein
1249	 61.62	0	1139850..1140800	+	316	148239585	murQ	SynWH7803_1249	-	N-acetylmuramic acid-6-phosphate etherase
1250	 61.66	0	1140773..1141690	-	305	148239586	-	SynWH7803_1250	-	5'-methylthioadenosine phosphorylase
1251	 57.58	0	1141766..1142194	+	142	148239587	ppiB	SynWH7803_1251	-	peptidyl-prolyl cis-trans isomerase
1252	 57.75	0	1142182..1143864	-	560	148239588	ribA	SynWH7803_1252	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
1253	 60.09	0	1143905..1144969	+	354	148239589	argC	SynWH7803_1253	-	N-acetyl-gamma-glutamyl-phosphate reductase
1254	 59.88	0	1144960..1145652	-	230	148239590	purN	SynWH7803_1254	-	phosphoribosylglycinamide formyltransferase
1255	 60.80	0	1145662..1146036	+	124	148239591	-	SynWH7803_1255	-	hypothetical protein
1256	 57.41	0	1146036..1147742	+	568	148239592	-	SynWH7803_1256	-	protease
1257	 57.10	0	1147724..1148632	+	302	148239593	-	SynWH7803_1257	-	N-acetylmuramoyl-L-alanine amidase
1258	 58.30	0	1148657..1149445	-	262	148239594	-	SynWH7803_1258	-	hypothetical protein
1259	 59.53	0	1149552..1151162	+	536	148239595	pgi	SynWH7803_1259	-	glucose-6-phosphate isomerase
1260	 59.95	0	1151169..1153805	-	878	148239596	leuS	SynWH7803_1260	-	leucyl-tRNA synthetase
1261	 57.21	0	1153860..1154081	-	73	148239597	-	SynWH7803_1261	-	hypothetical protein
1262	 59.98	0	1154109..1155215	+	368	148239598	dapF	SynWH7803_1262	-	diaminopimelate epimerase
1263	 62.61	0	1155202..1156383	+	393	148239599	nifS	SynWH7803_1263	-	cysteine desulfurase
1264	 61.06	0	1156428..1157123	+	231	148239600	-	SynWH7803_1264	-	hypothetical protein
1265	 59.50	0	1157169..1157684	+	171	148239601	-	SynWH7803_1265	-	hypothetical protein
1266	 59.95	0	1157681..1158991	+	436	148239602	dacB	SynWH7803_1266	-	D-alanyl-D-alanine carboxypeptidase
1267	 59.25	0	1158936..1159865	-	309	148239603	-	SynWH7803_1267	-	hypothetical protein
1268	 57.03	0	1159862..1160359	-	165	148239604	coaD	SynWH7803_1268	-	phosphopantetheine adenylyltransferase
1269	 57.27	0	1160418..1162376	+	652	148239605	uvrC	SynWH7803_1269	-	excinuclease ABC subunit C
1270	 61.06	0	1162373..1162675	+	100	148239606	-	SynWH7803_1270	-	hypothetical protein
60.32	MEAN

4.87	STD DEV
