IslandPath Analysis: Synechococcus sp. WH 7803

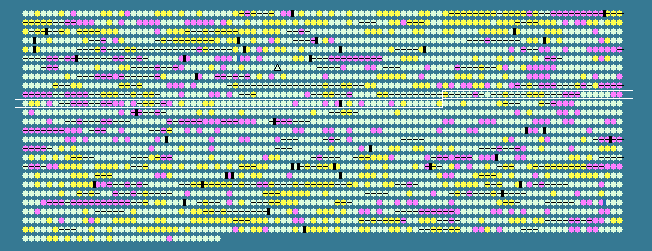

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.32 STD DEV: 4.87
Synechococcus sp. WH 7803, complete genome - 1..2366980
2533 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
971	 64.16	0	897808..899322	-	504	148239307	-	SynWH7803_0971	-	multisubunit Na+/H+ antiporter MnhD subunit
972	 63.36	0	899322..899684	-	120	148239308	-	SynWH7803_0972	-	putative monovalent cation/H+ antiporter subunit C
973	 60.47	0	899685..900701	-	338	148239309	-	SynWH7803_0973	-	hypothetical protein
974	 58.00	0	901091..901390	+	99	148239310	-	SynWH7803_0974	-	hypothetical protein
975	 62.07	0	901418..901591	+	57	148239311	-	SynWH7803_0975	-	hypothetical protein
976	 45.06	-2	902246..902407	+	53	148239312	-	SynWH7803_0976	-	hypothetical protein
977	 60.16	0	902492..902875	+	127	148239313	-	SynWH7803_0977	-	hypothetical protein
978	 61.16	0	902916..903878	+	320	148239314	-	SynWH7803_0978	-	ABC-type Mn2+ transport system, periplasmic component
979	 59.73	0	903875..904624	+	249	148239315	-	SynWH7803_0979	-	ABC-type Mn2+ transport system, ATPase component
980	 61.53	0	904635..905471	+	278	148239316	-	SynWH7803_0980	-	ABC-type Mn2+ transport system permease component
981	 65.84	+1	905462..906553	-	363	148239317	-	SynWH7803_0981	-	DMT family permease
982	 60.91	0	906659..907249	+	196	148239318	-	SynWH7803_0982	-	hypothetical protein
983	 62.02	0	907359..907616	+	85	148239319	-	SynWH7803_0983	-	hypothetical protein
984	 59.65	0	907707..908048	+	113	148239320	petJ	SynWH7803_0984	-	cytochrome C6
985	 65.08	0	908139..909023	+	294	148239321	-	SynWH7803_0985	-	permease
986	 65.51	+1	909039..909728	+	229	148239322	-	SynWH7803_0986	-	hypothetical protein
987	 66.30	+1	909725..911092	+	455	148239323	-	SynWH7803_0987	-	hypothetical protein
988	 62.68	0	911132..911833	+	233	148239324	-	SynWH7803_0988	-	ABC-type Mn2+/Zn2+ transport system ATPase component
989	 62.34	0	911826..912611	+	261	148239325	znuC	SynWH7803_0989	-	ABC-type Mn2+/Zn2+ transport system permease component
990	 58.54	0	912729..913565	+	278	148239326	-	SynWH7803_0990	-	ABC-type Mn2+/Zn2+ transport system periplasmic component
991	 55.61	0	913673..914260	-	195	148239327	-	SynWH7803_0991	-	hypothetical protein
992	 53.12	-1	914351..914830	+	159	148239328	-	SynWH7803_0992	-	hypothetical protein
993	 54.80	-1	914907..916490	-	527	148239329	-	SynWH7803_0993	-	porin-like protein
994	 63.62	0	916611..917267	-	218	148239330	hupE	SynWH7803_0994	-	hydrogenase accessory membrane protein
995	 62.56	0	917408..917602	-	64	148239331	-	SynWH7803_0995	-	hypothetical protein
996	 62.30	0	917705..918529	+	274	148239332	-	SynWH7803_0996	-	hypothetical protein
997	 63.29	0	918574..919284	+	236	148239333	-	SynWH7803_0997	-	hypothetical protein
998	 62.94	0	919301..919702	-	133	148239334	-	SynWH7803_0998	-	redox protein
999	 51.27	-1	919725..920354	-	209	148239335	-	SynWH7803_0999	-	hypothetical protein
1000	 51.44	-1	920361..920603	-	80	148239336	-	SynWH7803_1000	-	hypothetical protein
1001	 63.33	0	920810..921529	+	239	148239337	-	SynWH7803_1001	-	hypothetical protein
1002	 67.28	+1	921529..922671	+	380	148239338	-	SynWH7803_1002	-	dehydrogenase
1003	 64.11	0	922671..923765	+	364	148239339	-	SynWH7803_1003	-	chalcone synthase
1004	 63.13	0	923826..924278	+	150	148239340	-	SynWH7803_1004	-	hypothetical protein
1005	 55.84	0	924296..924526	+	76	148239341	-	SynWH7803_1005	-	hypothetical protein
1006	 63.59	0	924546..925844	-	432	148239342	-	SynWH7803_1006	-	putative cytochrome P450
1007	 62.58	0	925897..926214	+	105	148239343	-	SynWH7803_1007	-	hypothetical protein
1008	 59.74	0	926211..926441	+	76	148239344	-	SynWH7803_1008	-	hypothetical protein
1009	 54.07	-1	926677..926946	-	89	148239345	-	SynWH7803_1009	-	hypothetical protein
1010	 56.14	0	926943..927170	-	75	148239346	-	SynWH7803_1010	-	hypothetical protein
1011	 52.31	-1	927176..927391	-	71	148239347	-	SynWH7803_1011	-	hypothetical protein
1012	 56.93	0	927827..928165	+	112	148239348	-	SynWH7803_1012	-	hypothetical protein
1013	 57.62	0	928486..928695	+	69	148239349	-	SynWH7803_1013	-	hypothetical protein
1014	 47.49	-2	928832..929050	+	72	148239350	-	SynWH7803_1014	-	hypothetical protein
1015	 53.23	-1	929322..929507	+	61	148239351	-	SynWH7803_1015	-	hypothetical protein
1016	 51.86	-1	929687..931246	+	519	148239352	-	SynWH7803_1016	-	hypothetical protein
1017	 52.17	-1	931371..932888	+	505	148239353	-	SynWH7803_1017	-	hypothetical protein
1018	 63.64	0	933018..934208	+	396	148239354	-	SynWH7803_1018	-	hypothetical protein
1019	 55.93	0	934198..934551	-	117	148239355	-	SynWH7803_1019	-	hypothetical protein
1020	 61.97	0	934566..935183	-	205	148239356	lepB	SynWH7803_1020	-	Signal peptidase I
1021	 68.22	+1	935277..937013	+	578	148239357	menD	SynWH7803_1021	-	menaquinone biosynthesis protein MenD (2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylate synthase / 2-oxoglutarate decarboxylase)
1022	 64.73	0	937028..937903	+	291	148239358	menB	SynWH7803_1022	-	naphthoate synthase
1023	 62.56	0	937943..938599	+	218	148239359	-	SynWH7803_1023	-	hypothetical protein
1024	 47.52	-2	938648..939796	+	382	148239360	-	SynWH7803_1024	-	phosphate ABC transporter periplasmic substrate-binding protein
1025	 46.39	-2	939800..941170	+	456	148239361	-	SynWH7803_1025	-	hypothetical protein
1026	 61.52	0	941282..942856	+	524	148239362	glgA	SynWH7803_1026	-	glycogen synthase
1027	 64.29	0	942863..943618	+	251	148239363	-	SynWH7803_1027	-	hypothetical protein
1028	 63.28	0	943615..945030	+	471	148239364	murF	SynWH7803_1028	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alani ne ligase
1029	 58.46	0	945031..945225	-	64	148239365	-	SynWH7803_1029	-	hypothetical protein
1030	 60.00	0	945410..946789	-	459	148239366	glmU	SynWH7803_1030	-	bifunctional N-acetylglucosamine-1-phosphate uridyltransferase / glucosamine-1-phosphate N-acetyltransferase
1031	 66.89	+1	946804..947712	-	302	148239367	-	SynWH7803_1031	-	SAM-dependent methyltransferase
1032	 66.74	+1	947687..949006	-	439	148239368	aroA	SynWH7803_1032	-	3-phosphoshikimate 1-carboxyvinyltransferase
1033	 61.48	0	949012..950592	-	526	148239369	ubiD	SynWH7803_1033	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
1034	 62.89	0	950657..951397	+	246	148239370	comB	SynWH7803_1034	-	2-phosphosulfolactate phosphatase
1035	 60.27	0	951429..952256	+	275	148239371	-	SynWH7803_1035	-	nitrilase
1036	 63.64	0	952265..953356	+	363	148239372	amiC	SynWH7803_1036	-	N-acetylmuramoyl-L-alanine amidase
1037	 63.44	0	953353..954159	+	268	148239373	murI	SynWH7803_1037	-	glutamate racemase
1038	 58.02	0	954182..955153	+	323	148239374	preA	SynWH7803_1038	-	prenyl transferase
1039	 60.51	0	955147..955812	-	221	148239375	-	SynWH7803_1039	-	phosphatase/phosphohexomutase
1040	 61.90	0	955956..957926	+	656	148239376	acsA	SynWH7803_1040	-	Acetyl-coenzyme A synthetase
1041	 61.71	0	957929..958654	-	241	148239377	-	SynWH7803_1041	-	hypothetical protein
1042	 59.04	0	958651..959109	-	152	148239378	-	SynWH7803_1042	-	peroxiredoxin
1043	 61.17	0	959192..960010	+	272	148239379	dnaQ	SynWH7803_1043	-	DNA polymerase III epsilon subunit
1044	 58.82	0	960081..960386	+	101	148239380	-	SynWH7803_1044	-	hypothetical protein
1045	 59.12	0	960478..961458	+	326	148239381	pstSII	SynWH7803_1045	-	ABC-type phosphate transport system, substrate binding protein
1046	 55.41	-1	961589..962263	+	224	148239382	ptrA	SynWH7803_1046	-	Crp family transcriptional regulatory protein
1047	 63.01	0	962344..962589	+	81	148239383	-	SynWH7803_1047	-	hypothetical protein
1048	 58.67	0	962586..963098	+	170	148239384	-	SynWH7803_1048	-	hypothetical protein
1049	 57.48	0	963101..964210	+	369	148239385	-	SynWH7803_1049	-	Rieske domain-containing protein
1050	 58.76	0	964216..964974	+	252	148239386	-	SynWH7803_1050	-	hypothetical protein
1051	 52.39	-1	964984..966006	+	340	148239387	-	SynWH7803_1051	-	DMT family permease
1052	 59.51	0	966003..967511	+	502	148239388	-	SynWH7803_1052	-	fused glutathione synthetase/acetyltransferase domain-containing protein
1053	 54.91	-1	967513..968184	+	223	148239389	-	SynWH7803_1053	-	cysteine dioxygenase type I
1054	 62.85	0	968326..968613	-	95	148239390	-	SynWH7803_1054	-	hypothetical protein
1055	 64.44	0	968687..968866	-	59	148239391	-	SynWH7803_1055	-	hypothetical protein
1056	 61.27	0	968863..969585	-	240	148239392	msrA	SynWH7803_1056	-	peptide methionine sulfoxide reductase
1057	 54.26	-1	969610..969867	-	85	148239393	-	SynWH7803_1057	-	hypothetical protein
1058	 61.76	0	969940..971691	-	583	148239394	-	SynWH7803_1058	-	ABC-type multidrug transport system ATPase and permease components
1059	 60.63	0	971730..972077	+	115	148239395	-	SynWH7803_1059	-	hypothetical protein
1060	 63.04	0	972225..973271	+	348	148239396	trpD	SynWH7803_1060	-	anthranilate phosphoribosyltransferase
1061	 62.39	0	973306..974451	+	381	148239397	carA	SynWH7803_1061	-	carbamoyl phosphate synthase small subunit
1062	 55.33	-1	974583..974882	+	99	148239398	spoIIAA	SynWH7803_1062	-	anti-anti-sigma regulatory factor (antagonist of anti-sigma factor)
1063	 61.56	0	974879..975289	+	136	148239399	-	SynWH7803_1063	-	ribonuclease III family protein
1064	 66.81	+1	975301..976671	+	456	148239400	-	SynWH7803_1064	-	tRNA/rRNA methyltransferase
1065	 60.44	0	976748..976972	+	74	148239401	-	SynWH7803_1065	-	hypothetical protein
1066	 61.95	0	977031..978494	+	487	148239402	gatA	SynWH7803_1066	-	glutamyl-tRNA(Gln) amidotransferase subunit A
1067	 59.06	0	978564..982085	+	1173	148239403	dnaE	SynWH7803_1067	-	DNA polymerase III subunit alpha
1068	 60.32	0	982139..982516	-	125	148239404	-	SynWH7803_1068	-	hypothetical protein
1069	 58.52	0	982543..982812	-	89	148239405	rpsO	SynWH7803_1069	-	30S ribosomal protein S15
1070	 63.89	0	982867..983514	-	215	148239406	ruvA	SynWH7803_1070	-	Holliday junction resolvasome DNA-binding subunit
60.32	MEAN

4.87	STD DEV
