IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

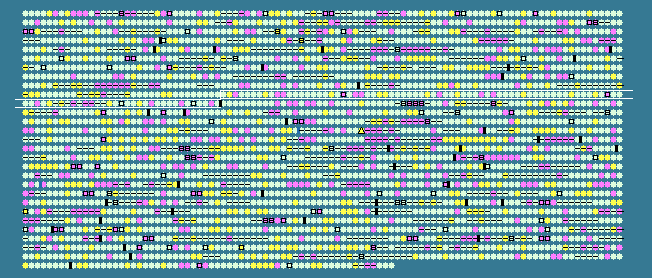

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
934	 60.52	0	997207..997515	+	102	86608438	-	CYB_0959	-	hypothetical protein
935	 64.41	+1	997526..999121	+	531	86608439	-	CYB_0961	-	hydantoinase/oxoprolinase family protein
936	 54.93	0	999058..999534	-	158	86608440	trx-2	CYB_0960	-	thioredoxin
937	 56.41	0	999485..1000225	-	246	86608441	-	CYB_0962	-	NnrU family protein
938	 56.72	0	1000294..1000695	+	133	86608442	-	CYB_0963	-	putative photosystem II protein
939	 60.00	0	1000925..1001389	+	154	86608443	-	CYB_0964	-	YHS domain-containing protein
940	 60.92	0	1001414..1002196	-	260	86608444	-	CYB_0965	-	sensor histidine kinase
941	 63.17	+1	1002317..1003060	-	247	86608445	-	CYB_0966	-	HemK family methyltransferase
942	 59.30	0	1003217..1004071	-	284	86608446	-	CYB_0967	-	chloroplast envelope protein translocase (CEPT or Tic-Toc) family protein
943	 53.65	-1	1004569..1004760	+	63	86608447	-	CYB_0968	-	hypothetical protein
944	 50.00	-2	1004790..1004909	+	39	86608448	-	CYB_0969	-	hypothetical protein
945	 60.18	0	1004906..1007419	+	837	86608449	-	CYB_0970	-	U32 family peptidase
946	 57.14	0	1007584..1008108	+	174	86608450	ilvH	CYB_0971	-	acetolactate synthase 3 regulatory subunit
947	 61.35	0	1008126..1008764	+	212	86608451	-	CYB_0972	-	putative lipoprotein
948	 60.84	0	1008790..1009407	-	205	86608452	-	CYB_0973	-	hypothetical protein
949	 60.54	0	1009689..1010732	+	347	86608453	glk	CYB_0974	-	glucokinase
950	 59.42	0	1010729..1011004	+	91	86608454	-	CYB_0975	-	hypothetical protein
951	 59.86	0	1011012..1012010	+	332	86608455	-	CYB_0976	-	cyclopropane-fatty-acyl-phospholipid synthase family protein
952	 63.96	+1	1012024..1013241	+	405	86608456	-	CYB_0978	-	2-octaprenyl-6-methoxyphenyl hydroxylase
953	 59.38	0	1013238..1014965	-	575	86608457	-	CYB_0977	-	hypothetical protein
954	 54.69	0	1015075..1016268	+	397	86608458	-	CYB_0979	-	ISSoc1, transposase
955	 57.96	0	1016270..1017004	-	244	86608459	-	CYB_0980	-	hypothetical protein
956	 47.62	-2	1017099..1017203	-	34	86608460	-	CYB_0981	-	hypothetical protein
957	 53.39	-1	1017330..1017698	-	122	86608461	-	CYB_0982	-	hypothetical protein
958	 61.82	0	1018038..1019276	+	412	86608462	coaBC	CYB_0983	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
959	 55.27	0	1019366..1020172	-	268	86608463	sppA-2	CYB_0984	-	signal peptide peptidase SppA, 36K type
960	 62.13	0	1020247..1020951	-	234	86608464	fabG	CYB_0985	-	3-ketoacyl-(acyl-carrier-protein) reductase
961	 63.72	+1	1021057..1021905	-	282	86608465	ksgA	CYB_0986	-	dimethyladenosine transferase
962	 59.47	0	1021950..1023713	-	587	86608466	-	CYB_0987	-	sensor histidine kinase
963	 59.26	0	1023740..1024873	-	377	86608467	-	CYB_0988	-	PilT domain-containing protein
964	 55.56	0	1025388..1025630	+	80	86608468	-	CYB_0989	-	NifU domain-containing protein
965	 61.48	0	1025763..1026860	+	365	86608469	-	CYB_0990	-	membrane-associated zinc metalloprotease, putative
966	 60.71	0	1026867..1027571	+	234	86608470	nth	CYB_0991	-	endonuclease III
967	 61.59	0	1027682..1028665	+	327	86608471	-	CYB_0992	-	hypothetical protein
968	 62.34	0	1028658..1030022	+	454	86608472	-	CYB_0993	-	hypothetical protein
969	 61.00	0	1030047..1031633	-	528	86608473	-	CYB_0994	-	hypothetical protein
970	 48.68	-2	1031709..1032803	-	364	86608474	-	CYB_0995	-	hypothetical protein
971	 59.37	0	1033030..1034934	+	634	86608475	-	CYB_0996	-	penicillin-binding protein
972	 55.31	0	1035046..1036269	-	407	86608476	-	CYB_0997	-	glycosyl transferase, group 2
973	 62.13	0	1036444..1038936	-	830	86608477	-	CYB_0998	-	HDIG domain-containing protein
974	 56.06	0	1039003..1039398	-	131	86608478	-	CYB_0999	-	hypothetical protein
975	 61.48	0	1039634..1040269	-	211	86608479	-	CYB_1000	-	4'-phosphopantetheinyl transferase family protein
976	 61.63	0	1040370..1041839	+	489	86608480	-	CYB_1001	-	putative cell envelope-related function transcriptional attenuator
977	 52.63	-1	1041947..1043806	+	619	86608481	htpG	CYB_1003	-	heat shock protein 90
978	 59.83	0	1043800..1044384	-	194	86608482	ribH	CYB_1002	-	riboflavin synthase subunit beta
979	 48.06	-2	1044645..1044773	+	42	86608483	-	CYB_1004	-	hypothetical protein
980	 57.43	0	1044770..1046068	+	432	86608484	glnA-1	CYB_1005	-	glutamine synthetase
981	 61.59	0	1046132..1046998	-	288	86608485	aroE	CYB_1006	-	shikimate 5-dehydrogenase
982	 55.16	0	1047061..1047564	-	167	86608486	-	CYB_1007	-	hypothetical protein
983	 58.85	0	1047612..1048967	-	451	86608487	-	CYB_1008	-	response regulator
984	 62.25	0	1049217..1049963	-	248	86608488	-	CYB_1009	-	putative outer membrane protein
985	 55.72	0	1050250..1050450	+	66	86608489	-	CYB_1010	-	hypothetical protein
986	 58.33	0	1050509..1050784	+	91	86608490	-	CYB_1011	-	hypothetical protein
987	 61.33	0	1050866..1052176	+	436	86608491	hemL	CYB_1012	-	glutamate-1-semialdehyde aminotransferase
988	 55.97	0	1052215..1052457	+	80	86608492	-	CYB_1014	-	hypothetical protein
989	 58.74	0	1052454..1053854	-	466	86608493	chlN	CYB_1013	-	light-independent protochlorophyllide reductase subunit N
990	 58.18	0	1053896..1054873	-	325	86608494	-	CYB_1015	-	protochlorophyllide oxidoreductase
991	 59.27	0	1055032..1055883	-	283	86608495	chlL	CYB_1016	-	protochlorophyllide reductase iron-sulfur ATP-binding protein
992	 63.17	+1	1056240..1057526	-	428	86608496	-	CYB_1017	-	resolvase family site-specific recombinase
993	 61.75	0	1057548..1058462	-	304	86608497	murQ	CYB_1018	-	N-acetylmuramic acid-6-phosphate etherase
994	 58.24	0	1058438..1058698	-	86	86608498	-	CYB_1019	-	hypothetical protein
995	 60.19	0	1058903..1060246	+	447	86608499	-	CYB_1020	-	phosphoglycerate mutase family protein
996	 64.37	+1	1060249..1061595	+	448	86608500	-	CYB_1021	-	dihydroorotase
997	 59.74	0	1061684..1064512	-	942	86608501	ileS	CYB_1022	-	isoleucyl-tRNA synthetase
998	 54.44	0	1064976..1066169	-	397	86608502	-	CYB_1023	-	ISSoc1, transposase
999	 61.75	0	1066521..1067435	-	304	86608503	-	CYB_1024	-	hypothetical protein
1000	 58.40	0	1067556..1067930	+	124	86608504	-	CYB_1025	-	rhodanese domain-containing protein
1001	 61.56	0	1068088..1069890	+	600	86608505	-	CYB_1026	-	M24B family peptidase
1002	 59.87	0	1069918..1070976	-	352	86608506	-	CYB_1027	-	radical SAM protein
1003	 54.79	0	1071393..1072049	+	218	86608507	-	CYB_1028	-	hypothetical protein
1004	 59.08	0	1072024..1072998	+	324	86608508	-	CYB_1029	-	YihY family protein
1005	 64.56	+1	1073024..1074115	+	363	86608509	-	CYB_1030	-	Sua5/YciO/YrdC/YwlC family protein
1006	 59.63	0	1074130..1074669	+	179	86608510	purE	CYB_1031	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
1007	 62.71	+1	1074736..1075494	+	252	86608511	-	CYB_1032	-	hypothetical protein
1008	 59.03	0	1075819..1076499	+	226	86608512	-	CYB_1033	-	hypothetical protein
1009	 53.52	-1	1076533..1077627	-	364	86608513	-	CYB_1034	-	hypothetical protein
1010	 59.05	0	1077433..1077537	+	34	86608514	-	CYB_1035	-	hypothetical protein
1011	 46.37	-2	1077777..1078727	-	316	86608515	-	CYB_1036	-	hypothetical protein
1012	 52.76	-1	1078724..1079557	-	277	86608516	-	CYB_1037	-	hypothetical protein
1013	 61.01	0	1079568..1080521	-	317	86608517	-	CYB_1038	-	L-asparaginase, thermolabile
1014	 61.76	0	1080664..1081458	+	264	86608518	-	CYB_1039	-	cbiX protein
1015	 62.58	+1	1081523..1082305	+	260	86608519	cobA	CYB_1040	-	uroporphyrin-III C-methyltransferase
1016	 60.58	0	1082302..1083090	+	262	86608520	-	CYB_1041	-	hypothetical protein
1017	 55.56	0	1083185..1084426	+	413	86608521	-	CYB_1042	-	ISSoc1, transposase
1018	 58.41	0	1084594..1085283	+	229	86608522	-	CYB_1044	-	LuxR family DNA-binding response regulator
1019	 59.09	0	1085269..1085532	-	87	86608523	-	CYB_1043	-	nuclease
1020	 62.86	+1	1085681..1086127	+	148	86608524	-	CYB_1046	-	hypothetical protein
1021	 59.65	0	1085983..1086096	-	37	86608525	-	CYB_1045	-	hypothetical protein
1022	 50.72	-1	1086266..1086748	+	160	86608526	-	CYB_1047	-	hypothetical protein
1023	 61.35	0	1087213..1087833	+	206	86608527	-	CYB_1048	-	BioY family protein
1024	 56.12	0	1088232..1089179	-	315	86608528	gshB	CYB_1049	-	glutathione synthetase
1025	 57.97	0	1089414..1090160	+	248	86608529	-	CYB_1050	-	pentapeptide repeat-containing protein
1026	 56.54	0	1090200..1090436	-	78	86608530	rpmB	CYB_1051	-	50S ribosomal protein L28
1027	 54.82	0	1090461..1090823	-	120	86608531	-	CYB_1052	-	hypothetical protein
1028	 60.00	0	1090989..1092098	+	369	86608532	-	CYB_1054	-	dockerin repeat-containing protein
1029	 57.20	0	1092095..1093351	-	418	86608533	-	CYB_1053	-	putative transposase
1030	 61.01	0	1093775..1094923	+	382	86608534	-	CYB_1055	-	hypothetical protein
1031	 58.41	0	1095279..1095896	+	205	86608535	-	CYB_1056	-	HD domain-containing protein
1032	 54.79	0	1095967..1096404	+	145	86608536	-	CYB_1057	-	anti-oxidant AhpCTSA family protein
1033	 60.39	0	1096453..1097280	+	275	86608537	-	CYB_1058	-	D-alanyl-D-alanine carboxypeptidase
58.48	MEAN

4.07	STD DEV
