IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

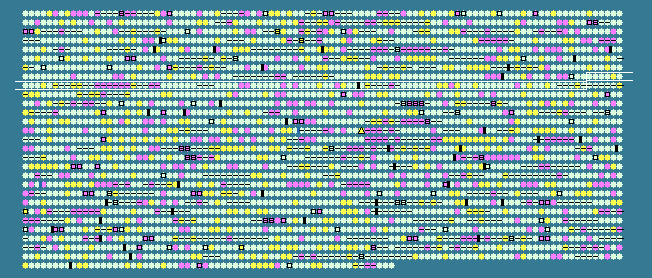

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
795	 58.67	0	846704..846928	-	74	86608299	-	CYB_0817	-	hypothetical protein
796	 60.14	0	846925..848778	-	617	86608300	-	CYB_0818	-	S8A family peptidase
797	 58.33	0	848999..849694	+	231	86608301	-	CYB_0819	-	MotA/TolQ/ExbB family proton transporter
798	 59.62	0	849698..850123	+	141	86608302	sll1405	CYB_0820	-	ExbD/TolR family proton transporter
799	 62.86	+1	850394..851338	-	314	86608303	argF	CYB_0821	-	ornithine carbamoyltransferase
800	 59.49	0	851516..852811	-	431	86608304	prc-1	CYB_0822	-	C-terminal processing peptidase
801	 61.77	0	853143..854510	+	455	86608305	proA	CYB_0823	-	gamma-glutamyl phosphate reductase
802	 57.77	0	854764..855291	+	175	86608306	-	CYB_0824	-	putative RNA-binding protein
803	 58.87	0	855383..856177	+	264	86608307	-	CYB_0825	-	DSBA thioredoxin domain-containing protein
804	 63.65	+1	856504..857697	-	397	86608308	-	CYB_0826	-	sporulation and cell division repeat-containing protein
805	 58.47	0	858031..858567	-	178	86608309	-	CYB_0827	-	hypothetical protein
806	 62.81	+1	858587..861259	+	890	86608310	recJ-1	CYB_0828	-	single-stranded-DNA-specific exonuclease RecJ
807	 60.06	0	861249..861914	+	221	86608311	-	CYB_0829	-	Ser/Thr protein phosphatase family protein superfamily
808	 61.60	0	861973..862584	+	203	86608312	rdgB	CYB_0830	-	non-canonical purine NTP pyrophosphatase
809	 62.33	0	862696..863940	+	414	86608313	-	CYB_0831	-	hypothetical protein
810	 65.22	+1	863963..864583	+	206	86608314	tmk	CYB_0832	-	thymidylate kinase
811	 58.69	0	865060..866037	+	325	86608315	-	CYB_0833	-	CHAD domain-containing protein
812	 55.56	0	867437..867715	-	92	86608316	cas2	CYB_0834	-	CRISPR-associated Cas2 family protein
813	 51.01	-1	867715..868704	-	329	86608317	cas1	CYB_0835	-	CRISPR-associated Cas1 family protein
814	 50.00	-2	868704..869003	-	99	86608318	-	CYB_0836	-	hypothetical protein
815	 52.96	-1	869033..870856	-	607	86608319	-	CYB_0837	-	CRISPR-associated RAMP family protein
816	 50.93	-1	870887..871528	-	213	86608320	-	CYB_0838	-	hypothetical protein
817	 50.64	-1	871528..871920	-	130	86608321	-	CYB_0839	-	hypothetical protein
818	 53.70	-1	871945..872715	-	256	86608322	cmr4	CYB_0840	-	CRISPR-associated RAMP Cmr4 family protein family protein
819	 62.81	+1	872763..873902	-	379	86608323	-	CYB_0841	-	hypothetical protein
820	 60.44	0	873899..876886	-	995	86608324	crm2-2	CYB_0842	-	CRISPR-associated RAMP Crm2 family protein
821	 55.07	0	877089..878468	-	459	86608325	-	CYB_0843	-	CRISPR-associated TM1812 family protein
822	 54.32	-1	878454..878615	+	53	86608326	-	CYB_0844	-	hypothetical protein
823	 53.20	-1	878590..879339	+	249	86608327	-	CYB_0845	-	hypothetical protein
824	 56.65	0	879472..879990	-	172	86608328	-	CYB_0846	-	hypothetical protein
825	 57.16	0	880480..881394	-	304	86608329	-	CYB_0847	-	putative ribosomal protein S1
826	 59.18	0	881472..881912	-	146	86608330	-	CYB_0848	-	rrf2 family protein
827	 58.03	0	882043..883038	+	331	86608331	-	CYB_0849	-	AAA family ATPase
828	 60.35	0	883063..884091	-	342	86608332	-	CYB_0850	-	OppBC ABC transporter family permease
829	 61.13	0	884301..885257	+	318	86608333	-	CYB_0851	-	NAD-dependent epimerase/dehydratase family protein
830	 60.72	0	885361..886419	-	352	86608334	cobW	CYB_0852	-	cobalamin biosynthesis protein CobW
831	 59.62	0	886556..887974	-	472	86608335	psbC	CYB_0853	-	photosystem II 44 kDa subunit reaction center protein
832	 59.96	0	888123..889181	-	352	86608336	psbD-1	CYB_0854	-	photosystem II protein D2
833	 59.26	0	889659..889766	+	35	86608337	petM	CYB_0855	-	cytochrome b6-f complex subunit PetM
834	 61.33	0	889880..890854	+	324	86608338	panE-1	CYB_0856	-	2-dehydropantoate 2-reductase
835	 60.81	0	891048..891815	+	255	86608339	-	CYB_0857	-	short chain dehydrogenase/reductase family oxidoreductase
836	 58.02	0	891888..893147	+	419	86608340	-	CYB_0858	-	sensor histidine kinase
837	 50.00	-2	893302..893565	+	87	86608341	-	CYB_0859	-	LuxR family transcriptional regulator
838	 48.03	-2	893829..894107	+	92	86608342	-	CYB_0860	-	hypothetical protein
839	 56.27	0	894187..895071	-	294	86608343	-	CYB_0861	-	fatty acid desaturase
840	 56.44	0	895382..896095	+	237	86608344	-	CYB_0862	-	TetR family transcriptional regulator
841	 59.15	0	896539..897762	-	407	86608345	-	CYB_0863	-	acyl-coenzyme A:6-aminopenicillanic acid acyl-transferase family protein
842	 56.78	0	897784..898137	-	117	86608346	-	CYB_0864	-	rhodanese family protein
843	 59.65	0	898249..898362	+	37	86608347	-	CYB_0865	-	putative lipoprotein
844	 49.49	-2	898828..898926	-	32	86608348	-	CYB_0867	-	hypothetical protein
845	 59.16	0	898964..900535	+	523	86608349	-	CYB_0868	-	putative lipoprotein
846	 54.82	0	900869..901501	-	210	86608350	-	CYB_0869	-	NADH dehydrogenase subunit I
847	 56.40	0	901540..902601	-	353	86608351	-	CYB_0870	-	NADH dehydrogenase subunit H
848	 60.29	0	902718..902921	-	67	86608352	-	CYB_0871	-	hypothetical protein
849	 58.35	0	902951..904129	-	392	86608353	-	CYB_0872	-	NAD(P)H-quinone oxidoreductase subunit H
850	 62.96	+1	904305..904628	+	107	86608354	-	CYB_0873	-	hypothetical protein
851	 56.99	0	904686..905243	-	185	86608355	-	CYB_0874	-	hypothetical protein
852	 58.77	0	905387..905614	-	75	86608356	-	CYB_0875	-	hypothetical protein
853	 52.47	-1	905586..905747	-	53	86608357	-	CYB_0876	-	hypothetical protein
854	 62.59	+1	905701..906363	+	220	86608358	ureG	CYB_0877	-	urease accessory protein UreG
855	 61.81	0	906381..907163	+	260	86608359	ureD	CYB_0878	-	urease accessory protein UreD
856	 58.35	0	907215..908729	+	504	86608360	-	CYB_0879	-	hypothetical protein
857	 60.46	0	909072..909683	+	203	86608361	-	CYB_0882	-	hypothetical protein
858	 62.53	0	909611..910528	-	305	86608362	-	CYB_0881	-	alpha/beta fold family hydrolase
859	 56.91	0	910559..911224	-	221	86608363	-	CYB_0883	-	Crp/FNR family transcriptional regulator
860	 61.03	0	911641..912438	+	265	86608364	surE-1	CYB_0884	-	acid phosphatase SurE
861	 56.36	0	912608..918244	-	1878	86608365	-	CYB_0885	-	putative helicase
862	 50.68	-1	918277..919602	-	441	86608366	-	CYB_0886	-	hypothetical protein
863	 55.22	0	919615..921195	-	526	86608367	-	CYB_0887	-	hypothetical protein
864	 57.58	0	921380..921841	-	153	86608368	-	CYB_0888	-	hypothetical protein
865	 60.12	0	921848..922504	-	218	86608369	hisH	CYB_0889	-	imidazole glycerol phosphate synthase subunit HisH
866	 57.80	0	922573..923790	+	405	86608370	-	CYB_0890	-	coproporphyrinogen III oxidase
867	 55.28	0	923978..924469	-	163	86608371	-	CYB_0891	-	nucleotide-binding protein
868	 58.18	0	924587..925423	+	278	86608372	-	CYB_0892	-	short chain dehydrogenase/reductase family oxidoreductase
869	 56.56	0	925552..925917	+	121	86608373	-	CYB_0894	-	FHA domain-containing protein
870	 63.03	+1	925904..927250	-	448	86608374	-	CYB_0893	-	polysaccharide biosynthesis family protein
871	 64.24	+1	927346..929199	+	617	86608375	-	CYB_0895	-	penicillin-binding protein
872	 54.25	-1	929515..929820	+	101	86608376	hup-2	CYB_0896	-	DNA-binding protein HU
873	 63.05	+1	929856..930989	+	377	86608377	cobD-1	CYB_0897	-	threonine-phosphate decarboxylase
874	 61.06	0	931015..931674	+	219	86608378	-	CYB_0898	-	hypothetical protein
875	 59.52	0	931957..932838	+	293	86608379	-	CYB_0899	-	hypothetical protein
876	 62.69	+1	932848..933651	-	267	86608380	-	CYB_0900	-	hypothetical protein
877	 61.09	0	933678..934340	-	220	86608381	purN	CYB_0901	-	phosphoribosylglycinamide formyltransferase
878	 55.21	0	934371..934466	-	31	86608382	-	CYB_0902	-	hypothetical protein
879	 59.46	0	934438..934659	+	73	86608383	-	CYB_0903	-	hypothetical protein
880	 60.44	0	934708..935205	+	165	86608384	-	CYB_0904	-	hypothetical protein
881	 59.24	0	935223..935801	+	192	86608385	aat	CYB_0905	-	leucyl/phenylalanyl-tRNA--protein transferase
882	 56.29	0	935939..936439	+	166	86608386	-	CYB_0906	-	low molecular weight phosphotyrosine protein phosphatase family protein
883	 46.05	-2	936730..937020	-	96	86608387	-	CYB_0907	-	nucleotidyltransferase domain-containing protein
884	 61.39	0	940185..944147	+	1320	86608388	chlH	CYB_0908	-	magnesium chelatase
885	 63.85	+1	944225..945076	-	283	86608389	gspO	CYB_0909	-	prepilin peptidase
886	 56.22	0	945217..945417	-	66	86608390	-	CYB_0910	-	hypothetical protein
887	 59.14	0	945778..948474	-	898	86608391	cphA	CYB_0911	-	cyanophycin synthetase
888	 64.21	+1	948732..951008	+	758	86608392	-	CYB_0912	-	DNA internalization competence protein
889	 61.40	0	951191..951475	-	94	86608393	-	CYB_0913	-	hypothetical protein
890	 57.21	0	951715..952518	+	267	86608394	-	CYB_0914	-	stomatin/podocin/band 7/nephrosis.2/SPFH (stomatin) family protein
891	 58.36	0	952599..953537	+	312	86608395	-	CYB_0915	-	HflC/HflK family protein
892	 60.43	0	953731..954756	+	341	86608396	-	CYB_0917	-	response regulator
893	 62.34	0	954734..955426	-	230	86608397	-	CYB_0916	-	ComF family protein
894	 60.78	0	955636..956043	+	135	86608398	rpsL	CYB_0918	-	30S ribosomal protein S12
58.48	MEAN

4.07	STD DEV
