IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

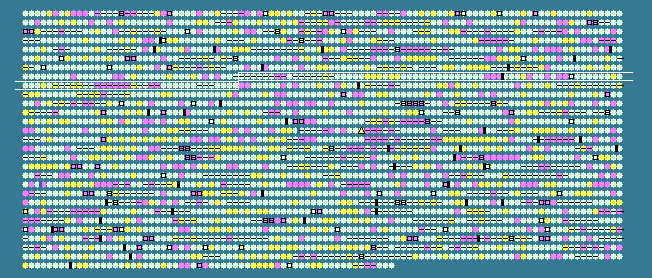

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
737	 59.49	0	778412..779665	-	417	86608241	-	CYB_0757	-	hypothetical protein
738	 57.77	0	779825..780937	-	370	86608242	-	CYB_0758	-	hypothetical protein
739	 59.40	0	781057..782130	-	357	86608243	-	CYB_0759	-	OmpA family protein
740	 55.37	0	782480..783010	+	176	86608244	-	CYB_0761	-	hypothetical protein
741	 59.72	0	783007..783150	-	47	86608245	-	CYB_0760	-	hypothetical protein
742	 59.62	0	783496..784899	-	467	86608246	-	CYB_0762	-	acyltransferase domain-containing protein
743	 53.42	-1	785039..785491	-	150	86608247	-	CYB_0763	-	AbrB family transcriptional regulator
744	 50.81	-1	785522..785767	-	81	86608248	-	CYB_0764	-	hypothetical protein
745	 60.38	0	786057..788822	-	921	86608249	-	CYB_0765	-	cation transport ATPase
746	 57.31	0	789172..789684	-	170	86608250	-	CYB_0766	-	acetyltransferase
747	 60.74	0	789735..790004	-	89	86608251	-	CYB_0767	-	hypothetical protein
748	 60.76	0	790196..791278	+	360	86608252	-	CYB_0769	-	CobQ/CobB/MinD/ParA nucleotide binding domain-containing protein
749	 60.70	0	791275..791643	-	122	86608253	-	CYB_0768	-	putative lipoprotein
750	 60.71	0	791709..793724	-	671	86608254	-	CYB_0770	-	OMP85 family membrane protein
751	 62.32	0	793828..794172	-	114	86608255	-	CYB_0771	-	hypothetical protein
752	 59.89	0	794683..795936	-	417	86608256	-	CYB_0772	-	hydrophobic amino acid ABC transporter periplasmic amino acid-binding protein
753	 58.67	0	796050..796199	-	49	86608257	-	CYB_0773	-	hypothetical protein
754	 58.97	0	796256..797074	+	272	86608258	-	CYB_0774	-	hydrophobic amino acid ABC transporter ATP-binding protein
755	 58.19	0	797071..797778	+	235	86608259	-	CYB_0775	-	hydrophobic amino acid ABC transporter ATP-binding protein
756	 60.52	0	797824..799530	-	568	86608260	recN	CYB_0776	-	DNA repair protein RecN
757	 61.65	0	799726..800742	-	338	86608261	-	CYB_0777	-	hypothetical protein
758	 62.18	0	800977..802446	-	489	86608262	-	CYB_0778	-	glutamate-cysteine ligase family 2 protein
759	 62.08	0	802518..803870	-	450	86608263	-	CYB_0779	-	tldD/pmbA family protein
760	 62.98	+1	804484..805785	+	433	86608264	-	CYB_0780	-	UbiH/UbiF/VisC/COQ6 family ubiquinone biosynthesis hydroxylase
761	 55.39	0	805866..806264	-	132	86608265	-	CYB_0781	-	hypothetical protein
762	 64.63	+1	806411..806704	+	97	86608266	-	CYB_0782	-	hypothetical protein
763	 63.92	+1	807056..807529	+	157	86608267	ispF	CYB_0783	-	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
764	 59.31	0	807712..809478	+	588	86608268	-	CYB_0784	-	peptide/nickel/opine uptake ABC transporter periplasmic substrate-binding protein
765	 60.71	0	809623..811788	-	721	86608269	-	CYB_0785	-	glycogen debranching enzyme family protein
766	 59.29	0	811920..812990	-	356	86608270	-	CYB_0786	-	glycosyl transferase, group 1 family protein
767	 59.43	0	813091..813960	-	289	86608271	-	CYB_0787	-	hypothetical protein
768	 58.91	0	814084..815385	-	433	86608272	-	CYB_0788	-	hypothetical protein
769	 61.37	0	815416..816528	-	370	86608273	-	CYB_0789	-	hypothetical protein
770	 61.22	0	816611..817510	-	299	86608274	-	CYB_0790	-	hypothetical protein
771	 60.66	0	817510..817875	-	121	86608275	-	CYB_0791	-	hypothetical protein
772	 58.16	0	817935..818216	-	93	86608276	-	CYB_0792	-	hypothetical protein
773	 59.33	0	818331..819434	-	367	86608277	-	CYB_0793	-	M8 family peptidase
774	 55.63	0	819559..820029	-	156	86608278	-	CYB_0794	-	hypothetical protein
775	 57.89	0	820613..821581	+	322	86608279	-	CYB_0795	-	2OG-Fe(II) oxygenase family oxidoreductase
776	 57.78	0	821600..822274	+	224	86608280	-	CYB_0796	-	isochorismatase family protein
777	 61.46	0	822309..824516	+	735	86608281	-	CYB_0797	-	D-xylulose 5-phosphate/D-fructose 6-phosphate phosphoketolase family protein
778	 45.26	-2	824573..825922	+	449	86608282	-	CYB_0798	-	CobQ/CobB/MinD/ParA nucleotide binding domain-containing protein
779	 50.00	-2	827054..827497	+	147	86608283	-	CYB_0800	-	hypothetical protein
780	 46.56	-2	827618..828547	-	309	86608284	mrr	CYB_0801	-	mrr restriction system protein
781	 60.99	0	828856..830316	-	486	86608285	phrB-2	CYB_0803	-	deoxyribodipyrimidine photolyase
782	 59.86	0	830329..830916	-	195	86608286	hup-1	CYB_0804	-	DNA-binding protein HU
783	 55.63	0	831035..831478	+	147	86608287	pmgA	CYB_0805	-	pmgA protein
784	 63.78	+1	831482..833314	-	610	86608288	-	CYB_0806	-	hypothetical protein
785	 53.54	-1	833613..835700	+	695	86608289	uvrB	CYB_0807	-	excinuclease ABC subunit B
786	 59.46	0	835786..837645	+	619	86608290	-	CYB_0808	-	small conductance mechanosensitive ion channel (MscS) family protein
787	 60.41	0	837679..838269	+	196	86608291	-	CYB_0809	-	hypothetical protein
788	 50.98	-1	838433..839815	-	460	86608292	-	CYB_0810	-	proton extrusion protein PcxA
789	 59.26	0	839996..841399	-	467	86608293	-	CYB_0811	-	glycosyl transferase, group 2 family protein
790	 54.70	0	841656..841772	-	38	86608294	psbX	CYB_0812	-	photosystem II reaction center protein PsbX
791	 50.98	-1	841877..842233	-	118	86608295	-	CYB_0813	-	ferredoxin-thioredoxin reductase, catalytic beta subunit
792	 61.86	0	842718..843944	-	408	86608296	-	CYB_0814	-	ISSoc9, transposase
793	 58.64	0	844279..844764	+	161	86608297	-	CYB_0815	-	iron-sulfur cluster-binding protein
794	 60.68	0	844860..846245	+	461	86608298	-	CYB_0816	-	carbohydrate kinase
795	 58.67	0	846704..846928	-	74	86608299	-	CYB_0817	-	hypothetical protein
796	 60.14	0	846925..848778	-	617	86608300	-	CYB_0818	-	S8A family peptidase
797	 58.33	0	848999..849694	+	231	86608301	-	CYB_0819	-	MotA/TolQ/ExbB family proton transporter
798	 59.62	0	849698..850123	+	141	86608302	sll1405	CYB_0820	-	ExbD/TolR family proton transporter
799	 62.86	+1	850394..851338	-	314	86608303	argF	CYB_0821	-	ornithine carbamoyltransferase
800	 59.49	0	851516..852811	-	431	86608304	prc-1	CYB_0822	-	C-terminal processing peptidase
801	 61.77	0	853143..854510	+	455	86608305	proA	CYB_0823	-	gamma-glutamyl phosphate reductase
802	 57.77	0	854764..855291	+	175	86608306	-	CYB_0824	-	putative RNA-binding protein
803	 58.87	0	855383..856177	+	264	86608307	-	CYB_0825	-	DSBA thioredoxin domain-containing protein
804	 63.65	+1	856504..857697	-	397	86608308	-	CYB_0826	-	sporulation and cell division repeat-containing protein
805	 58.47	0	858031..858567	-	178	86608309	-	CYB_0827	-	hypothetical protein
806	 62.81	+1	858587..861259	+	890	86608310	recJ-1	CYB_0828	-	single-stranded-DNA-specific exonuclease RecJ
807	 60.06	0	861249..861914	+	221	86608311	-	CYB_0829	-	Ser/Thr protein phosphatase family protein superfamily
808	 61.60	0	861973..862584	+	203	86608312	rdgB	CYB_0830	-	non-canonical purine NTP pyrophosphatase
809	 62.33	0	862696..863940	+	414	86608313	-	CYB_0831	-	hypothetical protein
810	 65.22	+1	863963..864583	+	206	86608314	tmk	CYB_0832	-	thymidylate kinase
811	 58.69	0	865060..866037	+	325	86608315	-	CYB_0833	-	CHAD domain-containing protein
812	 55.56	0	867437..867715	-	92	86608316	cas2	CYB_0834	-	CRISPR-associated Cas2 family protein
813	 51.01	-1	867715..868704	-	329	86608317	cas1	CYB_0835	-	CRISPR-associated Cas1 family protein
814	 50.00	-2	868704..869003	-	99	86608318	-	CYB_0836	-	hypothetical protein
815	 52.96	-1	869033..870856	-	607	86608319	-	CYB_0837	-	CRISPR-associated RAMP family protein
816	 50.93	-1	870887..871528	-	213	86608320	-	CYB_0838	-	hypothetical protein
817	 50.64	-1	871528..871920	-	130	86608321	-	CYB_0839	-	hypothetical protein
818	 53.70	-1	871945..872715	-	256	86608322	cmr4	CYB_0840	-	CRISPR-associated RAMP Cmr4 family protein family protein
819	 62.81	+1	872763..873902	-	379	86608323	-	CYB_0841	-	hypothetical protein
820	 60.44	0	873899..876886	-	995	86608324	crm2-2	CYB_0842	-	CRISPR-associated RAMP Crm2 family protein
821	 55.07	0	877089..878468	-	459	86608325	-	CYB_0843	-	CRISPR-associated TM1812 family protein
822	 54.32	-1	878454..878615	+	53	86608326	-	CYB_0844	-	hypothetical protein
823	 53.20	-1	878590..879339	+	249	86608327	-	CYB_0845	-	hypothetical protein
824	 56.65	0	879472..879990	-	172	86608328	-	CYB_0846	-	hypothetical protein
825	 57.16	0	880480..881394	-	304	86608329	-	CYB_0847	-	putative ribosomal protein S1
826	 59.18	0	881472..881912	-	146	86608330	-	CYB_0848	-	rrf2 family protein
827	 58.03	0	882043..883038	+	331	86608331	-	CYB_0849	-	AAA family ATPase
828	 60.35	0	883063..884091	-	342	86608332	-	CYB_0850	-	OppBC ABC transporter family permease
829	 61.13	0	884301..885257	+	318	86608333	-	CYB_0851	-	NAD-dependent epimerase/dehydratase family protein
830	 60.72	0	885361..886419	-	352	86608334	cobW	CYB_0852	-	cobalamin biosynthesis protein CobW
831	 59.62	0	886556..887974	-	472	86608335	psbC	CYB_0853	-	photosystem II 44 kDa subunit reaction center protein
832	 59.96	0	888123..889181	-	352	86608336	psbD-1	CYB_0854	-	photosystem II protein D2
833	 59.26	0	889659..889766	+	35	86608337	petM	CYB_0855	-	cytochrome b6-f complex subunit PetM
834	 61.33	0	889880..890854	+	324	86608338	panE-1	CYB_0856	-	2-dehydropantoate 2-reductase
835	 60.81	0	891048..891815	+	255	86608339	-	CYB_0857	-	short chain dehydrogenase/reductase family oxidoreductase
836	 58.02	0	891888..893147	+	419	86608340	-	CYB_0858	-	sensor histidine kinase
58.48	MEAN

4.07	STD DEV
