IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

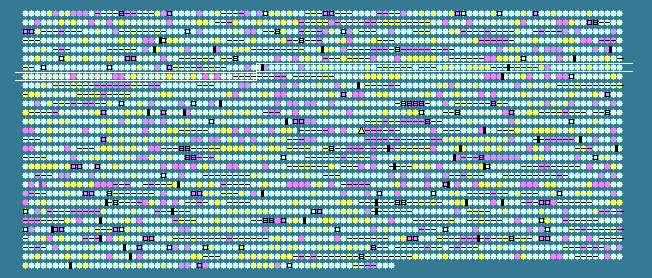

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
640	 61.30	0	670886..672040	-	384	86608144	sppA-1	CYB_0656	-	signal peptide peptidase SppA, 36K type
641	 54.07	-1	672274..672543	-	89	86608145	-	CYB_0658	-	hypothetical protein
642	 56.27	0	672563..672841	-	92	86608146	-	CYB_0659	-	hypothetical protein
643	 60.02	0	673292..674284	-	330	86608147	cyoE	CYB_0660	-	protoheme IX farnesyltransferase
644	 59.38	0	674338..675297	-	319	86608148	-	CYB_0661	-	cytochrome oxidase assembly protein
645	 58.75	0	675947..677032	-	361	86608149	-	CYB_0662	-	RNA polymerase sigma factor, group 1
646	 55.39	0	677242..677640	+	132	86608150	-	CYB_0663	-	hypothetical protein
647	 53.83	-1	677971..678336	+	121	86608151	-	CYB_0664	-	hypothetical protein
648	 58.78	0	679816..680487	-	223	86608152	-	CYB_0666	-	phosphatidate cytidylyltransferase, putative
649	 59.14	0	680497..680868	-	123	86608153	-	CYB_0667	-	cytochrome c family protein
650	 64.00	+1	681090..682925	-	611	86608154	-	CYB_0668	-	glycosyl hydrolase domain-containing protein
651	 63.14	+1	683073..684488	-	471	86608155	recQ	CYB_0669	-	ATP-dependent DNA helicase RecQ
652	 61.15	0	684447..684827	+	126	86608156	-	CYB_0670	-	hypothetical protein
653	 59.74	0	684863..685483	+	206	86608157	hisB	CYB_0671	-	imidazoleglycerol-phosphate dehydratase
654	 56.50	0	685486..685662	+	58	86608158	-	CYB_0672	-	hypothetical protein
655	 55.56	0	685810..685962	+	50	86608159	psbY	CYB_0673	-	photosystem II protein PsbY
656	 61.67	0	685997..687097	+	366	86608160	-	CYB_0674	-	oxidoreductase, FAD-binding
657	 57.84	0	687275..688180	+	301	86608161	-	CYB_0675	-	putative 6-pyruvoyl-tetrahydropterin synthase
658	 64.77	+1	688191..689507	+	438	86608162	-	CYB_0676	-	hypothetical protein
659	 60.01	0	689630..693067	+	1145	86608163	-	CYB_0677	-	trehalose synthase/putative maltokinase
660	 60.87	0	693115..693873	+	252	86608164	-	CYB_0679	-	hypothetical protein
661	 63.90	+1	693812..694969	-	385	86608165	dprA	CYB_0678	-	DNA protecting protein DprA
662	 60.71	0	695048..695299	+	83	86608166	-	CYB_0680	-	hypothetical protein
663	 60.27	0	695292..696746	+	484	86608167	-	CYB_0681	-	solute/sodium symporter (SSS) family protein
664	 62.18	0	696771..697595	-	274	86608168	-	CYB_0682	-	CAAX amino terminal protease family protein
665	 59.22	0	697611..697892	-	93	86608169	clpS-1	CYB_0683	-	ATP-dependent Clp protease adaptor protein ClpS
666	 59.49	0	698177..699904	+	575	86608170	phoD	CYB_0684	-	alkaline phosphatase
667	 56.67	0	700145..700504	+	119	86608171	-	CYB_0685	-	hypothetical protein
668	 56.91	0	700561..702855	-	764	86608172	-	CYB_0686	-	glycosyl transferase, group 2 family protein
669	 61.51	0	702940..704877	-	645	86608173	-	CYB_0687	-	hypothetical protein
670	 58.10	0	705026..705457	-	143	86608174	-	CYB_0688	-	mannose-6-phosphate isomerase family protein
671	 62.66	+1	705842..707362	+	506	86608175	-	CYB_0689	-	hypothetical protein
672	 62.16	0	707359..708489	+	376	86608176	-	CYB_0690	-	putative lipoprotein
673	 59.56	0	708584..709441	+	285	86608177	-	CYB_0691	-	hypothetical protein
674	 60.14	0	709543..710385	+	280	86608178	-	CYB_0692	-	universal stress protein
675	 63.25	+1	710394..711914	-	506	86608179	-	CYB_0693	-	hypothetical protein
676	 62.59	+1	711908..713206	-	432	86608180	hisS	CYB_0694	-	histidyl-tRNA synthetase
677	 63.22	+1	713301..714170	-	289	86608181	-	CYB_0695	-	hypothetical protein
678	 62.42	0	714107..715048	-	313	86608182	prmA	CYB_0696	-	ribosomal protein L11 methyltransferase
679	 59.26	0	715225..715332	+	35	86608183	-	CYB_0697	-	hypothetical protein
680	 56.56	0	715473..716333	+	286	86608184	-	CYB_0699	-	hypothetical protein
681	 59.60	0	716330..717079	-	249	86608185	pcyA	CYB_0698	-	phycocyanobilin:ferredoxin oxidoreductase
682	 60.69	0	717483..718268	+	261	86608186	panB	CYB_0701	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
683	 62.47	0	718709..719137	-	142	86608187	-	CYB_0702	-	putative lipoprotein
684	 60.32	0	719294..720901	+	535	86608188	-	CYB_0704	-	hypothetical protein
685	 63.44	+1	720895..722103	-	402	86608189	-	CYB_0703	-	glycosyl transferase, group 1 family protein
686	 58.21	0	722133..722546	-	137	86608190	-	CYB_0705	-	hypothetical protein
687	 62.92	+1	722622..723128	-	168	86608191	-	CYB_0706	-	hypothetical protein
688	 54.41	0	723191..724006	-	271	86608192	-	CYB_0707	-	cation transporter, voltage-gated ion channel cation transporter
689	 61.45	0	724155..724748	+	197	86608193	maf	CYB_0709	-	Maf-like protein
690	 59.27	0	724745..726217	-	490	86608194	gatB	CYB_0708	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
691	 61.40	0	726365..726649	-	94	86608195	-	CYB_0710	-	acylphosphatase
692	 57.72	0	727074..727196	-	40	86608196	-	CYB_0711	-	hypothetical protein
693	 61.21	0	727768..728829	-	353	86608197	-	CYB_0712	-	sensor histidine kinase
694	 56.79	0	729396..730124	-	242	86608198	-	CYB_0713	-	hypothetical protein
695	 65.33	+1	730250..732268	-	672	86608199	chlD	CYB_0714	-	magnesium chelatase, ATPase subunit D
696	 61.12	0	732548..733990	-	480	86608200	-	CYB_0715	-	gamma-aminobutyraldehyde dehydrogenase
697	 56.67	0	734392..734541	+	49	86608201	-	CYB_0716	-	hypothetical protein
698	 65.67	+1	734882..736180	+	432	86608202	-	CYB_0717	-	RND family efflux transporter MFP subunit
699	 61.34	0	736242..739451	+	1069	86608203	-	CYB_0718	-	hydrophobe/amphiphile efflux-1 (HAE1) family protein
700	 58.14	0	739515..739772	-	85	86608204	-	CYB_0719	-	hypothetical protein
701	 55.35	0	739966..740760	-	264	86608205	-	CYB_0720	-	hypothetical protein
702	 61.02	0	740889..741632	-	247	86608206	-	CYB_0721	-	hypothetical protein
703	 58.67	0	741667..741891	-	74	86608207	-	CYB_0722	-	hypothetical protein
704	 58.50	0	742106..742693	+	195	86608208	-	CYB_0723	-	FHA domain-containing protein
705	 59.27	0	742695..744182	-	495	86608209	-	CYB_0724	-	high-affinity Na+/H+ antiporter
706	 59.56	0	744475..745149	-	224	86608210	pth	CYB_0725	-	peptidyl-tRNA hydrolase
707	 57.39	0	745337..746554	+	405	86608211	-	CYB_0726	-	GAF domain-containing protein
708	 58.73	0	746837..747958	+	373	86608212	-	CYB_0727	-	putative methyl-accepting chemotaxis protein
709	 53.65	-1	748011..748394	-	127	86608213	-	CYB_0728	-	hypothetical protein
710	 60.94	0	749863..750927	-	354	86608214	menC	CYB_0729	-	O-succinylbenzoate synthase
711	 61.24	0	751292..752581	-	429	86608215	-	CYB_0731	-	M16 family peptidase
712	 61.23	0	752642..753946	-	434	86608216	-	CYB_0732	-	M16B family peptidase
713	 61.40	0	754141..755355	-	404	86608217	-	CYB_0733	-	M50B family peptidase
714	 60.72	0	755731..759144	+	1137	86608218	nrdJ	CYB_0734	-	ribonucleoside-triphosphate reductase, adenosylcobalamin-dependent, intein containing
715	 58.88	0	759278..760279	+	333	86608219	pheS	CYB_0735	-	phenylalanyl-tRNA synthetase, alpha subunit
716	 52.19	-1	760347..760643	-	98	86608220	-	CYB_0736	-	hypothetical protein
717	 54.86	0	760835..761410	-	191	86608221	-	CYB_0737	-	hypothetical protein
718	 61.51	0	761607..762362	-	251	86608222	-	CYB_0738	-	ABC transporter, ATP-binding protein
719	 62.98	+1	762417..764204	-	595	86608223	-	CYB_0739	-	metallo-beta-lactamase family protein
720	 61.10	0	764461..765933	-	490	86608224	-	CYB_0740	-	cellulose synthase, catalytic subunit
721	 60.37	0	766178..766447	-	89	86608225	rpmA	CYB_0741	-	50S ribosomal protein L27
722	 57.04	0	766524..766949	-	141	86608226	rplU	CYB_0742	-	50S ribosomal protein L21
723	 58.37	0	767236..767994	-	252	86608227	-	CYB_0743	-	hypothetical protein
724	 60.28	0	768031..768312	-	93	86608228	-	CYB_0744	-	hypothetical protein
725	 62.18	0	768309..769244	-	311	86608229	-	CYB_0745	-	DnaJ family protein
726	 56.04	0	769401..770162	-	253	86608230	-	CYB_0746	-	hypothetical protein
727	 61.64	0	770421..771275	-	284	86608231	-	CYB_0747	-	M28A family peptidase
728	 60.79	0	771272..772054	-	260	86608232	-	CYB_0748	-	HAD family hydrolase
729	 62.11	0	772180..773562	+	460	86608233	lpdA	CYB_0749	-	dihydrolipoamide dehydrogenase
730	 57.29	0	773671..774939	+	422	86608234	-	CYB_0750	-	hypothetical protein
731	 52.90	-1	775173..775310	+	45	86608235	-	CYB_0751	-	hypothetical protein
732	 58.31	0	775405..776481	+	358	86608236	mutY	CYB_0752	-	A/G-specific adenine glycosylase
733	 53.99	-1	776569..776844	+	91	86608237	-	CYB_0753	-	hypothetical protein
734	 58.56	0	776908..777240	-	110	86608238	-	CYB_0754	-	hypothetical protein
735	 59.20	0	777394..778116	+	240	86608239	rnc	CYB_0755	-	ribonuclease III
736	 58.33	0	778113..778340	+	75	86608240	-	CYB_0756	-	hypothetical protein
737	 59.49	0	778412..779665	-	417	86608241	-	CYB_0757	-	hypothetical protein
738	 57.77	0	779825..780937	-	370	86608242	-	CYB_0758	-	hypothetical protein
739	 59.40	0	781057..782130	-	357	86608243	-	CYB_0759	-	OmpA family protein
58.48	MEAN

4.07	STD DEV
