IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

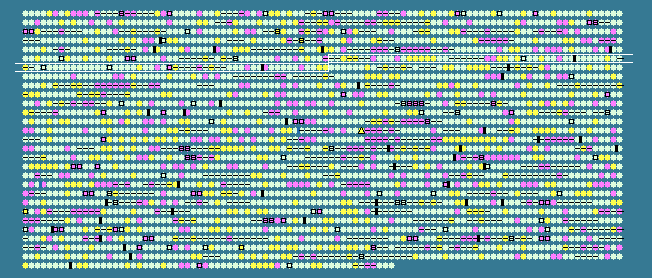

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
552	 58.64	0	573326..574858	+	510	86608056	-	CYB_0564	-	UvrD/Rep family helicase
553	 59.15	0	575034..575858	-	274	86608057	menB	CYB_0565	-	naphthoate synthase
554	 63.27	+1	575976..577478	-	500	86608058	cobA/hemD	CYB_0566	-	uroporphyrin-III C-methyltransferase/uroporphyrinogen-III synthase
555	 63.74	+1	577614..577784	-	56	86608059	-	CYB_0567	-	hypothetical protein
556	 63.50	+1	577660..578670	+	336	86608060	-	CYB_0569	-	taurine ABC transporter periplasmic substrate-binding protein
557	 60.49	0	578667..579200	-	177	86608061	-	CYB_0568	-	putative phycobilisome linker polypeptide
558	 57.06	0	579742..580272	+	176	86608062	-	CYB_0571	-	iron-sulfur cluster-binding protein
559	 43.70	-2	580213..580347	-	44	86608063	-	CYB_0570	-	hypothetical protein
560	 55.07	0	580504..581184	+	226	86608064	-	CYB_0572	-	putative bacteriochlorophyll 4-vinyl reductase
561	 57.80	0	581244..581525	+	93	86608065	-	CYB_0573	-	hypothetical protein
562	 59.09	0	581587..582180	+	197	86608066	-	CYB_0574	-	hypothetical protein
563	 54.14	-1	582205..582675	+	156	86608067	-	CYB_0575	-	phycobilisome protein
564	 61.59	0	582864..583553	+	229	86608068	-	CYB_0576	-	V4R domain-containing protein
565	 62.29	0	583591..584298	-	235	86608069	-	CYB_0577	-	hypothetical protein
566	 62.09	0	584583..585827	+	414	86608070	-	CYB_0578	-	S1C family peptidase
567	 62.88	+1	586180..587103	+	307	86608071	-	CYB_0579	-	quaternary amine ABC transporter periplasmic substrate-binding protein
568	 62.75	+1	587130..588098	+	322	86608072	-	CYB_0580	-	quaternary amine ABC  transporter ATP-binding protein
569	 63.43	+1	588095..588712	+	205	86608073	-	CYB_0581	-	quaternary amine ABC transporter permease
570	 60.74	0	588838..589461	+	207	86608074	-	CYB_0582	-	RNA polymerase sigma factor
571	 60.49	0	590399..591046	+	215	86608075	-	CYB_0584	-	VanW family protein
572	 57.41	0	592183..593079	-	298	86608076	-	CYB_0585	-	CRISPR-associated protein APE2256 family
573	 58.54	0	593129..593842	-	237	86608077	-	CYB_0586	-	hypothetical protein
574	 60.74	0	593853..594932	-	359	86608078	-	CYB_0587	-	hypothetical protein
575	 58.28	0	594935..595387	-	150	86608079	-	CYB_0588	-	hypothetical protein
576	 60.45	0	595384..596364	-	326	86608080	-	CYB_0589	-	CRISPR-associated RAMP family protein
577	 60.45	0	596531..597382	-	283	86608081	-	CYB_0590	-	CRISPR-associated Csm3 family protein
578	 49.85	-2	597402..598049	-	215	86608082	-	CYB_0591	-	hypothetical protein
579	 53.29	-1	598053..598493	-	146	86608083	-	CYB_0592	-	hypothetical protein
580	 62.94	+1	598490..599722	-	410	86608084	csx10	CYB_0593	-	CRISPR-associated RAMP Csx10 family protein
581	 65.84	+1	599722..600444	-	240	86608085	-	CYB_0594	-	CRISPR-associated Csm3 family protein
582	 60.88	0	600444..602654	-	736	86608086	crm2-1	CYB_0595	-	CRISPR-associated RAMP Crm2 family protein
583	 62.18	0	603175..604356	+	393	86608087	cas6	CYB_0596	-	CRISPR-associated Cas family protein
584	 56.95	0	605551..606744	+	397	86608088	-	CYB_0598	-	ISSoc1, transposase
585	 58.78	0	606716..608173	-	485	86608089	-	CYB_0597	-	hypothetical protein
586	 61.51	0	608339..609307	+	322	86608090	csx3	CYB_0599	-	CRISPR-associated Csx3 family protein
587	 62.63	+1	609411..610202	+	263	86608091	-	CYB_0600	-	ADP-ribosylglycohydrolase family protein
588	 55.74	0	610278..611165	-	295	86608092	-	CYB_0601	-	nitrate ABC transporter, ATP-binding protein NtrD
589	 57.01	0	611237..613234	-	665	86608093	ntrC-2	CYB_0602	-	nitrate ABC transporter, ATP-binding proteins NtrC
590	 52.42	-1	613303..614130	-	275	86608094	ntrB-2	CYB_0603	-	nitrate ABC transporter, permease protein
591	 57.55	0	614652..615956	-	434	86608095	-	CYB_0604	-	nitrate/nitrite/cyanate ABC transporter periplasmic substrate-binding protein
592	 61.93	0	616167..617264	+	365	86608096	-	CYB_0605	-	putative tocopherol cyclase
593	 60.93	0	617632..620106	+	824	86608097	clpC	CYB_0607	-	Clp protease, ATP-binding subunit ClpC
594	 56.13	0	620234..620869	+	211	86608098	clpP-1	CYB_0608	-	ATP-dependent Clp protease-like protein
595	 57.03	0	621483..622094	+	203	86608099	clpP	CYB_0610	-	ATP-dependent Clp protease proteolytic subunit
596	 61.72	0	622202..622504	+	100	86608100	-	CYB_0611	-	hypothetical protein
597	 59.52	0	622509..623096	-	195	86608101	-	CYB_0612	-	hypothetical protein
598	 62.72	+1	623105..624499	+	464	86608102	-	CYB_0613	-	malate dehydrogenase (oxaloacetate-decarboxylating)
599	 60.03	0	624600..625292	-	230	86608103	-	CYB_0614	-	CRISPR-associated protein APE2256 family
600	 59.71	0	625289..625561	-	90	86608104	-	CYB_0615	-	hypothetical protein
601	 64.71	+1	625763..625966	+	67	86608105	-	CYB_0616	-	hypothetical protein
602	 60.27	0	626315..626986	+	223	86608106	-	CYB_0618	-	hypothetical protein
603	 61.35	0	626983..629181	-	732	86608107	-	CYB_0617	-	C14 family peptidase
604	 56.90	0	629485..630702	+	405	86608108	-	CYB_0620	-	ISSoc1, transposase
605	 57.80	0	630674..630955	-	93	86608109	-	CYB_0619	-	hypothetical protein
606	 57.14	0	631020..631208	-	62	86608110	-	CYB_0621	-	hypothetical protein
607	 59.06	0	631292..633211	+	639	86608111	-	CYB_0623	-	hypothetical protein
608	 57.89	0	633208..633606	-	132	86608112	-	CYB_0622	-	hypothetical protein
609	 59.37	0	634116..635006	+	296	86608113	tyrA	CYB_0624	-	prephenate dehydrogenase
610	 59.87	0	635075..635824	+	249	86608114	-	CYB_0625	-	cytochrome c biogenesis membrane protein
611	 58.30	0	635936..637345	+	469	86608115	-	CYB_0626	-	cytochrome c-type biogenesis protein ResB, putative
612	 56.70	0	637687..637947	+	86	86608116	-	CYB_0628	-	ferredoxin-thioredoxin reductase, variable subunit
613	 55.91	0	637944..638417	-	157	86608117	-	CYB_0627	-	hypothetical protein
614	 55.28	0	638440..638562	+	40	86608118	-	CYB_0629	-	hypothetical protein
615	 55.83	0	638633..639850	+	405	86608119	-	CYB_0630	-	ISSoc1, transposase
616	 60.46	0	639992..641908	+	638	86608120	hflB	CYB_0631	-	cell division protein FtsH
617	 59.85	0	642012..644168	-	718	86608121	-	CYB_0632	-	alpha-glucan phosphorylase, putative
618	 60.24	0	644667..645770	-	367	86608122	-	CYB_0633	-	SpoIID/LytB domain-containing protein
619	 57.81	0	645805..645996	-	63	86608123	-	CYB_0634	-	hypothetical protein
620	 65.89	+1	646125..646640	-	171	86608124	-	CYB_0635	-	cytidine and deoxycytidylate deaminase family protein
621	 61.11	0	646851..648092	+	413	86608125	-	CYB_0636	-	S1C family peptidase
622	 61.12	0	648160..649764	+	534	86608126	-	CYB_0637	-	protein kinase
623	 49.21	-2	650296..650421	+	41	86608127	-	CYB_0638	-	hypothetical protein
624	 59.12	0	651097..651255	+	52	86608128	-	CYB_0639	-	hypothetical protein
625	 43.38	-2	651867..652274	+	135	86608129	-	CYB_0641	-	ISSoc13, transposase orfB
626	 63.03	+1	652537..653388	+	283	86608130	rbgA	CYB_0642	-	ribosomal biogenesis GTPase
627	 58.80	0	653484..654602	-	372	86608131	-	CYB_0643	-	radical SAM domain-containing protein
628	 55.46	0	654687..655052	+	121	86608132	-	CYB_0644	-	hypothetical protein
629	 56.81	0	655133..655558	+	141	86608133	-	CYB_0645	-	hypothetical protein
630	 54.13	-1	656104..657579	+	491	86608134	glgA	CYB_0646	-	glycogen synthase
631	 58.96	0	657739..659346	+	535	86608135	-	CYB_0647	-	glycosy hydrolase family protein
632	 63.38	+1	659644..661440	-	598	86608136	ilvB	CYB_0648	-	acetolactate synthase 3 catalytic subunit
633	 59.25	0	661655..663232	+	525	86608137	-	CYB_0649	-	dolichyl-phosphate-mannose-protein mannosyltransferase
634	 58.31	0	663342..664406	+	354	86608138	-	CYB_0650	-	oxidoreductase, NAD-binding
635	 59.56	0	665042..666871	-	609	86608139	-	CYB_0651	-	putative membrane-bound protease
636	 57.58	0	667103..667960	+	285	86608140	-	CYB_0652	-	hypothetical protein
637	 59.88	0	668015..669001	-	328	86608141	-	CYB_0653	-	prephenate dehydratase
638	 53.93	-1	669015..669383	-	122	86608142	-	CYB_0654	-	hypothetical protein
639	 61.10	0	669567..670841	-	424	86608143	alr	CYB_0655	-	alanine racemase
640	 61.30	0	670886..672040	-	384	86608144	sppA-1	CYB_0656	-	signal peptide peptidase SppA, 36K type
641	 54.07	-1	672274..672543	-	89	86608145	-	CYB_0658	-	hypothetical protein
642	 56.27	0	672563..672841	-	92	86608146	-	CYB_0659	-	hypothetical protein
643	 60.02	0	673292..674284	-	330	86608147	cyoE	CYB_0660	-	protoheme IX farnesyltransferase
644	 59.38	0	674338..675297	-	319	86608148	-	CYB_0661	-	cytochrome oxidase assembly protein
645	 58.75	0	675947..677032	-	361	86608149	-	CYB_0662	-	RNA polymerase sigma factor, group 1
646	 55.39	0	677242..677640	+	132	86608150	-	CYB_0663	-	hypothetical protein
647	 53.83	-1	677971..678336	+	121	86608151	-	CYB_0664	-	hypothetical protein
648	 58.78	0	679816..680487	-	223	86608152	-	CYB_0666	-	phosphatidate cytidylyltransferase, putative
649	 59.14	0	680497..680868	-	123	86608153	-	CYB_0667	-	cytochrome c family protein
650	 64.00	+1	681090..682925	-	611	86608154	-	CYB_0668	-	glycosyl hydrolase domain-containing protein
651	 63.14	+1	683073..684488	-	471	86608155	recQ	CYB_0669	-	ATP-dependent DNA helicase RecQ
58.48	MEAN

4.07	STD DEV
