IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

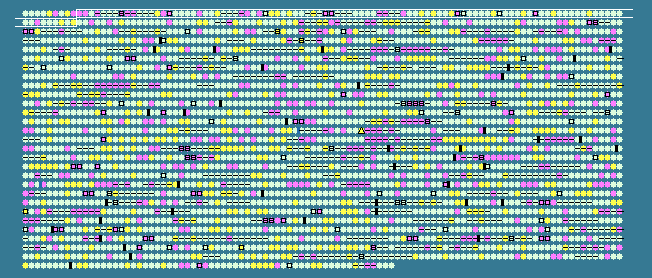

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
10	 54.03	-1	12864..13868	-	334	86607513	-	CYB_0011	-	putative phosphonate ABC transporter, phosphonate-binding protein
11	 51.45	-1	14052..14774	-	240	86607514	-	CYB_0012	-	hypothetical protein
12	 60.04	0	15045..16448	+	467	86607515	-	CYB_0014	-	phosphoglucomutase/phosphomannomutase family protein
13	 52.25	-1	16445..16555	-	36	86607516	-	CYB_0013	-	hypothetical protein
14	 56.21	0	17327..17938	-	203	86607517	-	CYB_0015	-	putative lipoprotein
15	 55.98	0	18219..19631	+	470	86607518	-	CYB_0016	-	hypothetical protein
16	 59.02	0	19691..21247	-	518	86607519	-	CYB_0017	-	phytoene desaturase family protein
17	 54.02	-1	21294..22574	-	426	86607520	-	CYB_0018	-	ISSoc2, transposase
18	 52.53	-1	22429..23022	-	197	86607521	-	CYB_0019	-	ISSoc2, resolvase
19	 53.78	-1	23139..23720	-	193	86607522	-	CYB_0020	-	hypothetical protein
20	 60.67	0	23828..26062	-	744	86607523	psaB	CYB_0021	-	photosystem I P700 chlorophyll a apoprotein A2
21	 59.92	0	26084..28351	-	755	86607524	psaA	CYB_0022	-	photosystem I P700 chlorophyll a apoprotein A1
22	 60.50	0	28679..30397	+	572	86607525	ureC	CYB_0023	-	urease subunit alpha
23	 63.60	+1	30461..31567	+	368	86607526	-	CYB_0024	-	ABC transporter, ATP-binding protein
24	 52.19	-1	31635..32228	+	197	86607527	-	CYB_0025	-	ISSoc2, resolvase
25	 54.83	0	32083..33315	+	410	86607528	-	CYB_0026	-	ISSoc2, transposase
26	 59.84	0	33375..34634	+	419	86607529	-	CYB_0027	-	hypothetical protein
27	 60.15	0	34638..37646	-	1002	86607530	-	CYB_0028	-	sensory box histidine kinase
28	 59.66	0	37665..38306	-	213	86607531	-	CYB_0029	-	quaternary amine ABC transporter permease
29	 57.70	0	38532..39323	-	263	86607532	-	CYB_0030	-	hypothetical protein
30	 54.12	-1	39538..40023	+	161	86607533	-	CYB_0031	-	hypothetical protein
31	 55.41	0	40497..40718	-	73	86607534	-	CYB_0032	-	hypothetical protein
32	 61.72	0	40889..41899	+	336	86607535	-	CYB_0033	-	hypothetical protein
33	 62.60	+1	42092..43639	+	515	86607536	nirA	CYB_0034	-	ferredoxin-nitrite reductase
34	 59.86	0	43701..45023	+	440	86607537	nrtA	CYB_0035	-	nitrate ABC transporter, periplasmic nitrate-binding protein NrtA
35	 55.62	0	45169..46128	+	319	86607538	ntrB-1	CYB_0036	-	nitrate ABC transporter, permease protein NrtB
36	 59.79	0	46201..48192	+	663	86607539	ntrC-1	CYB_0037	-	nitrate ABC transporter, ATP-binding protein NtrC
37	 53.26	-1	48231..49073	+	280	86607540	ntrD	CYB_0038	-	nitrate ABC transporter, ATP-binding protein NtrD
38	 52.26	-1	49091..49687	+	198	86607541	-	CYB_0039	-	hypothetical protein
39	 56.51	0	49774..51909	+	711	86607542	narB	CYB_0040	-	nitrate reductase
40	 51.10	-1	51934..52434	+	166	86607543	-	CYB_0042	-	hypothetical protein
41	 55.17	0	52431..53648	-	405	86607544	-	CYB_0041	-	ISSoc1, transposase
42	 62.35	0	54109..55404	-	431	86607545	purD	CYB_0043	-	phosphoribosylamine--glycine ligase
43	 64.01	+1	55507..56598	-	363	86607546	-	CYB_0044	-	glycosyl transferase, group 2 family protein
44	 59.84	0	56766..58055	-	429	86607547	-	CYB_0045	-	HD domain-containing protein
45	 63.41	+1	58144..59217	+	357	86607548	-	CYB_0046	-	GDSL-like lipase/acylhydrolase domain-containing protein
46	 60.13	0	59247..61082	-	611	86607549	-	CYB_0047	-	metallo-beta-lactamase family protein
47	 56.79	0	61302..62222	-	306	86607550	dapA	CYB_0048	-	dihydrodipicolinate synthase
48	 59.17	0	62498..63124	+	208	86607551	-	CYB_0049	-	nitroreductase family protein
49	 63.08	+1	63176..64207	-	343	86607552	trpD	CYB_0050	-	anthranilate phosphoribosyltransferase
50	 61.88	0	64391..65770	+	459	86607553	gid	CYB_0051	-	tRNA (uracil-5-)-methyltransferase Gid
51	 43.38	-2	65862..66269	-	135	86607554	-	CYB_0052	-	ISSoc13, transposase orfB
52	 44.71	-2	66227..66604	-	125	86607555	-	CYB_0053	-	ISSoc13, transposase orfA
53	 56.44	0	66823..67761	-	312	86607556	-	CYB_0054	-	phosphotransferase family protein
54	 58.52	0	68199..68468	+	89	86607557	-	CYB_0055	-	hypothetical protein
55	 59.46	0	68551..69216	+	221	86607558	-	CYB_0056	-	guanylate kinase, putative
56	 59.26	0	69559..70017	+	152	86607559	-	CYB_0057	-	S-adenosylmethionine decarboxylase proenzyme
57	 60.17	0	70137..71075	+	312	86607560	speE	CYB_0058	-	spermidine synthase
58	 58.42	0	71168..72319	+	383	86607561	-	CYB_0060	-	putative UDP-sulfoquinovose synthase
59	 61.40	0	72316..73227	-	303	86607562	-	CYB_0059	-	histone deacetylase family protein
60	 52.65	-1	73285..73605	-	106	86607563	-	CYB_0061	-	hypothetical protein
61	 53.23	-1	74202..74573	-	123	86607564	-	CYB_0062	-	iojap-like protein
62	 57.91	0	74616..75209	-	197	86607565	-	CYB_0063	-	HD domain-containing protein
63	 56.79	0	75214..77025	-	603	86607566	lepA	CYB_0064	-	GTP-binding protein LepA
64	 47.16	-2	77357..77884	-	175	86607567	-	CYB_0065	-	hypothetical protein
65	 55.42	0	78035..79021	-	328	86607568	glyQ	CYB_0066	-	glycyl-tRNA synthetase subunit alpha
66	 58.30	0	79074..79838	-	254	86607569	-	CYB_0067	-	T1 family peptidase
67	 63.04	+1	79887..81374	-	495	86607570	-	CYB_0068	-	GTP-binding protein
68	 60.35	0	81528..81812	+	94	86607571	-	CYB_0069	-	hypothetical protein
69	 62.39	0	81871..82455	+	194	86607572	-	CYB_0070	-	WD-40-like beta propeller repeat-containing protein
70	 60.84	0	82505..83689	+	394	86607573	-	CYB_0071	-	succinyldiaminopimelate transaminase
71	 57.22	0	83850..84548	+	232	86607574	-	CYB_0072	-	hypothetical protein
72	 62.63	+1	84796..86109	+	437	86607575	hisD	CYB_0073	-	histidinol dehydrogenase
73	 53.23	-1	86288..87061	+	257	86607576	-	CYB_0074	-	ISSoc11, transposase orfA
74	 56.82	0	87267..87530	+	87	86607577	-	CYB_0075	-	ISSoc11, transposase orfB
75	 61.93	0	87777..90329	+	850	86607578	-	CYB_0076	-	hypothetical protein
76	 58.70	0	90396..90809	-	137	86607579	-	CYB_0077	-	hypothetical protein
77	 58.15	0	90876..91556	+	226	86607580	-	CYB_0078	-	RNA pseudouridine synthase family protein
78	 59.41	0	91835..93184	-	449	86607581	purA	CYB_0079	-	adenylosuccinate synthetase
79	 62.47	0	93396..94895	-	499	86607582	-	CYB_0080	-	S41 family peptidase
80	 55.58	0	95176..96330	+	384	86607583	-	CYB_0081	-	ISSoc8, transposase
81	 57.51	0	96348..98018	-	556	86607584	tig	CYB_0082	-	trigger factor
82	 57.29	0	98090..98473	-	127	86607585	-	CYB_0083	-	hypothetical protein
83	 60.40	0	98558..99610	-	350	86607586	-	CYB_0084	-	cytochrome c assembly protein
84	 63.16	+1	99710..101248	+	512	86607587	-	CYB_0085	-	hypothetical protein
85	 58.89	0	101494..102624	-	376	86607588	-	CYB_0086	-	hypothetical protein
86	 54.11	-1	102812..104029	+	405	86607589	-	CYB_0087	-	ISSoc1, transposase
87	 61.71	0	104064..105293	+	409	86607590	xseA	CYB_0088	-	exodeoxyribonuclease VII large subunit
88	 55.27	0	105274..105510	+	78	86607591	xseB	CYB_0089	-	exodeoxyribonuclease VII, small subunit
89	 62.36	0	105603..106484	+	293	86607592	folD	CYB_0090	-	FolD bifunctional protein
90	 58.72	0	107027..107731	-	234	86607593	-	CYB_0091	-	hypothetical protein
91	 59.22	0	107841..108458	-	205	86607594	-	CYB_0092	-	pyridoxamine 5'-phosphate oxidase family protein
92	 58.76	0	108515..109690	-	391	86607595	-	CYB_0093	-	acetyltransferase
93	 57.95	0	110017..110670	-	217	86607596	-	CYB_0094	-	hypothetical protein
94	 60.79	0	110944..112338	+	464	86607597	murA	CYB_0095	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
95	 62.08	0	112532..114667	+	711	86607598	-	CYB_0096	-	Slt family transglycosylase
96	 60.88	0	114811..115398	+	195	86607599	sixA	CYB_0097	-	phosphohistidine phosphatase SixA
97	 60.54	0	115467..115760	-	97	86607600	-	CYB_0098	-	hypothetical protein
98	 60.06	0	115840..116520	+	226	86607601	-	CYB_0100	-	DnaJ family protein
99	 59.08	0	116512..117381	-	289	86607602	-	CYB_0099	-	S49 family peptidase
100	 60.77	0	117452..118333	-	293	86607603	-	CYB_0101	-	hypothetical protein
101	 56.17	0	118335..119306	-	323	86607604	-	CYB_0102	-	beta-carotene ketolase, putative
102	 57.32	0	119664..119909	+	81	86607605	psaK	CYB_0103	-	photosystem I reaction center protein PsaK
103	 49.61	-2	120040..120168	+	42	86607606	psbK	CYB_0104	-	photosystem II reaction center protein K
104	 58.70	0	120507..121046	-	179	86607607	-	CYB_0105	-	hypothetical protein
105	 56.60	0	121122..121568	-	148	86607608	-	CYB_0106	-	hypothetical protein
106	 60.34	0	121855..122913	+	352	86607609	chlI	CYB_0107	-	magnesium chelatase, ATPase subunit I
107	 63.09	+1	122953..123651	-	232	86607610	-	CYB_0108	-	hypothetical protein
108	 57.87	0	124060..124593	-	177	86607611	nucH	CYB_0109	-	thermonuclease
109	 62.02	0	124796..124924	-	42	86607612	-	CYB_0110	-	hypothetical protein
58.48	MEAN

4.07	STD DEV
