IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

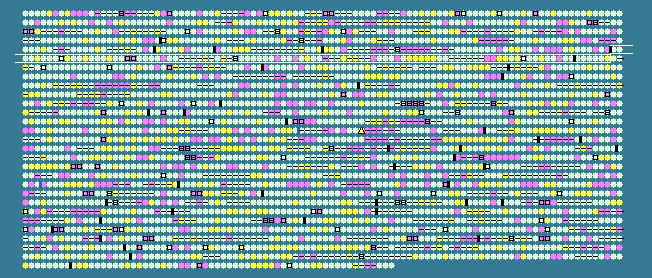

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
499	 57.66	0	524077..524187	+	36	86608003	-	CYB_0510	-	hypothetical protein
500	 60.29	0	524190..525287	+	365	86608004	tgt	CYB_0511	-	queuine tRNA-ribosyltransferase
501	 56.37	0	525407..526018	+	203	86608005	-	CYB_0512	-	hypothetical protein
502	 58.45	0	526113..527378	+	421	86608006	-	CYB_0513	-	hypothetical protein
503	 63.30	+1	527385..527681	+	98	86608007	-	CYB_0514	-	hypothetical protein
504	 57.42	0	527704..528363	-	219	86608008	-	CYB_0515	-	3-beta hydroxysteroid dehydrogenase/isomerase family protein
505	 61.62	0	528509..531463	+	984	86608009	-	CYB_0516	-	proline dehydrogenase/1-pyrroline-5 carboxylate dehydrogenase
506	 61.25	0	531483..532535	-	350	86608010	-	CYB_0517	-	CsgG family protein
507	 60.90	0	532982..534160	-	392	86608011	-	CYB_0518	-	ISSoc9, transposase
508	 62.37	0	534374..535513	+	379	86608012	proB	CYB_0519	-	gamma-glutamyl kinase
509	 60.33	0	535600..536703	-	367	86608013	-	CYB_0520	-	hypothetical protein
510	 55.56	0	536702..536800	+	32	86608014	-	CYB_0521	-	hypothetical protein
511	 62.24	0	536868..538766	-	632	86608015	-	CYB_0522	-	serine/threonine protein kinase
512	 60.00	0	538941..539405	-	154	86608016	bcp-1	CYB_0523	-	bacterioferritin comigratory protein
513	 57.17	0	539421..539978	-	185	86608017	infC	CYB_0524	-	translation initiation factor IF-3
514	 57.37	0	540238..540549	+	103	86608018	-	CYB_0525	-	hypothetical protein
515	 62.34	0	540591..541976	+	461	86608019	aspA	CYB_0526	-	aspartate ammonia-lyase
516	 57.09	0	542017..542757	+	246	86608020	-	CYB_0527	-	hypothetical protein
517	 58.89	0	542837..544225	+	462	86608021	-	CYB_0528	-	sugar  glycoside-pentoside-hexuronide (GPH):cation symporter family protein
518	 48.07	-2	544295..544735	-	146	86608022	-	CYB_0529	-	ISSoc10, orfA transposase
519	 53.41	-1	544793..546037	+	414	86608023	-	CYB_0530	-	ISSoc10, orfB transposase
520	 59.31	0	546440..546901	-	153	86608024	-	CYB_0532	-	hypothetical protein
521	 58.63	0	547075..547995	-	306	86608025	chlG	CYB_0533	-	bacteriochlorophyll/chlorophyll a synthase
522	 58.36	0	548802..549620	-	272	86608026	-	CYB_0534	-	phytanoyl-CoA dioxygenase PhyH family protein
523	 61.21	0	549636..551156	-	506	86608027	trpE	CYB_0535	-	anthranilate synthase component I
524	 53.55	-1	551297..551845	+	182	86608028	-	CYB_0536	-	NUDIX family hydrolase
525	 61.41	0	552117..552782	+	221	86608029	-	CYB_0537	-	hypothetical protein
526	 61.55	0	552872..553828	-	318	86608030	-	CYB_0538	-	M23B family peptidase
527	 59.60	0	553989..555035	+	348	86608031	-	CYB_0539	-	hypothetical protein
528	 60.04	0	555082..556122	+	346	86608032	-	CYB_0540	-	putative low specificity L-threonine aldolase
529	 58.67	0	556212..556736	-	174	86608033	lspA	CYB_0541	-	lipoprotein signal peptidase
530	 61.35	0	556733..556939	-	68	86608034	-	CYB_0542	-	hypothetical protein
531	 63.49	+1	556802..556927	+	41	86608035	-	CYB_0543	-	hypothetical protein
532	 57.22	0	556997..557377	-	126	86608036	-	CYB_0544	-	hypothetical protein
533	 59.33	0	557377..558180	-	267	86608037	-	CYB_0545	-	polyamine/opine/phosphonate ABC transporter permease
534	 62.76	+1	558347..558961	+	204	86608038	ruvA	CYB_0546	-	Holliday junction DNA helicase motor protein
535	 61.58	0	558958..559566	+	202	86608039	nadD	CYB_0547	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
536	 56.02	0	559713..560867	+	384	86608040	-	CYB_0548	-	ISSoc8, transposase
537	 59.44	0	561039..561287	-	82	86608041	psaC	CYB_0549	-	photosystem I subunit VII
538	 58.96	0	561440..561880	+	146	86608042	-	CYB_0550	-	hypothetical protein
539	 61.71	0	561907..562269	-	120	86608043	-	CYB_0551	-	hypothetical protein
540	 60.59	0	562273..562914	-	213	86608044	-	CYB_0552	-	hypothetical protein
541	 59.75	0	563050..564351	-	433	86608045	-	CYB_0553	-	putative gamma-glutamyl phosphate reductase
542	 57.62	0	564489..564941	-	150	86608046	-	CYB_0554	-	hypothetical protein
543	 54.41	0	564999..566426	-	475	86608047	-	CYB_0555	-	hypothetical protein
544	 61.88	0	566647..567753	+	368	86608048	-	CYB_0556	-	putative glutamate--cysteine ligase
545	 55.56	0	567966..568712	-	248	86608049	-	CYB_0557	-	hypothetical protein
546	 52.14	-1	568793..569143	-	116	86608050	-	CYB_0558	-	hypothetical protein
547	 60.16	0	569327..569710	+	127	86608051	-	CYB_0559	-	putative endoribonuclease L-PSP
548	 62.96	+1	569728..569997	-	89	86608052	-	CYB_0560	-	hypothetical protein
549	 60.29	0	570229..571530	+	433	86608053	-	CYB_0561	-	drug:H+ antiporter-1 family protein
550	 59.50	0	571691..572527	+	278	86608054	-	CYB_0562	-	SpoIID/LytB domain-containing protein
551	 51.26	-1	572901..573218	+	105	86608055	-	CYB_0563	-	hypothetical protein
552	 58.64	0	573326..574858	+	510	86608056	-	CYB_0564	-	UvrD/Rep family helicase
553	 59.15	0	575034..575858	-	274	86608057	menB	CYB_0565	-	naphthoate synthase
554	 63.27	+1	575976..577478	-	500	86608058	cobA/hemD	CYB_0566	-	uroporphyrin-III C-methyltransferase/uroporphyrinogen-III synthase
555	 63.74	+1	577614..577784	-	56	86608059	-	CYB_0567	-	hypothetical protein
556	 63.50	+1	577660..578670	+	336	86608060	-	CYB_0569	-	taurine ABC transporter periplasmic substrate-binding protein
557	 60.49	0	578667..579200	-	177	86608061	-	CYB_0568	-	putative phycobilisome linker polypeptide
558	 57.06	0	579742..580272	+	176	86608062	-	CYB_0571	-	iron-sulfur cluster-binding protein
559	 43.70	-2	580213..580347	-	44	86608063	-	CYB_0570	-	hypothetical protein
560	 55.07	0	580504..581184	+	226	86608064	-	CYB_0572	-	putative bacteriochlorophyll 4-vinyl reductase
561	 57.80	0	581244..581525	+	93	86608065	-	CYB_0573	-	hypothetical protein
562	 59.09	0	581587..582180	+	197	86608066	-	CYB_0574	-	hypothetical protein
563	 54.14	-1	582205..582675	+	156	86608067	-	CYB_0575	-	phycobilisome protein
564	 61.59	0	582864..583553	+	229	86608068	-	CYB_0576	-	V4R domain-containing protein
565	 62.29	0	583591..584298	-	235	86608069	-	CYB_0577	-	hypothetical protein
566	 62.09	0	584583..585827	+	414	86608070	-	CYB_0578	-	S1C family peptidase
567	 62.88	+1	586180..587103	+	307	86608071	-	CYB_0579	-	quaternary amine ABC transporter periplasmic substrate-binding protein
568	 62.75	+1	587130..588098	+	322	86608072	-	CYB_0580	-	quaternary amine ABC  transporter ATP-binding protein
569	 63.43	+1	588095..588712	+	205	86608073	-	CYB_0581	-	quaternary amine ABC transporter permease
570	 60.74	0	588838..589461	+	207	86608074	-	CYB_0582	-	RNA polymerase sigma factor
571	 60.49	0	590399..591046	+	215	86608075	-	CYB_0584	-	VanW family protein
572	 57.41	0	592183..593079	-	298	86608076	-	CYB_0585	-	CRISPR-associated protein APE2256 family
573	 58.54	0	593129..593842	-	237	86608077	-	CYB_0586	-	hypothetical protein
574	 60.74	0	593853..594932	-	359	86608078	-	CYB_0587	-	hypothetical protein
575	 58.28	0	594935..595387	-	150	86608079	-	CYB_0588	-	hypothetical protein
576	 60.45	0	595384..596364	-	326	86608080	-	CYB_0589	-	CRISPR-associated RAMP family protein
577	 60.45	0	596531..597382	-	283	86608081	-	CYB_0590	-	CRISPR-associated Csm3 family protein
578	 49.85	-2	597402..598049	-	215	86608082	-	CYB_0591	-	hypothetical protein
579	 53.29	-1	598053..598493	-	146	86608083	-	CYB_0592	-	hypothetical protein
580	 62.94	+1	598490..599722	-	410	86608084	csx10	CYB_0593	-	CRISPR-associated RAMP Csx10 family protein
581	 65.84	+1	599722..600444	-	240	86608085	-	CYB_0594	-	CRISPR-associated Csm3 family protein
582	 60.88	0	600444..602654	-	736	86608086	crm2-1	CYB_0595	-	CRISPR-associated RAMP Crm2 family protein
583	 62.18	0	603175..604356	+	393	86608087	cas6	CYB_0596	-	CRISPR-associated Cas family protein
584	 56.95	0	605551..606744	+	397	86608088	-	CYB_0598	-	ISSoc1, transposase
585	 58.78	0	606716..608173	-	485	86608089	-	CYB_0597	-	hypothetical protein
586	 61.51	0	608339..609307	+	322	86608090	csx3	CYB_0599	-	CRISPR-associated Csx3 family protein
587	 62.63	+1	609411..610202	+	263	86608091	-	CYB_0600	-	ADP-ribosylglycohydrolase family protein
588	 55.74	0	610278..611165	-	295	86608092	-	CYB_0601	-	nitrate ABC transporter, ATP-binding protein NtrD
589	 57.01	0	611237..613234	-	665	86608093	ntrC-2	CYB_0602	-	nitrate ABC transporter, ATP-binding proteins NtrC
590	 52.42	-1	613303..614130	-	275	86608094	ntrB-2	CYB_0603	-	nitrate ABC transporter, permease protein
591	 57.55	0	614652..615956	-	434	86608095	-	CYB_0604	-	nitrate/nitrite/cyanate ABC transporter periplasmic substrate-binding protein
592	 61.93	0	616167..617264	+	365	86608096	-	CYB_0605	-	putative tocopherol cyclase
593	 60.93	0	617632..620106	+	824	86608097	clpC	CYB_0607	-	Clp protease, ATP-binding subunit ClpC
594	 56.13	0	620234..620869	+	211	86608098	clpP-1	CYB_0608	-	ATP-dependent Clp protease-like protein
595	 57.03	0	621483..622094	+	203	86608099	clpP	CYB_0610	-	ATP-dependent Clp protease proteolytic subunit
596	 61.72	0	622202..622504	+	100	86608100	-	CYB_0611	-	hypothetical protein
597	 59.52	0	622509..623096	-	195	86608101	-	CYB_0612	-	hypothetical protein
598	 62.72	+1	623105..624499	+	464	86608102	-	CYB_0613	-	malate dehydrogenase (oxaloacetate-decarboxylating)
58.48	MEAN

4.07	STD DEV
