IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

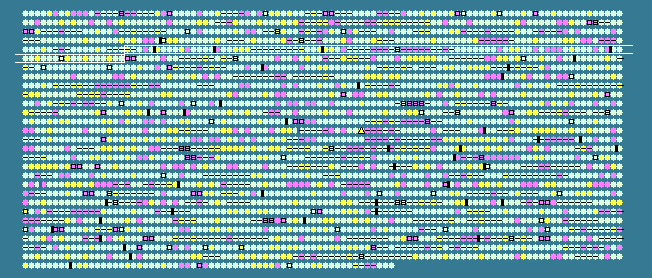

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
418	 62.96	+1	434137..435324	+	395	86607921	aksA	CYB_0424	-	trans-homoaconitate synthase
419	 56.00	0	435314..435463	+	49	86607922	-	CYB_0425	-	hypothetical protein
420	 56.82	0	435460..435723	+	87	86607923	nifZ	CYB_0426	-	NifZ protein
421	 53.73	-1	435720..435920	+	66	86607924	-	CYB_0427	-	NifT/FixU family protein
422	 58.78	0	436073..437302	+	409	86607925	-	CYB_0428	-	major facilitator transporter
423	 62.22	0	437528..439684	-	718	86607926	-	CYB_0430	-	TPR repeat-containing protein
424	 60.54	0	439914..442607	+	897	86607927	-	CYB_0431	-	putative phycobilisome 120 kDa linker polypeptide, core
425	 59.98	0	442670..443806	-	378	86607928	ruvB	CYB_0432	-	Holliday junction DNA helicase B
426	 58.03	0	443947..445011	-	354	86607929	psbA-3	CYB_0433	-	photosystem II protein D1
427	 63.56	+1	445110..445817	+	235	86607930	-	CYB_0434	-	glycoprotease family protein
428	 54.48	0	445854..446411	+	185	86607931	efp	CYB_0435	-	elongation factor P
429	 57.59	0	446481..446954	+	157	86607932	accB	CYB_0436	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
430	 60.75	0	447349..448278	+	309	86607933	-	CYB_0437	-	Ser/Thr protein phosphatase family protein
431	 59.04	0	448355..449101	+	248	86607934	cysH	CYB_0438	-	phosophoadenylyl-sulfate reductase
432	 56.19	0	449105..449419	+	104	86607935	-	CYB_0439	-	antibiotic biosynthesis monooxygenase domain-containing protein
433	 54.88	0	449717..450658	-	313	86607936	-	CYB_0441	-	phosphoribulokinase
434	 56.64	0	450944..451711	+	255	86607937	-	CYB_0442	-	pspA/IM30 family protein
435	 58.49	0	451961..452425	+	154	86607938	-	CYB_0443	-	pentapeptide repeat-containing protein
436	 62.80	+1	452438..453265	-	275	86607939	cysQ	CYB_0444	-	3'(2'),5'-bisphosphate nucleotidase
437	 64.57	+1	453281..454042	-	253	86607940	hisF	CYB_0445	-	imidazole glycerol phosphate synthase subunit HisF
438	 63.59	+1	454104..455207	-	367	86607941	-	CYB_0446	-	hypothetical protein
439	 60.14	0	455204..455479	-	91	86607942	-	CYB_0447	-	hypothetical protein
440	 57.08	0	455532..456011	-	159	86607943	rpsP	CYB_0448	-	ribosomal protein S16
441	 57.05	0	456261..456707	+	148	86607944	-	CYB_0449	-	hypothetical protein
442	 61.11	0	456830..457225	-	131	86607945	-	CYB_0450	-	hypothetical protein
443	 59.19	0	457349..458311	+	320	86607946	sds	CYB_0451	-	solanesyl diphosphate synthase
444	 57.46	0	458340..459143	-	267	86607947	lepB	CYB_0452	-	signal peptidase I
445	 55.18	0	459188..459544	+	118	86607948	-	CYB_0453	-	hypothetical protein
446	 58.45	0	459576..460622	-	348	86607949	-	CYB_0454	-	general secretory pathway protein, putative
447	 62.22	0	460791..461510	+	239	86607950	pdxJ	CYB_0455	-	pyridoxal phosphate biosynthetic protein PdxJ
448	 61.30	0	461525..462157	+	210	86607951	-	CYB_0456	-	hypothetical protein
449	 61.63	0	462170..463003	+	277	86607952	-	CYB_0457	-	biotin--acetyl-CoA-carboxylase ligase
450	 62.32	0	463030..463950	+	306	86607953	-	CYB_0458	-	M23B family peptidase
451	 64.20	+1	464348..465361	-	337	86607954	-	CYB_0460	-	heptosyltransferase family protein
452	 64.08	+1	465556..466713	+	385	86607955	-	CYB_0461	-	DegT/DnrJ/EryC1/StrS aminotransferase family protein
453	 56.92	0	466819..468018	+	399	86607956	-	CYB_0462	-	hypothetical protein
454	 51.77	-1	468123..469082	-	319	86607957	-	CYB_0463	-	patatin family phospholipase
455	 59.78	0	469147..469785	-	212	86607958	-	CYB_0464	-	phosphoglycerate mutase family protein
456	 60.37	0	469831..470799	-	322	86607959	ppnK	CYB_0465	-	inorganic polyphosphate/ATP-NAD kinase
457	 59.88	0	471169..473409	+	746	86607960	-	CYB_0466	-	protein kinase
458	 57.26	0	473993..474109	-	38	86607961	-	CYB_0467	-	hypothetical protein
459	 49.95	-2	474361..476334	-	657	86607962	-	CYB_0468	-	TPR domain-containing protein
460	 52.08	-1	476536..478557	-	673	86607963	-	CYB_0469	-	FkbM family methyltransferase
461	 54.01	-1	478587..480641	-	684	86607964	-	CYB_0470	-	FkbM family methyltransferase
462	 59.03	0	480813..480956	+	47	86607965	-	CYB_0471	-	hypothetical protein
463	 56.85	0	481589..482800	+	403	86607966	-	CYB_0472	-	ISSoc1, transposase
464	 50.44	-1	482827..483726	+	299	86607967	-	CYB_0473	-	2OG-Fe(II) oxygenase family oxidoreductase
465	 46.19	-2	483699..484709	+	336	86607968	-	CYB_0474	-	hypothetical protein
466	 52.33	-1	484805..485320	-	171	86607969	-	CYB_0475	-	general secretion pathway protein G, putative
467	 48.27	-2	485683..489318	+	1211	86607970	-	CYB_0476	-	FkbM family methyltransferase
468	 48.15	-2	489323..489457	+	44	86607971	-	CYB_0477	-	hypothetical protein
469	 57.23	0	489533..490051	-	172	86607972	-	CYB_0478	-	purine phosphoribosyltransferase, putative
470	 57.65	0	490117..491037	-	306	86607973	ilvE	CYB_0479	-	branched-chain amino acid aminotransferase
471	 50.19	-2	491706..491966	+	86	86607974	-	CYB_0480	-	peptidase propeptide/YPEB domain-containing protein
472	 58.42	0	492232..493674	+	480	86607975	-	CYB_0481	-	HlyC/CorC (HCC) family transporter
473	 59.92	0	493690..495231	-	513	86607976	-	CYB_0482	-	Orn/Lys/Arg decarboxylase
474	 57.50	0	495354..495920	+	188	86607977	-	CYB_0483	-	hypothetical protein
475	 55.33	0	496114..498204	-	696	86607978	-	CYB_0484	-	type IV pilus secretin PilQ, putative
476	 57.12	0	498467..499168	-	233	86607979	-	CYB_0485	-	hypothetical protein
477	 57.34	0	499168..499875	-	235	86607980	pilN	CYB_0486	-	type 4 fimbrial biogenesis protein PilN
478	 58.53	0	499936..501054	-	372	86607981	pilM	CYB_0487	-	type IV pilus assembly protein PilM
479	 58.86	0	501274..502899	-	541	86607982	kaiC	CYB_0488	-	circadian clock protein KaiC
480	 53.80	-1	502928..503230	-	100	86607983	kaiB	CYB_0489	-	circadian clock protein KaiB
481	 58.21	0	503233..504237	-	334	86607984	kaiA	CYB_0490	-	circadian clock protein KaiA
482	 61.97	0	504359..505294	+	311	86607985	-	CYB_0491	-	inosine-uridine preferring nucleoside hydrolase family protein
483	 62.04	0	505373..505891	+	172	86607986	pgsA	CYB_0492	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
484	 58.78	0	506211..506717	+	168	86607987	ruvC	CYB_0493	-	crossover junction endodeoxyribonuclease RuvC
485	 59.94	0	506813..507466	+	217	86607988	-	CYB_0494	-	ATP-dependent protease La
486	 53.74	-1	507475..507621	-	48	86607989	-	CYB_0495	-	hypothetical protein
487	 60.25	0	507620..508351	+	243	86607990	-	CYB_0496	-	hypothetical protein
488	 51.42	-1	508358..509446	+	362	86607991	-	CYB_0497	-	hypothetical protein
489	 54.55	0	509676..510863	+	395	86607992	-	CYB_0498	-	hypothetical protein
490	 50.88	-1	510860..510973	+	37	86607993	-	CYB_0499	-	hypothetical protein
491	 60.14	0	511015..512409	+	464	86607994	rumA	CYB_0500	-	23S rRNA (uracil-5-)-methyltransferase RumA
492	 62.70	+1	513959..514663	-	234	86607996	-	CYB_0502	-	hypothetical protein
493	 59.05	0	514667..515191	-	174	86607997	-	CYB_0503	-	acetyltransferase
494	 56.67	0	516636..516815	+	59	86607998	-	CYB_0504	-	hypothetical protein
495	 55.74	0	516914..518011	+	365	86607999	-	CYB_0505	-	polyamine transporter, periplasmic polyamine-binding protein
496	 50.29	-2	518074..518244	+	56	86608000	-	CYB_0506	-	CAB/ELIP/HLIP family protein
497	 57.89	0	518503..523083	-	1526	86608001	-	CYB_0507	-	sensory box histidine kinase/response regulator
498	 49.74	-2	523547..523924	+	125	86608002	-	CYB_0508	-	hypothetical protein
499	 57.66	0	524077..524187	+	36	86608003	-	CYB_0510	-	hypothetical protein
500	 60.29	0	524190..525287	+	365	86608004	tgt	CYB_0511	-	queuine tRNA-ribosyltransferase
501	 56.37	0	525407..526018	+	203	86608005	-	CYB_0512	-	hypothetical protein
502	 58.45	0	526113..527378	+	421	86608006	-	CYB_0513	-	hypothetical protein
503	 63.30	+1	527385..527681	+	98	86608007	-	CYB_0514	-	hypothetical protein
504	 57.42	0	527704..528363	-	219	86608008	-	CYB_0515	-	3-beta hydroxysteroid dehydrogenase/isomerase family protein
505	 61.62	0	528509..531463	+	984	86608009	-	CYB_0516	-	proline dehydrogenase/1-pyrroline-5 carboxylate dehydrogenase
506	 61.25	0	531483..532535	-	350	86608010	-	CYB_0517	-	CsgG family protein
507	 60.90	0	532982..534160	-	392	86608011	-	CYB_0518	-	ISSoc9, transposase
508	 62.37	0	534374..535513	+	379	86608012	proB	CYB_0519	-	gamma-glutamyl kinase
509	 60.33	0	535600..536703	-	367	86608013	-	CYB_0520	-	hypothetical protein
510	 55.56	0	536702..536800	+	32	86608014	-	CYB_0521	-	hypothetical protein
511	 62.24	0	536868..538766	-	632	86608015	-	CYB_0522	-	serine/threonine protein kinase
512	 60.00	0	538941..539405	-	154	86608016	bcp-1	CYB_0523	-	bacterioferritin comigratory protein
513	 57.17	0	539421..539978	-	185	86608017	infC	CYB_0524	-	translation initiation factor IF-3
514	 57.37	0	540238..540549	+	103	86608018	-	CYB_0525	-	hypothetical protein
515	 62.34	0	540591..541976	+	461	86608019	aspA	CYB_0526	-	aspartate ammonia-lyase
516	 57.09	0	542017..542757	+	246	86608020	-	CYB_0527	-	hypothetical protein
517	 58.89	0	542837..544225	+	462	86608021	-	CYB_0528	-	sugar  glycoside-pentoside-hexuronide (GPH):cation symporter family protein
58.48	MEAN

4.07	STD DEV
