IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

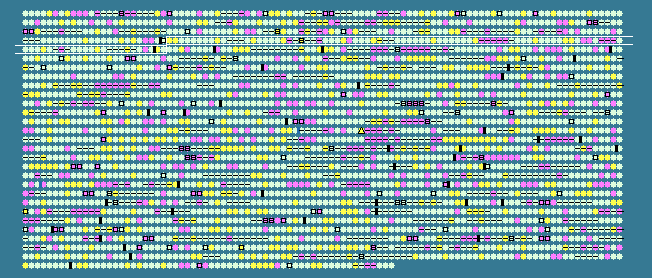

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
325	 64.81	+1	346995..347858	-	287	86607828	-	CYB_0330	-	xanthine dehydrogenase accessory factor, putative
326	 62.76	+1	347947..349098	-	383	86607829	-	CYB_0331	-	carboxylesterase
327	 61.59	0	349223..350188	+	321	86607830	-	CYB_0332	-	LysR family transcriptional regulator
328	 61.58	0	350302..351342	+	346	86607831	-	CYB_0333	-	hypothetical protein
329	 61.83	0	351715..352995	-	426	86607832	-	CYB_0334	-	Rho termination factor domain-containing protein
330	 61.83	0	353347..354255	+	302	86607833	-	CYB_0335	-	hypothetical protein
331	 61.23	0	354383..355504	+	373	86607834	-	CYB_0336	-	heptosyltransferase family protein
332	 61.29	0	355765..356694	+	309	86607835	-	CYB_0337	-	integral membrane protein
333	 64.10	+1	356719..357846	-	375	86607836	-	CYB_0338	-	alcohol dehydrogenase, iron-containing
334	 61.63	0	358767..360056	-	429	86607837	-	CYB_0340	-	aminotransferase, classes I and II
335	 60.72	0	360079..361053	-	324	86607838	-	CYB_0341	-	hypothetical protein
336	 60.27	0	361401..362072	-	223	86607839	-	CYB_0342	-	hypothetical protein
337	 61.72	0	362120..362827	-	235	86607840	pyrF	CYB_0343	-	orotidine 5'-phosphate decarboxylase
338	 56.28	0	362824..363420	-	198	86607841	-	CYB_0344	-	hypothetical protein
339	 62.30	0	364017..364817	-	266	86607842	-	CYB_0345	-	hypothetical protein
340	 56.71	0	364814..365245	-	143	86607843	-	CYB_0346	-	hypothetical protein
341	 59.41	0	365638..366588	+	316	86607844	-	CYB_0347	-	GGDEF/FHA domain-containing protein
342	 55.13	0	366610..366999	-	129	86607845	gcvH	CYB_0348	-	glycine cleavage system protein H
343	 58.39	0	367081..367986	-	301	86607846	-	CYB_0349	-	alpha/beta fold family hydrolase
344	 63.19	+1	368129..369076	+	315	86607847	-	CYB_0350	-	NAD-dependent glycerol-3-phosphate dehydrogenase family protein
345	 45.37	-2	369161..369268	-	35	86607848	-	CYB_0351	-	hypothetical protein
346	 55.46	0	369353..369718	+	121	86607849	-	CYB_0352	-	response regulator
347	 62.04	0	369859..371220	+	453	86607850	-	CYB_0353	-	ISSoc9, transposase
348	 60.11	0	371273..371455	-	60	86607851	-	CYB_0354	-	hypothetical protein
349	 55.07	0	371550..371756	+	68	86607852	-	CYB_0355	-	hypothetical protein
350	 52.19	-1	371797..372024	+	75	86607853	-	CYB_0356	-	hypothetical protein
351	 59.26	0	372178..373257	-	359	86607854	fba	CYB_0357	-	fructose-1,6-bisphosphate aldolase
352	 61.95	0	373633..374226	+	197	86607855	-	CYB_0358	-	hypothetical protein
353	 61.57	0	374262..375125	-	287	86607856	murI	CYB_0359	-	glutamate racemase
354	 62.62	+1	375308..377185	-	625	86607857	-	CYB_0360	-	N-acetylmuramoyl-L-alanine amidase
355	 54.51	0	377266..378450	+	394	86607858	-	CYB_0361	-	hypothetical protein
356	 59.41	0	378804..379409	+	201	86607859	cbiT	CYB_0362	-	precorrin-6B methylase
357	 57.08	0	379607..379825	+	72	86607860	-	CYB_0363	-	hypothetical protein
358	 55.60	0	380443..381219	-	258	86607861	ubiE	CYB_0364	-	ubiquinone/menaquinone biosynthesis methyltransferase
359	 65.62	+1	381323..381418	+	31	86607862	-	CYB_0365	-	hypothetical protein
360	 69.01	+2	381676..381846	+	56	86607863	-	CYB_0366	-	hypothetical protein
361	 61.29	0	382541..383098	+	185	86607864	cobU	CYB_0367	-	adenosylcobinamide kinase/adenosylcobinamide-phosphate guanylyltransferase
362	 56.25	0	383136..383615	+	159	86607865	-	CYB_0368	-	hypothetical protein
363	 61.14	0	383612..384154	+	180	86607866	-	CYB_0370	-	hypothetical protein
364	 57.68	0	383936..384202	-	88	86607867	-	CYB_0369	-	hypothetical protein
365	 58.22	0	384573..385637	-	354	86607868	psbA-2	CYB_0371	-	photosystem II protein D1
366	 60.38	0	385745..388288	-	847	86607869	-	CYB_0372	-	hypothetical protein
367	 61.12	0	388293..389735	-	480	86607870	-	CYB_0373	-	hypothetical protein
368	 60.35	0	389844..390128	-	94	86607871	-	CYB_0374	-	hypothetical protein
369	 64.87	+1	390215..390883	+	222	86607872	-	CYB_0375	-	molybdopterin-guanine dinucleotide biosynthesis protein A
370	 60.99	0	390961..393057	+	698	86607873	-	CYB_0376	-	hypothetical protein
371	 58.11	0	393663..394001	+	112	86607874	-	CYB_0377	-	hypothetical protein
372	 57.02	0	394086..394427	+	113	86607875	-	CYB_0378	-	histidine triad family protein
373	 57.91	0	394512..395162	+	216	86607876	cobH-2	CYB_0379	-	precorrin-8X methylmutase
374	 58.17	0	395663..396133	+	156	86607877	-	CYB_0380	-	hypothetical protein
375	 60.95	0	396252..398000	-	582	86607878	-	CYB_0381	-	putative diflavin flavoprotein
376	 63.10	+1	398116..399882	-	588	86607879	-	CYB_0382	-	GTP-binding protein
377	 53.54	-1	399966..400064	+	32	86607880	-	CYB_0383	-	hypothetical protein
378	 52.94	-1	400143..400295	-	50	86607881	-	CYB_0384	-	hypothetical protein
379	 43.29	-2	400347..400778	-	143	86607882	-	CYB_0385	-	hypothetical protein
380	 47.73	-2	400775..401392	-	205	86607883	-	CYB_0386	-	hypothetical protein
381	 51.32	-1	401389..402072	-	227	86607884	-	CYB_0387	-	hypothetical protein
382	 58.20	0	402139..403095	-	318	86607885	-	CYB_0388	-	carbohydrate ABC transporter permease
383	 61.71	0	403102..404151	-	349	86607886	-	CYB_0389	-	carbohydrate ABC transporter permease
384	 61.55	0	404141..405703	-	520	86607887	-	CYB_0390	-	carbohydrate ABC transporter ATP-binding protein
385	 57.53	0	405675..406703	-	342	86607888	-	CYB_0391	-	Bmp family membrane protein
386	 63.14	+1	407105..408379	+	424	86607889	codA	CYB_0393	-	cytosine deaminase
387	 59.91	0	408376..408834	-	152	86607890	-	CYB_0392	-	hypothetical protein
388	 61.24	0	408866..409492	-	208	86607891	-	CYB_0394	-	5-formyltetrahydrofolate cyclo-ligase family protein
389	 61.08	0	409537..410001	-	154	86607892	-	CYB_0395	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
390	 57.71	0	410061..410741	-	226	86607893	-	CYB_0396	-	hypothetical protein
391	 65.45	+1	410818..412713	+	631	86607894	cbiG/cobJ	CYB_0397	-	cbiG protein/precorrin-3B C17-methyltransferase
392	 62.14	0	412730..414517	-	595	86607895	modB	CYB_0398	-	molybdate ABC transporter, permease protein
393	 57.68	0	414555..415322	-	255	86607896	modA	CYB_0399	-	molybdate ABC transporter, periplasmic molybdate-binding protein
394	 46.85	-2	415426..415536	-	36	86607897	-	CYB_0400	-	hypothetical protein
395	 45.24	-2	415575..415784	+	69	86607898	-	CYB_0401	-	molybdenum-pterin binding domain-containing protein
396	 55.29	0	415813..417465	-	550	86607899	-	CYB_0402	-	transcriptional regulator PatB
397	 52.33	-1	417808..418065	-	85	86607900	-	CYB_0403	-	hypothetical protein
398	 49.47	-2	418165..418542	-	125	86607901	-	CYB_0404	-	FeoA domain-containing protein
399	 49.00	-2	418571..418870	-	99	86607902	-	CYB_0405	-	ferredoxin, 2Fe-2S
400	 55.46	0	418913..419278	-	121	86607903	nifW	CYB_0406	-	nitrogenase stabilizing/protective protein nifW
401	 56.82	0	419275..419538	-	87	86607904	-	CYB_0407	-	hypothetical protein
402	 59.65	0	419605..420060	-	151	86607905	-	CYB_0408	-	hypothetical protein
403	 60.24	0	420063..420482	-	139	86607906	nifX	CYB_0409	-	nitrogenase cofactor biosynthesis protein NifX
404	 64.05	+1	420564..421901	-	445	86607907	nifN	CYB_0410	-	nitrogenase molybdenum-iron cofactor biosynthesis protein NifN
405	 61.65	0	421901..423295	-	464	86607908	nifE	CYB_0411	-	nitrogenase MoFe cofactor biosynthesis protein NifE
406	 59.17	0	423286..423645	-	119	86607909	-	CYB_0412	-	putative molybdenum-dependent nitrogenase
407	 53.33	-1	423649..423873	-	74	86607910	-	CYB_0413	-	hypothetical protein
408	 58.97	0	423916..424461	-	181	86607911	dpsA	CYB_0414	-	nutrient-stress induced DNA binding protein
409	 61.21	0	424516..424845	-	109	86607912	-	CYB_0415	-	hypothetical protein
410	 56.91	0	425332..425454	-	40	86607913	-	CYB_0416	-	hypothetical protein
411	 61.66	0	425583..427019	+	478	86607914	nifB	CYB_0417	-	nitrogenase cofactor biosynthesis protein NifB
412	 57.14	0	427045..427338	+	97	86607915	-	CYB_0418	-	ferredoxin, 4Fe-4S
413	 63.48	+1	427382..428572	+	396	86607916	nifS	CYB_0419	-	cysteine desulfurase
414	 60.49	0	428629..429567	+	312	86607917	nifU	CYB_0420	-	Fe-S cluster assembly protein NifU
415	 57.68	0	429845..430723	+	292	86607918	nifH	CYB_0421	-	nitrogenase iron protein
416	 57.58	0	430819..432282	+	487	86607919	nifD	CYB_0422	-	nitrogenase molybdenum-iron protein alpha chain
417	 58.72	0	432348..433883	+	511	86607920	nifK	CYB_0423	-	nitrogenase molybdenum-iron protein beta chain
418	 62.96	+1	434137..435324	+	395	86607921	aksA	CYB_0424	-	trans-homoaconitate synthase
419	 56.00	0	435314..435463	+	49	86607922	-	CYB_0425	-	hypothetical protein
420	 56.82	0	435460..435723	+	87	86607923	nifZ	CYB_0426	-	NifZ protein
421	 53.73	-1	435720..435920	+	66	86607924	-	CYB_0427	-	NifT/FixU family protein
422	 58.78	0	436073..437302	+	409	86607925	-	CYB_0428	-	major facilitator transporter
423	 62.22	0	437528..439684	-	718	86607926	-	CYB_0430	-	TPR repeat-containing protein
424	 60.54	0	439914..442607	+	897	86607927	-	CYB_0431	-	putative phycobilisome 120 kDa linker polypeptide, core
58.48	MEAN

4.07	STD DEV
