IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

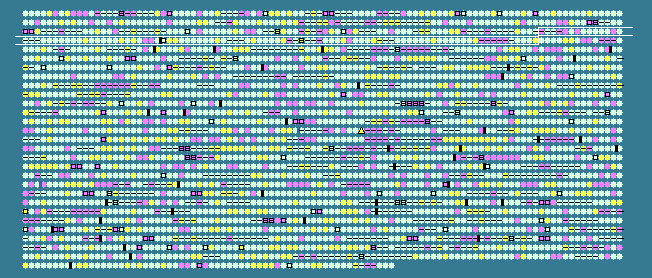

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
287	 50.67	-1	304330..304479	-	49	86607790	-	CYB_0291	-	hypothetical protein
288	 61.88	0	304468..305910	+	480	86607791	murD	CYB_0292	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
289	 60.81	0	305819..306979	+	386	86607792	-	CYB_0293	-	putative cell division protein FtsW
290	 50.41	-1	306991..307113	+	40	86607793	-	CYB_0294	-	hypothetical protein
291	 51.60	-1	307128..307346	-	72	86607794	-	CYB_0295	-	hypothetical protein
292	 58.99	0	307437..308048	-	203	86607795	-	CYB_0296	-	hypothetical protein
293	 52.22	-1	308380..308559	+	59	86607796	-	CYB_0297	-	hypothetical protein
294	 59.04	0	308751..310337	-	528	86607797	-	CYB_0298	-	NAD(P)H-quinone oxidoreductase subunit 4
295	 58.88	0	310591..311592	-	333	86607798	-	CYB_0299	-	dehydrogenase E1 component, alpha subunit
296	 57.07	0	311919..312731	+	270	86607799	cdsA	CYB_0300	-	phosphatidate cytidylyltransferase
297	 59.80	0	313555..316293	+	912	86607800	valS	CYB_0301	-	valyl-tRNA synthetase
298	 56.79	0	316540..316863	+	107	86607801	-	CYB_0302	-	putative RNA-binding protein
299	 49.74	-2	316903..317091	-	62	86607802	-	CYB_0303	-	hypothetical protein
300	 61.84	0	317061..319277	-	738	86607803	-	CYB_0304	-	CobN/magnesium chelatase domain-containing protein
301	 56.03	0	319265..319612	-	115	86607804	-	CYB_0305	-	hypothetical protein
302	 59.83	0	319737..321023	-	428	86607805	-	CYB_0306	-	putative lipoprotein
303	 60.61	0	321184..321381	-	65	86607806	-	CYB_0307	-	hypothetical protein
304	 60.08	0	321228..321743	-	171	86607807	-	CYB_0308	-	glutamine amidotransferase, class I
305	 60.85	0	321911..322975	-	354	86607808	-	CYB_0309	-	carbohydrate ABC transporter permease
306	 61.72	0	323019..324797	-	592	86607809	-	CYB_0310	-	dolichyl-phosphate-mannose-protein mannosyltransferase
307	 56.70	0	325156..326931	-	591	86607810	-	CYB_0311	-	hypothetical protein
308	 60.25	0	327028..328524	-	498	86607811	ftsY	CYB_0312	-	signal recognition particle-docking protein FtsY
309	 60.02	0	328628..329455	-	275	86607812	-	CYB_0313	-	hypothetical protein
310	 58.97	0	329524..329991	-	155	86607813	-	CYB_0314	-	hypothetical protein
311	 62.05	0	330804..331757	-	317	86607814	-	CYB_0315	-	M48B family peptidase
312	 59.18	0	331930..332664	+	244	86607815	minC	CYB_0316	-	septum formation inhibitor
313	 59.11	0	332661..333467	+	268	86607816	minD	CYB_0317	-	septum site-determining protein MinD
314	 57.10	0	333559..333861	+	100	86607817	minE	CYB_0318	-	cell division topological specificity factor MinE
315	 60.13	0	334259..336613	+	784	86607818	-	CYB_0320	-	monovalent cation:proton antiporter-2 (CPA2) family protein
316	 58.54	0	336591..336959	-	122	86607819	-	CYB_0319	-	hypothetical protein
317	 62.69	+1	337002..337604	-	200	86607820	-	CYB_0321	-	hypothetical protein
318	 57.44	0	337816..339744	-	642	86607821	gyrB	CYB_0322	-	DNA gyrase subunit B
319	 62.22	0	339946..340485	-	179	86607822	rimM	CYB_0323	-	16S rRNA-processing protein
320	 57.87	0	340498..341463	-	321	86607823	-	CYB_0324	-	HflC/HflK family protein
321	 54.25	-1	341670..342692	+	340	86607824	-	CYB_0325	-	FAD-dependent oxidoreductase
322	 54.22	-1	342764..343864	+	366	86607825	-	CYB_0326	-	polysaccharide deacetylase family protein
323	 61.68	0	344054..345457	+	467	86607826	leuC	CYB_0327	-	isopropylmalate isomerase large subunit
324	 55.19	0	345731..346924	-	397	86607827	-	CYB_0329	-	ISSoc1, transposase
325	 64.81	+1	346995..347858	-	287	86607828	-	CYB_0330	-	xanthine dehydrogenase accessory factor, putative
326	 62.76	+1	347947..349098	-	383	86607829	-	CYB_0331	-	carboxylesterase
327	 61.59	0	349223..350188	+	321	86607830	-	CYB_0332	-	LysR family transcriptional regulator
328	 61.58	0	350302..351342	+	346	86607831	-	CYB_0333	-	hypothetical protein
329	 61.83	0	351715..352995	-	426	86607832	-	CYB_0334	-	Rho termination factor domain-containing protein
330	 61.83	0	353347..354255	+	302	86607833	-	CYB_0335	-	hypothetical protein
331	 61.23	0	354383..355504	+	373	86607834	-	CYB_0336	-	heptosyltransferase family protein
332	 61.29	0	355765..356694	+	309	86607835	-	CYB_0337	-	integral membrane protein
333	 64.10	+1	356719..357846	-	375	86607836	-	CYB_0338	-	alcohol dehydrogenase, iron-containing
334	 61.63	0	358767..360056	-	429	86607837	-	CYB_0340	-	aminotransferase, classes I and II
335	 60.72	0	360079..361053	-	324	86607838	-	CYB_0341	-	hypothetical protein
336	 60.27	0	361401..362072	-	223	86607839	-	CYB_0342	-	hypothetical protein
337	 61.72	0	362120..362827	-	235	86607840	pyrF	CYB_0343	-	orotidine 5'-phosphate decarboxylase
338	 56.28	0	362824..363420	-	198	86607841	-	CYB_0344	-	hypothetical protein
339	 62.30	0	364017..364817	-	266	86607842	-	CYB_0345	-	hypothetical protein
340	 56.71	0	364814..365245	-	143	86607843	-	CYB_0346	-	hypothetical protein
341	 59.41	0	365638..366588	+	316	86607844	-	CYB_0347	-	GGDEF/FHA domain-containing protein
342	 55.13	0	366610..366999	-	129	86607845	gcvH	CYB_0348	-	glycine cleavage system protein H
343	 58.39	0	367081..367986	-	301	86607846	-	CYB_0349	-	alpha/beta fold family hydrolase
344	 63.19	+1	368129..369076	+	315	86607847	-	CYB_0350	-	NAD-dependent glycerol-3-phosphate dehydrogenase family protein
345	 45.37	-2	369161..369268	-	35	86607848	-	CYB_0351	-	hypothetical protein
346	 55.46	0	369353..369718	+	121	86607849	-	CYB_0352	-	response regulator
347	 62.04	0	369859..371220	+	453	86607850	-	CYB_0353	-	ISSoc9, transposase
348	 60.11	0	371273..371455	-	60	86607851	-	CYB_0354	-	hypothetical protein
349	 55.07	0	371550..371756	+	68	86607852	-	CYB_0355	-	hypothetical protein
350	 52.19	-1	371797..372024	+	75	86607853	-	CYB_0356	-	hypothetical protein
351	 59.26	0	372178..373257	-	359	86607854	fba	CYB_0357	-	fructose-1,6-bisphosphate aldolase
352	 61.95	0	373633..374226	+	197	86607855	-	CYB_0358	-	hypothetical protein
353	 61.57	0	374262..375125	-	287	86607856	murI	CYB_0359	-	glutamate racemase
354	 62.62	+1	375308..377185	-	625	86607857	-	CYB_0360	-	N-acetylmuramoyl-L-alanine amidase
355	 54.51	0	377266..378450	+	394	86607858	-	CYB_0361	-	hypothetical protein
356	 59.41	0	378804..379409	+	201	86607859	cbiT	CYB_0362	-	precorrin-6B methylase
357	 57.08	0	379607..379825	+	72	86607860	-	CYB_0363	-	hypothetical protein
358	 55.60	0	380443..381219	-	258	86607861	ubiE	CYB_0364	-	ubiquinone/menaquinone biosynthesis methyltransferase
359	 65.62	+1	381323..381418	+	31	86607862	-	CYB_0365	-	hypothetical protein
360	 69.01	+2	381676..381846	+	56	86607863	-	CYB_0366	-	hypothetical protein
361	 61.29	0	382541..383098	+	185	86607864	cobU	CYB_0367	-	adenosylcobinamide kinase/adenosylcobinamide-phosphate guanylyltransferase
362	 56.25	0	383136..383615	+	159	86607865	-	CYB_0368	-	hypothetical protein
363	 61.14	0	383612..384154	+	180	86607866	-	CYB_0370	-	hypothetical protein
364	 57.68	0	383936..384202	-	88	86607867	-	CYB_0369	-	hypothetical protein
365	 58.22	0	384573..385637	-	354	86607868	psbA-2	CYB_0371	-	photosystem II protein D1
366	 60.38	0	385745..388288	-	847	86607869	-	CYB_0372	-	hypothetical protein
367	 61.12	0	388293..389735	-	480	86607870	-	CYB_0373	-	hypothetical protein
368	 60.35	0	389844..390128	-	94	86607871	-	CYB_0374	-	hypothetical protein
369	 64.87	+1	390215..390883	+	222	86607872	-	CYB_0375	-	molybdopterin-guanine dinucleotide biosynthesis protein A
370	 60.99	0	390961..393057	+	698	86607873	-	CYB_0376	-	hypothetical protein
371	 58.11	0	393663..394001	+	112	86607874	-	CYB_0377	-	hypothetical protein
372	 57.02	0	394086..394427	+	113	86607875	-	CYB_0378	-	histidine triad family protein
373	 57.91	0	394512..395162	+	216	86607876	cobH-2	CYB_0379	-	precorrin-8X methylmutase
374	 58.17	0	395663..396133	+	156	86607877	-	CYB_0380	-	hypothetical protein
375	 60.95	0	396252..398000	-	582	86607878	-	CYB_0381	-	putative diflavin flavoprotein
376	 63.10	+1	398116..399882	-	588	86607879	-	CYB_0382	-	GTP-binding protein
377	 53.54	-1	399966..400064	+	32	86607880	-	CYB_0383	-	hypothetical protein
378	 52.94	-1	400143..400295	-	50	86607881	-	CYB_0384	-	hypothetical protein
379	 43.29	-2	400347..400778	-	143	86607882	-	CYB_0385	-	hypothetical protein
380	 47.73	-2	400775..401392	-	205	86607883	-	CYB_0386	-	hypothetical protein
381	 51.32	-1	401389..402072	-	227	86607884	-	CYB_0387	-	hypothetical protein
382	 58.20	0	402139..403095	-	318	86607885	-	CYB_0388	-	carbohydrate ABC transporter permease
383	 61.71	0	403102..404151	-	349	86607886	-	CYB_0389	-	carbohydrate ABC transporter permease
384	 61.55	0	404141..405703	-	520	86607887	-	CYB_0390	-	carbohydrate ABC transporter ATP-binding protein
385	 57.53	0	405675..406703	-	342	86607888	-	CYB_0391	-	Bmp family membrane protein
386	 63.14	+1	407105..408379	+	424	86607889	codA	CYB_0393	-	cytosine deaminase
58.48	MEAN

4.07	STD DEV
