IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

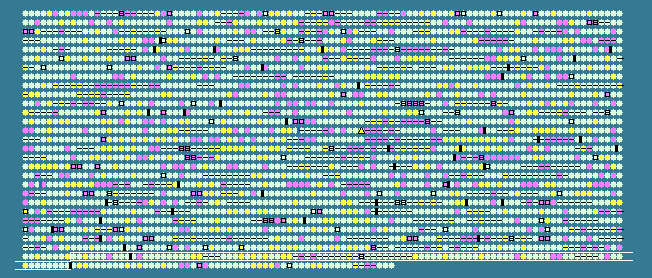

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2709	 59.88	0	2882377..2882877	+	166	86610211	fabZ	CYB_2786	-	(3R)-hydroxymyristoyl-ACP dehydratase
2710	 59.88	0	2883111..2884097	+	328	86610212	lpxA	CYB_2787	-	UDP-N-acetylglucosamine acyltransferase
2711	 63.36	+1	2884124..2885332	+	402	86610213	lpxB	CYB_2789	-	lipid-A-disaccharide synthase
2712	 56.48	0	2885329..2886801	-	490	86610214	-	CYB_2788	-	hypothetical protein
2713	 58.80	0	2887174..2888088	+	304	86610215	-	CYB_2791	-	sensor histidine kinase
2714	 58.33	0	2888078..2888569	-	163	86610216	-	CYB_2790	-	hypothetical protein
2715	 48.44	-2	2889313..2889729	+	138	86610217	-	CYB_2792	-	hypothetical protein
2716	 57.36	0	2889963..2890220	+	85	86610218	-	CYB_2793	-	hypothetical protein
2717	 60.42	0	2890402..2892402	-	666	162139626	tynA	CYB_2794	-	tyramine oxidase
2718	 56.78	0	2893312..2895972	+	886	86610220	-	CYB_2795	-	sensory box histidine kinase
2719	 57.12	0	2896427..2896981	+	184	86610221	-	CYB_2797	-	hypothetical protein
2720	 54.55	0	2897084..2897413	-	109	86610222	rpsT	CYB_2798	-	30S ribosomal protein S20
2721	 61.03	0	2897501..2898865	+	454	86610223	-	CYB_2800	-	FG-GAP repeat- ASPIC/UnbV domain-containing protein
2722	 59.30	0	2898862..2899839	-	325	86610224	moaA	CYB_2799	-	molybdenum cofactor biosynthesis protein MoaA
2723	 60.69	0	2900036..2901943	-	635	86610225	-	CYB_2801	-	monovalent cation:proton antiporter-2 (CPA2) family protein
2724	 59.16	0	2902368..2902820	+	150	86610226	-	CYB_2802	-	hypothetical protein
2725	 57.45	0	2902854..2902994	-	46	86610227	-	CYB_2803	-	hypothetical protein
2726	 57.40	0	2903069..2904493	-	474	86610228	glnA-2	CYB_2804	-	glutamine synthetase, type I
2727	 56.79	0	2904742..2904903	+	53	86610229	-	CYB_2805	-	hypothetical protein
2728	 58.98	0	2904959..2906389	+	476	86610230	trxB	CYB_2806	-	thioredoxin-disulfide reductase
2729	 63.72	+1	2906476..2908782	-	768	86610231	purL	CYB_2807	-	phosphoribosylformylglycinamidine synthase II
2730	 62.25	0	2908804..2911317	-	837	86610232	recG	CYB_2808	-	ATP-dependent DNA helicase RecG
2731	 59.14	0	2911524..2911616	-	30	86610233	psaM	CYB_2809	-	photosystem I reaction center subunit XII
2732	 61.29	0	2912030..2913313	+	427	86610234	glyA	CYB_2810	-	serine hydroxymethyltransferase
2733	 61.40	0	2913347..2914447	+	366	86610235	-	CYB_2811	-	glycosyl transferase, group 4 family protein
2734	 60.09	0	2914444..2915112	+	222	86610236	-	CYB_2812	-	hypothetical protein
2735	 61.93	0	2915118..2915645	-	175	86610237	apt	CYB_2813	-	adenine phosphoribosyltransferase
2736	 58.68	0	2915856..2916293	+	145	86610238	-	CYB_2814	-	hypothetical protein
2737	 63.59	+1	2916339..2918288	-	649	86610239	-	CYB_2815	-	NHL repeat-containing protein
2738	 61.62	0	2918611..2919879	-	422	86610240	-	CYB_2816	-	hypothetical protein
2739	 64.25	+1	2920310..2920888	-	192	86610241	-	CYB_2817	-	DNA-3-methyladenine glycosylase
2740	 57.61	0	2920915..2921190	-	91	86610242	-	CYB_2818	-	MoaD family protein
2741	 62.84	+1	2921227..2921748	-	173	86610243	-	CYB_2819	-	fasciclin domain-containing protein
2742	 61.00	0	2921853..2923193	-	446	86610244	thrC-2	CYB_2820	-	threonine synthase
2743	 58.33	0	2923342..2923497	+	51	86610245	-	CYB_2821	-	hypothetical protein
2744	 62.63	+1	2923704..2925635	+	643	86610246	gidA	CYB_2823	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
2745	 65.48	+1	2925599..2926693	-	364	86610247	gcp	CYB_2822	-	O-sialoglycoprotein endopeptidase
2746	 58.06	0	2926899..2927444	+	181	86610248	psaF	CYB_2824	-	photosystem I reaction center subunit III
2747	 45.83	-2	2927489..2927608	+	39	86610249	psaJ	CYB_2825	-	photosystem I reaction center subunit IX
2748	 58.54	0	2927710..2928189	+	159	86610250	psaL-2	CYB_2826	-	photosystem I reaction center protein subunit XI
2749	 52.08	-1	2928199..2928438	+	79	86610251	-	CYB_2827	-	hypothetical protein
2750	 61.34	0	2928604..2929035	+	143	86610252	-	CYB_2828	-	hypothetical protein
2751	 58.66	0	2929069..2930205	+	378	86610253	-	CYB_2829	-	RNA methyltransferase
2752	 58.14	0	2930228..2930485	+	85	86610254	-	CYB_2830	-	hypothetical protein
2753	 56.60	0	2930485..2930802	+	105	86610255	-	CYB_2831	-	ferredoxin, 2Fe-2S
2754	 59.90	0	2931331..2931537	+	68	86610256	-	CYB_2832	-	hypothetical protein
2755	 63.09	+1	2931711..2932577	+	288	86610257	thiD	CYB_2833	-	phosphomethylpyrimidine kinase
2756	 56.97	0	2932604..2933170	+	188	86610258	-	CYB_2834	-	hypothetical protein
2757	 57.52	0	2933474..2934709	+	411	86610259	-	CYB_2835	-	ISSoc1, transposase
2758	 59.21	0	2934711..2935394	-	227	86610260	-	CYB_2836	-	phospholipase/carboxylesterase family protein
2759	 60.06	0	2935446..2936459	-	337	86610261	hemF	CYB_2837	-	coproporphyrinogen III oxidase
2760	 55.56	0	2936606..2936848	-	80	86610262	-	CYB_2838	-	hypothetical protein
2761	 55.56	0	2937063..2937359	+	98	86610263	-	CYB_2839	-	hypothetical protein
2762	 57.14	0	2938001..2938147	-	48	86610264	-	CYB_2840	-	hypothetical protein
2763	 60.35	0	2938414..2938983	+	189	86610265	-	CYB_2841	-	CpeS-like protein
2764	 55.21	0	2939019..2939114	+	31	90296805	-	CYB_2842	-	hydrogenase accessory protein HypB, interruption-N
2765	 58.29	0	2939367..2939987	+	206	90296806	-	CYB_2844	-	hydrogenase accessory protein HypB, interruption-C
2766	 64.97	+1	2940111..2941997	+	628	86610266	-	CYB_2845	-	AAA family ATPase
2767	 61.02	0	2942059..2943564	-	501	86610267	glcD	CYB_2846	-	glycolate oxidase, subunit GlcD
2768	 61.96	0	2943652..2944884	+	410	86610268	-	CYB_2847	-	hypothetical protein
2769	 59.70	0	2945013..2945213	+	66	86610269	rpmI	CYB_2848	-	50S ribosomal protein L35
2770	 59.66	0	2945347..2945703	+	118	86610270	rplT	CYB_2849	-	50S ribosomal protein L20
2771	 62.37	0	2945585..2946514	+	309	86610271	-	CYB_2850	-	amino acid transporter, periplasmic amino acid-binding protein
2772	 61.48	0	2946860..2948593	-	577	86610272	purH	CYB_2851	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
2773	 58.85	0	2948746..2949525	-	259	86610273	cysE	CYB_2852	-	serine O-acetyltransferase
2774	 60.74	0	2949662..2951179	-	505	86610274	-	CYB_2853	-	hypothetical protein
2775	 61.79	0	2951360..2952262	-	300	86610275	ubiA	CYB_2854	-	prenyltransferase
2776	 57.80	0	2952637..2953380	+	247	86610276	-	CYB_2856	-	DNA-binding response regulator
2777	 64.43	+1	2953377..2954759	-	460	86610277	-	CYB_2855	-	polyA polymerase family protein
2778	 61.55	0	2954905..2955939	-	344	86610278	hemH	CYB_2857	-	ferrochelatase
2779	 59.83	0	2956212..2956679	-	155	86610279	-	CYB_2858	-	hypothetical protein
2780	 58.74	0	2956992..2957483	+	163	86610280	-	CYB_2859	-	hypothetical protein
2781	 59.42	0	2957576..2958127	+	183	86610281	moaC	CYB_2860	-	molybdenum cofactor biosynthesis protein C
2782	 60.02	0	2958121..2960031	+	636	86610282	-	CYB_2861	-	hypothetical protein
2783	 54.53	0	2960025..2961029	+	334	86610283	-	CYB_2862	-	hypothetical protein
2784	 62.03	0	2961046..2961606	+	186	86610284	-	CYB_2863	-	hexapaptide repeat-containing transferase
2785	 60.01	0	2961628..2963085	-	485	86610285	-	CYB_2864	-	hypothetical protein
2786	 60.69	0	2963262..2965085	-	607	86610286	-	CYB_2865	-	hypothetical protein
2787	 56.32	0	2965281..2965541	-	86	86610287	-	CYB_2866	-	hypothetical protein
2788	 61.11	0	2965640..2967259	-	539	86610288	-	CYB_2867	-	S15 family X-Pro dipeptidyl-peptidase
2789	 49.36	-2	2967415..2967570	+	51	86610289	-	CYB_2868	-	hypothetical protein
2790	 53.76	-1	2967831..2968295	-	154	86610290	-	CYB_2869	-	cupin domain-containing protein
2791	 58.93	0	2968341..2969051	-	236	86610291	-	CYB_2870	-	isochorismatase family protein
2792	 55.35	0	2969371..2969529	+	52	86610292	-	CYB_2871	-	hypothetical protein
2793	 57.73	0	2969532..2970068	+	178	86610293	-	CYB_2872	-	acetyltransferase
2794	 58.08	0	2970147..2970437	+	96	86610294	phhB	CYB_2873	-	pterin-4-alpha-carbinolamine dehydratase
2795	 57.16	0	2970578..2971534	+	318	86610295	-	CYB_2874	-	NAD-dependent epimerase/dehydratase family protein
2796	 60.29	0	2971940..2973775	+	611	86610296	-	CYB_2875	-	NAD(P)H-quinone oxidoreductase subunit F
2797	 58.92	0	2973826..2975361	+	511	86610297	-	CYB_2876	-	NADH-ubiquinone/plastoquinone oxidoreductase subunit 4 family protein
2798	 54.61	0	2975420..2976730	+	436	86610298	-	CYB_2877	-	CO2 hydration protein
2799	 55.12	0	2976812..2977270	+	152	86610299	-	CYB_2878	-	fasciclin domain-containing protein
2800	 55.56	0	2977728..2977907	+	59	86610300	-	CYB_2879	-	hypothetical protein
2801	 62.86	+1	2978142..2979533	-	463	86610301	-	CYB_2880	-	putative peptidase TldD
2802	 61.83	0	2979666..2982314	-	882	86610302	leuS	CYB_2881	-	leucyl-tRNA synthetase
2803	 58.14	0	2982455..2983345	-	296	86610303	petH	CYB_2882	-	ferredoxin--NADP reductase
2804	 57.24	0	2983697..2984704	+	335	86610304	prk	CYB_2883	-	phosphoribulokinase
2805	 61.89	0	2984791..2985522	+	243	86610305	pgl	CYB_2885	-	6-phosphogluconolactonase
2806	 60.83	0	2985515..2985634	-	39	86610306	-	CYB_2884	-	hypothetical protein
2807	 58.26	0	2985674..2986387	-	237	86610307	-	CYB_2886	-	hypothetical protein
2808	 60.34	0	2986499..2987368	-	289	86610308	-	CYB_2887	-	TPR repeat-containing protein
58.48	MEAN

4.07	STD DEV
