IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

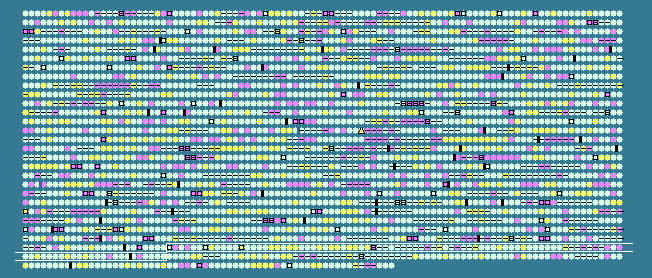

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2625	 55.93	0	2789872..2791026	-	384	86610127	-	CYB_2701	-	ISSoc8, transposase
2626	 50.63	-1	2791341..2791577	+	78	86610128	-	CYB_2702	-	hypothetical protein
2627	 59.89	0	2791954..2793369	+	471	86610129	-	CYB_2703	-	putative inorganic carbon transporter/0-antigen polymerase (ICT/OAP) family protein
2628	 52.80	-1	2793521..2793859	+	112	86610130	glnB	CYB_2704	-	nitrogen regulatory protein P-II
2629	 57.61	0	2794011..2795423	+	470	86610131	amt	CYB_2705	-	ammonium transporter
2630	 59.04	0	2795623..2796291	+	222	86610132	ispD	CYB_2706	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
2631	 55.34	0	2796783..2798000	+	405	86610133	-	CYB_2707	-	ISSoc1, transposase
2632	 62.80	+1	2798462..2799262	+	266	86610134	cobM	CYB_2708	-	precorrin-4 C11-methyltransferase
2633	 58.59	0	2799601..2801532	+	643	86610135	-	CYB_2709	-	TPR repeat-containing protein
2634	 61.47	0	2801571..2802398	+	275	86610136	rhdA	CYB_2710	-	thiosulfate sulfurtransferase
2635	 61.15	0	2802395..2803573	+	392	86610137	-	CYB_2711	-	pyridine nucleotide-disulphide oxidoreductase
2636	 59.63	0	2803741..2804223	+	160	86610138	-	CYB_2712	-	NifU family SUF system FeS assembly protein
2637	 64.18	+1	2804326..2806095	+	589	86610139	-	CYB_2714	-	ISSoc9, transposase
2638	 59.42	0	2806084..2806359	-	91	86610140	-	CYB_2713	-	BolA/YrbA family protein
2639	 58.82	0	2806460..2807440	-	326	86610141	-	CYB_2715	-	D12 class N6 adenine-specific DNA methyltransferase
2640	 61.96	0	2807448..2809421	-	657	86610142	-	CYB_2716	-	M3B family peptidase
2641	 58.39	0	2809421..2809891	-	156	86610143	-	CYB_2717	-	hypothetical protein
2642	 65.25	+1	2809891..2811441	+	516	86610144	-	CYB_2718	-	Mg chelatase-like protein
2643	 63.52	+1	2811529..2812671	-	380	86610145	recF	CYB_2719	-	recombination protein F
2644	 57.41	0	2812724..2812831	+	35	86610146	-	CYB_2720	-	hypothetical protein
2645	 62.48	0	2812838..2813530	-	230	86610147	-	CYB_2721	-	hypothetical protein
2646	 62.01	0	2813527..2814921	-	464	86610148	-	CYB_2722	-	sensor histidine kinase
2647	 60.29	0	2815070..2815759	-	229	86610149	-	CYB_2723	-	DNA-binding response regulator
2648	 58.33	0	2815852..2816235	+	127	86610150	-	CYB_2724	-	hypothetical protein
2649	 60.25	0	2816532..2817419	-	295	86610151	-	CYB_2725	-	iron chelate ABC transporter periplasmic substrate-binding protein
2650	 65.24	+1	2817452..2818783	-	443	86610152	-	CYB_2726	-	TonB family protein
2651	 60.70	0	2818830..2821259	-	809	86610153	-	CYB_2727	-	TonB-dependent heme/hemoglobin receptor family protein
2652	 64.51	+1	2821324..2822157	-	277	86610154	-	CYB_2728	-	iron chelate ABC transporter ATP-binding protein
2653	 64.94	+1	2822154..2823197	-	347	86610155	-	CYB_2729	-	iron chelate ABC transporter permease protein
2654	 58.33	0	2823432..2823659	+	75	86610156	-	CYB_2730	-	hypothetical protein
2655	 63.13	+1	2823703..2826357	+	884	86610157	mutS	CYB_2731	-	DNA mismatch repair protein
2656	 62.11	0	2826360..2827061	-	233	86610158	-	CYB_2732	-	hypothetical protein
2657	 58.04	0	2827533..2828633	+	366	86610159	-	CYB_2734	-	RNA polymerase sigma factor SigC
2658	 62.36	0	2828630..2830276	-	548	86610160	mviN	CYB_2733	-	integral membrane protein MviN
2659	 54.88	0	2830276..2831565	-	429	86610161	-	CYB_2735	-	ISSoc1, transposase
2660	 61.73	0	2831818..2832648	-	276	86610162	cpcE-2	CYB_2736	-	phycocyanin alpha subunit phycocyanobilin lyase, CpcE subunit
2661	 60.02	0	2832682..2833539	-	285	86610163	cpcC	CYB_2737	-	phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod
2662	 58.00	0	2833868..2834017	+	49	86610164	-	CYB_2739	-	hypothetical protein
2663	 61.49	0	2834010..2834492	-	160	86610165	cpcA-2	CYB_2738	-	phycocyanin, alpha subunit
2664	 57.42	0	2834686..2835204	-	172	86610166	cpcB-2	CYB_2740	-	phycocyanin, beta subunit
2665	 60.67	0	2835853..2836452	+	199	86610167	cpeT	CYB_2741	-	CpeT protein
2666	 59.77	0	2836654..2837769	+	371	86610168	-	CYB_2743	-	hypothetical protein
2667	 56.02	0	2837761..2837976	-	71	86610169	-	CYB_2742	-	hypothetical protein
2668	 45.29	-2	2838369..2840609	+	746	86610170	-	CYB_2744	-	piwi domain-containing protein
2669	 58.46	0	2840674..2840868	+	64	86610171	-	CYB_2745	-	hypothetical protein
2670	 61.97	0	2840998..2842233	+	411	86610172	-	CYB_2746	-	hypothetical protein
2671	 60.44	0	2842241..2842738	+	165	86610173	-	CYB_2747	-	NUDIX family hydrolase
2672	 58.31	0	2843127..2844371	+	414	86610174	-	CYB_2748	-	response regulator
2673	 53.07	-1	2844419..2844793	+	124	86610175	-	CYB_2749	-	response regulator
2674	 56.28	0	2844901..2845449	+	182	86610176	-	CYB_2750	-	CheW domain-containing protein
2675	 59.87	0	2845498..2847735	+	745	86610177	-	CYB_2751	-	putative methyl-accepting chemotaxis protein
2676	 61.98	0	2847737..2850508	+	923	86610178	-	CYB_2752	-	sensor histidine kinase/response regulator
2677	 60.25	0	2850512..2850994	+	160	86610179	-	CYB_2754	-	hypothetical protein
2678	 61.45	0	2850970..2851659	-	229	86610180	-	CYB_2753	-	hypothetical protein
2679	 61.04	0	2851658..2852635	+	325	86610181	accA	CYB_2755	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
2680	 62.22	0	2852931..2854706	-	591	86610182	-	CYB_2756	-	phospholipase D/competence protein ComEA
2681	 61.78	0	2854866..2855417	+	183	86610183	-	CYB_2757	-	fasciclin domain-containing protein
2682	 60.56	0	2855485..2855664	+	59	86610184	-	CYB_2758	-	hypothetical protein
2683	 60.96	0	2855903..2857357	+	484	86610185	-	CYB_2759	-	GTP-binding domain-containing protein
2684	 62.93	+1	2857718..2858011	+	97	86610186	-	CYB_2761	-	hypothetical protein
2685	 59.48	0	2858008..2859468	-	486	86610187	-	CYB_2760	-	putative bacteriochlorophyll delivery (BCD) family protein
2686	 59.15	0	2859638..2860702	+	354	86610188	-	CYB_2762	-	hypothetical protein
2687	 58.82	0	2861094..2861297	+	67	86610189	-	CYB_2763	-	hypothetical protein
2688	 60.53	0	2861533..2862999	+	488	86610190	-	CYB_2764	-	hypothetical protein
2689	 56.56	0	2863171..2865693	+	840	86610191	-	CYB_2765	-	endonuclease/exonuclease/phosphatase family protein
2690	 57.25	0	2865694..2865831	+	45	86610192	-	CYB_2766	-	hypothetical protein
2691	 61.97	0	2865971..2867077	-	368	86610193	cbiD	CYB_2767	-	cobalt-precorrin-6A synthase
2692	 57.63	0	2867277..2867630	+	117	86610194	-	CYB_2768	-	hypothetical protein
2693	 59.39	0	2867669..2868259	-	196	86610195	def	CYB_2769	-	peptide deformylase
2694	 53.65	-1	2868402..2868716	-	104	86610196	-	CYB_2770	-	hypothetical protein
2695	 60.86	0	2868720..2869046	-	108	86610197	-	CYB_2771	-	hypothetical protein
2696	 52.43	-1	2869046..2869312	-	88	86610198	-	CYB_2772	-	phycobilisome degradation protein nblA, putative
2697	 58.33	0	2869342..2869437	+	31	86610199	-	CYB_2773	-	hypothetical protein
2698	 54.37	-1	2869600..2869851	+	83	86610200	-	CYB_2774	-	putative RNA-binding protein
2699	 59.16	0	2869975..2871279	+	434	86610201	sbcD	CYB_2775	-	nuclease SbcCD, D subunit
2700	 50.41	-1	2871799..2872044	+	81	86610202	-	CYB_2776	-	hypothetical protein
2701	 57.50	0	2872503..2872742	+	79	86610203	-	CYB_2778	-	hypothetical protein
2702	 61.00	0	2872847..2874769	-	640	86610204	speA	CYB_2779	-	arginine decarboxylase
2703	 62.31	0	2875217..2876317	+	366	86610205	pstS-3	CYB_2780	-	phosphate ABC transporter, periplasmic phosphate-binding protein
2704	 61.60	0	2876608..2878500	+	630	86610206	dnaK-1	CYB_2781	-	molecular chaperone DnaK
2705	 57.08	0	2878709..2879668	+	319	86610207	-	CYB_2782	-	DnaJ family protein
2706	 61.25	0	2879809..2880639	-	276	86610208	-	CYB_2783	-	RNA methyltransferase
2707	 61.05	0	2880707..2881294	+	195	86610209	-	CYB_2784	-	putative lipoprotein
2708	 61.99	0	2881309..2882163	+	284	86610210	lpxC	CYB_2785	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
2709	 59.88	0	2882377..2882877	+	166	86610211	fabZ	CYB_2786	-	(3R)-hydroxymyristoyl-ACP dehydratase
2710	 59.88	0	2883111..2884097	+	328	86610212	lpxA	CYB_2787	-	UDP-N-acetylglucosamine acyltransferase
2711	 63.36	+1	2884124..2885332	+	402	86610213	lpxB	CYB_2789	-	lipid-A-disaccharide synthase
2712	 56.48	0	2885329..2886801	-	490	86610214	-	CYB_2788	-	hypothetical protein
2713	 58.80	0	2887174..2888088	+	304	86610215	-	CYB_2791	-	sensor histidine kinase
2714	 58.33	0	2888078..2888569	-	163	86610216	-	CYB_2790	-	hypothetical protein
2715	 48.44	-2	2889313..2889729	+	138	86610217	-	CYB_2792	-	hypothetical protein
2716	 57.36	0	2889963..2890220	+	85	86610218	-	CYB_2793	-	hypothetical protein
2717	 60.42	0	2890402..2892402	-	666	162139626	tynA	CYB_2794	-	tyramine oxidase
2718	 56.78	0	2893312..2895972	+	886	86610220	-	CYB_2795	-	sensory box histidine kinase
2719	 57.12	0	2896427..2896981	+	184	86610221	-	CYB_2797	-	hypothetical protein
2720	 54.55	0	2897084..2897413	-	109	86610222	rpsT	CYB_2798	-	30S ribosomal protein S20
2721	 61.03	0	2897501..2898865	+	454	86610223	-	CYB_2800	-	FG-GAP repeat- ASPIC/UnbV domain-containing protein
2722	 59.30	0	2898862..2899839	-	325	86610224	moaA	CYB_2799	-	molybdenum cofactor biosynthesis protein MoaA
2723	 60.69	0	2900036..2901943	-	635	86610225	-	CYB_2801	-	monovalent cation:proton antiporter-2 (CPA2) family protein
2724	 59.16	0	2902368..2902820	+	150	86610226	-	CYB_2802	-	hypothetical protein
58.48	MEAN

4.07	STD DEV
