IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

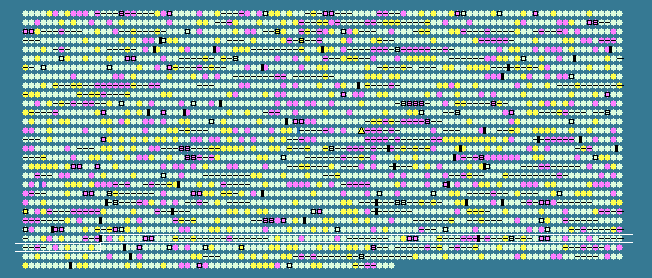

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2514	 56.60	0	2685411..2685569	-	52	86610016	-	CYB_2584	-	hypothetical protein
2515	 54.31	-1	2685648..2685995	-	115	86610017	-	CYB_2585	-	hypothetical protein
2516	 58.89	0	2686481..2687728	+	415	86610018	-	CYB_2587	-	hypothetical protein
2517	 63.27	+1	2687725..2689137	-	470	86610019	cobB	CYB_2586	-	cobyrinic acid a,c-diamide synthase
2518	 60.16	0	2689154..2689921	-	255	86610020	cobO-2	CYB_2588	-	cob(I)alamin adenosyltransferase
2519	 58.27	0	2690054..2690422	+	122	86610021	-	CYB_2589	-	putative lipoprotein
2520	 60.96	0	2690915..2692159	+	414	86610022	metK	CYB_2590	-	S-adenosylmethionine synthetase
2521	 43.14	-2	2692188..2692595	-	135	86610023	-	CYB_2591	-	ISSoc13, transposase orfB
2522	 44.71	-2	2692553..2692930	-	125	86610024	-	CYB_2592	-	ISSoc13, transposase orfA
2523	 60.69	0	2693001..2693519	-	172	86610025	-	CYB_2593	-	molybdenum cofactor biosynthesis domain-containing protein
2524	 61.93	0	2693556..2694083	-	175	86610026	-	CYB_2594	-	hypothetical protein
2525	 60.95	0	2694268..2696505	-	745	86610027	-	CYB_2595	-	hypothetical protein
2526	 62.48	0	2699499..2700143	+	214	86610028	rplC	CYB_2597	-	50S ribosomal protein L3
2527	 61.41	0	2700194..2701144	+	316	86610029	rplD	CYB_2598	-	ribosomal protein L4
2528	 60.67	0	2701137..2701436	+	99	86610030	rplW	CYB_2599	-	50S ribosomal protein L23
2529	 63.50	+1	2701486..2702370	+	294	86610031	rplB	CYB_2600	-	50S ribosomal protein L2
2530	 56.38	0	2702437..2702718	+	93	86610032	rpsS	CYB_2601	-	ribosomal protein S19
2531	 61.60	0	2702764..2703138	+	124	86610033	rplV	CYB_2602	-	50S ribosomal protein L22
2532	 60.57	0	2703181..2703951	+	256	86610034	rpsC	CYB_2603	-	30S ribosomal protein S3
2533	 59.83	0	2704007..2704474	+	155	86610035	rplP	CYB_2604	-	50S ribosomal protein L16
2534	 56.31	0	2704488..2704709	+	73	86610036	rpmC	CYB_2605	-	50S ribosomal protein L29
2535	 51.59	-1	2704709..2704960	+	83	86610037	rpsQ	CYB_2606	-	30S ribosomal protein S17
2536	 56.91	0	2704957..2705325	+	122	86610038	rplN	CYB_2607	-	50S ribosomal protein L14
2537	 55.14	0	2705325..2705723	+	132	86610039	rplX	CYB_2608	-	ribosomal protein L24
2538	 55.80	0	2705792..2706334	+	180	86610040	rplE	CYB_2609	-	50S ribosomal protein L5
2539	 59.61	0	2706381..2706791	+	136	86610041	rpsH	CYB_2610	-	30S ribosomal protein S8
2540	 58.06	0	2706825..2707370	+	181	86610042	rplF	CYB_2611	-	50S ribosomal protein L6
2541	 58.81	0	2707402..2707770	+	122	86610043	rplR	CYB_2612	-	50S ribosomal protein L18
2542	 60.89	0	2707789..2708325	+	178	86610044	rpsE	CYB_2613	-	30S ribosomal protein S5
2543	 63.36	+1	2708363..2708815	+	150	86610045	rplO	CYB_2614	-	50S ribosomal protein L15
2544	 56.51	0	2708968..2710266	+	432	86610046	secY	CYB_2615	-	preprotein translocase subunit SecY
2545	 61.17	0	2710266..2710847	+	193	86610047	adk	CYB_2616	-	adenylate kinase
2546	 59.56	0	2710886..2711659	+	257	86610048	map-2	CYB_2617	-	methionine aminopeptidase
2547	 52.89	-1	2711790..2712014	+	74	86610049	infA	CYB_2618	-	translation initiation factor IF-1
2548	 57.53	0	2712092..2712682	+	196	86610050	-	CYB_2619	-	hypothetical protein
2549	 60.52	0	2712989..2713297	+	102	86610051	-	CYB_2620	-	hypothetical protein
2550	 58.90	0	2713442..2714329	-	295	86610052	-	CYB_2621	-	PRC-barrel domain-containing protein
2551	 61.75	0	2714417..2715556	-	379	86610053	-	CYB_2622	-	glycosyl transferase, group 1 family protein
2552	 57.40	0	2715650..2716102	-	150	86610054	-	CYB_2623	-	Rieske family iron-sulfur cluster-binding protein
2553	 51.58	-1	2716343..2716912	-	189	86610055	-	CYB_2624	-	hypothetical protein
2554	 60.68	0	2717150..2719069	-	639	86610056	-	CYB_2625	-	R3H domain-containing protein
2555	 59.46	0	2719085..2720125	-	346	86610057	-	CYB_2626	-	iron-sulfur cluster-binding protein
2556	 57.88	0	2720214..2720657	-	147	86610058	-	CYB_2627	-	hypothetical protein
2557	 59.33	0	2720921..2721424	+	167	86610059	msrB	CYB_2628	-	methionine-R-sulfoxide reductase
2558	 59.83	0	2721474..2722277	+	267	86610060	-	CYB_2629	-	iron permease
2559	 59.15	0	2722676..2722888	-	70	86610061	-	CYB_2630	-	CP12 domain-containing protein
2560	 60.79	0	2723146..2723826	-	226	86610062	-	CYB_2631	-	ABC transporter, ATP-binding protein
2561	 56.67	0	2723863..2724132	-	89	86610063	-	CYB_2632	-	hypothetical protein
2562	 60.35	0	2724284..2724742	-	152	86610064	-	CYB_2633	-	MAPEG family protein
2563	 59.13	0	2724877..2725314	-	145	86610065	-	CYB_2634	-	hypothetical protein
2564	 62.14	0	2725444..2727342	+	632	86610066	glmU	CYB_2635	-	UDP-N-acetylglucosamine pyrophosphorylase
2565	 44.97	-2	2728451..2728828	+	125	86610067	-	CYB_2638	-	ISSoc13, transposase orfA
2566	 42.89	-2	2728786..2729193	+	135	86610068	-	CYB_2639	-	ISSoc13, transposase orfB
2567	 59.42	0	2729688..2730170	+	160	86610069	-	CYB_2641	-	pentapeptide repeat-containing protein
2568	 59.42	0	2730222..2730497	+	91	86610070	-	CYB_2642	-	hypothetical protein
2569	 57.70	0	2730695..2731954	+	419	86610071	ispH	CYB_2643	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
2570	 62.25	0	2731981..2732931	+	316	86610072	-	CYB_2645	-	auxin efflux carrier (AEC) family protein
2571	 56.92	0	2732928..2733122	-	64	86610073	-	CYB_2644	-	hypothetical protein
2572	 61.07	0	2733293..2734828	-	511	86610074	-	CYB_2646	-	hypothetical protein
2573	 59.96	0	2734923..2735891	+	322	86610075	-	CYB_2647	-	aminomethyltransferase, putative
2574	 52.16	-1	2735956..2736210	-	84	86610076	-	CYB_2648	-	HNH endonuclease domain-containing protein
2575	 51.09	-1	2737442..2737852	-	136	86610077	-	CYB_2649	-	hypothetical protein
2576	 48.01	-2	2737900..2740434	-	844	86610078	-	CYB_2650	-	hypothetical protein
2577	 57.49	0	2740771..2741424	-	217	86610079	-	CYB_2652	-	Crp/FNR family transcriptional regulator
2578	 52.27	-1	2741541..2741672	-	43	86610080	-	CYB_2653	-	hypothetical protein
2579	 56.19	0	2741719..2743389	-	556	86610081	-	CYB_2654	-	hypothetical protein
2580	 57.54	0	2743390..2743959	-	189	86610082	-	CYB_2655	-	hypothetical protein
2581	 62.48	0	2743993..2744994	-	333	86610083	-	CYB_2656	-	zinc-binding dehydrogenase family oxidoreductase
2582	 55.32	0	2745262..2746416	-	384	86610084	-	CYB_2657	-	ISSoc8, transposase
2583	 55.30	0	2746711..2747625	-	304	86610085	-	CYB_2658	-	hypothetical protein
2584	 64.24	+1	2747957..2749357	-	466	86610086	-	CYB_2659	-	amidase
2585	 56.61	0	2749354..2749542	-	62	86610087	-	CYB_2660	-	hypothetical protein
2586	 58.93	0	2749614..2750246	-	210	86610088	-	CYB_2661	-	hypothetical protein
2587	 44.71	-2	2750457..2750834	+	125	86610089	-	CYB_2662	-	ISSoc13, transposase orfA
2588	 42.89	-2	2750792..2751199	+	135	86610090	-	CYB_2663	-	ISSoc13, transposase orfB
2589	 60.67	0	2751214..2752080	-	288	86610091	-	CYB_2664	-	hypothetical protein
2590	 59.89	0	2752205..2753149	+	314	86610092	accD	CYB_2665	-	acetyl-CoA carboxylase subunit beta
2591	 53.87	-1	2753410..2753784	+	124	86610093	-	CYB_2666	-	anti-anti-sigma factor
2592	 60.14	0	2753886..2754590	+	234	86610094	-	CYB_2667	-	hypothetical protein
2593	 59.68	0	2754666..2756882	-	738	86610095	-	CYB_2668	-	TrkA domain-containing protein
2594	 57.88	0	2757304..2758350	+	348	86610096	-	CYB_2669	-	iron ABC transporter periplasmic-binding protein
2595	 48.45	-2	2758341..2758889	+	182	86610097	-	CYB_2670	-	hypothetical protein
2596	 61.73	0	2758983..2760683	+	566	86610098	-	CYB_2671	-	iron ABC transporter permease
2597	 61.27	0	2760689..2761633	-	314	86610099	atpG	CYB_2672	-	F0F1 ATP synthase subunit gamma
2598	 59.30	0	2761695..2763215	-	506	86610100	atpA	CYB_2673	-	F0F1 ATP synthase subunit alpha
2599	 58.47	0	2763260..2763808	-	182	86610101	atpH	CYB_2674	-	F0F1 ATP synthase subunit delta
2600	 60.28	0	2763829..2764392	-	187	86610102	atpF	CYB_2675	-	F0F1 ATP synthase subunit B
2601	 58.02	0	2764428..2764901	-	157	86610103	-	CYB_2676	-	F0F1 ATP synthase subunit B'
2602	 58.94	0	2764996..2765241	-	81	86610104	atpE	CYB_2677	-	F0F1 ATP synthase subunit C
2603	 54.70	0	2765262..2765495	-	77	86610105	-	CYB_2678	-	hypothetical protein
2604	 55.02	0	2765470..2766216	-	248	86610106	atpB	CYB_2679	-	F0F1 ATP synthase subunit A
2605	 57.51	0	2766222..2766614	-	130	86610107	-	CYB_2680	-	ATP synthase protein I
2606	 47.92	-2	2767252..2767347	-	31	86610108	-	CYB_2681	-	hypothetical protein
2607	 60.20	0	2767423..2768010	+	195	86610109	-	CYB_2682	-	hypothetical protein
2608	 63.17	+1	2768007..2768321	+	104	86610110	-	CYB_2683	-	hypothetical protein
2609	 61.83	0	2768336..2769928	-	530	86610111	gpmI	CYB_2684	-	phosphoglyceromutase
2610	 58.38	0	2770144..2770662	-	172	86610112	-	CYB_2685	-	TPR repeat-containing protein
2611	 59.68	0	2770702..2771202	-	166	86610113	dps	CYB_2686	-	DNA starvation/stationary phase protection protein Dps
2612	 63.91	+1	2771313..2772692	-	459	86610114	trmE	CYB_2687	-	tRNA modification GTPase TrmE
2613	 59.52	0	2772843..2775443	+	866	86610115	glgP	CYB_2688	-	alpha-glucan phosphorylases
58.48	MEAN

4.07	STD DEV
