IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

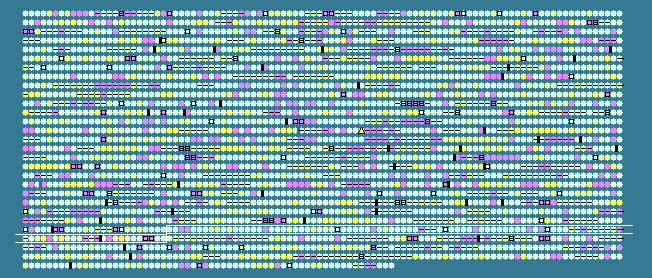

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2425	 61.89	0	2589226..2589978	+	250	86609927	mreC	CYB_2493	-	rod shape-determining protein
2426	 57.05	0	2589956..2590600	+	214	86609928	mreD	CYB_2494	-	rod shape-determining protein MreD
2427	 53.47	-1	2590700..2590843	+	47	86609929	-	CYB_2495	-	hypothetical protein
2428	 54.82	0	2590989..2591216	+	75	86609930	-	CYB_2496	-	iron-sulfur cluster-binding protein
2429	 61.61	0	2591415..2591948	-	177	86609931	-	CYB_2497	-	hypothetical protein
2430	 61.39	0	2592797..2593801	-	334	86609932	cobD-2	CYB_2498	-	cobalamin biosynthesis protein CobD
2431	 60.53	0	2593815..2594270	-	151	86609933	-	CYB_2499	-	transcriptional regulator, putative
2432	 62.22	0	2594549..2595538	+	329	86609934	-	CYB_2500	-	tetrapyrrole methylase family protein
2433	 62.39	0	2595567..2596268	+	233	86609935	-	CYB_2501	-	DNA-binding response regulator
2434	 60.18	0	2596453..2597886	-	477	86609936	atpD	CYB_2502	-	F0F1 ATP synthase subunit beta
2435	 63.50	+1	2598071..2598733	+	220	86609937	-	CYB_2503	-	hypothetical protein
2436	 60.74	0	2598753..2599511	+	252	86609938	-	CYB_2505	-	hypothetical protein
2437	 59.80	0	2599495..2599596	-	33	86609939	-	CYB_2504	-	hypothetical protein
2438	 61.92	0	2599598..2600629	+	343	86609940	-	CYB_2507	-	succinate dehydrogenase iron-sulfur subunit
2439	 60.98	0	2600626..2601732	-	368	86609941	-	CYB_2506	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
2440	 58.27	0	2602624..2603373	-	249	86609942	-	CYB_2508	-	hypothetical protein
2441	 50.00	-2	2603688..2603843	-	51	86609943	-	CYB_2509	-	hypothetical protein
2442	 57.52	0	2603950..2604660	+	236	86609944	-	CYB_2510	-	hypothetical protein
2443	 61.35	0	2604700..2605941	-	413	86609945	tyrS	CYB_2511	-	tyrosyl-tRNA synthetase
2444	 61.17	0	2606114..2608132	+	672	86609946	-	CYB_2512	-	1A family penicillin-binding protein
2445	 62.78	+1	2608129..2608488	+	119	86609947	-	CYB_2513	-	hypothetical protein
2446	 58.00	0	2608752..2609351	+	199	86609948	sodB	CYB_2514	-	Fe-superoxide dismutase
2447	 61.19	0	2609449..2611092	-	547	86609949	-	CYB_2515	-	serine/threonine protein kinase
2448	 60.94	0	2611355..2613433	+	692	86609950	napA	CYB_2516	-	monovalent cation:proton antiporter-2 (CPA2) family protein
2449	 62.65	+1	2613613..2615805	+	730	86609951	glyS	CYB_2517	-	glycyl-tRNA synthetase subunit beta
2450	 58.87	0	2615878..2616801	-	307	86609952	-	CYB_2518	-	fructosamine kinase family protein
2451	 62.46	0	2617457..2618620	-	387	86609953	-	CYB_2519	-	hypothetical protein
2452	 57.23	0	2619379..2619876	+	165	86609954	-	CYB_2520	-	MarR family transcriptional regulator
2453	 57.96	0	2619922..2621115	+	397	86609955	-	CYB_2521	-	ISSoc1, transposase
2454	 61.86	0	2621229..2622539	+	436	86609956	pyrC	CYB_2522	-	dihydroorotase
2455	 58.71	0	2622808..2623209	+	133	86609957	-	CYB_2523	-	hypothetical protein
2456	 59.82	0	2623215..2625857	-	880	86609958	clpB	CYB_2524	-	ATP-dependent chaperone protein ClpB
2457	 60.76	0	2626057..2628357	-	766	86609959	zam	CYB_2525	-	acetazolamide conferring resistance protein Zam
2458	 57.79	0	2628410..2629051	-	213	86609960	phoU	CYB_2526	-	phosphate transport system regulatory protein PhoU
2459	 52.17	-1	2629050..2629187	+	45	86609961	-	CYB_2527	-	hypothetical protein
2460	 60.02	0	2629261..2630583	+	440	86609962	-	CYB_2528	-	hypothetical protein
2461	 64.37	+1	2630603..2632129	+	508	86609963	-	CYB_2530	-	oxidoreductase, FAD-binding
2462	 60.64	0	2632126..2633949	-	607	86609964	treZ	CYB_2529	-	malto-oligosyltrehalose trehalohydrolase
2463	 60.47	0	2634102..2636165	+	687	86609965	-	CYB_2532	-	prolyl oligopeptidase
2464	 60.20	0	2636162..2637445	-	427	86609966	eno	CYB_2531	-	phosphopyruvate hydratase
2465	 55.41	0	2637684..2638358	-	224	86609967	ntcA	CYB_2533	-	nitrogen-responsive regulatory protein
2466	 57.10	0	2638664..2640514	+	616	86609968	-	CYB_2534	-	M61 family peptidase
2467	 43.96	-2	2640598..2641905	+	435	86609969	-	CYB_2535	-	hypothetical protein
2468	 60.14	0	2641936..2642823	-	295	86609970	-	CYB_2536	-	hypothetical protein
2469	 55.06	0	2643154..2643696	+	180	86609971	-	CYB_2537	-	cytochrome c-550
2470	 58.84	0	2643696..2644193	+	165	86609972	-	CYB_2539	-	cytochrome c-550
2471	 55.11	0	2644165..2645358	-	397	86609973	-	CYB_2538	-	ISSoc1, transposase
2472	 59.07	0	2645493..2646242	-	249	86609974	ureF	CYB_2540	-	urease accessory protein UreF
2473	 55.85	0	2646246..2646818	-	190	86609975	yfiA	CYB_2541	-	ribosomal subunit interface protein
2474	 60.48	0	2647746..2648990	+	414	86609976	-	CYB_2542	-	aluminium resistance protein
2475	 59.73	0	2649088..2649894	+	268	86609977	-	CYB_2543	-	pre-peptidase C-terminal domain-containing protein
2476	 49.79	-2	2650188..2650430	+	80	86609978	-	CYB_2544	-	hypothetical protein
2477	 61.01	0	2650458..2650775	+	105	86609979	-	CYB_2546	-	hypothetical protein
2478	 55.64	0	2650772..2651170	-	132	86609980	hypA	CYB_2545	-	hydrogenase nickel insertion protein HypA
2479	 61.00	0	2651825..2653042	-	405	86609981	argJ	CYB_2548	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
2480	 57.39	0	2653239..2654057	+	272	86609982	-	CYB_2549	-	ABC transporter, ATP-binding protein
2481	 57.14	0	2654319..2655116	+	265	86609983	-	CYB_2550	-	ABC transporter, permease protein
2482	 61.41	0	2655375..2656382	-	335	86609984	-	CYB_2551	-	phosphate ABC transporter periplasmic substrate-binding protein
2483	 61.28	0	2656486..2658546	-	686	86609985	-	CYB_2552	-	VacB/RNB family exoribonuclease
2484	 55.24	0	2659064..2659702	+	212	86609986	-	CYB_2553	-	LuxR family DNA-binding response regulator
2485	 51.52	-1	2659776..2659940	+	54	86609987	-	CYB_2554	-	hypothetical protein
2486	 59.18	0	2660114..2660995	-	293	86609988	-	CYB_2555	-	LysR family transcriptional regulator
2487	 54.19	-1	2661170..2661634	+	154	86609989	-	CYB_2556	-	hypothetical protein
2488	 56.90	0	2661653..2662870	-	405	86609990	-	CYB_2557	-	ISSoc1, transposase
2489	 60.49	0	2662984..2663679	+	231	86609991	deoC	CYB_2558	-	deoxyribose-phosphate aldolase
2490	 60.72	0	2663676..2664533	+	285	86609992	recO	CYB_2559	-	DNA repair protein RecO
2491	 60.73	0	2664997..2665737	+	246	86609993	-	CYB_2561	-	DNA-binding response regulator
2492	 62.07	0	2665710..2667557	-	615	86609994	-	CYB_2560	-	TPR repeat-containing protein
2493	 58.33	0	2667986..2668201	-	71	86609995	-	CYB_2562	-	hypothetical protein
2494	 53.97	-1	2668439..2668690	+	83	86609996	-	CYB_2563	-	hypothetical protein
2495	 60.74	0	2668806..2669480	-	224	86609997	-	CYB_2564	-	riboflavin biosynthesis protein RibD domain-containing protein
2496	 61.87	0	2669587..2669982	+	131	86609998	-	CYB_2565	-	hypothetical protein
2497	 60.48	0	2670285..2671964	+	559	86609999	-	CYB_2566	-	hypothetical protein
2498	 57.84	0	2672142..2672447	+	101	86610000	clpS	CYB_2568	-	ATP-dependent Clp protease adaptor
2499	 64.29	+1	2672396..2673532	-	378	86610001	-	CYB_2567	-	hypothetical protein
2500	 51.54	-1	2673674..2673997	+	107	86610002	-	CYB_2569	-	hypothetical protein
2501	 56.67	0	2674026..2674475	+	149	86610003	-	CYB_2570	-	FUR family transcriptional regulator
2502	 61.48	0	2674475..2674975	+	166	86610004	-	CYB_2571	-	hypothetical protein
2503	 59.59	0	2675267..2675803	+	178	86610005	-	CYB_2573	-	hypothetical protein
2504	 62.68	+1	2675800..2676627	-	275	86610006	-	CYB_2572	-	DnaJ domain-containing protein
2505	 54.83	0	2676757..2678328	-	523	86610007	-	CYB_2574	-	radical SAM domain-containing protein
2506	 59.79	0	2678480..2679832	+	450	86610008	-	CYB_2575	-	serine/threonine protein kinase
2507	 63.50	+1	2680579..2681337	+	252	86610009	-	CYB_2576	-	hypothetical protein
2508	 57.36	0	2681523..2681855	-	110	86610010	cbbS	CYB_2577	-	ribulose bisphosphate carboxylase, small subunit
2509	 57.35	0	2681864..2682271	-	135	86610011	rbcX	CYB_2578	-	chaperon-like protein RbcX
2510	 59.16	0	2682338..2683762	-	474	86610012	rbcL	CYB_2579	-	ribulose bisophosphate carboxylase
2511	 54.84	0	2684183..2684275	-	30	86610013	-	CYB_2580	-	hypothetical protein
2512	 55.06	0	2684272..2684874	-	200	86610014	clpP-2	CYB_2581	-	ATP-dependent Clp protease, proteolytic subunit ClpP
2513	 54.05	-1	2685098..2685208	+	36	86610015	-	CYB_2582	-	hypothetical protein
2514	 56.60	0	2685411..2685569	-	52	86610016	-	CYB_2584	-	hypothetical protein
2515	 54.31	-1	2685648..2685995	-	115	86610017	-	CYB_2585	-	hypothetical protein
2516	 58.89	0	2686481..2687728	+	415	86610018	-	CYB_2587	-	hypothetical protein
2517	 63.27	+1	2687725..2689137	-	470	86610019	cobB	CYB_2586	-	cobyrinic acid a,c-diamide synthase
2518	 60.16	0	2689154..2689921	-	255	86610020	cobO-2	CYB_2588	-	cob(I)alamin adenosyltransferase
2519	 58.27	0	2690054..2690422	+	122	86610021	-	CYB_2589	-	putative lipoprotein
2520	 60.96	0	2690915..2692159	+	414	86610022	metK	CYB_2590	-	S-adenosylmethionine synthetase
2521	 43.14	-2	2692188..2692595	-	135	86610023	-	CYB_2591	-	ISSoc13, transposase orfB
2522	 44.71	-2	2692553..2692930	-	125	86610024	-	CYB_2592	-	ISSoc13, transposase orfA
2523	 60.69	0	2693001..2693519	-	172	86610025	-	CYB_2593	-	molybdenum cofactor biosynthesis domain-containing protein
2524	 61.93	0	2693556..2694083	-	175	86610026	-	CYB_2594	-	hypothetical protein
58.48	MEAN

4.07	STD DEV
