IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

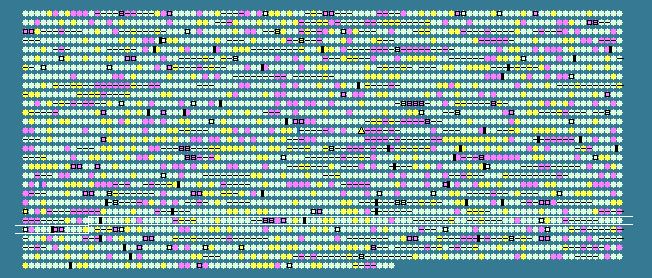

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2312	 60.43	0	2482282..2482890	+	202	86609816	-	CYB_2377	-	response regulator
2313	 60.39	0	2483164..2484087	+	307	86609817	ppnK	CYB_2378	-	inorganic polyphosphate/ATP-NAD kinase
2314	 61.88	0	2484335..2484835	-	166	86609818	-	CYB_2380	-	pentapeptide repeat-containing protein
2315	 60.27	0	2484994..2485290	-	98	86609819	-	CYB_2381	-	hypothetical protein
2316	 56.32	0	2485355..2485528	-	57	86609820	-	CYB_2382	-	hypothetical protein
2317	 61.73	0	2485554..2486282	+	242	86609821	-	CYB_2383	-	hydrophobic amino acid uptake transporter ABC transporter family ATP-binding protein
2318	 63.66	+1	2486295..2487725	-	476	86609822	-	CYB_2384	-	pyruvate kinase
2319	 58.69	0	2487938..2489140	+	400	86609823	-	CYB_2385	-	YjgP/YjgQ family protein
2320	 54.60	0	2489177..2489350	+	57	86609824	-	CYB_2386	-	hypothetical protein
2321	 59.70	0	2489433..2489963	-	176	86609825	-	CYB_2387	-	TPR repeat-containing protein
2322	 57.97	0	2490127..2491011	-	294	86609826	-	CYB_2388	-	mannosyl-3-phosphoglycerate phosphatase
2323	 59.86	0	2491282..2491971	-	229	86609827	upp	CYB_2389	-	uracil phosphoribosyltransferase
2324	 59.11	0	2492130..2492354	-	74	86609828	-	CYB_2390	-	hypothetical protein
2325	 58.68	0	2492543..2493619	+	358	86609829	-	CYB_2391	-	putative secreted protein
2326	 54.09	-1	2493816..2493974	-	52	86609830	-	CYB_2392	-	hypothetical protein
2327	 64.84	+1	2494156..2495304	+	382	86609831	thiO	CYB_2393	-	glycine oxidase ThiO
2328	 59.09	0	2495292..2495489	+	65	86609832	thiS	CYB_2394	-	thiamine biosynthesis protein ThiS
2329	 65.25	+1	2495573..2496349	+	258	86609833	thiG	CYB_2395	-	thiazole synthase
2330	 61.45	0	2496372..2497004	-	210	86609834	-	CYB_2396	-	UbiE/COQ5 family methlytransferase
2331	 59.14	0	2497103..2497912	+	269	86609835	-	CYB_2397	-	hypothetical protein
2332	 58.16	0	2498044..2498184	+	46	86609836	-	CYB_2398	-	hypothetical protein
2333	 62.01	0	2498324..2499439	+	371	86609837	-	CYB_2399	-	glycosyl transferase, group 1
2334	 57.11	0	2499535..2500518	-	327	86609838	-	CYB_2400	-	ABC transporter, ATP-binding protein
2335	 58.77	0	2500651..2500764	-	37	86609839	-	CYB_2401	-	hypothetical protein
2336	 58.94	0	2500952..2501611	+	219	86609840	-	CYB_2402	-	CDP-alcohol phosphatidyltransferase family protein
2337	 61.77	0	2501738..2502595	+	285	86609841	-	CYB_2403	-	cyclopropane-fatty-acyl-phospholipid synthase family protein
2338	 59.74	0	2502643..2503263	-	206	86609842	-	CYB_2404	-	uracil-DNA glycosylase
2339	 58.66	0	2503544..2505004	+	486	86609843	-	CYB_2405	-	U62 family peptidase
2340	 56.67	0	2505025..2505474	+	149	90296803	-	CYB_2406	-	hypothetical protein
2341	 44.71	-2	2505501..2505878	+	125	86609844	-	CYB_2407	-	ISSoc13, transposase orfA
2342	 43.14	-2	2505836..2506243	+	135	86609845	-	CYB_2408	-	ISSoc13, transposase orfB
2343	 53.12	-1	2506240..2506704	+	154	90296804	-	CYB_2409	-	hypothetical protein
2344	 54.92	0	2506709..2507857	+	382	86609846	-	CYB_2410	-	ISSoc1, transposase
2345	 58.24	0	2508113..2509453	+	446	86609847	-	CYB_2411	-	tldD/pmbA family protein
2346	 62.03	0	2509469..2510266	+	265	86609848	-	CYB_2412	-	hypothetical protein
2347	 58.74	0	2510263..2510691	+	142	86609849	-	CYB_2413	-	hypothetical protein
2348	 56.17	0	2511197..2511577	-	126	86609850	-	CYB_2415	-	hypothetical protein
2349	 58.99	0	2511618..2514026	-	802	86609851	-	CYB_2416	-	putative helicase
2350	 58.41	0	2514222..2514875	+	217	86609852	trpG	CYB_2417	-	anthranilate synthase component II
2351	 63.01	+1	2514926..2515690	+	254	86609853	-	CYB_2418	-	metallo-beta-lactamase superfamily hydrolase
2352	 63.32	+1	2515695..2516261	+	188	86609854	-	CYB_2419	-	ankyrin repeat-containing protein
2353	 58.85	0	2516272..2517282	-	336	86609855	-	CYB_2420	-	deoxyhypusine synthase family protein
2354	 59.87	0	2517517..2519619	+	700	86609856	-	CYB_2421	-	sensory box histidine kinase
2355	 61.32	0	2519962..2520204	+	80	86609857	-	CYB_2422	-	hypothetical protein
2356	 62.58	+1	2520220..2520537	+	105	86609858	-	CYB_2423	-	hypothetical protein
2357	 57.51	0	2520573..2521610	-	345	86609859	-	CYB_2424	-	CBS domain-containing protein
2358	 62.19	0	2521912..2523540	-	542	86609860	panC/cmk	CYB_2425	-	bifunctional pantoate ligase/cytidylate kinase
2359	 55.26	0	2523604..2523717	-	37	86609861	petG	CYB_2426	-	cytochrome b6-f complex subunit PetG
2360	 61.68	0	2523864..2525267	+	467	86609862	menE	CYB_2428	-	O-succinylbenzoic acid--CoA ligase
2361	 59.60	0	2525264..2525857	-	197	86609863	-	CYB_2427	-	DnaJ domain-containing protein
2362	 52.92	-1	2525863..2526102	+	79	86609864	-	CYB_2429	-	hypothetical protein
2363	 55.56	0	2526099..2526854	+	251	86609865	-	CYB_2430	-	ankyrin repeat-containing protein
2364	 60.84	0	2528013..2528561	-	182	86609866	-	CYB_2431	-	hypothetical protein
2365	 57.41	0	2528662..2529633	-	323	86609867	panE-2	CYB_2432	-	2-dehydropantoate 2-reductase
2366	 60.47	0	2529685..2530233	-	182	86609868	pyrR	CYB_2433	-	pyrR bifunctional protein
2367	 60.64	0	2530394..2530924	+	176	86609869	-	CYB_2434	-	pentapeptide repeat-containing protein
2368	 57.00	0	2531009..2531722	-	237	86609870	-	CYB_2435	-	heme oxygenase
2369	 60.79	0	2532316..2535735	+	1139	86609871	rpoB	CYB_2436	-	DNA-directed RNA polymerase subunit beta
2370	 59.77	0	2535851..2537734	+	627	86609872	rpoC1	CYB_2437	-	DNA-directed RNA polymerase subunit gamma
2371	 61.00	0	2537788..2541702	+	1304	86609873	rpoC2	CYB_2438	-	DNA-directed RNA polymerase subunit beta'
2372	 63.49	+1	2541683..2542405	+	240	86609874	-	CYB_2440	-	uracil-DNA glycosylase family protein
2373	 56.97	0	2542402..2543061	-	219	86609875	-	CYB_2439	-	transcriptional activator TenA, putative
2374	 57.02	0	2543382..2544407	-	341	86609876	-	CYB_2441	-	semialdehyde dehydrogenase family protein
2375	 56.85	0	2544518..2545240	-	240	86609877	-	CYB_2442	-	hypothetical protein
2376	 58.58	0	2545444..2545752	+	102	86609878	-	CYB_2443	-	hypothetical protein
2377	 62.16	0	2545767..2546276	-	169	86609879	-	CYB_2444	-	pentapeptide repeat-containing protein
2378	 61.22	0	2546377..2546670	+	97	86609880	gvpV	CYB_2445	-	gas vesicle protein V
2379	 57.58	0	2546845..2547306	+	153	86609881	-	CYB_2446	-	ABC transporter, ATP-binding protein, truncation
2380	 59.48	0	2547307..2548155	-	282	86609882	purU	CYB_2447	-	formyltetrahydrofolate deformylase
2381	 58.62	0	2548220..2548480	-	86	86609883	-	CYB_2448	-	hypothetical protein
2382	 60.58	0	2548484..2548828	-	114	86609884	tatA-2	CYB_2449	-	twin-arginine translocation protein TatA
2383	 53.62	-1	2548867..2549004	-	45	86609885	-	CYB_2450	-	hypothetical protein
2384	 58.77	0	2549045..2551918	+	957	86609886	secA	CYB_2451	-	preprotein translocase subunit SecA
2385	 59.22	0	2552208..2553134	-	308	86609887	-	CYB_2452	-	NAD-dependent epimerase/dehydratase family protein
2386	 58.33	0	2553191..2553322	+	43	86609888	-	CYB_2453	-	hypothetical protein
2387	 56.95	0	2553364..2554557	-	397	86609889	-	CYB_2454	-	ISSoc1, transposase
2388	 62.37	0	2554733..2555314	+	193	86609890	-	CYB_2455	-	hypothetical protein
2389	 59.57	0	2555326..2556312	-	328	86609891	hemB	CYB_2456	-	delta-aminolevulinic acid dehydratase
2390	 61.23	0	2556338..2557312	-	324	86609892	-	CYB_2457	-	alpha/beta fold family hydrolase
2391	 46.15	-2	2557683..2557799	+	38	86609893	psbI	CYB_2458	-	photosystem II reaction center I protein I
2392	 60.48	0	2558093..2558593	-	166	86609894	-	CYB_2459	-	hypothetical protein
2393	 60.31	0	2558714..2559358	-	214	86609895	-	CYB_2460	-	BioY family protein
2394	 59.84	0	2559382..2560230	+	282	86609896	-	CYB_2462	-	inositol monophosphatase family protein
2395	 58.62	0	2560215..2560835	-	206	86609897	-	CYB_2461	-	hypothetical protein
2396	 60.61	0	2561082..2561180	-	32	86609898	-	CYB_2463	-	hypothetical protein
2397	 61.54	0	2561278..2562057	+	259	86609899	-	CYB_2464	-	TatD family hydrolase
2398	 61.64	0	2562273..2564777	+	834	86609900	-	CYB_2465	-	sensor histidine kinase
2399	 60.75	0	2564782..2565153	+	123	86609901	-	CYB_2466	-	hypothetical protein
2400	 58.64	0	2565177..2565338	-	53	86609902	-	CYB_2467	-	hypothetical protein
2401	 56.20	0	2565690..2566883	+	397	86609903	-	CYB_2468	-	ISSoc1, transposase
2402	 54.98	0	2566904..2567194	+	96	86609904	-	CYB_2469	-	hypothetical protein
2403	 56.41	0	2567349..2567933	+	194	86609905	-	CYB_2470	-	hypothetical protein
2404	 59.41	0	2568126..2569874	-	582	86609906	-	CYB_2471	-	sensor histidine kinase
2405	 58.56	0	2570300..2570743	+	147	86609907	-	CYB_2472	-	hypothetical protein
2406	 44.71	-2	2571006..2571383	+	125	86609908	-	CYB_2474	-	ISSoc13, transposase orfA
2407	 43.38	-2	2571341..2571748	+	135	86609909	-	CYB_2475	-	ISSoc13, transposase orfB
2408	 60.23	0	2571799..2572497	-	232	86609910	-	CYB_2476	-	hypothetical protein
2409	 57.80	0	2572676..2574028	+	450	86609911	ugpB	CYB_2477	-	glycerol-3-phosphate ABC transporter, periplasmic glycerol-3-phosphate binding protein
2410	 57.36	0	2574290..2575342	+	350	86609912	upgA	CYB_2478	-	glycerol-3-phosphate ABC transporter, permease protein
2411	 62.26	0	2575434..2575955	+	173	86609913	-	CYB_2479	-	pentapeptide repeat-containing protein
58.48	MEAN

4.07	STD DEV
