IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

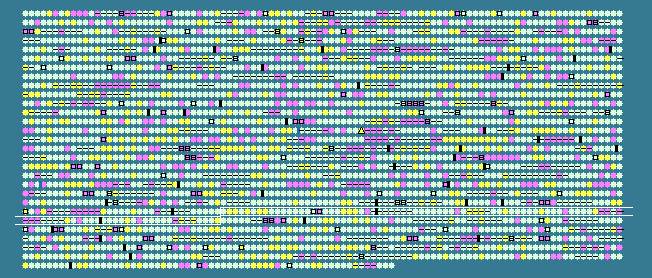

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2234	 59.76	0	2402264..2403088	+	274	86609738	-	CYB_2297	-	alpha/beta fold family hydrolase
2235	 62.89	+1	2403206..2404264	-	352	86609739	thrC-1	CYB_2298	-	threonine synthase
2236	 63.93	+1	2404435..2406081	-	548	86609740	-	CYB_2299	-	isochorismate synthase
2237	 61.57	0	2406353..2407294	+	313	86609741	menA	CYB_2300	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
2238	 62.32	0	2407449..2409242	+	597	86609742	-	CYB_2301	-	hypothetical protein
2239	 55.92	0	2409410..2410498	+	362	86609743	-	CYB_2302	-	YjgP/YjgQ permease
2240	 62.02	0	2410495..2413935	+	1146	86609744	-	CYB_2303	-	hypothetical protein
2241	 63.73	+1	2413980..2415611	-	543	86609745	-	CYB_2304	-	phosphoglucomutase
2242	 58.20	0	2415751..2417037	-	428	86609746	-	CYB_2305	-	major facilitator transporter
2243	 59.74	0	2417063..2418073	-	336	86609747	gap-3	CYB_2306	-	glyceraldehyde-3-phosphate dehydrogenase, type I
2244	 59.80	0	2418300..2418983	+	227	86609748	-	CYB_2307	-	hypothetical protein
2245	 55.42	0	2419213..2419452	+	79	86609749	-	CYB_2308	-	DNA-directed RNA polymerase subunit omega
2246	 60.59	0	2419549..2421423	-	624	86609750	-	CYB_2309	-	small conductance mechanosensitive ion channel (MscS) family protein
2247	 59.25	0	2421462..2422580	-	372	86609751	cax	CYB_2310	-	calcium/proton exchanger
2248	 59.40	0	2422796..2423566	-	256	86609752	-	CYB_2311	-	hypothetical protein
2249	 56.06	0	2423643..2423906	-	87	86609753	-	CYB_2312	-	ISSoc11, transposase orfB
2250	 53.75	-1	2424098..2424871	-	257	86609754	-	CYB_2313	-	ISSoc11, transposase orfA
2251	 58.01	0	2425230..2425610	-	126	86609755	-	CYB_2314	-	hypothetical protein
2252	 60.47	0	2426036..2426938	-	300	86609756	-	CYB_2315	-	putative cysteine synthase B
2253	 61.38	0	2427164..2428297	+	377	86609757	cobO-1	CYB_2316	-	hypothetical protein
2254	 62.13	0	2428297..2429046	+	249	86609758	-	CYB_2317	-	acyltransferase family protein
2255	 63.95	+1	2429085..2429858	+	257	86609759	-	CYB_2319	-	alpha/beta fold family hydrolase
2256	 62.81	+1	2429836..2430561	-	241	86609760	-	CYB_2318	-	haloacid dehalogenase, IA family protein
2257	 59.45	0	2430558..2431541	-	327	86609761	-	CYB_2320	-	PhoH family protein
2258	 47.71	-2	2431967..2432119	+	50	86609762	-	CYB_2321	-	hypothetical protein
2259	 57.56	0	2432097..2432645	+	182	86609763	-	CYB_2322	-	hypothetical protein
2260	 57.05	0	2433115..2433426	-	103	86609764	-	CYB_2324	-	hypothetical protein
2261	 56.94	0	2433609..2433896	-	95	86609765	-	CYB_2325	-	hypothetical protein
2262	 59.95	0	2434027..2434398	-	123	86609766	-	CYB_2326	-	hypothetical protein
2263	 60.57	0	2434458..2435588	+	376	86609767	-	CYB_2328	-	geranylgeranyl reductase family protein
2264	 58.87	0	2435565..2436077	-	170	86609768	-	CYB_2327	-	sensor histidine kinase
2265	 59.15	0	2436197..2436928	-	243	86609769	-	CYB_2329	-	OmpA family protein
2266	 57.12	0	2437164..2437823	-	219	86609770	-	CYB_2330	-	S24 family peptidase
2267	 56.22	0	2438466..2438714	+	82	86609771	-	CYB_2331	-	hypothetical protein
2268	 55.10	0	2438815..2439177	+	120	86609772	-	CYB_2332	-	NADH dehydrogenase subunit A
2269	 59.86	0	2439174..2439908	+	244	86609773	-	CYB_2333	-	NADH dehydrogenase subunit B
2270	 58.15	0	2439910..2440461	+	183	86609774	-	CYB_2334	-	NADH dehydrogenase subunit J
2271	 56.90	0	2440509..2440682	+	57	86609775	-	CYB_2335	-	hypothetical protein
2272	 60.19	0	2440723..2441973	+	416	86609776	-	CYB_2336	-	hypothetical protein
2273	 52.60	-1	2442009..2442875	-	288	86609777	-	CYB_2337	-	hypothetical protein
2274	 61.91	0	2443451..2444986	+	511	86609778	-	CYB_2338	-	glycosyl hydrolase domain-containing protein
2275	 63.67	+1	2445287..2446153	-	288	86609779	fabD	CYB_2339	-	malonyl CoA-acyl carrier protein transacylase
2276	 63.97	+1	2446158..2447159	-	333	86609780	fabH	CYB_2340	-	3-oxoacyl-(acyl-carrier-protein) synthase III
2277	 62.93	+1	2447146..2448270	-	374	86609781	plsX	CYB_2341	-	putative glycerol-3-phosphate acyltransferase PlsX
2278	 58.97	0	2448479..2450206	-	575	86609782	-	CYB_2342	-	hypothetical protein
2279	 61.45	0	2450470..2451390	+	306	86609783	trpC	CYB_2343	-	indole-3-glycerol-phosphate synthase
2280	 56.35	0	2451442..2451693	+	83	86609784	-	CYB_2344	-	hypothetical protein
2281	 62.56	+1	2451753..2451947	+	64	86609785	-	CYB_2345	-	copper metallochaperone
2282	 61.36	0	2452060..2454375	+	771	86609786	-	CYB_2346	-	copper-translocating P-type ATPase
2283	 60.82	0	2454670..2455713	+	347	86609787	cbiX	CYB_2347	-	sirohydrochlorin cobaltochelatase
2284	 58.86	0	2455814..2456710	+	298	86609788	-	CYB_2349	-	hypothetical protein
2285	 57.93	0	2456707..2457324	-	205	86609789	-	CYB_2348	-	PAP_fibrillin
2286	 60.08	0	2457380..2458093	-	237	86609790	-	CYB_2350	-	Sua5/YciO/YrdC/YwlC family protein
2287	 62.87	+1	2458112..2458453	-	113	86609791	-	CYB_2351	-	hypothetical protein
2288	 61.02	0	2458547..2459590	-	347	86609792	obgE	CYB_2352	-	GTPase ObgE
2289	 58.00	0	2459786..2460754	+	322	86609793	rpsA	CYB_2353	-	30S ribosomal protein S1
2290	 55.82	0	2461085..2461969	-	294	86609794	-	CYB_2354	-	hypothetical protein
2291	 50.00	-2	2461923..2462048	-	41	86609795	-	CYB_2355	-	hypothetical protein
2292	 59.75	0	2462024..2462992	-	322	86609796	-	CYB_2356	-	putative cobalamin biosynthesis protein CobW
2293	 58.39	0	2463159..2463617	-	152	86609797	-	CYB_2357	-	glyoxalase family protein
2294	 61.21	0	2463813..2466614	+	933	86609798	topA	CYB_2358	-	DNA topoisomerase I
2295	 61.31	0	2466704..2466871	-	55	86609799	-	CYB_2359	-	hypothetical protein
2296	 62.62	+1	2466909..2468069	-	386	86609800	-	CYB_2360	-	SpoIID/LytB domain-containing protein
2297	 51.32	-1	2468121..2469677	-	518	86609801	-	CYB_2361	-	radical SAM domain-containing protein
2298	 53.50	-1	2470005..2470361	-	118	86609802	-	CYB_2362	-	hypothetical protein
2299	 58.76	0	2470406..2470696	-	96	86609803	-	CYB_2363	-	BolA protein
2300	 53.80	-1	2470726..2471067	-	113	86609804	-	CYB_2364	-	glutaredoxin-like protein
2301	 43.82	-2	2471569..2472579	+	336	86609805	-	CYB_2365	-	anion:cation symporter (ACS) family protein
2302	 36.93	-2	2472580..2472996	+	138	86609806	arsC	CYB_2366	-	arsenate reductase
2303	 43.29	-2	2473048..2474172	-	374	86609807	-	CYB_2367	-	PKD domain-containing protein
2304	 60.16	0	2474160..2475143	-	327	86609808	tilS	CYB_2368	-	tRNA(Ile)-lysidine synthetase
2305	 58.03	0	2475197..2476366	-	389	86609809	hrcA	CYB_2369	-	heat-inducible transcription repressor
2306	 58.75	0	2476794..2477096	+	100	86609810	ureA	CYB_2370	-	urease, gamma subunit
2307	 60.00	0	2477690..2477944	+	84	86609811	-	CYB_2372	-	hypothetical protein
2308	 63.44	+1	2478040..2480457	-	805	86609812	-	CYB_2373	-	recombination and DNA strand exchange inhibitor protein
2309	 55.56	0	2480949..2481353	+	134	86609813	-	CYB_2374	-	iron-sulfur cluster-binding protein
2310	 51.80	-1	2481466..2481687	+	73	86609814	-	CYB_2375	-	hypothetical protein
2311	 56.85	0	2481716..2482051	+	111	86609815	-	CYB_2376	-	hypothetical protein
2312	 60.43	0	2482282..2482890	+	202	86609816	-	CYB_2377	-	response regulator
2313	 60.39	0	2483164..2484087	+	307	86609817	ppnK	CYB_2378	-	inorganic polyphosphate/ATP-NAD kinase
2314	 61.88	0	2484335..2484835	-	166	86609818	-	CYB_2380	-	pentapeptide repeat-containing protein
2315	 60.27	0	2484994..2485290	-	98	86609819	-	CYB_2381	-	hypothetical protein
2316	 56.32	0	2485355..2485528	-	57	86609820	-	CYB_2382	-	hypothetical protein
2317	 61.73	0	2485554..2486282	+	242	86609821	-	CYB_2383	-	hydrophobic amino acid uptake transporter ABC transporter family ATP-binding protein
2318	 63.66	+1	2486295..2487725	-	476	86609822	-	CYB_2384	-	pyruvate kinase
2319	 58.69	0	2487938..2489140	+	400	86609823	-	CYB_2385	-	YjgP/YjgQ family protein
2320	 54.60	0	2489177..2489350	+	57	86609824	-	CYB_2386	-	hypothetical protein
2321	 59.70	0	2489433..2489963	-	176	86609825	-	CYB_2387	-	TPR repeat-containing protein
2322	 57.97	0	2490127..2491011	-	294	86609826	-	CYB_2388	-	mannosyl-3-phosphoglycerate phosphatase
2323	 59.86	0	2491282..2491971	-	229	86609827	upp	CYB_2389	-	uracil phosphoribosyltransferase
2324	 59.11	0	2492130..2492354	-	74	86609828	-	CYB_2390	-	hypothetical protein
2325	 58.68	0	2492543..2493619	+	358	86609829	-	CYB_2391	-	putative secreted protein
2326	 54.09	-1	2493816..2493974	-	52	86609830	-	CYB_2392	-	hypothetical protein
2327	 64.84	+1	2494156..2495304	+	382	86609831	thiO	CYB_2393	-	glycine oxidase ThiO
2328	 59.09	0	2495292..2495489	+	65	86609832	thiS	CYB_2394	-	thiamine biosynthesis protein ThiS
2329	 65.25	+1	2495573..2496349	+	258	86609833	thiG	CYB_2395	-	thiazole synthase
2330	 61.45	0	2496372..2497004	-	210	86609834	-	CYB_2396	-	UbiE/COQ5 family methlytransferase
2331	 59.14	0	2497103..2497912	+	269	86609835	-	CYB_2397	-	hypothetical protein
2332	 58.16	0	2498044..2498184	+	46	86609836	-	CYB_2398	-	hypothetical protein
2333	 62.01	0	2498324..2499439	+	371	86609837	-	CYB_2399	-	glycosyl transferase, group 1
58.48	MEAN

4.07	STD DEV
