IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

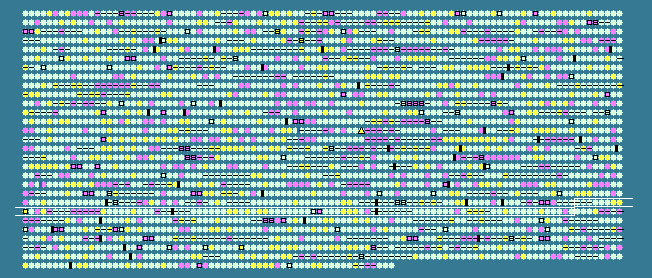

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2193	 61.05	0	2358010..2358276	+	88	86609697	-	CYB_2255	-	hypothetical protein
2194	 57.61	0	2358350..2358625	-	91	86609698	-	CYB_2256	-	hypothetical protein
2195	 60.44	0	2358884..2359927	+	347	86609699	glpX	CYB_2257	-	fructose 1,6-bisphosphatase II
2196	 60.42	0	2360255..2361550	+	431	86609700	hemA	CYB_2258	-	glutamyl-tRNA reductase
2197	 56.48	0	2361658..2361765	+	35	86609701	-	CYB_2259	-	hypothetical protein
2198	 59.79	0	2361940..2363757	+	605	86609702	typA	CYB_2260	-	GTP-binding protein TypA
2199	 62.30	0	2363788..2365941	-	717	86609703	-	CYB_2261	-	putative peptidase
2200	 63.33	+1	2366011..2367327	-	438	86609704	cinA	CYB_2262	-	competence/damage-inducible protein CinA
2201	 63.14	+1	2368188..2369462	-	424	86609705	-	CYB_2263	-	ISSoc9, transposase
2202	 56.54	0	2369616..2370020	-	134	86609706	-	CYB_2264	-	universal stress family protein
2203	 50.94	-1	2370236..2370979	-	247	86609707	-	CYB_2265	-	hypothetical protein
2204	 61.99	0	2371217..2372797	-	526	86609708	-	CYB_2266	-	PsbB/PsbC family photosystem II protein
2205	 46.67	-2	2372845..2373354	-	169	86609709	-	CYB_2267	-	flavodoxin FldA
2206	 58.36	0	2373428..2374462	-	344	86609710	-	CYB_2268	-	PsbB/PsbC family photosystem II protein
2207	 57.58	0	2374853..2376085	+	410	86609711	-	CYB_2269	-	putative iron-regulated protein A
2208	 60.33	0	2376131..2377504	+	457	86609712	-	CYB_2271	-	hypothetical protein
2209	 50.52	-1	2377501..2378175	-	224	86609713	-	CYB_2270	-	putative hydroxylase
2210	 48.33	-2	2378537..2379196	+	219	86609714	-	CYB_2273	-	hypothetical protein
2211	 44.44	-2	2379193..2379525	-	110	86609715	-	CYB_2272	-	cupin domain-containing protein
2212	 48.52	-2	2379525..2380301	-	258	86609716	-	CYB_2274	-	hypothetical protein
2213	 47.36	-2	2380544..2381206	-	220	86609717	-	CYB_2275	-	hypothetical protein
2214	 63.01	+1	2381533..2383281	+	582	86609718	mutL	CYB_2276	-	DNA mismatch repair protein
2215	 61.38	0	2383318..2384169	+	283	86609719	-	CYB_2278	-	VKORC1/thioredoxin domain-containing protein
2216	 59.54	0	2384145..2385239	-	364	86609720	-	CYB_2277	-	response regulator
2217	 61.49	0	2385306..2386193	-	295	86609721	btpA	CYB_2279	-	photosystem I biogenesis protein BtpA
2218	 61.61	0	2386225..2387370	-	381	86609722	pyrD	CYB_2280	-	dihydroorotate dehydrogenase 2
2219	 62.21	0	2387498..2388799	-	433	86609723	-	CYB_2281	-	O-antigen polymerase family protein
2220	 60.94	0	2388799..2389182	-	127	86609724	-	CYB_2282	-	ferredoxin, 2Fe-2S
2221	 56.98	0	2389380..2389823	+	147	86609725	-	CYB_2283	-	mannose-6-phosphate isomerase
2222	 60.03	0	2389874..2392255	-	793	86609726	-	CYB_2284	-	M48B family peptidase
2223	 52.57	-1	2392458..2392904	-	148	86609727	-	CYB_2285	-	FUR family transcriptional regulator
2224	 58.53	0	2393261..2393641	+	126	86609728	-	CYB_2286	-	hypothetical protein
2225	 61.54	0	2393681..2395045	+	454	86609729	-	CYB_2287	-	putative D-alanyl-D-alanine carboxypeptidase/D-alanyl-D-alanine-endopeptidase
2226	 59.02	0	2395303..2395812	+	169	86609730	-	CYB_2289	-	hypothetical protein
2227	 59.23	0	2395870..2396205	+	111	86609731	-	CYB_2290	-	hypothetical protein
2228	 56.00	0	2396321..2396470	+	49	86609732	-	CYB_2291	-	hypothetical protein
2229	 60.24	0	2396569..2397330	+	253	86609733	pyrH	CYB_2292	-	uridylate kinase
2230	 60.42	0	2397587..2398834	+	415	86609734	-	CYB_2293	-	hypothetical protein
2231	 57.17	0	2398846..2399319	+	157	86609735	yqeG	CYB_2294	-	HAD family phosphatase
2232	 55.56	0	2399770..2400417	+	215	86609736	-	CYB_2295	-	hypothetical protein
2233	 58.78	0	2401039..2401989	+	316	86609737	-	CYB_2296	-	LysR family transcriptional regulator
2234	 59.76	0	2402264..2403088	+	274	86609738	-	CYB_2297	-	alpha/beta fold family hydrolase
2235	 62.89	+1	2403206..2404264	-	352	86609739	thrC-1	CYB_2298	-	threonine synthase
2236	 63.93	+1	2404435..2406081	-	548	86609740	-	CYB_2299	-	isochorismate synthase
2237	 61.57	0	2406353..2407294	+	313	86609741	menA	CYB_2300	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
2238	 62.32	0	2407449..2409242	+	597	86609742	-	CYB_2301	-	hypothetical protein
2239	 55.92	0	2409410..2410498	+	362	86609743	-	CYB_2302	-	YjgP/YjgQ permease
2240	 62.02	0	2410495..2413935	+	1146	86609744	-	CYB_2303	-	hypothetical protein
2241	 63.73	+1	2413980..2415611	-	543	86609745	-	CYB_2304	-	phosphoglucomutase
2242	 58.20	0	2415751..2417037	-	428	86609746	-	CYB_2305	-	major facilitator transporter
2243	 59.74	0	2417063..2418073	-	336	86609747	gap-3	CYB_2306	-	glyceraldehyde-3-phosphate dehydrogenase, type I
2244	 59.80	0	2418300..2418983	+	227	86609748	-	CYB_2307	-	hypothetical protein
2245	 55.42	0	2419213..2419452	+	79	86609749	-	CYB_2308	-	DNA-directed RNA polymerase subunit omega
2246	 60.59	0	2419549..2421423	-	624	86609750	-	CYB_2309	-	small conductance mechanosensitive ion channel (MscS) family protein
2247	 59.25	0	2421462..2422580	-	372	86609751	cax	CYB_2310	-	calcium/proton exchanger
2248	 59.40	0	2422796..2423566	-	256	86609752	-	CYB_2311	-	hypothetical protein
2249	 56.06	0	2423643..2423906	-	87	86609753	-	CYB_2312	-	ISSoc11, transposase orfB
2250	 53.75	-1	2424098..2424871	-	257	86609754	-	CYB_2313	-	ISSoc11, transposase orfA
2251	 58.01	0	2425230..2425610	-	126	86609755	-	CYB_2314	-	hypothetical protein
2252	 60.47	0	2426036..2426938	-	300	86609756	-	CYB_2315	-	putative cysteine synthase B
2253	 61.38	0	2427164..2428297	+	377	86609757	cobO-1	CYB_2316	-	hypothetical protein
2254	 62.13	0	2428297..2429046	+	249	86609758	-	CYB_2317	-	acyltransferase family protein
2255	 63.95	+1	2429085..2429858	+	257	86609759	-	CYB_2319	-	alpha/beta fold family hydrolase
2256	 62.81	+1	2429836..2430561	-	241	86609760	-	CYB_2318	-	haloacid dehalogenase, IA family protein
2257	 59.45	0	2430558..2431541	-	327	86609761	-	CYB_2320	-	PhoH family protein
2258	 47.71	-2	2431967..2432119	+	50	86609762	-	CYB_2321	-	hypothetical protein
2259	 57.56	0	2432097..2432645	+	182	86609763	-	CYB_2322	-	hypothetical protein
2260	 57.05	0	2433115..2433426	-	103	86609764	-	CYB_2324	-	hypothetical protein
2261	 56.94	0	2433609..2433896	-	95	86609765	-	CYB_2325	-	hypothetical protein
2262	 59.95	0	2434027..2434398	-	123	86609766	-	CYB_2326	-	hypothetical protein
2263	 60.57	0	2434458..2435588	+	376	86609767	-	CYB_2328	-	geranylgeranyl reductase family protein
2264	 58.87	0	2435565..2436077	-	170	86609768	-	CYB_2327	-	sensor histidine kinase
2265	 59.15	0	2436197..2436928	-	243	86609769	-	CYB_2329	-	OmpA family protein
2266	 57.12	0	2437164..2437823	-	219	86609770	-	CYB_2330	-	S24 family peptidase
2267	 56.22	0	2438466..2438714	+	82	86609771	-	CYB_2331	-	hypothetical protein
2268	 55.10	0	2438815..2439177	+	120	86609772	-	CYB_2332	-	NADH dehydrogenase subunit A
2269	 59.86	0	2439174..2439908	+	244	86609773	-	CYB_2333	-	NADH dehydrogenase subunit B
2270	 58.15	0	2439910..2440461	+	183	86609774	-	CYB_2334	-	NADH dehydrogenase subunit J
2271	 56.90	0	2440509..2440682	+	57	86609775	-	CYB_2335	-	hypothetical protein
2272	 60.19	0	2440723..2441973	+	416	86609776	-	CYB_2336	-	hypothetical protein
2273	 52.60	-1	2442009..2442875	-	288	86609777	-	CYB_2337	-	hypothetical protein
2274	 61.91	0	2443451..2444986	+	511	86609778	-	CYB_2338	-	glycosyl hydrolase domain-containing protein
2275	 63.67	+1	2445287..2446153	-	288	86609779	fabD	CYB_2339	-	malonyl CoA-acyl carrier protein transacylase
2276	 63.97	+1	2446158..2447159	-	333	86609780	fabH	CYB_2340	-	3-oxoacyl-(acyl-carrier-protein) synthase III
2277	 62.93	+1	2447146..2448270	-	374	86609781	plsX	CYB_2341	-	putative glycerol-3-phosphate acyltransferase PlsX
2278	 58.97	0	2448479..2450206	-	575	86609782	-	CYB_2342	-	hypothetical protein
2279	 61.45	0	2450470..2451390	+	306	86609783	trpC	CYB_2343	-	indole-3-glycerol-phosphate synthase
2280	 56.35	0	2451442..2451693	+	83	86609784	-	CYB_2344	-	hypothetical protein
2281	 62.56	+1	2451753..2451947	+	64	86609785	-	CYB_2345	-	copper metallochaperone
2282	 61.36	0	2452060..2454375	+	771	86609786	-	CYB_2346	-	copper-translocating P-type ATPase
2283	 60.82	0	2454670..2455713	+	347	86609787	cbiX	CYB_2347	-	sirohydrochlorin cobaltochelatase
2284	 58.86	0	2455814..2456710	+	298	86609788	-	CYB_2349	-	hypothetical protein
2285	 57.93	0	2456707..2457324	-	205	86609789	-	CYB_2348	-	PAP_fibrillin
2286	 60.08	0	2457380..2458093	-	237	86609790	-	CYB_2350	-	Sua5/YciO/YrdC/YwlC family protein
2287	 62.87	+1	2458112..2458453	-	113	86609791	-	CYB_2351	-	hypothetical protein
2288	 61.02	0	2458547..2459590	-	347	86609792	obgE	CYB_2352	-	GTPase ObgE
2289	 58.00	0	2459786..2460754	+	322	86609793	rpsA	CYB_2353	-	30S ribosomal protein S1
2290	 55.82	0	2461085..2461969	-	294	86609794	-	CYB_2354	-	hypothetical protein
2291	 50.00	-2	2461923..2462048	-	41	86609795	-	CYB_2355	-	hypothetical protein
2292	 59.75	0	2462024..2462992	-	322	86609796	-	CYB_2356	-	putative cobalamin biosynthesis protein CobW
58.48	MEAN

4.07	STD DEV
