IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

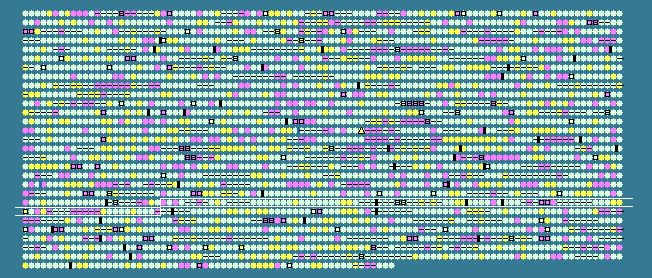

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2124	 50.00	-2	2288805..2288972	-	55	86609628	-	CYB_2182	-	hypothetical protein
2125	 58.10	0	2289333..2290067	+	244	86609629	pcm	CYB_2184	-	protein-L-isoaspartate(D-aspartate) O-methyltransferase
2126	 53.98	-1	2290064..2290804	-	246	86609630	-	CYB_2183	-	glycerophosphoryl diester phosphodiesterase family protein
2127	 58.06	0	2291166..2291351	+	61	86609631	-	CYB_2185	-	hypothetical protein
2128	 59.96	0	2291356..2291877	-	173	86609632	-	CYB_2186	-	putative peroxiredoxin
2129	 58.85	0	2292057..2292593	-	178	86609633	-	CYB_2187	-	acetyltransferase
2130	 47.17	-2	2292824..2292982	-	52	86609634	-	CYB_2188	-	hypothetical protein
2131	 61.90	0	2293808..2294563	-	251	86609635	cobI	CYB_2189	-	precorrin-2 methyltransferase
2132	 57.00	0	2294576..2294989	-	137	86609636	-	CYB_2190	-	anti-anti-sigma factor family protein
2133	 63.92	+1	2295286..2300124	+	1612	86609637	-	CYB_2191	-	hypothetical protein
2134	 57.10	0	2300205..2300507	-	100	86609638	-	CYB_2192	-	putative molybdenum-dependent nitrogenase
2135	 57.80	0	2301168..2302700	+	510	86609639	chlB	CYB_2193	-	light-independent protochlorophyllide reductase subunit B
2136	 59.70	0	2302757..2303761	+	334	86609640	galE	CYB_2194	-	UDP-glucose 4-epimerase
2137	 61.31	0	2303823..2304158	+	111	86609641	cutA	CYB_2195	-	divalent-cation tolerance protein CutA
2138	 57.08	0	2304179..2304658	+	159	86609642	coaD	CYB_2196	-	pantetheine-phosphate adenylyltransferase
2139	 59.72	0	2304688..2305047	-	119	86609643	-	CYB_2197	-	pentapeptide repeat-containing protein
2140	 61.55	0	2305535..2306647	+	370	86609644	-	CYB_2199	-	phosphofructokinase
2141	 59.36	0	2306599..2307036	-	145	86609645	-	CYB_2198	-	hypothetical protein
2142	 58.60	0	2307179..2308195	-	338	86609646	-	CYB_2200	-	adenylate cyclase, putative
2143	 57.82	0	2308380..2308865	+	161	86609647	-	CYB_2201	-	hypothetical protein
2144	 59.06	0	2308899..2309831	+	310	86609648	ribF	CYB_2202	-	riboflavin biosynthesis protein RibF
2145	 58.18	0	2309838..2310320	-	160	86609649	moaE	CYB_2203	-	molybdopterin converting factor, subunit 2
2146	 62.45	0	2310599..2311405	-	268	86609650	cobS	CYB_2204	-	cobalamin synthase
2147	 57.35	0	2311381..2311659	-	92	86609651	-	CYB_2205	-	hypothetical protein
2148	 56.19	0	2311744..2312955	-	403	86609652	rpoD	CYB_2206	-	RNA polymerase sigma factor RpoD
2149	 59.52	0	2313238..2313363	+	41	86609653	-	CYB_2207	-	hypothetical protein
2150	 61.47	0	2313604..2317278	+	1224	86609654	metH	CYB_2208	-	methionine synthase
2151	 55.05	0	2317633..2318424	-	263	86609655	potC	CYB_2209	-	spermidine/putrescine ABC transporter, permease protein PotC
2152	 61.36	0	2318973..2319650	+	225	86609656	-	CYB_2210	-	hypothetical protein
2153	 57.74	0	2319673..2320176	-	167	86609657	apcB-2	CYB_2211	-	allophycocyanin, beta subunit
2154	 63.33	+1	2320416..2321315	-	299	86609658	truB	CYB_2212	-	tRNA pseudouridine synthase B
2155	 62.13	0	2321459..2322427	+	322	86609659	-	CYB_2213	-	hypothetical protein
2156	 57.23	0	2322455..2323450	-	331	86609660	trpS	CYB_2214	-	tryptophanyl-tRNA synthetase
2157	 58.95	0	2323574..2323858	+	94	86609661	-	CYB_2215	-	hypothetical protein
2158	 56.13	0	2324031..2324552	+	173	86609662	ycf3	CYB_2216	-	photosystem I assembly protein Ycf3
2159	 57.14	0	2324650..2324943	+	97	86609663	gatC	CYB_2217	-	glutamyl-tRNA(Gln) amidotransferase, C subunit
2160	 61.66	0	2325600..2326238	-	212	86609664	-	CYB_2220	-	Crp/FNR family transcriptional regulator
2161	 58.14	0	2326231..2326359	-	42	86609665	-	CYB_2221	-	hypothetical protein
2162	 57.49	0	2326545..2326958	+	137	86609666	atpC	CYB_2222	-	ATP synthase F1, epsilon subunit
2163	 55.13	0	2327106..2327495	+	129	86609667	-	CYB_2223	-	ISSoc11, transposase orfA, truncation
2164	 55.68	0	2327701..2327964	+	87	86609668	-	CYB_2224	-	ISSoc11, transposase orfB
2165	 61.20	0	2328106..2329659	-	517	86609669	-	CYB_2225	-	tranporter, outer membrane factor (OMF) family
2166	 60.17	0	2329952..2331613	+	553	86609670	-	CYB_2226	-	hypothetical protein
2167	 65.75	+1	2331655..2334060	+	801	86609671	priA	CYB_2227	-	primosome assembly protein PriA
2168	 61.02	0	2334173..2334544	+	123	86609672	-	CYB_2228	-	hypothetical protein
2169	 63.39	+1	2334541..2335089	+	182	86609673	-	CYB_2230	-	hypothetical protein
2170	 59.86	0	2335086..2336642	-	518	86609674	metG	CYB_2229	-	methionyl-tRNA synthetase
2171	 60.68	0	2336731..2338602	+	623	86609675	-	CYB_2231	-	hypothetical protein
2172	 60.48	0	2338668..2338958	+	96	86609676	-	CYB_2232	-	hypothetical protein
2173	 62.13	0	2339049..2340305	+	418	86609677	-	CYB_2233	-	hypothetical protein
2174	 63.94	+1	2340849..2342864	+	671	86609678	-	CYB_2234	-	hydantoinase/oxoprolinase family protein
2175	 58.97	0	2343336..2344115	+	259	86609679	-	CYB_2236	-	S4 domain-containing protein
2176	 56.69	0	2344165..2345076	-	303	86609680	ubiA	CYB_2237	-	tocopherol phytyltransferase
2177	 56.65	0	2345085..2345573	-	162	86609681	-	CYB_2238	-	hypothetical protein
2178	 59.30	0	2345663..2346151	-	162	86609682	-	CYB_2239	-	R3H domain-containing protein
2179	 53.51	-1	2346183..2346296	+	37	86609683	-	CYB_2240	-	hypothetical protein
2180	 57.93	0	2346624..2347814	-	396	86609684	oxaA	CYB_2241	-	putative inner membrane protein translocase component YidC
2181	 57.28	0	2348391..2348912	+	173	86609685	ppa	CYB_2243	-	inorganic pyrophosphatase
2182	 60.42	0	2348919..2350535	-	538	86609686	-	CYB_2244	-	radical SAM domain-containing protein
2183	 59.32	0	2350829..2352202	-	457	86609687	nusA	CYB_2245	-	transcription elongation factor NusA
2184	 57.96	0	2352338..2352808	-	156	86609688	-	CYB_2246	-	hypothetical protein
2185	 48.39	-2	2353021..2353113	+	30	86609689	-	CYB_2247	-	hypothetical protein
2186	 60.47	0	2353110..2353625	+	171	86609690	-	CYB_2248	-	hypothetical protein
2187	 43.14	-2	2353708..2354115	-	135	86609691	-	CYB_2249	-	ISSoc13, transposase orfB
2188	 44.71	-2	2354073..2354450	-	125	86609692	-	CYB_2250	-	ISSoc13, transposase orfA
2189	 54.40	-1	2354503..2355138	-	211	86609693	-	CYB_2251	-	UbiE/COQ5 family methlytransferase
2190	 61.46	0	2355470..2356333	-	287	86609694	-	CYB_2252	-	arginase family protein
2191	 55.87	0	2356577..2357002	+	141	86609695	psaD	CYB_2253	-	photosystem I reaction center subunit II
2192	 57.14	0	2357237..2357845	-	202	86609696	-	CYB_2254	-	anti-oxidant AhpCTSA family protein
2193	 61.05	0	2358010..2358276	+	88	86609697	-	CYB_2255	-	hypothetical protein
2194	 57.61	0	2358350..2358625	-	91	86609698	-	CYB_2256	-	hypothetical protein
2195	 60.44	0	2358884..2359927	+	347	86609699	glpX	CYB_2257	-	fructose 1,6-bisphosphatase II
2196	 60.42	0	2360255..2361550	+	431	86609700	hemA	CYB_2258	-	glutamyl-tRNA reductase
2197	 56.48	0	2361658..2361765	+	35	86609701	-	CYB_2259	-	hypothetical protein
2198	 59.79	0	2361940..2363757	+	605	86609702	typA	CYB_2260	-	GTP-binding protein TypA
2199	 62.30	0	2363788..2365941	-	717	86609703	-	CYB_2261	-	putative peptidase
2200	 63.33	+1	2366011..2367327	-	438	86609704	cinA	CYB_2262	-	competence/damage-inducible protein CinA
2201	 63.14	+1	2368188..2369462	-	424	86609705	-	CYB_2263	-	ISSoc9, transposase
2202	 56.54	0	2369616..2370020	-	134	86609706	-	CYB_2264	-	universal stress family protein
2203	 50.94	-1	2370236..2370979	-	247	86609707	-	CYB_2265	-	hypothetical protein
2204	 61.99	0	2371217..2372797	-	526	86609708	-	CYB_2266	-	PsbB/PsbC family photosystem II protein
2205	 46.67	-2	2372845..2373354	-	169	86609709	-	CYB_2267	-	flavodoxin FldA
2206	 58.36	0	2373428..2374462	-	344	86609710	-	CYB_2268	-	PsbB/PsbC family photosystem II protein
2207	 57.58	0	2374853..2376085	+	410	86609711	-	CYB_2269	-	putative iron-regulated protein A
2208	 60.33	0	2376131..2377504	+	457	86609712	-	CYB_2271	-	hypothetical protein
2209	 50.52	-1	2377501..2378175	-	224	86609713	-	CYB_2270	-	putative hydroxylase
2210	 48.33	-2	2378537..2379196	+	219	86609714	-	CYB_2273	-	hypothetical protein
2211	 44.44	-2	2379193..2379525	-	110	86609715	-	CYB_2272	-	cupin domain-containing protein
2212	 48.52	-2	2379525..2380301	-	258	86609716	-	CYB_2274	-	hypothetical protein
2213	 47.36	-2	2380544..2381206	-	220	86609717	-	CYB_2275	-	hypothetical protein
2214	 63.01	+1	2381533..2383281	+	582	86609718	mutL	CYB_2276	-	DNA mismatch repair protein
2215	 61.38	0	2383318..2384169	+	283	86609719	-	CYB_2278	-	VKORC1/thioredoxin domain-containing protein
2216	 59.54	0	2384145..2385239	-	364	86609720	-	CYB_2277	-	response regulator
2217	 61.49	0	2385306..2386193	-	295	86609721	btpA	CYB_2279	-	photosystem I biogenesis protein BtpA
2218	 61.61	0	2386225..2387370	-	381	86609722	pyrD	CYB_2280	-	dihydroorotate dehydrogenase 2
2219	 62.21	0	2387498..2388799	-	433	86609723	-	CYB_2281	-	O-antigen polymerase family protein
2220	 60.94	0	2388799..2389182	-	127	86609724	-	CYB_2282	-	ferredoxin, 2Fe-2S
2221	 56.98	0	2389380..2389823	+	147	86609725	-	CYB_2283	-	mannose-6-phosphate isomerase
2222	 60.03	0	2389874..2392255	-	793	86609726	-	CYB_2284	-	M48B family peptidase
2223	 52.57	-1	2392458..2392904	-	148	86609727	-	CYB_2285	-	FUR family transcriptional regulator
58.48	MEAN

4.07	STD DEV
