IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

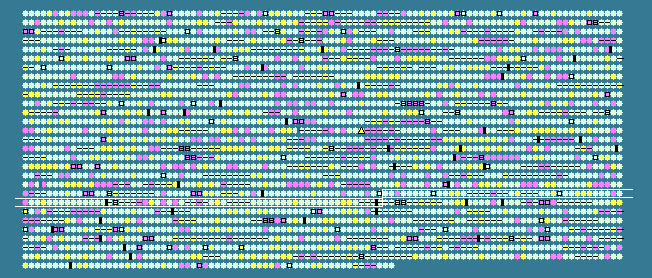

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2061	 56.73	0	2212141..2212764	-	207	86609565	-	CYB_2118	-	hypothetical protein
2062	 59.45	0	2213302..2213703	+	133	86609566	-	CYB_2119	-	hypothetical protein
2063	 54.47	0	2213985..2214230	+	81	86609567	-	CYB_2121	-	hypothetical protein
2064	 59.12	0	2214227..2214769	-	180	86609568	-	CYB_2120	-	hypothetical protein
2065	 55.35	0	2214904..2215566	-	220	86609569	-	CYB_2122	-	hypothetical protein
2066	 59.18	0	2215664..2216611	-	315	86609570	-	CYB_2123	-	nucleotidyl transferase family protein
2067	 57.64	0	2217040..2217903	+	287	86609571	-	CYB_2124	-	cystine ABC transporter, periplasmic cystine-binding protein
2068	 57.43	0	2217975..2218721	+	248	86609572	-	CYB_2125	-	cystine ABC transporter, permease protein
2069	 55.94	0	2219259..2220470	+	403	86609573	-	CYB_2126	-	ISSoc1, transposase
2070	 60.37	0	2220623..2222338	+	571	86609574	sdhA	CYB_2127	-	succinate dehydrogenase flavoprotein subunit
2071	 59.08	0	2222478..2223875	+	465	86609575	-	CYB_2128	-	beta alanine--pyruvate transaminase
2072	 62.23	0	2223909..2224652	-	247	86609576	-	CYB_2129	-	putative lipoprotein
2073	 64.04	+1	2223997..2224110	+	37	86609577	-	CYB_2130	-	hypothetical protein
2074	 61.57	0	2224919..2226547	+	542	86609578	purF	CYB_2131	-	amidophosphoribosyltransferase
2075	 60.00	0	2226600..2227124	+	174	86609579	def-1	CYB_2132	-	peptide deformylase
2076	 57.83	0	2227136..2227633	+	165	86609580	-	CYB_2133	-	hypothetical protein
2077	 58.43	0	2227567..2228805	+	412	86609581	-	CYB_2134	-	pentapeptide repeat-containing protein
2078	 60.75	0	2229594..2229965	+	123	86609582	-	CYB_2135	-	hypothetical protein
2079	 48.95	-2	2230154..2230390	+	78	86609583	gvpG	CYB_2136	-	gas vesicle protein G
2080	 55.45	0	2230498..2231103	+	201	86609584	-	CYB_2138	-	hypothetical protein
2081	 56.59	0	2231100..2231228	-	42	86609585	-	CYB_2137	-	hypothetical protein
2082	 60.66	0	2231650..2233479	+	609	86609586	-	CYB_2139	-	fibronectin-binding protein
2083	 65.10	+1	2233527..2238314	-	1595	86609587	-	CYB_2140	-	alpha-2-macroglobulin family protein
2084	 59.25	0	2238427..2239653	-	408	86609588	pilC	CYB_2141	-	type IV pilus assembly protein PilC
2085	 60.21	0	2239851..2240981	-	376	86609589	pilT-2	CYB_2142	-	twitching motility protein
2086	 59.75	0	2241125..2243206	-	693	86609590	pilB	CYB_2143	-	type IV pilus assembly protein PilB
2087	 60.13	0	2243363..2245000	-	545	86609591	-	CYB_2144	-	acetolactate synthase
2088	 61.92	0	2245179..2246231	+	350	86609592	-	CYB_2145	-	mandelate racemase/muconate lactonizing enzyme family protein
2089	 64.88	+1	2246231..2247292	+	353	86609593	-	CYB_2146	-	hypothetical protein
2090	 55.19	0	2247372..2248565	+	397	86609594	-	CYB_2147	-	ISSoc1, transposase
2091	 58.50	0	2249079..2249666	+	195	86609595	-	CYB_2148	-	hypothetical protein
2092	 60.33	0	2249862..2250650	+	262	86609596	map-1	CYB_2149	-	methionine aminopeptidase
2093	 62.77	+1	2250657..2252528	+	623	86609597	-	CYB_2150	-	chloride channel (ClC) family protein
2094	 62.91	+1	2252545..2253183	-	212	86609598	-	CYB_2151	-	base excision DNA repair protein
2095	 63.86	+1	2253304..2254407	-	367	86609599	murG	CYB_2152	-	undecaprenyldiphospho-muramoylpentapeptide beta-N-acetylglucosaminyltransferase
2096	 61.78	0	2254438..2255439	-	333	86609600	-	CYB_2153	-	Ycf48-like protein
2097	 55.56	0	2255436..2255786	-	116	86609601	-	CYB_2154	-	rubredoxin
2098	 55.47	0	2256065..2256475	+	136	86609602	-	CYB_2155	-	FHA domain-containing protein
2099	 51.85	-1	2256542..2256649	-	35	86609603	-	CYB_2156	-	hypothetical protein
2100	 60.42	0	2256715..2257467	+	250	86609604	tpiA	CYB_2157	-	triosephosphate isomerase
2101	 50.68	-1	2257472..2260273	-	933	86609605	treY	CYB_2158	-	malto-oligosyltrehalose synthase
2102	 59.79	0	2260449..2261117	+	222	86609606	-	CYB_2159	-	hypothetical protein
2103	 56.90	0	2261152..2262021	+	289	86609607	-	CYB_2160	-	M48A family peptidase
2104	 63.00	+1	2262301..2263200	+	299	86609608	-	CYB_2162	-	PfkB family kinase
2105	 59.01	0	2263194..2264918	-	574	86609609	-	CYB_2161	-	ABC transporter, permease/ATP-binding protein
2106	 58.43	0	2264955..2266970	-	671	86609610	-	CYB_2163	-	sensory box protein
2107	 58.33	0	2267646..2268005	+	119	86609611	-	CYB_2164	-	hypothetical protein
2108	 60.04	0	2268252..2269172	+	306	86609612	-	CYB_2165	-	L-lactate dehydrogenase
2109	 60.69	0	2269265..2269984	+	239	86609613	trmB	CYB_2166	-	tRNA (guanine-N(7)-)-methyltransferase
2110	 60.42	0	2270083..2271666	+	527	86609614	-	CYB_2167	-	CAAX amino terminal protease family protein
2111	 61.09	0	2271679..2272701	-	340	86609615	-	CYB_2168	-	DnaJ domain-containing protein
2112	 61.07	0	2272659..2273516	-	285	86609616	glnH	CYB_2169	-	polar amino acid ABC transporter (PAAT) family, periplasmic amino acid-binding protein
2113	 59.90	0	2273704..2274516	-	270	86609617	-	CYB_2170	-	inositol monophosphatase family protein
2114	 57.95	0	2274847..2275374	+	175	86609618	-	CYB_2171	-	FHA domain-containing protein
2115	 60.53	0	2275713..2277212	+	499	86609619	cobQ	CYB_2173	-	cobyric acid synthase
2116	 57.30	0	2277227..2278432	-	401	86609620	-	CYB_2174	-	ISSoc7, transposase
2117	 60.03	0	2278764..2280074	-	436	86609621	-	CYB_2175	-	glycolate oxidase, iron-sulfur subunit, putative
2118	 59.52	0	2280243..2282930	-	895	86609622	-	CYB_2176	-	TPR domain-containing protein
2119	 57.60	0	2282930..2284153	-	407	86609623	-	CYB_2177	-	putative methyltransferase
2120	 51.70	-1	2284389..2285123	-	244	86609624	-	CYB_2178	-	hypothetical protein
2121	 51.23	-1	2285177..2286070	-	297	86609625	-	CYB_2179	-	radical SAM domain-containing protein
2122	 62.03	0	2286473..2286817	+	114	86609626	-	CYB_2180	-	hypothetical protein
2123	 59.41	0	2286828..2288714	-	628	86609627	-	CYB_2181	-	putative long-chain-fatty-acid-CoA ligase
2124	 50.00	-2	2288805..2288972	-	55	86609628	-	CYB_2182	-	hypothetical protein
2125	 58.10	0	2289333..2290067	+	244	86609629	pcm	CYB_2184	-	protein-L-isoaspartate(D-aspartate) O-methyltransferase
2126	 53.98	-1	2290064..2290804	-	246	86609630	-	CYB_2183	-	glycerophosphoryl diester phosphodiesterase family protein
2127	 58.06	0	2291166..2291351	+	61	86609631	-	CYB_2185	-	hypothetical protein
2128	 59.96	0	2291356..2291877	-	173	86609632	-	CYB_2186	-	putative peroxiredoxin
2129	 58.85	0	2292057..2292593	-	178	86609633	-	CYB_2187	-	acetyltransferase
2130	 47.17	-2	2292824..2292982	-	52	86609634	-	CYB_2188	-	hypothetical protein
2131	 61.90	0	2293808..2294563	-	251	86609635	cobI	CYB_2189	-	precorrin-2 methyltransferase
2132	 57.00	0	2294576..2294989	-	137	86609636	-	CYB_2190	-	anti-anti-sigma factor family protein
2133	 63.92	+1	2295286..2300124	+	1612	86609637	-	CYB_2191	-	hypothetical protein
2134	 57.10	0	2300205..2300507	-	100	86609638	-	CYB_2192	-	putative molybdenum-dependent nitrogenase
2135	 57.80	0	2301168..2302700	+	510	86609639	chlB	CYB_2193	-	light-independent protochlorophyllide reductase subunit B
2136	 59.70	0	2302757..2303761	+	334	86609640	galE	CYB_2194	-	UDP-glucose 4-epimerase
2137	 61.31	0	2303823..2304158	+	111	86609641	cutA	CYB_2195	-	divalent-cation tolerance protein CutA
2138	 57.08	0	2304179..2304658	+	159	86609642	coaD	CYB_2196	-	pantetheine-phosphate adenylyltransferase
2139	 59.72	0	2304688..2305047	-	119	86609643	-	CYB_2197	-	pentapeptide repeat-containing protein
2140	 61.55	0	2305535..2306647	+	370	86609644	-	CYB_2199	-	phosphofructokinase
2141	 59.36	0	2306599..2307036	-	145	86609645	-	CYB_2198	-	hypothetical protein
2142	 58.60	0	2307179..2308195	-	338	86609646	-	CYB_2200	-	adenylate cyclase, putative
2143	 57.82	0	2308380..2308865	+	161	86609647	-	CYB_2201	-	hypothetical protein
2144	 59.06	0	2308899..2309831	+	310	86609648	ribF	CYB_2202	-	riboflavin biosynthesis protein RibF
2145	 58.18	0	2309838..2310320	-	160	86609649	moaE	CYB_2203	-	molybdopterin converting factor, subunit 2
2146	 62.45	0	2310599..2311405	-	268	86609650	cobS	CYB_2204	-	cobalamin synthase
2147	 57.35	0	2311381..2311659	-	92	86609651	-	CYB_2205	-	hypothetical protein
2148	 56.19	0	2311744..2312955	-	403	86609652	rpoD	CYB_2206	-	RNA polymerase sigma factor RpoD
2149	 59.52	0	2313238..2313363	+	41	86609653	-	CYB_2207	-	hypothetical protein
2150	 61.47	0	2313604..2317278	+	1224	86609654	metH	CYB_2208	-	methionine synthase
2151	 55.05	0	2317633..2318424	-	263	86609655	potC	CYB_2209	-	spermidine/putrescine ABC transporter, permease protein PotC
2152	 61.36	0	2318973..2319650	+	225	86609656	-	CYB_2210	-	hypothetical protein
2153	 57.74	0	2319673..2320176	-	167	86609657	apcB-2	CYB_2211	-	allophycocyanin, beta subunit
2154	 63.33	+1	2320416..2321315	-	299	86609658	truB	CYB_2212	-	tRNA pseudouridine synthase B
2155	 62.13	0	2321459..2322427	+	322	86609659	-	CYB_2213	-	hypothetical protein
2156	 57.23	0	2322455..2323450	-	331	86609660	trpS	CYB_2214	-	tryptophanyl-tRNA synthetase
2157	 58.95	0	2323574..2323858	+	94	86609661	-	CYB_2215	-	hypothetical protein
2158	 56.13	0	2324031..2324552	+	173	86609662	ycf3	CYB_2216	-	photosystem I assembly protein Ycf3
2159	 57.14	0	2324650..2324943	+	97	86609663	gatC	CYB_2217	-	glutamyl-tRNA(Gln) amidotransferase, C subunit
2160	 61.66	0	2325600..2326238	-	212	86609664	-	CYB_2220	-	Crp/FNR family transcriptional regulator
58.48	MEAN

4.07	STD DEV
