IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

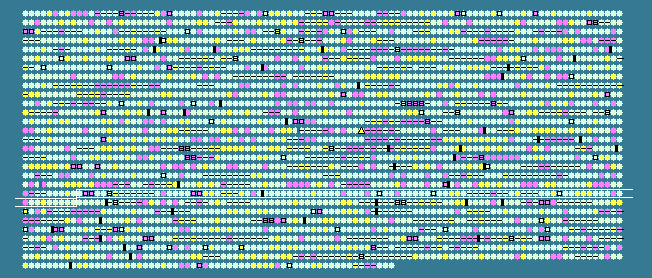

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2010	 59.13	0	2163803..2165248	+	481	86609514	-	CYB_2066	-	GAF/SpoIIE domain-containing protein
2011	 44.71	-2	2165301..2165678	+	125	86609515	-	CYB_2067	-	ISSoc13, transposase orfA
2012	 43.14	-2	2165636..2166043	+	135	86609516	-	CYB_2068	-	ISSoc13, transposase orfB
2013	 55.25	0	2166533..2166751	+	72	86609517	-	CYB_2069	-	hypothetical protein
2014	 61.09	0	2166882..2168315	+	477	86609518	argH	CYB_2070	-	argininosuccinate lyase
2015	 56.02	0	2168361..2169515	-	384	86609519	-	CYB_2071	-	ISSoc1, transposase
2016	 62.63	+1	2169715..2170011	+	98	86609520	-	CYB_2072	-	hypothetical protein
2017	 59.51	0	2170173..2170661	+	162	86609521	-	CYB_2073	-	Mov34/MPN/PAD-1 family protein
2018	 57.80	0	2170908..2171189	+	93	86609522	-	CYB_2074	-	ThiS domain-containing protein
2019	 59.40	0	2171192..2172361	+	389	86609523	-	CYB_2075	-	hypothetical protein
2020	 60.93	0	2172472..2173725	+	417	86609524	ribAB	CYB_2077	-	riboflavin biosynthesis protein RibA
2021	 58.62	0	2173714..2174148	-	144	86609525	-	CYB_2076	-	hypothetical protein
2022	 61.69	0	2174263..2175306	-	347	86609526	-	CYB_2078	-	GntR family transcriptional regulator
2023	 58.62	0	2175462..2176580	-	372	86609527	-	CYB_2079	-	polyamine ABC transporter, ATP-binding protein
2024	 43.75	-2	2176757..2176852	+	31	86609528	-	CYB_2080	-	hypothetical protein
2025	 58.29	0	2176931..2177467	+	178	86609529	-	CYB_2081	-	DoxX family protein
2026	 60.87	0	2177548..2179722	-	724	86609530	ppk	CYB_2082	-	polyphosphate kinase
2027	 59.38	0	2179781..2180740	-	319	86609531	-	CYB_2083	-	hydrophobic amino acid ABC transporter permease
2028	 59.77	0	2180740..2181609	-	289	86609532	-	CYB_2084	-	hydrophobic amino acid ABC transporter permease
2029	 44.71	-2	2181775..2182152	+	125	86609533	-	CYB_2085	-	ISSoc13, transposase orfA
2030	 42.89	-2	2182110..2182517	+	135	86609534	-	CYB_2086	-	ISSoc13, transposase orfB
2031	 63.04	+1	2182578..2183543	+	321	86609535	-	CYB_2087	-	putative lipoprotein
2032	 64.50	+1	2183651..2185402	+	583	86609536	-	CYB_2088	-	sulfatase
2033	 57.98	0	2185415..2185909	-	164	86609537	-	CYB_2089	-	hypothetical protein
2034	 64.04	+1	2186454..2187215	+	253	86609538	fabG	CYB_2090	-	3-oxoacyl-(acyl-carrier-protein) reductase
2035	 64.23	+1	2187221..2188864	-	547	86609539	ggt	CYB_2091	-	gamma-glutamyltransferase
2036	 61.49	0	2188902..2189771	-	289	86609540	-	CYB_2092	-	HAD family hydrolase
2037	 62.54	0	2189704..2190357	-	217	86609541	-	CYB_2093	-	hypothetical protein
2038	 60.83	0	2190370..2190609	-	79	86609542	secG	CYB_2094	-	preprotein translocase subunit SecG
2039	 53.33	-1	2191281..2191415	+	44	86609543	-	CYB_2095	-	hypothetical protein
2040	 55.68	0	2191976..2192503	-	175	86609544	-	CYB_2096	-	NADPH-dependent FMN reductase
2041	 55.63	0	2192898..2193341	+	147	86609545	-	CYB_2098	-	hypothetical protein
2042	 59.25	0	2193347..2194222	-	291	86609546	nusB	CYB_2099	-	transcription antitermination factor NusB
2043	 61.76	0	2194342..2196501	-	719	86609547	-	CYB_2100	-	UvrD/Rep family helicase
2044	 59.12	0	2196513..2197373	-	286	86609548	-	CYB_2101	-	HAD family hydrolase
2045	 60.06	0	2197590..2198528	+	312	86609549	-	CYB_2102	-	hypothetical protein
2046	 60.58	0	2198611..2199366	+	251	86609550	-	CYB_2103	-	hypothetical protein
2047	 61.09	0	2199443..2200213	+	256	86609551	-	CYB_2104	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
2048	 58.33	0	2200213..2200356	+	47	86609552	-	CYB_2105	-	hypothetical protein
2049	 62.55	+1	2200320..2201048	+	242	86609553	-	CYB_2106	-	HEAT repeat-containing PBS lyase
2050	 56.76	0	2201189..2201854	-	221	86609554	chlM	CYB_2107	-	Mg-protoporphyrin IX methyl transferase
2051	 56.83	0	2202025..2202522	+	165	86609555	-	CYB_2108	-	hypothetical protein
2052	 61.15	0	2202565..2203542	-	325	86609556	ddlB	CYB_2109	-	D-alanine--D-alanine ligase B
2053	 60.57	0	2203612..2204727	-	371	86609557	ftsZ	CYB_2110	-	cell division protein FtsZ
2054	 53.89	-1	2205522..2206241	-	239	86609558	-	CYB_2111	-	hypothetical protein
2055	 60.95	0	2206276..2207412	-	378	86609559	-	CYB_2112	-	UDP-N-acetylglucosamine 2-epimerase
2056	 56.03	0	2207570..2207710	-	46	86609560	-	CYB_2113	-	hypothetical protein
2057	 56.74	0	2208276..2209715	+	479	86609561	mgtE	CYB_2114	-	magnesium transporter
2058	 52.44	-1	2209866..2210111	+	81	86609562	-	CYB_2115	-	hypothetical protein
2059	 59.12	0	2210139..2210840	+	233	86609563	-	CYB_2116	-	mgtC family protein
2060	 55.28	0	2210859..2212052	-	397	86609564	-	CYB_2117	-	ISSoc1, transposase
2061	 56.73	0	2212141..2212764	-	207	86609565	-	CYB_2118	-	hypothetical protein
2062	 59.45	0	2213302..2213703	+	133	86609566	-	CYB_2119	-	hypothetical protein
2063	 54.47	0	2213985..2214230	+	81	86609567	-	CYB_2121	-	hypothetical protein
2064	 59.12	0	2214227..2214769	-	180	86609568	-	CYB_2120	-	hypothetical protein
2065	 55.35	0	2214904..2215566	-	220	86609569	-	CYB_2122	-	hypothetical protein
2066	 59.18	0	2215664..2216611	-	315	86609570	-	CYB_2123	-	nucleotidyl transferase family protein
2067	 57.64	0	2217040..2217903	+	287	86609571	-	CYB_2124	-	cystine ABC transporter, periplasmic cystine-binding protein
2068	 57.43	0	2217975..2218721	+	248	86609572	-	CYB_2125	-	cystine ABC transporter, permease protein
2069	 55.94	0	2219259..2220470	+	403	86609573	-	CYB_2126	-	ISSoc1, transposase
2070	 60.37	0	2220623..2222338	+	571	86609574	sdhA	CYB_2127	-	succinate dehydrogenase flavoprotein subunit
2071	 59.08	0	2222478..2223875	+	465	86609575	-	CYB_2128	-	beta alanine--pyruvate transaminase
2072	 62.23	0	2223909..2224652	-	247	86609576	-	CYB_2129	-	putative lipoprotein
2073	 64.04	+1	2223997..2224110	+	37	86609577	-	CYB_2130	-	hypothetical protein
2074	 61.57	0	2224919..2226547	+	542	86609578	purF	CYB_2131	-	amidophosphoribosyltransferase
2075	 60.00	0	2226600..2227124	+	174	86609579	def-1	CYB_2132	-	peptide deformylase
2076	 57.83	0	2227136..2227633	+	165	86609580	-	CYB_2133	-	hypothetical protein
2077	 58.43	0	2227567..2228805	+	412	86609581	-	CYB_2134	-	pentapeptide repeat-containing protein
2078	 60.75	0	2229594..2229965	+	123	86609582	-	CYB_2135	-	hypothetical protein
2079	 48.95	-2	2230154..2230390	+	78	86609583	gvpG	CYB_2136	-	gas vesicle protein G
2080	 55.45	0	2230498..2231103	+	201	86609584	-	CYB_2138	-	hypothetical protein
2081	 56.59	0	2231100..2231228	-	42	86609585	-	CYB_2137	-	hypothetical protein
2082	 60.66	0	2231650..2233479	+	609	86609586	-	CYB_2139	-	fibronectin-binding protein
2083	 65.10	+1	2233527..2238314	-	1595	86609587	-	CYB_2140	-	alpha-2-macroglobulin family protein
2084	 59.25	0	2238427..2239653	-	408	86609588	pilC	CYB_2141	-	type IV pilus assembly protein PilC
2085	 60.21	0	2239851..2240981	-	376	86609589	pilT-2	CYB_2142	-	twitching motility protein
2086	 59.75	0	2241125..2243206	-	693	86609590	pilB	CYB_2143	-	type IV pilus assembly protein PilB
2087	 60.13	0	2243363..2245000	-	545	86609591	-	CYB_2144	-	acetolactate synthase
2088	 61.92	0	2245179..2246231	+	350	86609592	-	CYB_2145	-	mandelate racemase/muconate lactonizing enzyme family protein
2089	 64.88	+1	2246231..2247292	+	353	86609593	-	CYB_2146	-	hypothetical protein
2090	 55.19	0	2247372..2248565	+	397	86609594	-	CYB_2147	-	ISSoc1, transposase
2091	 58.50	0	2249079..2249666	+	195	86609595	-	CYB_2148	-	hypothetical protein
2092	 60.33	0	2249862..2250650	+	262	86609596	map-1	CYB_2149	-	methionine aminopeptidase
2093	 62.77	+1	2250657..2252528	+	623	86609597	-	CYB_2150	-	chloride channel (ClC) family protein
2094	 62.91	+1	2252545..2253183	-	212	86609598	-	CYB_2151	-	base excision DNA repair protein
2095	 63.86	+1	2253304..2254407	-	367	86609599	murG	CYB_2152	-	undecaprenyldiphospho-muramoylpentapeptide beta-N-acetylglucosaminyltransferase
2096	 61.78	0	2254438..2255439	-	333	86609600	-	CYB_2153	-	Ycf48-like protein
2097	 55.56	0	2255436..2255786	-	116	86609601	-	CYB_2154	-	rubredoxin
2098	 55.47	0	2256065..2256475	+	136	86609602	-	CYB_2155	-	FHA domain-containing protein
2099	 51.85	-1	2256542..2256649	-	35	86609603	-	CYB_2156	-	hypothetical protein
2100	 60.42	0	2256715..2257467	+	250	86609604	tpiA	CYB_2157	-	triosephosphate isomerase
2101	 50.68	-1	2257472..2260273	-	933	86609605	treY	CYB_2158	-	malto-oligosyltrehalose synthase
2102	 59.79	0	2260449..2261117	+	222	86609606	-	CYB_2159	-	hypothetical protein
2103	 56.90	0	2261152..2262021	+	289	86609607	-	CYB_2160	-	M48A family peptidase
2104	 63.00	+1	2262301..2263200	+	299	86609608	-	CYB_2162	-	PfkB family kinase
2105	 59.01	0	2263194..2264918	-	574	86609609	-	CYB_2161	-	ABC transporter, permease/ATP-binding protein
2106	 58.43	0	2264955..2266970	-	671	86609610	-	CYB_2163	-	sensory box protein
2107	 58.33	0	2267646..2268005	+	119	86609611	-	CYB_2164	-	hypothetical protein
2108	 60.04	0	2268252..2269172	+	306	86609612	-	CYB_2165	-	L-lactate dehydrogenase
2109	 60.69	0	2269265..2269984	+	239	86609613	trmB	CYB_2166	-	tRNA (guanine-N(7)-)-methyltransferase
58.48	MEAN

4.07	STD DEV
