IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

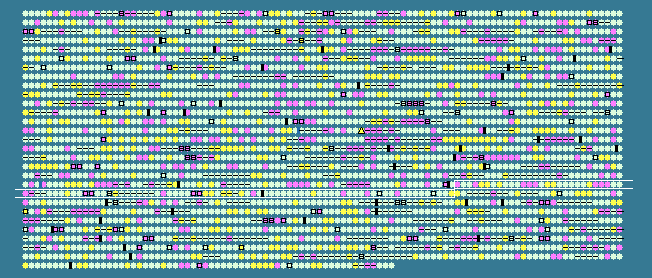

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1973	 52.33	-1	2131747..2132025	-	92	86609477	-	CYB_2029	-	hypothetical protein
1974	 60.07	0	2132469..2133317	+	282	86609478	-	CYB_2030	-	ABC transporter, ATP-binding protein
1975	 56.11	0	2133374..2134093	-	239	86609479	-	CYB_2031	-	DNA-binding response regulator
1976	 54.07	-1	2134563..2134943	+	126	86609480	-	CYB_2032	-	hypothetical protein
1977	 64.17	+1	2135170..2135931	+	253	86609481	-	CYB_2033	-	hypothetical protein
1978	 62.01	0	2136179..2136736	+	185	86609482	-	CYB_2034	-	hypothetical protein
1979	 61.25	0	2136745..2137446	+	233	86609483	-	CYB_2035	-	cobalt transport protein CbiM
1980	 65.46	+1	2137433..2138263	+	276	86609484	cbiQ	CYB_2036	-	cobalt ABC transporter, permease protein CbiQ
1981	 60.81	0	2138247..2139731	+	494	86609485	-	CYB_2037	-	putative tRNA modifying protein
1982	 61.65	0	2139782..2140498	+	238	86609486	rpiA	CYB_2038	-	ribose 5-phosphate isomerase A
1983	 61.43	0	2140819..2142156	+	445	86609487	murF	CYB_2039	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
1984	 54.22	-1	2142259..2142483	+	74	86609488	-	CYB_2040	-	hypothetical protein
1985	 50.15	-2	2142772..2143104	+	110	86609489	-	CYB_2041	-	fasciclin domain-containing protein
1986	 53.50	-1	2143237..2143479	-	80	86609490	-	CYB_2042	-	hypothetical protein
1987	 60.47	0	2143770..2144576	+	268	86609491	cphB	CYB_2043	-	cyanophycinase
1988	 63.27	+1	2144573..2146399	+	608	86609492	menD	CYB_2045	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
1989	 62.63	+1	2146323..2147387	-	354	86609493	miaA	CYB_2044	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1990	 60.20	0	2147548..2148366	+	272	86609494	-	CYB_2046	-	hypothetical protein
1991	 59.49	0	2148516..2149226	-	236	86609495	rpe	CYB_2047	-	ribulose-phosphate 3-epimerase
1992	 57.87	0	2149242..2149673	+	143	86609496	-	CYB_2049	-	hypothetical protein
1993	 60.58	0	2149332..2149643	-	103	86609497	-	CYB_2048	-	hypothetical protein
1994	 57.32	0	2149725..2150195	+	156	86609498	-	CYB_2050	-	glyoxalase family protein
1995	 62.70	+1	2150252..2151814	+	520	86609499	-	CYB_2051	-	carbohydrate kinase family protein
1996	 53.85	-1	2151852..2152631	-	259	86609500	-	CYB_2052	-	hypothetical protein
1997	 50.94	-1	2153282..2153917	-	211	86609501	-	CYB_2053	-	putative lipoprotein
1998	 53.62	-1	2154210..2154347	-	45	86609502	-	CYB_2054	-	hypothetical protein
1999	 58.03	0	2154433..2155266	-	277	86609503	-	CYB_2055	-	undecaprenol kinase, putative
2000	 59.61	0	2155498..2156064	-	188	86609504	-	CYB_2056	-	hypothetical protein
2001	 54.84	0	2156367..2156552	-	61	86609505	-	CYB_2057	-	hypothetical protein
2002	 52.38	-1	2156640..2156744	-	34	86609506	-	CYB_2058	-	hypothetical protein
2003	 57.72	0	2156695..2157387	-	230	86609507	-	CYB_2059	-	hypothetical protein
2004	 55.40	0	2157387..2158043	-	218	86609508	-	CYB_2060	-	response regulator
2005	 59.07	0	2158299..2159417	+	372	86609509	-	CYB_2061	-	UbiE/COQ5 family methlytransferase
2006	 58.81	0	2159578..2160048	+	156	86609510	-	CYB_2062	-	hypothetical protein
2007	 57.68	0	2160122..2160466	+	114	86609511	-	CYB_2063	-	hypothetical protein
2008	 62.14	0	2160617..2162161	+	514	86609512	-	CYB_2064	-	major facilitator transporter
2009	 59.40	0	2162301..2163470	+	389	86609513	-	CYB_2065	-	glycosyl transferase, group 1 family protein
2010	 59.13	0	2163803..2165248	+	481	86609514	-	CYB_2066	-	GAF/SpoIIE domain-containing protein
2011	 44.71	-2	2165301..2165678	+	125	86609515	-	CYB_2067	-	ISSoc13, transposase orfA
2012	 43.14	-2	2165636..2166043	+	135	86609516	-	CYB_2068	-	ISSoc13, transposase orfB
2013	 55.25	0	2166533..2166751	+	72	86609517	-	CYB_2069	-	hypothetical protein
2014	 61.09	0	2166882..2168315	+	477	86609518	argH	CYB_2070	-	argininosuccinate lyase
2015	 56.02	0	2168361..2169515	-	384	86609519	-	CYB_2071	-	ISSoc1, transposase
2016	 62.63	+1	2169715..2170011	+	98	86609520	-	CYB_2072	-	hypothetical protein
2017	 59.51	0	2170173..2170661	+	162	86609521	-	CYB_2073	-	Mov34/MPN/PAD-1 family protein
2018	 57.80	0	2170908..2171189	+	93	86609522	-	CYB_2074	-	ThiS domain-containing protein
2019	 59.40	0	2171192..2172361	+	389	86609523	-	CYB_2075	-	hypothetical protein
2020	 60.93	0	2172472..2173725	+	417	86609524	ribAB	CYB_2077	-	riboflavin biosynthesis protein RibA
2021	 58.62	0	2173714..2174148	-	144	86609525	-	CYB_2076	-	hypothetical protein
2022	 61.69	0	2174263..2175306	-	347	86609526	-	CYB_2078	-	GntR family transcriptional regulator
2023	 58.62	0	2175462..2176580	-	372	86609527	-	CYB_2079	-	polyamine ABC transporter, ATP-binding protein
2024	 43.75	-2	2176757..2176852	+	31	86609528	-	CYB_2080	-	hypothetical protein
2025	 58.29	0	2176931..2177467	+	178	86609529	-	CYB_2081	-	DoxX family protein
2026	 60.87	0	2177548..2179722	-	724	86609530	ppk	CYB_2082	-	polyphosphate kinase
2027	 59.38	0	2179781..2180740	-	319	86609531	-	CYB_2083	-	hydrophobic amino acid ABC transporter permease
2028	 59.77	0	2180740..2181609	-	289	86609532	-	CYB_2084	-	hydrophobic amino acid ABC transporter permease
2029	 44.71	-2	2181775..2182152	+	125	86609533	-	CYB_2085	-	ISSoc13, transposase orfA
2030	 42.89	-2	2182110..2182517	+	135	86609534	-	CYB_2086	-	ISSoc13, transposase orfB
2031	 63.04	+1	2182578..2183543	+	321	86609535	-	CYB_2087	-	putative lipoprotein
2032	 64.50	+1	2183651..2185402	+	583	86609536	-	CYB_2088	-	sulfatase
2033	 57.98	0	2185415..2185909	-	164	86609537	-	CYB_2089	-	hypothetical protein
2034	 64.04	+1	2186454..2187215	+	253	86609538	fabG	CYB_2090	-	3-oxoacyl-(acyl-carrier-protein) reductase
2035	 64.23	+1	2187221..2188864	-	547	86609539	ggt	CYB_2091	-	gamma-glutamyltransferase
2036	 61.49	0	2188902..2189771	-	289	86609540	-	CYB_2092	-	HAD family hydrolase
2037	 62.54	0	2189704..2190357	-	217	86609541	-	CYB_2093	-	hypothetical protein
2038	 60.83	0	2190370..2190609	-	79	86609542	secG	CYB_2094	-	preprotein translocase subunit SecG
2039	 53.33	-1	2191281..2191415	+	44	86609543	-	CYB_2095	-	hypothetical protein
2040	 55.68	0	2191976..2192503	-	175	86609544	-	CYB_2096	-	NADPH-dependent FMN reductase
2041	 55.63	0	2192898..2193341	+	147	86609545	-	CYB_2098	-	hypothetical protein
2042	 59.25	0	2193347..2194222	-	291	86609546	nusB	CYB_2099	-	transcription antitermination factor NusB
2043	 61.76	0	2194342..2196501	-	719	86609547	-	CYB_2100	-	UvrD/Rep family helicase
2044	 59.12	0	2196513..2197373	-	286	86609548	-	CYB_2101	-	HAD family hydrolase
2045	 60.06	0	2197590..2198528	+	312	86609549	-	CYB_2102	-	hypothetical protein
2046	 60.58	0	2198611..2199366	+	251	86609550	-	CYB_2103	-	hypothetical protein
2047	 61.09	0	2199443..2200213	+	256	86609551	-	CYB_2104	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
2048	 58.33	0	2200213..2200356	+	47	86609552	-	CYB_2105	-	hypothetical protein
2049	 62.55	+1	2200320..2201048	+	242	86609553	-	CYB_2106	-	HEAT repeat-containing PBS lyase
2050	 56.76	0	2201189..2201854	-	221	86609554	chlM	CYB_2107	-	Mg-protoporphyrin IX methyl transferase
2051	 56.83	0	2202025..2202522	+	165	86609555	-	CYB_2108	-	hypothetical protein
2052	 61.15	0	2202565..2203542	-	325	86609556	ddlB	CYB_2109	-	D-alanine--D-alanine ligase B
2053	 60.57	0	2203612..2204727	-	371	86609557	ftsZ	CYB_2110	-	cell division protein FtsZ
2054	 53.89	-1	2205522..2206241	-	239	86609558	-	CYB_2111	-	hypothetical protein
2055	 60.95	0	2206276..2207412	-	378	86609559	-	CYB_2112	-	UDP-N-acetylglucosamine 2-epimerase
2056	 56.03	0	2207570..2207710	-	46	86609560	-	CYB_2113	-	hypothetical protein
2057	 56.74	0	2208276..2209715	+	479	86609561	mgtE	CYB_2114	-	magnesium transporter
2058	 52.44	-1	2209866..2210111	+	81	86609562	-	CYB_2115	-	hypothetical protein
2059	 59.12	0	2210139..2210840	+	233	86609563	-	CYB_2116	-	mgtC family protein
2060	 55.28	0	2210859..2212052	-	397	86609564	-	CYB_2117	-	ISSoc1, transposase
2061	 56.73	0	2212141..2212764	-	207	86609565	-	CYB_2118	-	hypothetical protein
2062	 59.45	0	2213302..2213703	+	133	86609566	-	CYB_2119	-	hypothetical protein
2063	 54.47	0	2213985..2214230	+	81	86609567	-	CYB_2121	-	hypothetical protein
2064	 59.12	0	2214227..2214769	-	180	86609568	-	CYB_2120	-	hypothetical protein
2065	 55.35	0	2214904..2215566	-	220	86609569	-	CYB_2122	-	hypothetical protein
2066	 59.18	0	2215664..2216611	-	315	86609570	-	CYB_2123	-	nucleotidyl transferase family protein
2067	 57.64	0	2217040..2217903	+	287	86609571	-	CYB_2124	-	cystine ABC transporter, periplasmic cystine-binding protein
2068	 57.43	0	2217975..2218721	+	248	86609572	-	CYB_2125	-	cystine ABC transporter, permease protein
2069	 55.94	0	2219259..2220470	+	403	86609573	-	CYB_2126	-	ISSoc1, transposase
2070	 60.37	0	2220623..2222338	+	571	86609574	sdhA	CYB_2127	-	succinate dehydrogenase flavoprotein subunit
2071	 59.08	0	2222478..2223875	+	465	86609575	-	CYB_2128	-	beta alanine--pyruvate transaminase
2072	 62.23	0	2223909..2224652	-	247	86609576	-	CYB_2129	-	putative lipoprotein
58.48	MEAN

4.07	STD DEV
