IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

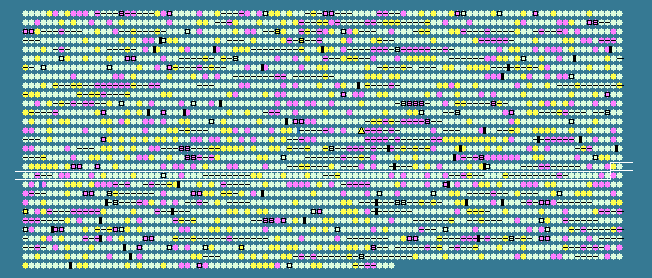

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1799	 63.79	+1	1932557..1933669	+	370	86609303	ribD	CYB_1847	-	riboflavin biosynthesis protein RibD
1800	 59.87	0	1933938..1935041	+	367	86609304	-	CYB_1848	-	hypothetical protein
1801	 55.86	0	1935156..1935377	-	73	86609305	-	CYB_1849	-	hypothetical protein
1802	 59.84	0	1935445..1935825	-	126	86609306	-	CYB_1850	-	hypothetical protein
1803	 53.41	-1	1935908..1936156	+	82	86609307	-	CYB_1851	-	hypothetical protein
1804	 55.96	0	1936472..1937302	-	276	86609308	-	CYB_1852	-	hypothetical protein
1805	 57.97	0	1937296..1937502	+	68	86609309	-	CYB_1853	-	hypothetical protein
1806	 57.86	0	1937614..1938669	+	351	86609310	-	CYB_1854	-	clavaminate synthase
1807	 46.45	-2	1938870..1939052	+	60	86609311	-	CYB_1855	-	hypothetical protein
1808	 54.64	0	1939145..1939984	-	279	86609312	-	CYB_1856	-	TPR repeat-containing protein
1809	 57.72	0	1940030..1940677	-	215	86609313	-	CYB_1857	-	hypothetical protein
1810	 58.01	0	1940691..1941152	-	153	86609314	-	CYB_1858	-	hypothetical protein
1811	 59.73	0	1941223..1942116	-	297	86609315	crtE	CYB_1859	-	geranylgeranyl diphosphate synthase
1812	 50.00	-2	1942190..1942297	-	35	86609316	-	CYB_1860	-	hypothetical protein
1813	 59.85	0	1942420..1943460	+	346	86609317	hemE	CYB_1861	-	uroporphyrinogen decarboxylase
1814	 62.40	0	1943851..1944834	+	327	86609318	-	CYB_1863	-	glycosyl transferase, group 2 family protein
1815	 60.77	0	1944789..1945670	-	293	86609319	-	CYB_1862	-	inositol monophosphatase family protein
1816	 60.53	0	1945812..1947782	+	656	86609320	-	CYB_1864	-	serine/threonine protein kinase
1817	 58.14	0	1948151..1949674	-	507	86609321	-	CYB_1865	-	S10 family peptidase
1818	 59.60	0	1949759..1950352	-	197	86609322	-	CYB_1866	-	hypothetical protein
1819	 63.15	+1	1950554..1951576	-	340	86609323	thiL	CYB_1867	-	thiamine monophosphate kinase
1820	 58.37	0	1951691..1952341	-	216	86609324	-	CYB_1868	-	hypothetical protein
1821	 59.72	0	1952458..1952673	+	71	86609325	-	CYB_1869	-	hypothetical protein
1822	 59.06	0	1952698..1953552	-	284	86609326	-	CYB_1870	-	putative ABC transporter
1823	 61.40	0	1953693..1954718	-	341	86609327	-	CYB_1871	-	drug exporter ABC transporter ATP-binding protein
1824	 55.91	0	1954839..1956056	-	405	86609328	-	CYB_1872	-	ISSoc1, transposase
1825	 59.36	0	1956264..1957358	+	364	86609329	-	CYB_1873	-	hypothetical protein
1826	 60.60	0	1957778..1958914	-	378	86609330	cefD	CYB_1874	-	isopenicillin N-epimerase
1827	 52.09	-1	1959185..1960810	-	541	86609331	prfC	CYB_1875	-	peptide chain release factor 3
1828	 60.00	0	1961105..1961839	-	244	86609332	-	CYB_1876	-	hypothetical protein
1829	 59.30	0	1961940..1962740	-	266	86609333	-	CYB_1877	-	CobQ/CobB/MinD/ParA nucleotide binding domain-containing protein
1830	 60.84	0	1962899..1964065	-	388	86609334	aspC	CYB_1878	-	aspartate aminotransferase
1831	 59.89	0	1964141..1964701	-	186	86609335	-	CYB_1879	-	hypothetical protein
1832	 59.87	0	1964805..1965716	-	303	86609336	-	CYB_1880	-	putative permease
1833	 58.52	0	1965810..1966484	-	224	86609337	-	CYB_1881	-	peptide/opine/nickel uptake ABC transporter ATP-binding protein
1834	 61.51	0	1966471..1967400	-	309	86609338	-	CYB_1882	-	oligopeptide/dipeptide ABC transporter, ATP-binding protein
1835	 58.72	0	1967405..1968298	-	297	86609339	-	CYB_1883	-	peptide/opine/nickel ABC transporter permease
1836	 56.59	0	1968295..1969296	-	333	86609340	-	CYB_1884	-	peptide/opine/nickel ABC transporter permease
1837	 56.03	0	1969281..1970906	-	541	86609341	-	CYB_1885	-	peptide/nickel/opine uptake ABC transporter periplasmic substrate-binding protein
1838	 58.68	0	1971812..1974076	+	754	86609342	metE	CYB_1886	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
1839	 62.01	0	1974254..1974940	-	228	86609343	ftsE	CYB_1887	-	cell division ATP-binding protein FtsE
1840	 62.53	0	1975134..1975883	-	249	86609344	-	CYB_1888	-	WecB/TagA/CpsF family glycosyl transferase
1841	 60.06	0	1976131..1976796	+	221	86609345	-	CYB_1889	-	Tat pathway signal sequence domain-containing protein
1842	 58.74	0	1976926..1977417	+	163	86609346	-	CYB_1890	-	plastocyanin/azurin family copper binding protein
1843	 59.84	0	1977427..1977939	+	170	86609347	-	CYB_1891	-	hypothetical protein
1844	 62.88	+1	1977945..1978208	-	87	86609348	-	CYB_1892	-	S4 domain-containing protein
1845	 61.40	0	1978196..1979581	-	461	86609349	-	CYB_1893	-	aldehyde dehydrogenase family protein
1846	 61.44	0	1979708..1980988	-	426	86609350	-	CYB_1894	-	carboxylesterase
1847	 61.11	0	1981377..1982510	-	377	86609351	sasA	CYB_1895	-	adaptive-response sensory kinase
1848	 62.69	+1	1982809..1983009	-	66	86609352	-	CYB_1896	-	hypothetical protein
1849	 58.99	0	1983178..1983828	+	216	86609353	-	CYB_1898	-	ABC transporter, ATP-binding protein
1850	 61.83	0	1983819..1984997	-	392	86609354	-	CYB_1897	-	M23B family peptidase
1851	 61.20	0	1985630..1986343	+	237	86609355	eda	CYB_1899	-	2-dehydro-3-deoxyphosphogluconate aldolase/4-hydroxy-2-oxoglutarate aldolase
1852	 58.13	0	1986369..1986860	+	163	86609356	-	CYB_1900	-	hypothetical protein
1853	 61.97	0	1986964..1987389	+	141	86609357	dgkA	CYB_1901	-	diacylglycerol kinase
1854	 60.84	0	1987414..1988340	-	308	86609358	thrB	CYB_1902	-	homoserine kinase
1855	 59.63	0	1988656..1989891	+	411	86609359	-	CYB_1903	-	arsenite-antimonite (ArsAB) efflux family protein
1856	 59.26	0	1989976..1990704	+	242	86609360	-	CYB_1904	-	short chain dehydrogenase/reductase family oxidoreductase
1857	 57.29	0	1990709..1990900	+	63	86609361	-	CYB_1906	-	hypothetical protein
1858	 60.85	0	1990897..1991085	-	62	86609362	-	CYB_1905	-	hypothetical protein
1859	 58.94	0	1991354..1991845	-	163	86609363	-	CYB_1907	-	hypothetical protein
1860	 58.31	0	1992540..1993676	+	378	86609364	-	CYB_1908	-	methylcitrate synthase
1861	 57.10	0	1993756..1994811	+	351	86609365	-	CYB_1909	-	putative permease
1862	 48.74	-2	1995167..1995601	+	144	86609366	-	CYB_1910	-	hypothetical protein
1863	 60.38	0	1995760..1997127	-	455	86609367	-	CYB_1911	-	FAD-binding protein
1864	 54.76	0	1997240..1998037	-	265	86609368	pstB-2	CYB_1912	-	phosphate ABC transporter, ATP-binding protein
1865	 57.49	0	1998108..1999001	-	297	86609369	pstA-2	CYB_1913	-	phosphate ABC transporter, permease protein PtsA
1866	 56.20	0	1999040..2000023	-	327	86609370	pstC-2	CYB_1914	-	phosphate ABC transporter, permease protein PstC
1867	 57.16	0	2000172..2001233	-	353	86609371	pstS-2	CYB_1915	-	phosphate ABC transporter, phosphate-binding protein
1868	 48.65	-2	2001342..2001452	+	36	86609372	-	CYB_1916	-	hypothetical protein
1869	 60.75	0	2001751..2002731	-	326	86609373	pyrB	CYB_1917	-	aspartate carbamoyltransferase catalytic subunit
1870	 61.65	0	2002741..2004036	-	431	86609374	purB	CYB_1918	-	adenylosuccinate lyase
1871	 51.37	-1	2004170..2004751	+	193	86609375	-	CYB_1919	-	hypothetical protein
1872	 59.20	0	2005223..2005771	+	182	86609376	-	CYB_1920	-	TPR domain-containing protein
1873	 61.34	0	2005832..2006620	-	262	86609377	lipB	CYB_1921	-	lipoyltransferase
1874	 54.21	-1	2006634..2006954	-	106	86609378	trx-3	CYB_1922	-	thioredoxin
1875	 63.51	+1	2007301..2008440	+	379	86609379	-	CYB_1924	-	hypothetical protein
1876	 61.65	0	2008418..2010232	-	604	86609380	-	CYB_1923	-	sulfate permease
1877	 61.86	0	2010229..2010810	-	193	86609381	-	CYB_1925	-	rhodanese family protein
1878	 55.98	0	2010830..2011297	-	155	86609382	-	CYB_1926	-	hypothetical protein
1879	 59.69	0	2011395..2012111	-	238	86609383	-	CYB_1927	-	metallo-beta-lactamase domain-containing protein
1880	 57.10	0	2012261..2012626	+	121	86609384	-	CYB_1928	-	ArsR family transcriptional regulator
1881	 62.13	0	2012676..2013623	-	315	86609385	-	CYB_1929	-	NAD-dependent epimerase/dehydratase family protein
1882	 61.05	0	2013648..2015054	-	468	86609386	-	CYB_1930	-	UDP-glucose dehydrogenase
1883	 61.37	0	2015190..2016095	+	301	86609387	-	CYB_1931	-	cation transporter
1884	 57.88	0	2018591..2019751	-	386	86609388	-	CYB_1932	-	Ser/Thr protein phosphatase family protein
1885	 60.22	0	2019866..2020501	+	211	86609389	upp-1	CYB_1933	-	uracil phosphoribosyltransferase
1886	 61.81	0	2020574..2025991	-	1805	86609390	-	CYB_1934	-	sensor histidine kinase/response regulator
1887	 59.89	0	2026183..2028675	-	830	86609391	-	CYB_1935	-	putative methyl-accepting chemotaxis protein
1888	 56.65	0	2028967..2029485	-	172	86609392	-	CYB_1936	-	CheW domain-containing protein
1889	 56.01	0	2029601..2029966	-	121	86609393	-	CYB_1937	-	response regulator
1890	 53.17	-1	2029963..2030340	-	125	86609394	-	CYB_1938	-	response regulator
1891	 57.22	0	2030529..2031671	-	380	86609395	-	CYB_1939	-	response regulator
1892	 61.05	0	2031905..2032189	+	94	86609396	-	CYB_1940	-	hypothetical protein
1893	 61.93	0	2032212..2033330	-	372	86609397	-	CYB_1941	-	electron transfer flavoprotein, alpha subunit/FixB family protein
1894	 60.48	0	2033503..2034327	-	274	86609398	-	CYB_1942	-	electron transfer flavoprotein, beta subunit/FixA family protein
1895	 57.80	0	2034749..2035831	-	360	86609399	-	CYB_1943	-	Tat pathway signal sequence domain-containing protein
1896	 58.15	0	2036152..2037948	+	598	86609400	argS	CYB_1944	-	arginyl-tRNA synthetase
1897	 52.19	-1	2038232..2038597	-	121	86609401	-	CYB_1945	-	hypothetical protein
1898	 61.27	0	2038635..2040356	-	573	86609402	-	CYB_1946	-	hypothetical protein
58.48	MEAN

4.07	STD DEV
