IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

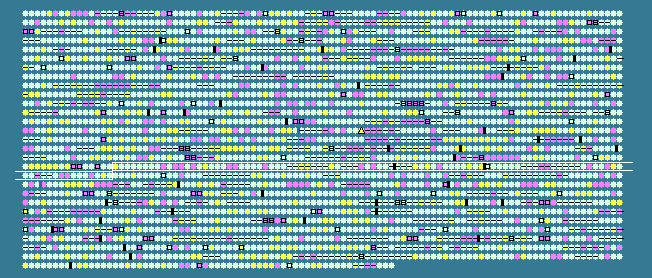

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1716	 61.98	0	1846142..1847293	-	383	86609220	-	CYB_1762	-	polyamine ABC transporter, periplasmic polyamine-binding protein
1717	 59.78	0	1847265..1847729	-	154	86609221	-	CYB_1763	-	hypothetical protein
1718	 61.16	0	1847726..1849105	-	459	86609222	-	CYB_1764	-	hypothetical protein
1719	 56.98	0	1849211..1850191	-	326	86609223	-	CYB_1765	-	dehydrogenase, E1 component, beta subunit, putative
1720	 61.09	0	1850375..1851397	+	340	86609224	pdxA	CYB_1766	-	4-hydroxythreonine-4-phosphate dehydrogenase
1721	 57.97	0	1851488..1852603	+	371	86609225	-	CYB_1767	-	aldo/keto reductase family oxidoreductase
1722	 61.34	0	1852691..1853497	+	268	86609226	-	CYB_1768	-	hypothetical protein
1723	 55.41	0	1853533..1853763	-	76	86609227	-	CYB_1769	-	hypothetical protein
1724	 45.19	-2	1853741..1853875	+	44	86609228	-	CYB_1770	-	hypothetical protein
1725	 60.15	0	1854118..1855896	+	592	86609229	-	CYB_1772	-	flavodoxin
1726	 49.74	-2	1855874..1856446	-	190	86609230	-	CYB_1771	-	hypothetical protein
1727	 54.73	0	1856514..1860257	-	1247	86609231	-	CYB_1773	-	sensory box histidine kinase
1728	 56.80	0	1860440..1861027	-	195	86609232	-	CYB_1774	-	hypothetical protein
1729	 48.46	-2	1861121..1861735	-	204	86609233	-	CYB_1775	-	hypothetical protein
1730	 58.58	0	1861856..1863166	-	436	86609234	-	CYB_1776	-	peptidase inhibitor
1731	 64.41	+1	1863188..1863364	+	58	86609235	-	CYB_1777	-	hypothetical protein
1732	 59.96	0	1863392..1863958	+	188	86609236	-	CYB_1778	-	hypothetical protein
1733	 61.82	0	1864408..1865727	+	439	86609237	-	CYB_1779	-	bifunctional sterol desaturase/short chain dehydrogenase
1734	 61.83	0	1865923..1866687	+	254	86609238	-	CYB_1780	-	putative lipoprotein
1735	 53.98	-1	1866870..1867760	+	296	86609239	thyX	CYB_1781	-	thymidylate synthase, flavin-dependent
1736	 49.21	-2	1867814..1868575	+	253	86609240	-	CYB_1782	-	hypothetical protein
1737	 59.10	0	1868929..1870488	+	519	86609241	-	CYB_1783	-	sugar transferase family protein
1738	 60.08	0	1870499..1871242	+	247	86609242	purC	CYB_1784	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1739	 59.13	0	1871515..1872390	+	291	86609243	-	CYB_1785	-	hypothetical protein
1740	 61.20	0	1873483..1874415	-	310	86609244	hemC	CYB_1786	-	porphobilinogen deaminase
1741	 51.30	-1	1874748..1875209	+	153	86609245	-	CYB_1787	-	hypothetical protein
1742	 61.20	0	1875397..1876878	+	493	86609246	-	CYB_1788	-	glycosyl transferase, group 2 family protein
1743	 60.12	0	1876942..1877934	+	330	86609247	ilvC	CYB_1789	-	ketol-acid reductoisomerase
1744	 60.86	0	1877968..1879275	+	435	86609248	serS	CYB_1790	-	seryl-tRNA synthetase
1745	 60.49	0	1879609..1880013	-	134	86609249	-	CYB_1791	-	hypothetical protein
1746	 59.83	0	1880252..1880968	-	238	86609250	-	CYB_1792	-	microcompartments family protein
1747	 62.12	0	1881001..1881660	-	219	86609251	-	CYB_1793	-	hypothetical protein
1748	 62.23	0	1881751..1883712	-	653	86609252	ccmM	CYB_1794	-	carbon dioxide concentrating mechanism protein CcmM
1749	 61.33	0	1883784..1884083	-	99	86609253	ccmL	CYB_1795	-	carbon dioxide concentrating mechanism protein CcmL
1750	 60.53	0	1884083..1884424	-	113	86609254	ccmK-1	CYB_1796	-	carbon dioxide concentrating mechanism protein CcmK
1751	 61.49	0	1884496..1884804	-	102	86609255	ccmK-2	CYB_1797	-	carbon dioxide concentrating mechanism protein CcmK
1752	 62.81	+1	1885610..1886335	-	241	86609256	-	CYB_1798	-	cobalt ABC transporter ATP-binding protein
1753	 61.47	0	1886343..1887170	-	275	86609257	-	CYB_1799	-	hypothetical protein
1754	 55.25	0	1887228..1887446	-	72	86609258	-	CYB_1800	-	hypothetical protein
1755	 55.06	0	1887577..1887981	-	134	86609259	-	CYB_1801	-	hypothetical protein
1756	 55.28	0	1888089..1888211	-	40	86609260	-	CYB_1802	-	hypothetical protein
1757	 54.74	0	1889260..1889670	+	136	86609261	petE	CYB_1803	-	plastocyanin
1758	 56.71	0	1889854..1890084	+	76	86609262	-	CYB_1804	-	hypothetical protein
1759	 51.64	-1	1890121..1890333	-	70	86609263	-	CYB_1805	-	hypothetical protein
1760	 59.71	0	1890422..1891471	+	349	86609264	-	CYB_1806	-	VIC family potassium channel protein
1761	 60.39	0	1891501..1892169	-	222	86609265	-	CYB_1807	-	phosphotransferase domain-containing protein
1762	 59.97	0	1892268..1893431	-	387	86609266	-	CYB_1808	-	soluble hydrogenase, tritium exchange subunit, putative
1763	 58.46	0	1893620..1894801	-	393	86609267	-	CYB_1810	-	CO2 hydration protein
1764	 58.91	0	1894838..1896346	-	502	86609268	-	CYB_1811	-	NADH-ubiquinone/plastoquinone oxidoreductase subunit 4 family protein
1765	 61.69	0	1896359..1898188	-	609	86609269	-	CYB_1812	-	NAD(P)H-quinone oxidoreductase subunit F
1766	 63.63	+1	1898317..1899534	-	405	86609270	-	CYB_1813	-	hypothetical protein
1767	 59.23	0	1899636..1899971	+	111	86609271	-	CYB_1814	-	hypothetical protein
1768	 63.13	+1	1900081..1901127	+	348	86609272	thiE	CYB_1815	-	thiamine-phosphate pyrophosphorylase
1769	 60.64	0	1901329..1902870	+	513	86609273	-	CYB_1816	-	AAA family ATPase
1770	 43.47	-2	1902974..1903831	-	285	86609274	-	CYB_1817	-	DnaJ domain-containing protein
1771	 59.82	0	1904034..1905566	-	510	86609275	-	CYB_1818	-	leucyl aminopeptidase
1772	 61.61	0	1905648..1906973	-	441	86609276	-	CYB_1819	-	hypothetical protein
1773	 61.73	0	1907066..1908685	-	539	86609277	-	CYB_1820	-	M23B family peptidase
1774	 55.96	0	1909095..1910672	+	525	86609278	cysS	CYB_1821	-	cysteinyl-tRNA synthetase
1775	 63.29	+1	1910825..1913488	+	887	86609279	-	CYB_1822	-	radical SAM domain-containing protein
1776	 61.28	0	1914255..1916426	+	723	86609280	-	CYB_1823	-	ribonuclease
1777	 62.77	+1	1916462..1917103	+	213	86609281	rnhB	CYB_1824	-	ribonuclease HII
1778	 55.28	0	1917271..1918464	+	397	86609282	-	CYB_1826	-	ISSoc1, transposase
1779	 56.64	0	1918466..1919422	-	318	86609283	-	CYB_1827	-	putative sulfite oxidase subunit YedY
1780	 59.29	0	1919747..1920166	-	139	86609284	-	CYB_1828	-	hypothetical protein
1781	 58.93	0	1920241..1920576	-	111	86609285	gvpJ	CYB_1829	-	gas vesicle protein J
1782	 59.32	0	1920618..1921502	-	294	86609286	gvpN	CYB_1830	-	gas vesicle protein GvpN
1783	 60.18	0	1921582..1922598	-	338	86609287	gvpC	CYB_1831	-	gas vesicle structural protein GvpC
1784	 58.50	0	1922634..1922780	+	48	86609288	-	CYB_1832	-	hypothetical protein
1785	 56.16	0	1922888..1923106	-	72	86609289	gvpA	CYB_1833	-	gas vesicle synthesis protein GvpA
1786	 58.33	0	1923468..1923731	+	87	86609290	-	CYB_1834	-	hypothetical protein
1787	 54.82	0	1924055..1924738	+	227	86609291	-	CYB_1835	-	V4R domain-containing protein
1788	 53.57	-1	1924735..1924986	+	83	86609292	-	CYB_1836	-	hypothetical protein
1789	 55.71	0	1925044..1925481	+	145	86609293	-	CYB_1837	-	hypothetical protein
1790	 56.91	0	1925751..1926437	+	228	86609294	-	CYB_1838	-	V4R domain-containing protein
1791	 55.73	0	1926541..1926915	+	124	86609295	aroH	CYB_1839	-	chorismate mutase
1792	 58.46	0	1927300..1927701	-	133	86609296	-	CYB_1840	-	hypothetical protein
1793	 61.69	0	1927883..1928686	+	267	86609297	-	CYB_1841	-	hypothetical protein
1794	 57.30	0	1928768..1931704	-	978	86609298	ppc	CYB_1842	-	phosphoenolpyruvate carboxylase
1795	 52.08	-1	1931815..1932006	+	63	86609299	-	CYB_1844	-	hypothetical protein
1796	 56.41	0	1931821..1932054	-	77	86609300	-	CYB_1843	-	hypothetical protein
1797	 56.78	0	1932067..1932339	+	90	86609301	-	CYB_1845	-	hypothetical protein
1798	 54.87	0	1932336..1932530	+	64	86609302	-	CYB_1846	-	hypothetical protein
1799	 63.79	+1	1932557..1933669	+	370	86609303	ribD	CYB_1847	-	riboflavin biosynthesis protein RibD
1800	 59.87	0	1933938..1935041	+	367	86609304	-	CYB_1848	-	hypothetical protein
1801	 55.86	0	1935156..1935377	-	73	86609305	-	CYB_1849	-	hypothetical protein
1802	 59.84	0	1935445..1935825	-	126	86609306	-	CYB_1850	-	hypothetical protein
1803	 53.41	-1	1935908..1936156	+	82	86609307	-	CYB_1851	-	hypothetical protein
1804	 55.96	0	1936472..1937302	-	276	86609308	-	CYB_1852	-	hypothetical protein
1805	 57.97	0	1937296..1937502	+	68	86609309	-	CYB_1853	-	hypothetical protein
1806	 57.86	0	1937614..1938669	+	351	86609310	-	CYB_1854	-	clavaminate synthase
1807	 46.45	-2	1938870..1939052	+	60	86609311	-	CYB_1855	-	hypothetical protein
1808	 54.64	0	1939145..1939984	-	279	86609312	-	CYB_1856	-	TPR repeat-containing protein
1809	 57.72	0	1940030..1940677	-	215	86609313	-	CYB_1857	-	hypothetical protein
1810	 58.01	0	1940691..1941152	-	153	86609314	-	CYB_1858	-	hypothetical protein
1811	 59.73	0	1941223..1942116	-	297	86609315	crtE	CYB_1859	-	geranylgeranyl diphosphate synthase
1812	 50.00	-2	1942190..1942297	-	35	86609316	-	CYB_1860	-	hypothetical protein
1813	 59.85	0	1942420..1943460	+	346	86609317	hemE	CYB_1861	-	uroporphyrinogen decarboxylase
1814	 62.40	0	1943851..1944834	+	327	86609318	-	CYB_1863	-	glycosyl transferase, group 2 family protein
1815	 60.77	0	1944789..1945670	-	293	86609319	-	CYB_1862	-	inositol monophosphatase family protein
58.48	MEAN

4.07	STD DEV
