IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

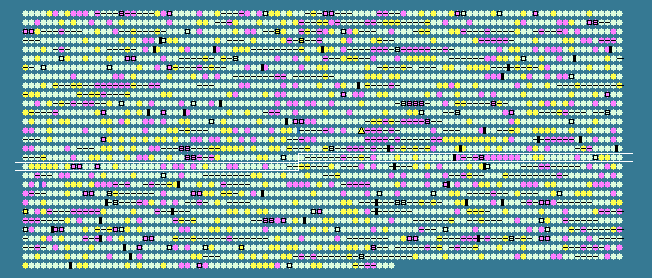

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1647	 59.06	0	1767537..1769048	+	503	86609151	-	CYB_1691	-	AAA family ATPase
1648	 55.56	0	1769173..1769523	+	116	86609152	-	CYB_1692	-	hypothetical protein
1649	 61.90	0	1769647..1770885	-	412	86609153	pgk	CYB_1693	-	phosphoglycerate kinase
1650	 60.54	0	1771093..1772511	+	472	86609154	pds	CYB_1694	-	phytoene desaturase
1651	 61.55	0	1772668..1773546	+	292	86609155	crtB	CYB_1695	-	phytoene synthase
1652	 59.93	0	1773629..1774444	+	271	86609156	-	CYB_1697	-	ABC-2 transporter, permease protein
1653	 61.73	0	1774441..1779645	-	1734	86609157	-	CYB_1696	-	DEAD-box ATP dependent DNA helicase
1654	 51.52	-1	1779761..1780156	-	131	86609158	-	CYB_1698	-	PilT domain-containing protein
1655	 58.82	0	1780159..1780362	-	67	86609159	-	CYB_1699	-	hypothetical protein
1656	 60.93	0	1780406..1784920	-	1504	86609160	-	CYB_1700	-	hypothetical protein
1657	 62.63	+1	1784956..1787850	-	964	86609161	-	CYB_1701	-	putative helicase
1658	 58.33	0	1787993..1788508	+	171	86609162	-	CYB_1702	-	trunctated cyclic nucleotide-binding protein
1659	 51.19	-1	1788505..1788672	+	55	86609163	-	CYB_1703	-	hypothetical protein
1660	 58.63	0	1788665..1789684	+	339	86609164	gap-2	CYB_1704	-	glyceraldehyde-3-phosphate dehydrogenase, type I
1661	 59.36	0	1789719..1790279	-	186	86609165	-	CYB_1705	-	2',5' RNA ligase family protein
1662	 56.89	0	1790339..1790788	+	149	86609166	-	CYB_1707	-	ferredoxin-like protein
1663	 63.19	+1	1790757..1791389	-	210	86609167	-	CYB_1706	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
1664	 59.36	0	1791477..1792229	-	250	86609168	-	CYB_1708	-	hypothetical protein
1665	 55.62	0	1792357..1792881	+	174	86609169	-	CYB_1709	-	acetyltransferase
1666	 64.21	+1	1792911..1794008	+	365	86609170	-	CYB_1710	-	oxidoreductase, FAD-binding
1667	 57.33	0	1794125..1794424	+	99	86609171	-	CYB_1711	-	hypothetical protein
1668	 57.35	0	1794624..1796243	+	539	86609172	groEL	CYB_1712	-	chaperonin GroEL
1669	 57.83	0	1796274..1796669	-	131	86609173	-	CYB_1713	-	hypothetical protein
1670	 56.52	0	1796734..1796871	+	45	86609174	-	CYB_1715	-	hypothetical protein
1671	 61.14	0	1796868..1797500	-	210	86609175	-	CYB_1714	-	S-layer domain-containing protein
1672	 58.82	0	1797699..1798208	+	169	86609176	-	CYB_1716	-	TPR domain-containing protein
1673	 52.31	-1	1798450..1798644	+	64	86609177	-	CYB_1718	-	hypothetical protein
1674	 54.11	-1	1798790..1801870	+	1026	86609178	-	CYB_1719	-	hypothetical protein
1675	 55.88	0	1801933..1802544	+	203	86609179	-	CYB_1720	-	hypothetical protein
1676	 46.40	-2	1802583..1802804	+	73	86609180	-	CYB_1721	-	hypothetical protein
1677	 54.69	0	1803090..1804283	-	397	86609181	-	CYB_1722	-	ISSoc1, transposase
1678	 43.33	-2	1804360..1804599	-	79	86609182	-	CYB_1723	-	hypothetical protein
1679	 51.88	-1	1804652..1807450	+	932	86609183	-	CYB_1724	-	hypothetical protein
1680	 40.44	-2	1807472..1807921	-	149	86609184	-	CYB_1725	-	hypothetical protein
1681	 53.13	-1	1808499..1811210	+	903	86609185	-	CYB_1727	-	SNF2 family helicase
1682	 49.59	-2	1811305..1811919	-	204	86609186	-	CYB_1728	-	hypothetical protein
1683	 47.80	-2	1812114..1812728	-	204	86609187	-	CYB_1729	-	hypothetical protein
1684	 57.91	0	1812917..1813852	+	311	86609188	-	CYB_1730	-	HEAT repeat-containing PBS lyase
1685	 60.14	0	1813907..1814779	+	290	86609189	-	CYB_1731	-	TPR domain-containing protein
1686	 62.50	0	1814789..1815340	+	183	86609190	-	CYB_1733	-	putative methyltransferase
1687	 63.61	+1	1815337..1815957	-	206	86609191	-	CYB_1732	-	hypothetical protein
1688	 58.88	0	1816003..1817544	-	513	86609192	glgA	CYB_1734	-	glycogen synthase
1689	 60.19	0	1817558..1817665	+	35	86609193	-	CYB_1735	-	hypothetical protein
1690	 60.06	0	1817800..1818858	+	352	86609194	psbD-2	CYB_1736	-	photosystem II protein D2
1691	 61.17	0	1818978..1819541	-	187	86609195	aroK	CYB_1737	-	shikimate kinase
1692	 58.69	0	1819553..1820191	-	212	86609196	ribE	CYB_1738	-	riboflavin synthase subunit alpha
1693	 52.77	-1	1820204..1821901	-	565	86609197	-	CYB_1739	-	drug resistance ATPase-1
1694	 57.81	0	1822506..1823747	-	413	86609198	-	CYB_1740	-	response regulator
1695	 59.18	0	1823994..1824728	-	244	86609199	rph	CYB_1741	-	ribonuclease PH
1696	 55.76	0	1824952..1826106	-	384	86609200	-	CYB_1742	-	ISSoc8, transposase
1697	 62.15	0	1826362..1827114	-	250	86609201	-	CYB_1743	-	hypothetical protein
1698	 63.85	+1	1827309..1828232	+	307	86609202	speB	CYB_1744	-	agmatinase
1699	 59.25	0	1828305..1829153	+	282	86609203	-	CYB_1745	-	stomatin/podocin/band 7/nephrosis.2/SPFH (stomatin) family protein
1700	 57.75	0	1829257..1829940	+	227	86609204	-	CYB_1746	-	hypothetical protein
1701	 61.63	0	1830519..1831094	+	191	86609205	-	CYB_1747	-	hypothetical protein
1702	 63.68	+1	1831100..1831903	+	267	86609206	proC	CYB_1749	-	pyrroline-5-carboxylate reductase
1703	 62.89	+1	1831900..1833117	-	405	86609207	-	CYB_1748	-	pyridine nucleotide-disulfide oxidoreductase
1704	 62.77	+1	1833258..1833770	-	170	86609208	-	CYB_1750	-	hypothetical protein
1705	 63.08	+1	1833865..1835145	+	426	86609209	ahcY	CYB_1751	-	S-adenosyl-L-homocysteine hydrolase
1706	 62.59	+1	1835742..1836944	-	400	86609210	argG	CYB_1752	-	argininosuccinate synthase
1707	 58.50	0	1836932..1837078	+	48	86609211	-	CYB_1753	-	hypothetical protein
1708	 63.56	+1	1837181..1839013	+	610	86609212	-	CYB_1754	-	hypothetical protein
1709	 43.63	-2	1839105..1839512	-	135	86609213	-	CYB_1755	-	ISSoc13, transposase orfB
1710	 44.71	-2	1839470..1839847	-	125	86609214	-	CYB_1756	-	ISSoc13, transposase orfA
1711	 60.58	0	1839900..1840901	-	333	86609215	secF	CYB_1757	-	preprotein translocase subunit SecF
1712	 59.91	0	1840898..1842244	-	448	86609216	secD	CYB_1758	-	preprotein translocase subunit SecD
1713	 54.52	0	1842323..1843549	-	408	86609217	-	CYB_1759	-	ISSoc1, transposase
1714	 58.48	0	1843776..1844789	+	337	86609218	-	CYB_1760	-	hypothetical protein
1715	 58.64	0	1844797..1846017	-	406	86609219	chlP	CYB_1761	-	geranylgeranyl reductase
1716	 61.98	0	1846142..1847293	-	383	86609220	-	CYB_1762	-	polyamine ABC transporter, periplasmic polyamine-binding protein
1717	 59.78	0	1847265..1847729	-	154	86609221	-	CYB_1763	-	hypothetical protein
1718	 61.16	0	1847726..1849105	-	459	86609222	-	CYB_1764	-	hypothetical protein
1719	 56.98	0	1849211..1850191	-	326	86609223	-	CYB_1765	-	dehydrogenase, E1 component, beta subunit, putative
1720	 61.09	0	1850375..1851397	+	340	86609224	pdxA	CYB_1766	-	4-hydroxythreonine-4-phosphate dehydrogenase
1721	 57.97	0	1851488..1852603	+	371	86609225	-	CYB_1767	-	aldo/keto reductase family oxidoreductase
1722	 61.34	0	1852691..1853497	+	268	86609226	-	CYB_1768	-	hypothetical protein
1723	 55.41	0	1853533..1853763	-	76	86609227	-	CYB_1769	-	hypothetical protein
1724	 45.19	-2	1853741..1853875	+	44	86609228	-	CYB_1770	-	hypothetical protein
1725	 60.15	0	1854118..1855896	+	592	86609229	-	CYB_1772	-	flavodoxin
1726	 49.74	-2	1855874..1856446	-	190	86609230	-	CYB_1771	-	hypothetical protein
1727	 54.73	0	1856514..1860257	-	1247	86609231	-	CYB_1773	-	sensory box histidine kinase
1728	 56.80	0	1860440..1861027	-	195	86609232	-	CYB_1774	-	hypothetical protein
1729	 48.46	-2	1861121..1861735	-	204	86609233	-	CYB_1775	-	hypothetical protein
1730	 58.58	0	1861856..1863166	-	436	86609234	-	CYB_1776	-	peptidase inhibitor
1731	 64.41	+1	1863188..1863364	+	58	86609235	-	CYB_1777	-	hypothetical protein
1732	 59.96	0	1863392..1863958	+	188	86609236	-	CYB_1778	-	hypothetical protein
1733	 61.82	0	1864408..1865727	+	439	86609237	-	CYB_1779	-	bifunctional sterol desaturase/short chain dehydrogenase
1734	 61.83	0	1865923..1866687	+	254	86609238	-	CYB_1780	-	putative lipoprotein
1735	 53.98	-1	1866870..1867760	+	296	86609239	thyX	CYB_1781	-	thymidylate synthase, flavin-dependent
1736	 49.21	-2	1867814..1868575	+	253	86609240	-	CYB_1782	-	hypothetical protein
1737	 59.10	0	1868929..1870488	+	519	86609241	-	CYB_1783	-	sugar transferase family protein
1738	 60.08	0	1870499..1871242	+	247	86609242	purC	CYB_1784	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1739	 59.13	0	1871515..1872390	+	291	86609243	-	CYB_1785	-	hypothetical protein
1740	 61.20	0	1873483..1874415	-	310	86609244	hemC	CYB_1786	-	porphobilinogen deaminase
1741	 51.30	-1	1874748..1875209	+	153	86609245	-	CYB_1787	-	hypothetical protein
1742	 61.20	0	1875397..1876878	+	493	86609246	-	CYB_1788	-	glycosyl transferase, group 2 family protein
1743	 60.12	0	1876942..1877934	+	330	86609247	ilvC	CYB_1789	-	ketol-acid reductoisomerase
1744	 60.86	0	1877968..1879275	+	435	86609248	serS	CYB_1790	-	seryl-tRNA synthetase
1745	 60.49	0	1879609..1880013	-	134	86609249	-	CYB_1791	-	hypothetical protein
1746	 59.83	0	1880252..1880968	-	238	86609250	-	CYB_1792	-	microcompartments family protein
58.48	MEAN

4.07	STD DEV
