IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

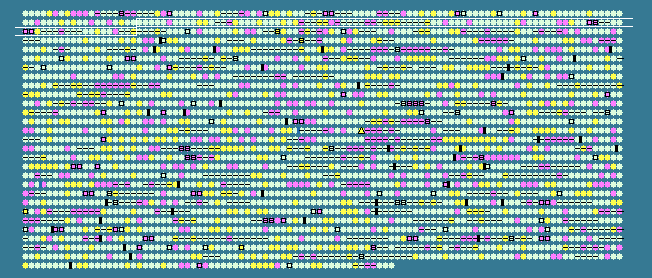

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
120	 60.16	0	133905..135134	+	409	86607623	ispG	CYB_0121	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
121	 56.41	0	135204..135632	-	142	86607624	-	CYB_0122	-	hypothetical protein
122	 56.85	0	135720..136391	+	223	86607625	-	CYB_0123	-	hypothetical protein
123	 58.92	0	136597..136893	+	98	86607626	-	CYB_0124	-	hypothetical protein
124	 57.09	0	136913..137173	-	86	86607627	grxC	CYB_0125	-	glutaredoxin 3
125	 53.36	-1	137266..140061	-	931	86607628	polA	CYB_0126	-	DNA polymerase I
126	 60.38	0	140385..141068	+	227	86607629	-	CYB_0127	-	putative polysaccharide deacetylase
127	 59.16	0	141133..141891	+	252	86607630	-	CYB_0128	-	pspA/IM30 family protein
128	 61.14	0	142155..142679	+	174	86607631	psbP	CYB_0129	-	photosystem II oxygen evolving complex protein PsbP
129	 57.11	0	142995..143789	+	264	86607632	icc	CYB_0131	-	icc protein
130	 63.88	+1	143786..144610	-	274	86607633	-	CYB_0130	-	ABC transporter, permease protein
131	 64.19	+1	144607..145536	-	309	86607634	-	CYB_0132	-	ABC transporter, permease protein
132	 60.26	0	145666..146820	+	384	86607635	-	CYB_0133	-	hypothetical protein
133	 61.51	0	147255..148340	-	361	86607636	-	CYB_0134	-	polysaccharide pyruvyl-transferase
134	 56.26	0	148418..149311	-	297	86607637	-	CYB_0135	-	hypothetical protein
135	 54.32	-1	149363..149767	-	134	86607638	psbU	CYB_0136	-	photosystem II complex extrinsic protein precursor U
136	 62.69	+1	149926..152892	+	988	86607639	gcvP	CYB_0137	-	glycine dehydrogenase
137	 60.27	0	152926..153597	+	223	86607640	-	CYB_0138	-	hypothetical protein
138	 60.27	0	153600..154037	+	145	86607641	-	CYB_0139	-	hypothetical protein
139	 58.76	0	154075..154656	+	193	86607642	-	CYB_0140	-	AhpC/TSA family protein
140	 62.98	+1	154702..156357	+	551	86607643	-	CYB_0141	-	hypothetical protein
141	 57.02	0	159250..160389	+	379	86607644	-	CYB_0142	-	cyclopropane fatty acyl phospholipid synthase
142	 56.31	0	160487..160930	+	147	86607645	-	CYB_0143	-	SufE family Fe-S metabolism protein
143	 58.38	0	160944..162065	+	373	86607646	-	CYB_0144	-	putative zinc ABC transporter, periplasmic zinc-binding protein
144	 62.30	0	162062..162862	+	266	86607647	-	CYB_0145	-	manganese/zinc/iron chelate ABC transporter ATP-binding protein
145	 59.74	0	162873..163709	+	278	86607648	-	CYB_0147	-	manganese/zinc/iron chelate ABC transporter permease
146	 62.32	0	163678..164529	-	283	86607649	-	CYB_0146	-	hypothetical protein
147	 55.00	0	165050..165229	+	59	86607650	rpmF	CYB_0148	-	50S ribosomal protein L32
148	 59.95	0	165341..165757	+	138	86607651	-	CYB_0149	-	DnaJ domain-containing protein
149	 55.30	0	165885..166148	+	87	86607652	-	CYB_0150	-	hypothetical protein
150	 62.06	0	166156..166914	+	252	86607653	-	CYB_0151	-	glyoxalase II family protein
151	 62.90	+1	167037..168230	-	397	86607654	-	CYB_0152	-	major facilitator transporter
152	 46.38	-2	168273..168617	-	114	86607655	-	CYB_0153	-	hypothetical protein
153	 53.01	-1	168927..169358	-	143	86607656	crcB	CYB_0154	-	crcB protein
154	 61.67	0	169411..171030	-	539	86607657	-	CYB_0155	-	sodium/hydrogen exchanger/universal stress family protein
155	 57.32	0	171358..171999	-	213	86607658	-	CYB_0156	-	hypothetical protein
156	 61.06	0	172007..172630	-	207	86607659	hisIE	CYB_0157	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
157	 58.33	0	172724..172831	-	35	86607660	-	CYB_0158	-	hypothetical protein
158	 54.29	-1	172909..173700	+	263	86607661	phnC-1	CYB_0159	-	phosphonate ABC transporter, ATP-binding protein
159	 53.96	-1	173747..174643	+	298	86607662	phnD-1	CYB_0160	-	phosphonate ABC tranporter, periplasmic phosphonate-binding protein
160	 56.04	0	174612..175430	+	272	86607663	phnE-1	CYB_0161	-	phosphonate ABC transporter, permease protein
161	 62.14	0	175440..175859	+	139	86607664	-	CYB_0162	-	putative phosphonate metabolism protein PhnG
162	 62.28	0	175868..176437	+	189	86607665	phnH	CYB_0163	-	phosphonate metabolism protein PhnH
163	 62.49	0	176422..177474	+	350	86607666	phnI	CYB_0164	-	phosphonate metabolism protein PhnI
164	 61.71	0	177458..178324	+	288	86607667	phnJ	CYB_0165	-	phosphonate metabolism protein PhnJ
165	 59.51	0	178317..179084	+	255	86607668	phnK	CYB_0166	-	phosphonate C-P lyase system protein PhnK
166	 58.48	0	179095..179790	+	231	86607669	phnL	CYB_0167	-	phosphonate C-P lyase system protein PhnL
167	 61.75	0	179771..180910	+	379	86607670	-	CYB_0168	-	putative phosphonate metabolism protein PhnM
168	 62.02	0	180951..183122	-	723	86607671	-	CYB_0169	-	polysaccharide deacetylase family protein
169	 58.89	0	183572..183931	-	119	86607672	-	CYB_0170	-	CpcD/allophycocyanin linker domain-containing protein
170	 60.36	0	184303..184857	+	184	86607673	-	CYB_0171	-	hypothetical protein
171	 52.33	-1	184891..186201	-	436	86607674	-	CYB_0172	-	hypothetical protein
172	 58.30	0	186762..187454	-	230	86607675	-	CYB_0174	-	DNA-binding response regulator
173	 57.62	0	187662..188435	+	257	86607676	-	CYB_0175	-	hypothetical protein
174	 61.93	0	188444..189625	-	393	86607677	-	CYB_0176	-	glycosyl transferase, group 2
175	 52.01	-1	189779..190126	+	115	86607678	-	CYB_0177	-	anti-anti-sigma factor family protein
176	 58.30	0	190206..191030	-	274	86607679	-	CYB_0178	-	TPR domain-containing protein
177	 59.01	0	191204..192235	+	343	86607680	-	CYB_0179	-	iron-sulfur cluster-binding protein
178	 60.27	0	192245..194026	-	593	86607681	sir	CYB_0180	-	sulfite reductase subunit beta
179	 55.18	0	194180..196207	-	675	86607682	-	CYB_0181	-	peroxisomal fatty acyl CoA ABC transporter transmembrane ATP-binding protein
180	 61.22	0	196291..197484	-	397	86607683	-	CYB_0182	-	hypothetical protein
181	 56.39	0	197581..198018	-	145	86607684	-	CYB_0183	-	hypothetical protein
182	 55.80	0	198055..198330	-	91	86607685	rpsO	CYB_0184	-	ribosomal protein S15
183	 62.28	0	198423..199106	+	227	86607686	-	CYB_0185	-	phycocyanin alpha subunit phycocyanobilin lyase, CpcF subunit
184	 54.32	-1	199111..199596	-	161	86607687	apcD	CYB_0186	-	allophycocyanin alpha, B subunit
185	 59.97	0	199788..201146	-	452	86607688	pilT-1	CYB_0187	-	twitching mobility protein PilT
186	 56.96	0	201389..202078	-	229	86607689	folE	CYB_0188	-	GTP cyclohydrolase I
187	 57.79	0	202191..202922	-	243	86607690	-	CYB_0189	-	short chain dehydrogenase
188	 59.48	0	203165..204388	+	407	86607691	-	CYB_0190	-	iron ABC transporter ATP-binding protein
189	 59.38	0	204872..205585	+	237	86607692	-	CYB_0191	-	NUDIX family hydrolase
190	 52.34	-1	206258..206599	+	113	86607693	trx-1	CYB_0192	-	thioredoxin
191	 54.53	0	206714..207784	+	356	86607694	-	CYB_0193	-	hypothetical protein
192	 62.54	0	207847..208548	+	233	86607695	trpF	CYB_0194	-	N-(5'-phosphoribosyl)anthranilate isomerase
193	 59.89	0	208565..209434	-	289	86607696	-	CYB_0195	-	hypothetical protein
194	 61.33	0	209503..210327	-	274	86607697	-	CYB_0196	-	RNA pseudouridine synthase family protein
195	 44.97	-2	210425..210802	+	125	86607698	-	CYB_0197	-	ISSoc13, transposase orfA
196	 42.89	-2	210760..211167	+	135	86607699	-	CYB_0198	-	ISSoc13, transposase orfB
197	 58.61	0	211182..211715	-	177	86607700	-	CYB_0199	-	hypothetical protein
198	 58.39	0	212012..212446	-	144	86607701	rbfA	CYB_0200	-	ribosome-binding factor A
199	 56.71	0	212623..212853	+	76	86607702	-	CYB_0201	-	hypothetical protein
200	 61.89	0	212976..214439	+	487	86607703	phrB-1	CYB_0202	-	deoxyribodipyrimidine photolyase
201	 42.89	-2	214454..214861	-	135	86607704	-	CYB_0203	-	ISSoc13, transposase orfB
202	 44.71	-2	214819..215196	-	125	86607705	-	CYB_0204	-	ISSoc13, transposase orfA
203	 63.88	+1	216392..217609	-	405	86607706	moeA	CYB_0206	-	molybdopterin biosynthesis protein MoeA
204	 57.30	0	218005..218367	+	120	86607707	-	CYB_0207	-	putative monovalent cation/H+ antiporter subunit C
205	 61.64	0	218360..219832	+	490	86607708	-	CYB_0208	-	putative monovalent cation/H+ antiporter subunit D
206	 55.30	0	219834..220220	+	128	86607709	-	CYB_0209	-	hypothetical protein
207	 52.78	-1	220217..220468	+	83	86607710	-	CYB_0210	-	hypothetical protein
208	 55.67	0	220488..220769	+	93	86607711	-	CYB_0211	-	hypothetical protein
209	 61.11	0	220779..221300	+	173	86607712	-	CYB_0212	-	hypothetical protein
210	 60.50	0	221297..221977	+	226	86607713	-	CYB_0214	-	putative monovalent cation/H+ antiporter subunit B
211	 60.54	0	222909..226157	+	1082	86607714	carB	CYB_0215	-	carbamoyl phosphate synthase large subunit
212	 60.23	0	226514..227569	+	351	86607715	psbA-1	CYB_0216	-	photosystem II protein D1
213	 62.83	+1	227576..229426	-	616	86607716	-	CYB_0217	-	aspartate kinase
214	 60.87	0	229471..231006	-	511	86607717	-	CYB_0218	-	M50B family peptidase
215	 58.59	0	231034..231132	-	32	86607718	-	CYB_0219	-	hypothetical protein
216	 52.87	-1	231285..231545	-	86	86607719	-	CYB_0220	-	hypothetical protein
217	 58.17	0	232121..232591	+	156	86607720	-	CYB_0221	-	hypothetical protein
218	 60.19	0	232758..233405	+	215	86607721	-	CYB_0223	-	aromatic acid decarboxylase
219	 64.96	+1	233383..233499	-	38	86607722	-	CYB_0222	-	hypothetical protein
58.48	MEAN

4.07	STD DEV
