IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

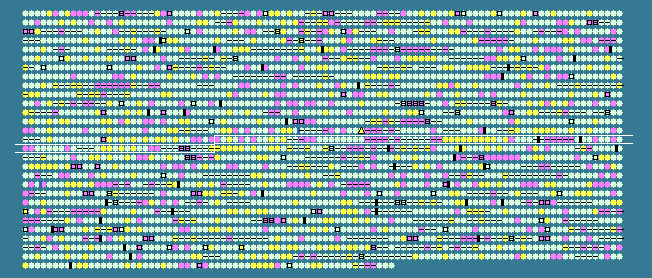

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1433	 54.74	0	1544766..1545578	+	270	86608937	phnE-3	CYB_1469	-	phosphonate ABC transporter, permease protein
1434	 57.95	0	1546359..1547942	-	527	86608938	-	CYB_1471	-	NAD(P)H-quinone oxidoreductase subunit 2
1435	 62.66	+1	1548067..1549365	-	432	86608939	gvpK	CYB_1472	-	HAD hydrolase-like protein/gas vesicle protein K
1436	 59.38	0	1549452..1549931	-	159	86608940	-	CYB_1473	-	peptidylprolyl cis-trans isomerase, cyclophilin-type
1437	 52.41	-1	1550153..1550629	-	158	86608941	-	CYB_1474	-	hypothetical protein
1438	 56.06	0	1550679..1550876	-	65	86608942	-	CYB_1475	-	hypothetical protein
1439	 53.76	-1	1551013..1551105	+	30	86608943	-	CYB_1476	-	hypothetical protein
1440	 56.49	0	1551150..1552112	+	320	86608944	-	CYB_1477	-	sigma-70 family RNA polymerase sigma factor
1441	 60.12	0	1552234..1553868	-	544	86608945	pyrG	CYB_1478	-	CTP synthetase
1442	 65.46	+1	1553929..1554426	-	165	86608946	-	CYB_1479	-	hypothetical protein
1443	 61.04	0	1554622..1555617	+	331	86608947	-	CYB_1480	-	aldo/keto reductase family oxidoreductase
1444	 63.01	+1	1555786..1558380	+	864	86608948	-	CYB_1481	-	copper-translocating P-type ATPase
1445	 59.26	0	1558659..1559549	+	296	86608949	-	CYB_1482	-	hypothetical protein
1446	 59.66	0	1559947..1560831	+	294	86608950	-	CYB_1483	-	hypothetical protein
1447	 52.85	-1	1560912..1561280	+	122	86608951	-	CYB_1484	-	roadblock/LC7 domain-contain protein
1448	 52.72	-1	1561335..1561886	+	183	86608952	-	CYB_1485	-	hypothetical protein
1449	 49.82	-2	1562119..1562664	+	181	86608953	-	CYB_1486	-	putative small GTP-binding protein
1450	 61.17	0	1562864..1563481	+	205	86608954	pyrE	CYB_1487	-	orotate phosphoribosyltransferase
1451	 61.05	0	1563522..1564394	+	290	86608955	-	CYB_1488	-	polysaccharide deacetylase family protein
1452	 60.34	0	1564556..1566151	+	531	86608956	malQ	CYB_1490	-	4-alpha-glucanotransferase
1453	 61.17	0	1566148..1566420	-	90	86608957	-	CYB_1489	-	carbohydrate ABC transporter ATP-binding protein
1454	 56.86	0	1566697..1566849	-	50	86608958	-	CYB_1491	-	carbohydrate ABC transporter ATP-binding protein
1455	 57.45	0	1566888..1568699	-	603	86608959	thrS	CYB_1492	-	threonyl-tRNA synthetase
1456	 61.92	0	1568892..1570619	+	575	86608960	-	CYB_1493	-	putative exopolyphosphatase
1457	 61.15	0	1570638..1572323	-	561	86608961	-	CYB_1494	-	S-layer domain-containing protein
1458	 54.88	0	1572633..1572878	+	81	86608962	psbE	CYB_1495	-	cytochrome b559 subunit alpha
1459	 48.48	-2	1572955..1573086	+	43	86608963	psbF	CYB_1496	-	cytochrome b559 subunit beta
1460	 49.21	-2	1573092..1573217	+	41	86608964	psbL	CYB_1497	-	photosystem II reaction center protein PsbL
1461	 52.50	-1	1573359..1573478	+	39	86608965	psbJ	CYB_1498	-	photosystem II reaction center protein J
1462	 57.54	0	1574007..1574477	+	156	86608966	psaL-1	CYB_1499	-	photosystem I reaction center protein subunit XI
1463	 48.25	-2	1574516..1574629	+	37	86608967	psaI	CYB_1500	-	photosystem I reaction center subunit VIII
1464	 55.43	0	1574931..1575197	+	88	86608968	-	CYB_1501	-	hypothetical protein
1465	 60.56	0	1575253..1576710	-	485	86608969	-	CYB_1502	-	hypothetical protein
1466	 60.89	0	1577051..1578643	-	530	86608970	-	CYB_1503	-	DnaK family protein
1467	 61.50	0	1578643..1579203	-	186	86608971	-	CYB_1504	-	hypothetical protein
1468	 60.96	0	1579254..1579796	-	180	86608972	-	CYB_1505	-	hypothetical protein
1469	 42.34	-2	1579854..1580075	-	73	86608973	-	CYB_1506	-	hypothetical protein
1470	 53.61	-1	1580056..1580415	-	119	86608974	-	CYB_1507	-	hypothetical protein
1471	 62.75	+1	1580596..1581873	+	425	86608975	trpB	CYB_1508	-	tryptophan synthase subunit beta
1472	 65.43	+1	1581911..1582717	+	268	86608976	-	CYB_1509	-	hypothetical protein
1473	 66.41	+1	1582707..1583471	+	254	86608977	-	CYB_1510	-	pantothenate kinase
1474	 66.49	+1	1583525..1584661	+	378	86608978	aroC	CYB_1511	-	chorismate synthase
1475	 63.15	+1	1584674..1586068	+	464	86608979	radA	CYB_1512	-	DNA repair protein RadA
1476	 62.25	0	1586329..1587234	+	301	86608980	-	CYB_1513	-	hypothetical protein
1477	 62.89	+1	1587285..1588820	+	511	86608981	lysS	CYB_1514	-	lysyl-tRNA synthetase
1478	 62.39	0	1588914..1592726	-	1270	86608982	-	CYB_1515	-	TPR repeat-containing protein kinase
1479	 62.30	0	1592885..1594510	-	541	86608983	-	CYB_1516	-	copper resistance protein CopC/D
1480	 61.11	0	1594528..1595121	-	197	86608984	-	CYB_1517	-	nuclear export factor GLE1-like protein
1481	 64.00	+1	1595184..1595483	-	99	86608985	-	CYB_1518	-	hypothetical protein
1482	 54.39	-1	1595531..1595872	-	113	86608986	petJ	CYB_1519	-	cytochrome c6
1483	 58.27	0	1596008..1597948	+	646	86608987	dnaG	CYB_1520	-	DNA primase
1484	 61.51	0	1598112..1600766	-	884	86608988	alaS	CYB_1521	-	alanyl-tRNA synthetase
1485	 60.53	0	1601051..1602712	+	553	86608989	-	CYB_1522	-	serine/threonine protein kinase
1486	 60.52	0	1602950..1603453	-	167	86608990	-	CYB_1523	-	hypothetical protein
1487	 59.14	0	1603736..1604917	+	393	86608991	-	CYB_1525	-	aldo/keto reductase family oxidoreductase
1488	 50.00	-2	1605052..1605321	+	89	86608992	-	CYB_1526	-	hypothetical protein
1489	 42.35	-2	1605318..1605572	+	84	86608993	-	CYB_1527	-	hypothetical protein
1490	 52.48	-1	1605674..1605814	+	46	86608994	-	CYB_1528	-	hypothetical protein
1491	 53.16	-1	1605871..1606329	-	152	86608995	-	CYB_1529	-	hypothetical protein
1492	 54.97	0	1606419..1608770	+	783	86608996	-	CYB_1530	-	exonuclease family protein
1493	 55.56	0	1608802..1608954	-	50	86608997	-	CYB_1531	-	hypothetical protein
1494	 60.32	0	1609215..1609340	+	41	86608998	-	CYB_1533	-	hypothetical protein
1495	 56.98	0	1609362..1610156	+	264	86608999	rpsB	CYB_1534	-	ribosomal protein S2
1496	 54.05	-1	1610316..1611092	+	258	86609000	tsf	CYB_1535	-	elongation factor Ts
1497	 61.58	0	1611315..1612730	+	471	86609001	-	CYB_1536	-	amidohydrolase family protein
1498	 61.92	0	1612787..1613734	+	315	86609002	-	CYB_1537	-	iron-sulfur cluster binding protein, putative
1499	 54.50	0	1613937..1615136	+	399	86609003	-	CYB_1538	-	hypothetical protein
1500	 61.21	0	1615213..1616532	-	439	86609004	dnaN	CYB_1539	-	DNA polymerase III subunit beta
1501	 48.65	-2	1616734..1616844	-	36	86609005	-	CYB_1540	-	hypothetical protein
1502	 44.76	-2	1616768..1616872	+	34	86609006	-	CYB_1541	-	hypothetical protein
1503	 59.40	0	1617021..1617254	-	77	86609007	-	CYB_1542	-	hypothetical protein
1504	 56.02	0	1617330..1619612	-	760	86609008	-	CYB_1543	-	RelA/SpoT family protein
1505	 60.17	0	1619763..1619993	-	76	86609009	-	CYB_1544	-	hypothetical protein
1506	 59.84	0	1620132..1621991	-	619	86609010	pyk	CYB_1545	-	pyruvate kinase
1507	 56.79	0	1622162..1622404	+	80	86609011	-	CYB_1546	-	hypothetical protein
1508	 52.19	-1	1622493..1623155	-	220	86609012	-	CYB_1547	-	hypothetical protein
1509	 60.64	0	1623299..1624045	-	248	86609013	-	CYB_1548	-	GvpL/GvpF family gas vesicle protein
1510	 57.93	0	1624023..1625144	-	373	86609014	-	CYB_1549	-	nucleotidyl transferase family protein
1511	 61.16	0	1625446..1626153	+	235	86609015	hisG	CYB_1550	-	ATP phosphoribosyltransferase catalytic subunit
1512	 59.37	0	1626262..1627056	+	264	86609016	psbO	CYB_1551	-	photosystem II manganese-stabilizing protein
1513	 58.56	0	1627317..1627427	-	36	86609017	-	CYB_1552	-	hypothetical protein
1514	 62.95	+1	1627420..1628604	+	394	86609018	-	CYB_1554	-	oxidoreductase FAD-binding subunit
1515	 62.18	0	1627639..1628709	-	356	86609019	-	CYB_1553	-	hypothetical protein
1516	 61.25	0	1628714..1629673	+	319	86609020	-	CYB_1556	-	NAD dependent epimerase/dehydratase family protein
1517	 62.47	0	1629670..1630407	-	245	86609021	devA	CYB_1555	-	glycolipid ABC exporter (DevE) family ATP-binding protein
1518	 59.07	0	1630633..1631817	-	394	86609022	devC	CYB_1557	-	glycolipid ABC exporter (DevE) family permease protein
1519	 64.61	+1	1631827..1632849	-	340	86609023	-	CYB_1558	-	membrane fusion protein family protein
1520	 60.40	0	1633312..1634748	+	478	86609024	murC	CYB_1559	-	UDP-N-acetylmuramate--L-alanine ligase
1521	 61.20	0	1634810..1635796	+	328	86609025	murB	CYB_1560	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1522	 52.73	-1	1635817..1636182	+	121	86609026	-	CYB_1561	-	hypothetical protein
1523	 50.43	-1	1636232..1636465	-	77	86609027	-	CYB_1562	-	hypothetical protein
1524	 61.30	0	1636487..1637269	+	260	86609028	-	CYB_1564	-	hypothetical protein
1525	 59.11	0	1637235..1638041	-	268	86609029	est	CYB_1563	-	carboxylesterase
1526	 61.24	0	1638083..1638856	-	257	86609030	-	CYB_1565	-	zinc/iron ABC transporter permease
1527	 43.14	-2	1639016..1639423	-	135	86609031	-	CYB_1566	-	ISSoc13, transposase orfB
1528	 44.44	-2	1639381..1639758	-	125	86609032	-	CYB_1567	-	ISSoc13, transposase orfA
1529	 58.58	0	1639869..1640783	+	304	86609033	-	CYB_1569	-	hypothetical protein
1530	 61.71	0	1640780..1641787	-	335	86609034	asd	CYB_1568	-	aspartate-semialdehyde dehydrogenase
1531	 61.83	0	1641822..1642958	-	378	86609035	aroB	CYB_1570	-	3-dehydroquinate synthase
1532	 63.05	+1	1643059..1645161	-	700	86609036	-	CYB_1571	-	TPR repeat-containing protein
58.48	MEAN

4.07	STD DEV
