IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

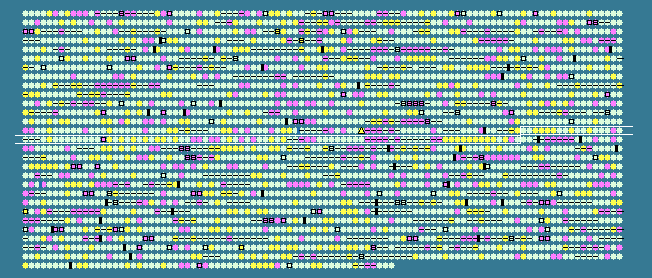

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1384	 59.39	0	1488218..1489042	+	274	86608888	-	CYB_1420	-	creatininase
1385	 60.67	0	1489481..1490731	-	416	86608889	aspB	CYB_1421	-	L,L-diaminopimelate aminotransferase
1386	 62.05	0	1490936..1491823	+	295	86608890	-	CYB_1422	-	leucine-rich repeat-containing protein
1387	 63.95	+1	1491837..1493015	-	392	86608891	-	CYB_1423	-	hypothetical protein
1388	 65.26	+1	1493069..1494565	-	498	86608892	hemG	CYB_1424	-	protoporphyrinogen oxidase
1389	 63.54	+1	1494723..1496033	-	436	86608893	hom	CYB_1425	-	homoserine dehydrogenase
1390	 61.39	0	1496238..1497014	-	258	86608894	gvpW	CYB_1426	-	gas vesicle protein W
1391	 60.25	0	1497273..1497911	+	212	86608895	-	CYB_1428	-	hypothetical protein
1392	 63.09	+1	1497843..1498625	-	260	86608896	surE	CYB_1427	-	stationary phase survival protein SurE
1393	 61.65	0	1498813..1499829	+	338	86608897	gap-1	CYB_1429	-	glyceraldehyde-3-phosphate dehydrogenase, type I
1394	 58.20	0	1499889..1501235	-	448	86608898	ampG	CYB_1430	-	peptide-acetyl-coenzyme A transporter (PAT) family protein AmpG
1395	 62.46	0	1501791..1502765	-	324	86608899	-	CYB_1431	-	oxidoreductase, NAD-binding
1396	 57.30	0	1502940..1503590	-	216	86608900	-	CYB_1432	-	iron-sulfur cluster-binding protein, putative
1397	 58.06	0	1503574..1503852	-	92	86608901	-	CYB_1433	-	hypothetical protein
1398	 59.06	0	1503976..1504527	-	183	86608902	-	CYB_1434	-	DNA protection protein
1399	 51.46	-1	1504815..1506077	+	420	86608903	-	CYB_1436	-	GTP-binding protein
1400	 55.25	0	1506069..1507049	-	326	86608904	-	CYB_1435	-	glycosyl transferase, group 2 family protein
1401	 61.04	0	1507121..1508080	-	319	86608905	hslO	CYB_1437	-	Hsp33-like chaperonin
1402	 58.44	0	1508399..1508884	+	161	86608906	apcA	CYB_1438	-	allophycocyanin, alpha subunit
1403	 58.64	0	1508948..1509433	+	161	86608907	apcB-1	CYB_1439	-	allophycocyanin, beta subunit
1404	 57.84	0	1509600..1509803	+	67	86608908	apcC	CYB_1440	-	phycobilisome 7.8 kDa linker polypeptide, allophycocyanin-associated, core
1405	 62.00	0	1509937..1510965	+	342	86608909	-	CYB_1441	-	ABC transporter, ATP-binding protein
1406	 59.90	0	1511096..1512736	-	546	86608910	leuA	CYB_1442	-	2-isopropylmalate synthase
1407	 59.89	0	1512796..1513710	-	304	86608911	-	CYB_1443	-	putative arylamine N-acetyltransferase
1408	 58.16	0	1513962..1514243	+	93	86608912	moaD	CYB_1444	-	molybdopterin converting factor, subunit 1
1409	 60.54	0	1514303..1516441	+	712	86608913	pnpA	CYB_1445	-	polynucleotide phosphorylase/polyadenylase
1410	 61.91	0	1516617..1518803	+	728	86608914	-	CYB_1446	-	sensor histidine kinase
1411	 57.21	0	1519383..1519604	-	73	86608915	-	CYB_1447	-	CAB/ELIP/HLIP family protein
1412	 61.70	0	1519801..1520283	+	160	86608916	-	CYB_1448	-	pyridoxamine 5'-phosphate oxidase family protein
1413	 61.43	0	1520351..1521286	-	311	86608917	-	CYB_1449	-	alpha/beta fold family hydrolase
1414	 54.84	0	1521393..1522610	-	405	86608918	-	CYB_1450	-	ISSoc1, transposase
1415	 63.96	+1	1522979..1525192	+	737	86608919	-	CYB_1451	-	hypothetical protein
1416	 56.28	0	1525407..1525955	+	182	86608920	-	CYB_1452	-	NADPH-dependent FMN reductase
1417	 62.34	0	1526591..1529545	+	984	86608921	-	CYB_1453	-	sensor histidine kinase
1418	 61.18	0	1529570..1530553	-	327	86608922	-	CYB_1454	-	putative transporter
1419	 63.88	+1	1530948..1533032	-	694	86608923	-	CYB_1455	-	DnaJ domain-containing protein
1420	 59.19	0	1533167..1533661	-	164	86608924	-	CYB_1456	-	hypothetical protein
1421	 63.28	+1	1533681..1534388	-	235	86608925	-	CYB_1457	-	cyclic nucleotide-binding protein
1422	 59.88	0	1534649..1535311	+	220	86608926	-	CYB_1458	-	RNA polymerase sigma factor RpoE
1423	 62.28	0	1535308..1535922	+	204	86608927	-	CYB_1459	-	hypothetical protein
1424	 62.38	0	1535958..1536587	+	209	86608928	-	CYB_1460	-	hypothetical protein
1425	 57.14	0	1536653..1536967	+	104	86608929	-	CYB_1461	-	hypothetical protein
1426	 63.01	+1	1536992..1538086	+	364	86608930	-	CYB_1462	-	S-layer domain-containing protein
1427	 60.53	0	1538390..1538959	+	189	86608931	ycf4	CYB_1463	-	photosystem I assembly protein Ycf4
1428	 58.31	0	1539171..1540403	+	410	86608932	-	CYB_1464	-	polyamine/opine/phosphonate ABC transporter periplasmic substrate-binding protein
1429	 52.58	-1	1540613..1541620	+	335	86608933	phnD-2	CYB_1465	-	phosphonate ABC transporter, periplasmic phosphonate-binding protein
1430	 52.86	-1	1541970..1542947	+	325	86608934	phnD	CYB_1466	-	phosphonate ABC transporter, periplasmic phosphonate-binding protein
1431	 55.93	0	1543089..1543898	+	269	86608935	phnC-2	CYB_1467	-	phosphonate ABC transporter, ATP-binding protein
1432	 54.94	0	1543957..1544766	+	269	86608936	phnE-2	CYB_1468	-	phosphonate ABC transporter, permease protein
1433	 54.74	0	1544766..1545578	+	270	86608937	phnE-3	CYB_1469	-	phosphonate ABC transporter, permease protein
1434	 57.95	0	1546359..1547942	-	527	86608938	-	CYB_1471	-	NAD(P)H-quinone oxidoreductase subunit 2
1435	 62.66	+1	1548067..1549365	-	432	86608939	gvpK	CYB_1472	-	HAD hydrolase-like protein/gas vesicle protein K
1436	 59.38	0	1549452..1549931	-	159	86608940	-	CYB_1473	-	peptidylprolyl cis-trans isomerase, cyclophilin-type
1437	 52.41	-1	1550153..1550629	-	158	86608941	-	CYB_1474	-	hypothetical protein
1438	 56.06	0	1550679..1550876	-	65	86608942	-	CYB_1475	-	hypothetical protein
1439	 53.76	-1	1551013..1551105	+	30	86608943	-	CYB_1476	-	hypothetical protein
1440	 56.49	0	1551150..1552112	+	320	86608944	-	CYB_1477	-	sigma-70 family RNA polymerase sigma factor
1441	 60.12	0	1552234..1553868	-	544	86608945	pyrG	CYB_1478	-	CTP synthetase
1442	 65.46	+1	1553929..1554426	-	165	86608946	-	CYB_1479	-	hypothetical protein
1443	 61.04	0	1554622..1555617	+	331	86608947	-	CYB_1480	-	aldo/keto reductase family oxidoreductase
1444	 63.01	+1	1555786..1558380	+	864	86608948	-	CYB_1481	-	copper-translocating P-type ATPase
1445	 59.26	0	1558659..1559549	+	296	86608949	-	CYB_1482	-	hypothetical protein
1446	 59.66	0	1559947..1560831	+	294	86608950	-	CYB_1483	-	hypothetical protein
1447	 52.85	-1	1560912..1561280	+	122	86608951	-	CYB_1484	-	roadblock/LC7 domain-contain protein
1448	 52.72	-1	1561335..1561886	+	183	86608952	-	CYB_1485	-	hypothetical protein
1449	 49.82	-2	1562119..1562664	+	181	86608953	-	CYB_1486	-	putative small GTP-binding protein
1450	 61.17	0	1562864..1563481	+	205	86608954	pyrE	CYB_1487	-	orotate phosphoribosyltransferase
1451	 61.05	0	1563522..1564394	+	290	86608955	-	CYB_1488	-	polysaccharide deacetylase family protein
1452	 60.34	0	1564556..1566151	+	531	86608956	malQ	CYB_1490	-	4-alpha-glucanotransferase
1453	 61.17	0	1566148..1566420	-	90	86608957	-	CYB_1489	-	carbohydrate ABC transporter ATP-binding protein
1454	 56.86	0	1566697..1566849	-	50	86608958	-	CYB_1491	-	carbohydrate ABC transporter ATP-binding protein
1455	 57.45	0	1566888..1568699	-	603	86608959	thrS	CYB_1492	-	threonyl-tRNA synthetase
1456	 61.92	0	1568892..1570619	+	575	86608960	-	CYB_1493	-	putative exopolyphosphatase
1457	 61.15	0	1570638..1572323	-	561	86608961	-	CYB_1494	-	S-layer domain-containing protein
1458	 54.88	0	1572633..1572878	+	81	86608962	psbE	CYB_1495	-	cytochrome b559 subunit alpha
1459	 48.48	-2	1572955..1573086	+	43	86608963	psbF	CYB_1496	-	cytochrome b559 subunit beta
1460	 49.21	-2	1573092..1573217	+	41	86608964	psbL	CYB_1497	-	photosystem II reaction center protein PsbL
1461	 52.50	-1	1573359..1573478	+	39	86608965	psbJ	CYB_1498	-	photosystem II reaction center protein J
1462	 57.54	0	1574007..1574477	+	156	86608966	psaL-1	CYB_1499	-	photosystem I reaction center protein subunit XI
1463	 48.25	-2	1574516..1574629	+	37	86608967	psaI	CYB_1500	-	photosystem I reaction center subunit VIII
1464	 55.43	0	1574931..1575197	+	88	86608968	-	CYB_1501	-	hypothetical protein
1465	 60.56	0	1575253..1576710	-	485	86608969	-	CYB_1502	-	hypothetical protein
1466	 60.89	0	1577051..1578643	-	530	86608970	-	CYB_1503	-	DnaK family protein
1467	 61.50	0	1578643..1579203	-	186	86608971	-	CYB_1504	-	hypothetical protein
1468	 60.96	0	1579254..1579796	-	180	86608972	-	CYB_1505	-	hypothetical protein
1469	 42.34	-2	1579854..1580075	-	73	86608973	-	CYB_1506	-	hypothetical protein
1470	 53.61	-1	1580056..1580415	-	119	86608974	-	CYB_1507	-	hypothetical protein
1471	 62.75	+1	1580596..1581873	+	425	86608975	trpB	CYB_1508	-	tryptophan synthase subunit beta
1472	 65.43	+1	1581911..1582717	+	268	86608976	-	CYB_1509	-	hypothetical protein
1473	 66.41	+1	1582707..1583471	+	254	86608977	-	CYB_1510	-	pantothenate kinase
1474	 66.49	+1	1583525..1584661	+	378	86608978	aroC	CYB_1511	-	chorismate synthase
1475	 63.15	+1	1584674..1586068	+	464	86608979	radA	CYB_1512	-	DNA repair protein RadA
1476	 62.25	0	1586329..1587234	+	301	86608980	-	CYB_1513	-	hypothetical protein
1477	 62.89	+1	1587285..1588820	+	511	86608981	lysS	CYB_1514	-	lysyl-tRNA synthetase
1478	 62.39	0	1588914..1592726	-	1270	86608982	-	CYB_1515	-	TPR repeat-containing protein kinase
1479	 62.30	0	1592885..1594510	-	541	86608983	-	CYB_1516	-	copper resistance protein CopC/D
1480	 61.11	0	1594528..1595121	-	197	86608984	-	CYB_1517	-	nuclear export factor GLE1-like protein
1481	 64.00	+1	1595184..1595483	-	99	86608985	-	CYB_1518	-	hypothetical protein
1482	 54.39	-1	1595531..1595872	-	113	86608986	petJ	CYB_1519	-	cytochrome c6
1483	 58.27	0	1596008..1597948	+	646	86608987	dnaG	CYB_1520	-	DNA primase
58.48	MEAN

4.07	STD DEV
