IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

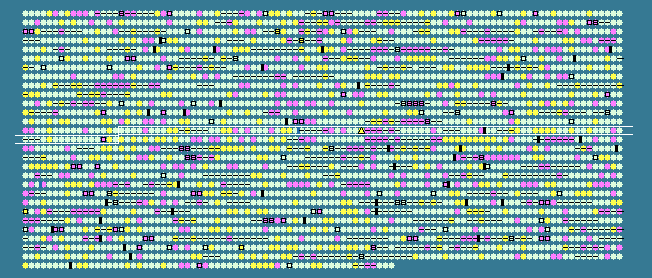

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1317	 58.03	0	1415906..1417561	-	551	86608821	-	CYB_1347	-	hypothetical protein
1318	 60.29	0	1417613..1418506	-	297	86608822	-	CYB_1348	-	succinate/fumarate oxidoreductase, putative
1319	 60.25	0	1419042..1419602	+	186	86608823	-	CYB_1349	-	hypothetical protein
1320	 59.60	0	1419905..1420654	+	249	86608824	-	CYB_1350	-	hypothetical protein
1321	 51.92	-1	1420708..1421019	-	103	86608825	-	CYB_1351	-	hypothetical protein
1322	 58.08	0	1421296..1421493	-	65	86608826	-	CYB_1352	-	hypothetical protein
1323	 61.55	0	1421431..1422348	+	305	86608827	rbsK	CYB_1353	-	ribokinase
1324	 55.65	0	1422603..1423346	+	247	86608828	-	CYB_1354	-	response regulator
1325	 62.31	0	1423513..1425348	-	611	86608829	-	CYB_1355	-	hypothetical protein
1326	 62.10	0	1425514..1426740	+	408	86608830	-	CYB_1356	-	pentapeptide repeat-containing protein
1327	 61.01	0	1426849..1427961	+	370	86608831	-	CYB_1357	-	YjgP/YjgQ family protein
1328	 63.18	+1	1429582..1430670	+	362	86608832	ald	CYB_1358	-	alanine dehydrogenase
1329	 58.27	0	1430708..1431481	-	257	86608833	-	CYB_1359	-	ABC transporter, permease protein
1330	 58.07	0	1431558..1432418	-	286	86608834	-	CYB_1360	-	ABC transporter, ATP-binding protein
1331	 58.77	0	1432669..1433301	-	210	86608835	-	CYB_1361	-	3'-5' exonuclease family protein
1332	 60.78	0	1433359..1433664	-	101	86608836	rpsN	CYB_1362	-	30S ribosomal protein S14
1333	 57.14	0	1433861..1434175	+	104	86608837	-	CYB_1364	-	hypothetical protein
1334	 62.08	0	1434172..1435719	-	515	86608838	-	CYB_1363	-	GTP-binding protein
1335	 62.20	0	1435803..1436294	-	163	86608839	-	CYB_1365	-	hypothetical protein
1336	 46.85	-2	1436483..1436593	-	36	86608840	-	CYB_1366	-	hypothetical protein
1337	 59.68	0	1436814..1437128	+	104	86608841	-	CYB_1367	-	hypothetical protein
1338	 52.66	-1	1437380..1439743	-	787	86608842	pcrA	CYB_1368	-	ATP-dependent DNA helicase PcrA
1339	 57.09	0	1439945..1440508	+	187	86608843	-	CYB_1369	-	hypothetical protein
1340	 60.44	0	1440739..1441284	+	181	86608844	-	CYB_1370	-	hypothetical protein
1341	 61.77	0	1441288..1442145	-	285	86608845	dapF	CYB_1371	-	diaminopimelate epimerase
1342	 54.55	0	1442184..1442315	-	43	86608846	psbN	CYB_1372	-	photosystem II reaction center protein N
1343	 55.39	0	1442518..1442721	+	67	86608847	psbH	CYB_1373	-	photosystem II reaction center protein H
1344	 63.11	+1	1442816..1443910	-	364	86608848	-	CYB_1374	-	glucose/sorbosone dehydrogenase family protein
1345	 63.46	+1	1444119..1446581	+	820	86608849	-	CYB_1375	-	glycosy hydrolase family protein
1346	 59.62	0	1446805..1447272	-	155	86608850	-	CYB_1376	-	anti-oxidant AhpCTSA family protein
1347	 60.14	0	1452738..1454039	-	433	86608851	folC	CYB_1382	-	folylpolyglutamate synthase
1348	 58.76	0	1454116..1455696	-	526	86608852	serA	CYB_1383	-	D-3-phosphoglycerate dehydrogenase
1349	 61.47	0	1455930..1457141	+	403	86608853	ackA	CYB_1384	-	acetate kinase
1350	 59.78	0	1457260..1457724	+	154	86608854	-	CYB_1385	-	putative lipoprotein
1351	 54.33	-1	1458254..1458796	+	180	86608855	-	CYB_1386	-	FHA domain-containing protein
1352	 48.84	-2	1458820..1458948	-	42	86608856	-	CYB_1387	-	hypothetical protein
1353	 57.62	0	1458975..1460996	+	673	86608857	-	CYB_1388	-	FHA domain-containing protein
1354	 52.32	-1	1461255..1461707	+	150	86608858	-	CYB_1389	-	hypothetical protein
1355	 61.86	0	1461829..1462764	+	311	86608859	ispE	CYB_1390	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
1356	 61.65	0	1462919..1464274	+	451	86608860	accC	CYB_1391	-	acetyl-CoA carboxylase biotin carboxylase subunit
1357	 62.03	0	1464369..1465361	+	330	86608861	-	CYB_1392	-	phage integrase family site specific recombinase
1358	 44.74	-2	1465526..1466551	-	341	86608862	-	CYB_1393	-	hypothetical protein
1359	 50.45	-1	1466542..1466985	-	147	86608863	-	CYB_1394	-	DnaJ domain-containing protein
1360	 47.01	-2	1467080..1467196	+	38	86608864	-	CYB_1395	-	hypothetical protein
1361	 59.67	0	1467236..1467478	-	80	86608865	-	CYB_1396	-	carbohydrate ABC transporter ATP-binding protein
1362	 51.98	-1	1467480..1467656	-	58	86608866	-	CYB_1397	-	hypothetical protein
1363	 61.27	0	1467672..1468097	-	141	86608867	-	CYB_1398	-	hypothetical protein
1364	 55.78	0	1468099..1468245	-	48	86608868	-	CYB_1399	-	hypothetical protein
1365	 57.70	0	1468228..1468863	+	211	86608869	-	CYB_1400	-	ExoD family protein
1366	 60.85	0	1468881..1470101	-	406	86608870	-	CYB_1401	-	putative S-layer protein
1367	 61.56	0	1470381..1471673	-	430	86608871	sufD	CYB_1402	-	FeS assembly protein SufD
1368	 56.13	0	1471670..1472485	-	271	86608872	sufC	CYB_1403	-	FeS assembly ATPase SufC
1369	 47.12	-2	1472583..1472981	-	132	86608873	mscL	CYB_1404	-	large conductance mechanosensitive channel protein
1370	 56.02	0	1473110..1474546	-	478	86608874	sufB	CYB_1405	-	cysteine desulfurase activator complex subunit SufB
1371	 60.67	0	1474726..1475442	+	238	86608875	sufR	CYB_1406	-	iron-sulfur cluster biosynthesis transcriptional regulator SufR
1372	 61.53	0	1475732..1476802	+	356	86608876	-	CYB_1407	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1373	 58.82	0	1477034..1477390	+	118	86608877	folB-1	CYB_1408	-	dihydroneopterin aldolase
1374	 60.65	0	1477421..1478002	+	193	86608878	miaE	CYB_1409	-	tRNA-(MS[2]IO[6]A)-hydroxylase
1375	 60.15	0	1478037..1479386	+	449	86608879	-	CYB_1410	-	sensor histidine kinase
1376	 56.57	0	1479599..1479796	-	65	86608880	-	CYB_1411	-	hypothetical protein
1377	 52.93	-1	1479696..1481996	+	766	86608881	-	CYB_1412	-	GDSL-like lipase/acylhydrolase domain-containing protein
1378	 61.02	0	1482257..1483867	-	536	86608882	lnt	CYB_1414	-	apolipoprotein N-acyltransferase
1379	 57.36	0	1484099..1484635	+	178	86608883	-	CYB_1415	-	HNH endonuclease domain-containing protein
1380	 61.86	0	1484645..1485580	-	311	86608884	-	CYB_1416	-	alpha/beta fold family hydrolase
1381	 59.47	0	1485677..1486204	-	175	86608885	cysC	CYB_1417	-	adenylylsulfate kinase
1382	 62.48	0	1486359..1487624	+	421	86608886	argD	CYB_1419	-	acetylornithine aminotransferase
1383	 63.36	+1	1487621..1488043	-	140	86608887	-	CYB_1418	-	hypothetical protein
1384	 59.39	0	1488218..1489042	+	274	86608888	-	CYB_1420	-	creatininase
1385	 60.67	0	1489481..1490731	-	416	86608889	aspB	CYB_1421	-	L,L-diaminopimelate aminotransferase
1386	 62.05	0	1490936..1491823	+	295	86608890	-	CYB_1422	-	leucine-rich repeat-containing protein
1387	 63.95	+1	1491837..1493015	-	392	86608891	-	CYB_1423	-	hypothetical protein
1388	 65.26	+1	1493069..1494565	-	498	86608892	hemG	CYB_1424	-	protoporphyrinogen oxidase
1389	 63.54	+1	1494723..1496033	-	436	86608893	hom	CYB_1425	-	homoserine dehydrogenase
1390	 61.39	0	1496238..1497014	-	258	86608894	gvpW	CYB_1426	-	gas vesicle protein W
1391	 60.25	0	1497273..1497911	+	212	86608895	-	CYB_1428	-	hypothetical protein
1392	 63.09	+1	1497843..1498625	-	260	86608896	surE	CYB_1427	-	stationary phase survival protein SurE
1393	 61.65	0	1498813..1499829	+	338	86608897	gap-1	CYB_1429	-	glyceraldehyde-3-phosphate dehydrogenase, type I
1394	 58.20	0	1499889..1501235	-	448	86608898	ampG	CYB_1430	-	peptide-acetyl-coenzyme A transporter (PAT) family protein AmpG
1395	 62.46	0	1501791..1502765	-	324	86608899	-	CYB_1431	-	oxidoreductase, NAD-binding
1396	 57.30	0	1502940..1503590	-	216	86608900	-	CYB_1432	-	iron-sulfur cluster-binding protein, putative
1397	 58.06	0	1503574..1503852	-	92	86608901	-	CYB_1433	-	hypothetical protein
1398	 59.06	0	1503976..1504527	-	183	86608902	-	CYB_1434	-	DNA protection protein
1399	 51.46	-1	1504815..1506077	+	420	86608903	-	CYB_1436	-	GTP-binding protein
1400	 55.25	0	1506069..1507049	-	326	86608904	-	CYB_1435	-	glycosyl transferase, group 2 family protein
1401	 61.04	0	1507121..1508080	-	319	86608905	hslO	CYB_1437	-	Hsp33-like chaperonin
1402	 58.44	0	1508399..1508884	+	161	86608906	apcA	CYB_1438	-	allophycocyanin, alpha subunit
1403	 58.64	0	1508948..1509433	+	161	86608907	apcB-1	CYB_1439	-	allophycocyanin, beta subunit
1404	 57.84	0	1509600..1509803	+	67	86608908	apcC	CYB_1440	-	phycobilisome 7.8 kDa linker polypeptide, allophycocyanin-associated, core
1405	 62.00	0	1509937..1510965	+	342	86608909	-	CYB_1441	-	ABC transporter, ATP-binding protein
1406	 59.90	0	1511096..1512736	-	546	86608910	leuA	CYB_1442	-	2-isopropylmalate synthase
1407	 59.89	0	1512796..1513710	-	304	86608911	-	CYB_1443	-	putative arylamine N-acetyltransferase
1408	 58.16	0	1513962..1514243	+	93	86608912	moaD	CYB_1444	-	molybdopterin converting factor, subunit 1
1409	 60.54	0	1514303..1516441	+	712	86608913	pnpA	CYB_1445	-	polynucleotide phosphorylase/polyadenylase
1410	 61.91	0	1516617..1518803	+	728	86608914	-	CYB_1446	-	sensor histidine kinase
1411	 57.21	0	1519383..1519604	-	73	86608915	-	CYB_1447	-	CAB/ELIP/HLIP family protein
1412	 61.70	0	1519801..1520283	+	160	86608916	-	CYB_1448	-	pyridoxamine 5'-phosphate oxidase family protein
1413	 61.43	0	1520351..1521286	-	311	86608917	-	CYB_1449	-	alpha/beta fold family hydrolase
1414	 54.84	0	1521393..1522610	-	405	86608918	-	CYB_1450	-	ISSoc1, transposase
1415	 63.96	+1	1522979..1525192	+	737	86608919	-	CYB_1451	-	hypothetical protein
1416	 56.28	0	1525407..1525955	+	182	86608920	-	CYB_1452	-	NADPH-dependent FMN reductase
58.48	MEAN

4.07	STD DEV
