IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

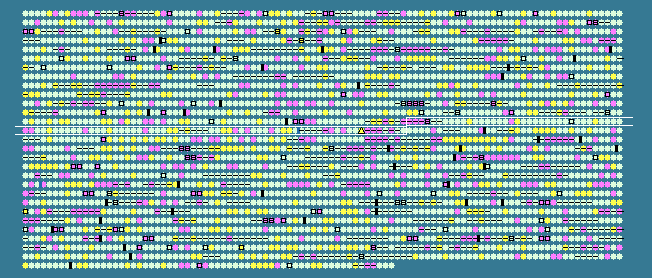

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1265	 48.15	-2	1352304..1355057	-	917	86608769	-	CYB_1294	-	macrocin-O-methyltransferase domain-containing protein
1266	 51.41	-1	1355062..1357113	-	683	86608770	-	CYB_1295	-	FkbM family methyltransferase
1267	 53.79	-1	1357129..1357959	-	276	86608771	-	CYB_1296	-	hypothetical protein
1268	 54.93	0	1358130..1359347	-	405	86608772	-	CYB_1297	-	ISSoc1, transposase
1269	 61.14	0	1359648..1361204	-	518	86608773	crtH	CYB_1298	-	carotenoid isomerase
1270	 59.41	0	1361408..1362427	+	339	86608774	-	CYB_1300	-	Rieske family iron-sulfur cluster-binding protein
1271	 60.67	0	1362410..1363360	-	316	86608775	potB	CYB_1299	-	spermidine/putrescine ABC transporter, permease protein
1272	 60.95	0	1363354..1364508	-	384	86608776	potA	CYB_1301	-	spermidine/putrescine ABC transporter, ATP-binding protein
1273	 61.05	0	1364733..1365587	-	284	86608777	-	CYB_1302	-	leucine-rich repeat-containing protein
1274	 60.11	0	1365814..1366362	-	182	86608778	-	CYB_1303	-	hypothetical protein
1275	 62.22	0	1366407..1368746	-	779	86608779	dnaX	CYB_1304	-	DNA polymerase III, subunits gamma and tau
1276	 60.00	0	1368869..1369348	-	159	86608780	-	CYB_1305	-	hypothetical protein
1277	 61.51	0	1369405..1370121	-	238	86608781	coaE	CYB_1306	-	dephospho-CoA kinase
1278	 61.72	0	1370139..1371857	-	572	86608782	-	CYB_1307	-	alpha-isopropylmalate/homocitrate synthase family transferase
1279	 55.38	0	1371847..1372218	-	123	86608783	-	CYB_1308	-	hypothetical protein
1280	 60.69	0	1372687..1373607	+	306	86608784	-	CYB_1309	-	hypothetical protein
1281	 61.04	0	1373768..1375492	+	574	86608785	-	CYB_1310	-	hypothetical protein
1282	 53.55	-1	1375774..1376055	+	93	86608786	-	CYB_1311	-	hypothetical protein
1283	 65.13	+1	1376080..1376469	-	129	86608787	-	CYB_1312	-	putative lipoprotein
1284	 57.44	0	1376501..1377226	-	241	86608788	-	CYB_1313	-	hypothetical protein
1285	 57.19	0	1377268..1377837	-	189	86608789	-	CYB_1314	-	hypothetical protein
1286	 57.94	0	1377927..1378178	-	83	86608790	-	CYB_1315	-	hypothetical protein
1287	 56.23	0	1378426..1378770	-	114	86608791	-	CYB_1316	-	ArsR family transcriptional regulator
1288	 60.59	0	1379591..1380676	-	361	86608792	-	CYB_1318	-	Ser/Thr protein phosphatase family protein
1289	 58.16	0	1381004..1381438	+	144	86608793	-	CYB_1319	-	FUR family transcriptional regulator
1290	 60.64	0	1381486..1383591	-	701	86608794	-	CYB_1320	-	hypothetical protein
1291	 61.90	0	1383698..1384201	-	167	86608795	-	CYB_1321	-	acetyltransferase
1292	 56.28	0	1384266..1385459	-	397	86608796	-	CYB_1322	-	ISSoc1, transposase
1293	 59.19	0	1385548..1386015	-	155	86608797	-	CYB_1323	-	cyclase/dehydrase family protein
1294	 57.73	0	1386259..1387086	+	275	86608798	-	CYB_1325	-	hypothetical protein
1295	 60.11	0	1387083..1387433	-	116	86608799	-	CYB_1324	-	antibiotic biosynthesis monooxygenase domain-containing protein
1296	 64.06	+1	1387469..1388773	-	434	86608800	aroA	CYB_1326	-	3-phosphoshikimate 1-carboxyvinyltransferase
1297	 61.35	0	1388992..1389951	+	319	86608801	mraW	CYB_1327	-	S-adenosyl-methyltransferase MraW
1298	 57.01	0	1390128..1390676	+	182	86608802	-	CYB_1328	-	hypothetical protein
1299	 57.66	0	1390883..1390993	+	36	86608803	-	CYB_1329	-	hypothetical protein
1300	 56.47	0	1391212..1393182	+	656	86608804	-	CYB_1330	-	outer membrane receptor (OMR) family protein
1301	 53.49	-1	1393332..1393718	+	128	86608805	-	CYB_1331	-	iron-sulfur cluster-binding protein, putative
1302	 54.83	0	1393730..1394599	+	289	86608806	-	CYB_1332	-	iron-sulfur cluster-binding protein, putative
1303	 55.86	0	1394604..1395251	+	215	86608807	-	CYB_1333	-	hypothetical protein
1304	 60.91	0	1395356..1397422	+	688	86608808	-	CYB_1334	-	arsenite-antimonite ArsAB efflux family transporter ATP-binding protein ArsAB
1305	 62.98	+1	1397455..1399515	+	686	86608809	ligA	CYB_1335	-	DNA ligase, NAD-dependent
1306	 57.16	0	1400328..1401674	+	448	86608810	clpX	CYB_1336	-	ATP-dependent protease ATP-binding subunit
1307	 60.58	0	1401745..1402434	+	229	86608811	-	CYB_1337	-	Trk family K(+) transporter
1308	 60.76	0	1402446..1403918	+	490	86608812	-	CYB_1338	-	Trk family K(+) transporter
1309	 57.45	0	1403997..1405103	+	368	86608813	-	CYB_1339	-	DRTGG domain-containing protein
1310	 61.96	0	1405600..1406109	+	169	86608814	rnhA	CYB_1340	-	ribonuclease H
1311	 53.16	-1	1406170..1409256	-	1028	86608815	-	CYB_1341	-	glycosyl transferase, group 1 family protein
1312	 61.01	0	1409784..1411427	+	547	86608816	-	CYB_1342	-	hypothetical protein
1313	 61.96	0	1411475..1412218	-	247	86608817	-	CYB_1343	-	DNA-binding response regulator
1314	 60.21	0	1412287..1413045	-	252	86608818	-	CYB_1344	-	sensor histidine kinase
1315	 62.61	+1	1413155..1414633	-	492	86608819	-	CYB_1345	-	sensor histidine kinase
1316	 61.20	0	1414778..1415764	-	328	86608820	-	CYB_1346	-	pentapeptide repeat-containing protein
1317	 58.03	0	1415906..1417561	-	551	86608821	-	CYB_1347	-	hypothetical protein
1318	 60.29	0	1417613..1418506	-	297	86608822	-	CYB_1348	-	succinate/fumarate oxidoreductase, putative
1319	 60.25	0	1419042..1419602	+	186	86608823	-	CYB_1349	-	hypothetical protein
1320	 59.60	0	1419905..1420654	+	249	86608824	-	CYB_1350	-	hypothetical protein
1321	 51.92	-1	1420708..1421019	-	103	86608825	-	CYB_1351	-	hypothetical protein
1322	 58.08	0	1421296..1421493	-	65	86608826	-	CYB_1352	-	hypothetical protein
1323	 61.55	0	1421431..1422348	+	305	86608827	rbsK	CYB_1353	-	ribokinase
1324	 55.65	0	1422603..1423346	+	247	86608828	-	CYB_1354	-	response regulator
1325	 62.31	0	1423513..1425348	-	611	86608829	-	CYB_1355	-	hypothetical protein
1326	 62.10	0	1425514..1426740	+	408	86608830	-	CYB_1356	-	pentapeptide repeat-containing protein
1327	 61.01	0	1426849..1427961	+	370	86608831	-	CYB_1357	-	YjgP/YjgQ family protein
1328	 63.18	+1	1429582..1430670	+	362	86608832	ald	CYB_1358	-	alanine dehydrogenase
1329	 58.27	0	1430708..1431481	-	257	86608833	-	CYB_1359	-	ABC transporter, permease protein
1330	 58.07	0	1431558..1432418	-	286	86608834	-	CYB_1360	-	ABC transporter, ATP-binding protein
1331	 58.77	0	1432669..1433301	-	210	86608835	-	CYB_1361	-	3'-5' exonuclease family protein
1332	 60.78	0	1433359..1433664	-	101	86608836	rpsN	CYB_1362	-	30S ribosomal protein S14
1333	 57.14	0	1433861..1434175	+	104	86608837	-	CYB_1364	-	hypothetical protein
1334	 62.08	0	1434172..1435719	-	515	86608838	-	CYB_1363	-	GTP-binding protein
1335	 62.20	0	1435803..1436294	-	163	86608839	-	CYB_1365	-	hypothetical protein
1336	 46.85	-2	1436483..1436593	-	36	86608840	-	CYB_1366	-	hypothetical protein
1337	 59.68	0	1436814..1437128	+	104	86608841	-	CYB_1367	-	hypothetical protein
1338	 52.66	-1	1437380..1439743	-	787	86608842	pcrA	CYB_1368	-	ATP-dependent DNA helicase PcrA
1339	 57.09	0	1439945..1440508	+	187	86608843	-	CYB_1369	-	hypothetical protein
1340	 60.44	0	1440739..1441284	+	181	86608844	-	CYB_1370	-	hypothetical protein
1341	 61.77	0	1441288..1442145	-	285	86608845	dapF	CYB_1371	-	diaminopimelate epimerase
1342	 54.55	0	1442184..1442315	-	43	86608846	psbN	CYB_1372	-	photosystem II reaction center protein N
1343	 55.39	0	1442518..1442721	+	67	86608847	psbH	CYB_1373	-	photosystem II reaction center protein H
1344	 63.11	+1	1442816..1443910	-	364	86608848	-	CYB_1374	-	glucose/sorbosone dehydrogenase family protein
1345	 63.46	+1	1444119..1446581	+	820	86608849	-	CYB_1375	-	glycosy hydrolase family protein
1346	 59.62	0	1446805..1447272	-	155	86608850	-	CYB_1376	-	anti-oxidant AhpCTSA family protein
1347	 60.14	0	1452738..1454039	-	433	86608851	folC	CYB_1382	-	folylpolyglutamate synthase
1348	 58.76	0	1454116..1455696	-	526	86608852	serA	CYB_1383	-	D-3-phosphoglycerate dehydrogenase
1349	 61.47	0	1455930..1457141	+	403	86608853	ackA	CYB_1384	-	acetate kinase
1350	 59.78	0	1457260..1457724	+	154	86608854	-	CYB_1385	-	putative lipoprotein
1351	 54.33	-1	1458254..1458796	+	180	86608855	-	CYB_1386	-	FHA domain-containing protein
1352	 48.84	-2	1458820..1458948	-	42	86608856	-	CYB_1387	-	hypothetical protein
1353	 57.62	0	1458975..1460996	+	673	86608857	-	CYB_1388	-	FHA domain-containing protein
1354	 52.32	-1	1461255..1461707	+	150	86608858	-	CYB_1389	-	hypothetical protein
1355	 61.86	0	1461829..1462764	+	311	86608859	ispE	CYB_1390	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
1356	 61.65	0	1462919..1464274	+	451	86608860	accC	CYB_1391	-	acetyl-CoA carboxylase biotin carboxylase subunit
1357	 62.03	0	1464369..1465361	+	330	86608861	-	CYB_1392	-	phage integrase family site specific recombinase
1358	 44.74	-2	1465526..1466551	-	341	86608862	-	CYB_1393	-	hypothetical protein
1359	 50.45	-1	1466542..1466985	-	147	86608863	-	CYB_1394	-	DnaJ domain-containing protein
1360	 47.01	-2	1467080..1467196	+	38	86608864	-	CYB_1395	-	hypothetical protein
1361	 59.67	0	1467236..1467478	-	80	86608865	-	CYB_1396	-	carbohydrate ABC transporter ATP-binding protein
1362	 51.98	-1	1467480..1467656	-	58	86608866	-	CYB_1397	-	hypothetical protein
1363	 61.27	0	1467672..1468097	-	141	86608867	-	CYB_1398	-	hypothetical protein
1364	 55.78	0	1468099..1468245	-	48	86608868	-	CYB_1399	-	hypothetical protein
58.48	MEAN

4.07	STD DEV
