IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

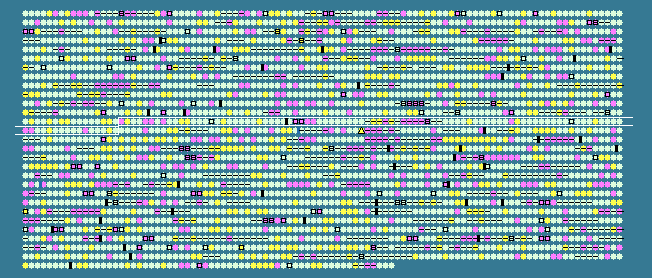

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1217	 53.78	-1	1293385..1293609	-	74	86608721	psaE	CYB_1245	-	photosystem I reaction center subunit IV
1218	 62.82	+1	1293729..1294613	+	294	86608722	-	CYB_1246	-	penicillin-binding protein
1219	 55.56	0	1294730..1294882	+	50	86608723	-	CYB_1247	-	CAB/ELIP/HLIP family protein
1220	 61.60	0	1295153..1296829	-	558	86608724	nadE	CYB_1248	-	NAD+ synthetase
1221	 54.53	0	1296879..1297727	-	282	86608725	-	CYB_1249	-	sensor histidine kinase
1222	 51.33	-1	1297936..1300380	-	814	86608726	-	CYB_1250	-	sensory box protein
1223	 55.13	0	1300591..1302462	-	623	86608727	uvrC	CYB_1251	-	excinuclease ABC subunit C
1224	 54.17	-1	1303083..1303178	+	31	86608728	-	CYB_1252	-	hypothetical protein
1225	 61.85	0	1303586..1308193	+	1535	86608729	gltS	CYB_1253	-	ferredoxin-dependent glutamate synthase
1226	 57.42	0	1308298..1309389	+	363	86608730	acsF	CYB_1254	-	magnesium-protoporphyrin IX monomethyl ester cyclase
1227	 62.67	+1	1309437..1310912	+	491	86608731	-	CYB_1255	-	hypothetical protein
1228	 63.20	+1	1310954..1312915	+	653	86608732	-	CYB_1256	-	TPR domain-containing protein
1229	 59.43	0	1313018..1314289	+	423	86608733	-	CYB_1257	-	chromate transporter
1230	 58.16	0	1314364..1315503	-	379	86608734	lgt-1	CYB_1258	-	prolipoprotein diacylglyceryl transferase
1231	 57.26	0	1315983..1316333	+	116	86608735	-	CYB_1260	-	hypothetical protein
1232	 57.12	0	1316313..1317548	-	411	86608736	-	CYB_1259	-	ISSoc1, transposase
1233	 60.55	0	1317828..1319036	+	402	86608737	-	CYB_1261	-	coenzyme F420 hydrogenase/dehydrogenase family protein
1234	 63.58	+1	1319040..1320236	-	398	86608738	-	CYB_1262	-	aspartate aminotransferase
1235	 61.09	0	1320403..1321782	+	459	86608739	engA	CYB_1263	-	GTP-binding protein EngA
1236	 59.57	0	1321806..1322270	+	154	86608740	smpB	CYB_1264	-	SsrA-binding protein
1237	 58.21	0	1322410..1323615	+	401	86608741	-	CYB_1265	-	hypothetical protein
1238	 58.37	0	1323627..1324229	-	200	86608742	-	CYB_1266	-	glutathione S-transferase
1239	 58.16	0	1324328..1325515	-	395	86608743	-	CYB_1267	-	Rieske family iron-sulfur cluster-binding protein
1240	 62.89	+1	1325696..1326781	-	361	86608744	era	CYB_1268	-	GTP-binding protein Era
1241	 60.84	0	1327064..1328677	-	537	86608745	-	CYB_1269	-	SpoIID/LytB domain-containing protein
1242	 61.94	0	1328938..1329297	+	119	86608746	-	CYB_1270	-	hypothetical protein
1243	 60.47	0	1329387..1330193	+	268	86608747	-	CYB_1271	-	oxidoreductase, molybdopterin-binding subunit
1244	 55.86	0	1330656..1331201	+	181	86608748	-	CYB_1272	-	type IV pilin, putative
1245	 55.17	0	1331510..1331944	+	144	86608749	-	CYB_1274	-	hypothetical protein
1246	 42.89	-2	1332151..1332558	-	135	86608750	-	CYB_1275	-	ISSoc13, transposase orfB
1247	 44.97	-2	1332516..1332893	-	125	86608751	-	CYB_1276	-	ISSoc13, transposase orfA
1248	 50.76	-1	1333326..1333652	+	108	86608752	-	CYB_1277	-	hypothetical protein
1249	 53.40	-1	1333697..1334005	-	102	86608753	-	CYB_1278	-	NADH dehydrogenase subunit K
1250	 57.14	0	1334083..1334691	-	202	86608754	-	CYB_1279	-	NADH dehydrogenase subunit J
1251	 59.28	0	1334811..1336124	-	437	86608755	-	CYB_1280	-	hypothetical protein
1252	 61.34	0	1336294..1337025	-	243	86608756	-	CYB_1281	-	biotin/lipoate A/B protein ligase family protein
1253	 56.13	0	1337043..1337507	-	154	86608757	-	CYB_1282	-	hypothetical protein
1254	 61.64	0	1337729..1338484	+	251	86608758	mtnN	CYB_1283	-	MTA/SAH nucleosidase
1255	 58.79	0	1338555..1339532	-	325	86608759	-	CYB_1284	-	nuclease, putative
1256	 59.89	0	1339837..1340559	-	240	86608760	-	CYB_1285	-	hypothetical protein
1257	 57.32	0	1340741..1342003	+	420	86608761	-	CYB_1286	-	hypothetical protein
1258	 61.56	0	1342377..1343864	+	495	86608762	-	CYB_1287	-	hypothetical protein
1259	 62.04	0	1343931..1344449	+	172	86608763	-	CYB_1288	-	hypothetical protein
1260	 62.18	0	1344744..1345835	+	363	86608764	lpxD	CYB_1289	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1261	 46.83	-2	1345865..1348027	-	720	86608765	-	CYB_1290	-	FkbM family methyltransferase
1262	 65.77	+1	1348354..1348464	+	36	86608766	-	CYB_1291	-	hypothetical protein
1263	 58.23	0	1348755..1349453	+	232	86608767	-	CYB_1292	-	hypothetical protein
1264	 48.68	-2	1349487..1352222	-	911	86608768	-	CYB_1293	-	macrocin-O-methyltransferase domain-containing protein
1265	 48.15	-2	1352304..1355057	-	917	86608769	-	CYB_1294	-	macrocin-O-methyltransferase domain-containing protein
1266	 51.41	-1	1355062..1357113	-	683	86608770	-	CYB_1295	-	FkbM family methyltransferase
1267	 53.79	-1	1357129..1357959	-	276	86608771	-	CYB_1296	-	hypothetical protein
1268	 54.93	0	1358130..1359347	-	405	86608772	-	CYB_1297	-	ISSoc1, transposase
1269	 61.14	0	1359648..1361204	-	518	86608773	crtH	CYB_1298	-	carotenoid isomerase
1270	 59.41	0	1361408..1362427	+	339	86608774	-	CYB_1300	-	Rieske family iron-sulfur cluster-binding protein
1271	 60.67	0	1362410..1363360	-	316	86608775	potB	CYB_1299	-	spermidine/putrescine ABC transporter, permease protein
1272	 60.95	0	1363354..1364508	-	384	86608776	potA	CYB_1301	-	spermidine/putrescine ABC transporter, ATP-binding protein
1273	 61.05	0	1364733..1365587	-	284	86608777	-	CYB_1302	-	leucine-rich repeat-containing protein
1274	 60.11	0	1365814..1366362	-	182	86608778	-	CYB_1303	-	hypothetical protein
1275	 62.22	0	1366407..1368746	-	779	86608779	dnaX	CYB_1304	-	DNA polymerase III, subunits gamma and tau
1276	 60.00	0	1368869..1369348	-	159	86608780	-	CYB_1305	-	hypothetical protein
1277	 61.51	0	1369405..1370121	-	238	86608781	coaE	CYB_1306	-	dephospho-CoA kinase
1278	 61.72	0	1370139..1371857	-	572	86608782	-	CYB_1307	-	alpha-isopropylmalate/homocitrate synthase family transferase
1279	 55.38	0	1371847..1372218	-	123	86608783	-	CYB_1308	-	hypothetical protein
1280	 60.69	0	1372687..1373607	+	306	86608784	-	CYB_1309	-	hypothetical protein
1281	 61.04	0	1373768..1375492	+	574	86608785	-	CYB_1310	-	hypothetical protein
1282	 53.55	-1	1375774..1376055	+	93	86608786	-	CYB_1311	-	hypothetical protein
1283	 65.13	+1	1376080..1376469	-	129	86608787	-	CYB_1312	-	putative lipoprotein
1284	 57.44	0	1376501..1377226	-	241	86608788	-	CYB_1313	-	hypothetical protein
1285	 57.19	0	1377268..1377837	-	189	86608789	-	CYB_1314	-	hypothetical protein
1286	 57.94	0	1377927..1378178	-	83	86608790	-	CYB_1315	-	hypothetical protein
1287	 56.23	0	1378426..1378770	-	114	86608791	-	CYB_1316	-	ArsR family transcriptional regulator
1288	 60.59	0	1379591..1380676	-	361	86608792	-	CYB_1318	-	Ser/Thr protein phosphatase family protein
1289	 58.16	0	1381004..1381438	+	144	86608793	-	CYB_1319	-	FUR family transcriptional regulator
1290	 60.64	0	1381486..1383591	-	701	86608794	-	CYB_1320	-	hypothetical protein
1291	 61.90	0	1383698..1384201	-	167	86608795	-	CYB_1321	-	acetyltransferase
1292	 56.28	0	1384266..1385459	-	397	86608796	-	CYB_1322	-	ISSoc1, transposase
1293	 59.19	0	1385548..1386015	-	155	86608797	-	CYB_1323	-	cyclase/dehydrase family protein
1294	 57.73	0	1386259..1387086	+	275	86608798	-	CYB_1325	-	hypothetical protein
1295	 60.11	0	1387083..1387433	-	116	86608799	-	CYB_1324	-	antibiotic biosynthesis monooxygenase domain-containing protein
1296	 64.06	+1	1387469..1388773	-	434	86608800	aroA	CYB_1326	-	3-phosphoshikimate 1-carboxyvinyltransferase
1297	 61.35	0	1388992..1389951	+	319	86608801	mraW	CYB_1327	-	S-adenosyl-methyltransferase MraW
1298	 57.01	0	1390128..1390676	+	182	86608802	-	CYB_1328	-	hypothetical protein
1299	 57.66	0	1390883..1390993	+	36	86608803	-	CYB_1329	-	hypothetical protein
1300	 56.47	0	1391212..1393182	+	656	86608804	-	CYB_1330	-	outer membrane receptor (OMR) family protein
1301	 53.49	-1	1393332..1393718	+	128	86608805	-	CYB_1331	-	iron-sulfur cluster-binding protein, putative
1302	 54.83	0	1393730..1394599	+	289	86608806	-	CYB_1332	-	iron-sulfur cluster-binding protein, putative
1303	 55.86	0	1394604..1395251	+	215	86608807	-	CYB_1333	-	hypothetical protein
1304	 60.91	0	1395356..1397422	+	688	86608808	-	CYB_1334	-	arsenite-antimonite ArsAB efflux family transporter ATP-binding protein ArsAB
1305	 62.98	+1	1397455..1399515	+	686	86608809	ligA	CYB_1335	-	DNA ligase, NAD-dependent
1306	 57.16	0	1400328..1401674	+	448	86608810	clpX	CYB_1336	-	ATP-dependent protease ATP-binding subunit
1307	 60.58	0	1401745..1402434	+	229	86608811	-	CYB_1337	-	Trk family K(+) transporter
1308	 60.76	0	1402446..1403918	+	490	86608812	-	CYB_1338	-	Trk family K(+) transporter
1309	 57.45	0	1403997..1405103	+	368	86608813	-	CYB_1339	-	DRTGG domain-containing protein
1310	 61.96	0	1405600..1406109	+	169	86608814	rnhA	CYB_1340	-	ribonuclease H
1311	 53.16	-1	1406170..1409256	-	1028	86608815	-	CYB_1341	-	glycosyl transferase, group 1 family protein
1312	 61.01	0	1409784..1411427	+	547	86608816	-	CYB_1342	-	hypothetical protein
1313	 61.96	0	1411475..1412218	-	247	86608817	-	CYB_1343	-	DNA-binding response regulator
1314	 60.21	0	1412287..1413045	-	252	86608818	-	CYB_1344	-	sensor histidine kinase
1315	 62.61	+1	1413155..1414633	-	492	86608819	-	CYB_1345	-	sensor histidine kinase
1316	 61.20	0	1414778..1415764	-	328	86608820	-	CYB_1346	-	pentapeptide repeat-containing protein
58.48	MEAN

4.07	STD DEV
