IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

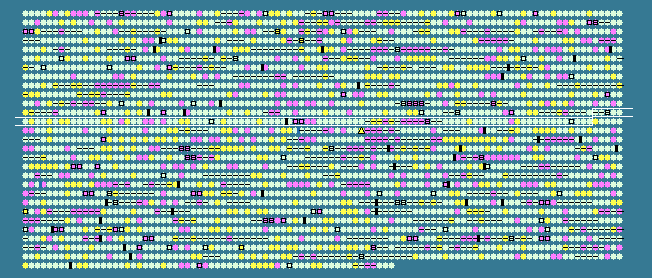

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1196	 58.39	0	1266950..1267360	+	136	86608700	rplL	CYB_1224	-	50S ribosomal protein L7/L12
1197	 58.23	0	1267418..1267654	-	78	86608701	-	CYB_1225	-	hypothetical protein
1198	 57.93	0	1267757..1268992	+	411	86608702	-	CYB_1227	-	ISSoc1, transposase
1199	 55.67	0	1268972..1269817	-	281	86608703	-	CYB_1226	-	Rieske family iron-sulfur cluster-binding protein
1200	 59.71	0	1270032..1271426	+	464	86608704	-	CYB_1228	-	TonB family protein
1201	 55.38	0	1271496..1271681	-	61	86608705	rpsU	CYB_1229	-	30S ribosomal protein S21
1202	 62.70	+1	1272036..1273322	-	428	86608706	-	CYB_1230	-	trypsin domain-containing lipoprotein
1203	 60.46	0	1273448..1274140	+	230	86608707	-	CYB_1231	-	putative partition protein A
1204	 59.18	0	1274137..1274430	+	97	86608708	-	CYB_1232	-	hypothetical protein
1205	 63.02	+1	1274682..1275860	+	392	86608709	dxr	CYB_1233	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1206	 60.77	0	1275920..1277683	+	587	86608710	-	CYB_1234	-	heavy metal ABC transporter (HMT) family permease/ATP-binding protein
1207	 64.71	+1	1277744..1279276	+	510	86608711	murE	CYB_1235	-	UDP-N-acetylmuramyl-tripeptide synthetase
1208	 62.21	0	1279279..1280466	-	395	86608712	carA	CYB_1236	-	carbamoyl phosphate synthase small subunit
1209	 55.09	0	1280528..1281391	-	287	86608713	-	CYB_1237	-	type IV pilin, putative
1210	 56.87	0	1281432..1282544	-	370	86608714	-	CYB_1238	-	type IV pilin, putative
1211	 58.73	0	1282595..1283350	-	251	86608715	-	CYB_1239	-	type IV pilin, putative
1212	 60.26	0	1283415..1290932	-	2505	86608716	-	CYB_1240	-	hypothetical protein
1213	 59.17	0	1290942..1291061	-	39	86608717	-	CYB_1241	-	hypothetical protein
1214	 62.48	0	1291088..1291684	-	198	86608718	-	CYB_1242	-	DNA-binding response regulator
1215	 62.18	0	1291789..1292412	-	207	86608719	-	CYB_1243	-	pentapeptide repeat-containing protein
1216	 60.71	0	1292499..1293338	-	279	86608720	mutM	CYB_1244	-	formamidopyrimidine-DNA glycosylase
1217	 53.78	-1	1293385..1293609	-	74	86608721	psaE	CYB_1245	-	photosystem I reaction center subunit IV
1218	 62.82	+1	1293729..1294613	+	294	86608722	-	CYB_1246	-	penicillin-binding protein
1219	 55.56	0	1294730..1294882	+	50	86608723	-	CYB_1247	-	CAB/ELIP/HLIP family protein
1220	 61.60	0	1295153..1296829	-	558	86608724	nadE	CYB_1248	-	NAD+ synthetase
1221	 54.53	0	1296879..1297727	-	282	86608725	-	CYB_1249	-	sensor histidine kinase
1222	 51.33	-1	1297936..1300380	-	814	86608726	-	CYB_1250	-	sensory box protein
1223	 55.13	0	1300591..1302462	-	623	86608727	uvrC	CYB_1251	-	excinuclease ABC subunit C
1224	 54.17	-1	1303083..1303178	+	31	86608728	-	CYB_1252	-	hypothetical protein
1225	 61.85	0	1303586..1308193	+	1535	86608729	gltS	CYB_1253	-	ferredoxin-dependent glutamate synthase
1226	 57.42	0	1308298..1309389	+	363	86608730	acsF	CYB_1254	-	magnesium-protoporphyrin IX monomethyl ester cyclase
1227	 62.67	+1	1309437..1310912	+	491	86608731	-	CYB_1255	-	hypothetical protein
1228	 63.20	+1	1310954..1312915	+	653	86608732	-	CYB_1256	-	TPR domain-containing protein
1229	 59.43	0	1313018..1314289	+	423	86608733	-	CYB_1257	-	chromate transporter
1230	 58.16	0	1314364..1315503	-	379	86608734	lgt-1	CYB_1258	-	prolipoprotein diacylglyceryl transferase
1231	 57.26	0	1315983..1316333	+	116	86608735	-	CYB_1260	-	hypothetical protein
1232	 57.12	0	1316313..1317548	-	411	86608736	-	CYB_1259	-	ISSoc1, transposase
1233	 60.55	0	1317828..1319036	+	402	86608737	-	CYB_1261	-	coenzyme F420 hydrogenase/dehydrogenase family protein
1234	 63.58	+1	1319040..1320236	-	398	86608738	-	CYB_1262	-	aspartate aminotransferase
1235	 61.09	0	1320403..1321782	+	459	86608739	engA	CYB_1263	-	GTP-binding protein EngA
1236	 59.57	0	1321806..1322270	+	154	86608740	smpB	CYB_1264	-	SsrA-binding protein
1237	 58.21	0	1322410..1323615	+	401	86608741	-	CYB_1265	-	hypothetical protein
1238	 58.37	0	1323627..1324229	-	200	86608742	-	CYB_1266	-	glutathione S-transferase
1239	 58.16	0	1324328..1325515	-	395	86608743	-	CYB_1267	-	Rieske family iron-sulfur cluster-binding protein
1240	 62.89	+1	1325696..1326781	-	361	86608744	era	CYB_1268	-	GTP-binding protein Era
1241	 60.84	0	1327064..1328677	-	537	86608745	-	CYB_1269	-	SpoIID/LytB domain-containing protein
1242	 61.94	0	1328938..1329297	+	119	86608746	-	CYB_1270	-	hypothetical protein
1243	 60.47	0	1329387..1330193	+	268	86608747	-	CYB_1271	-	oxidoreductase, molybdopterin-binding subunit
1244	 55.86	0	1330656..1331201	+	181	86608748	-	CYB_1272	-	type IV pilin, putative
1245	 55.17	0	1331510..1331944	+	144	86608749	-	CYB_1274	-	hypothetical protein
1246	 42.89	-2	1332151..1332558	-	135	86608750	-	CYB_1275	-	ISSoc13, transposase orfB
1247	 44.97	-2	1332516..1332893	-	125	86608751	-	CYB_1276	-	ISSoc13, transposase orfA
1248	 50.76	-1	1333326..1333652	+	108	86608752	-	CYB_1277	-	hypothetical protein
1249	 53.40	-1	1333697..1334005	-	102	86608753	-	CYB_1278	-	NADH dehydrogenase subunit K
1250	 57.14	0	1334083..1334691	-	202	86608754	-	CYB_1279	-	NADH dehydrogenase subunit J
1251	 59.28	0	1334811..1336124	-	437	86608755	-	CYB_1280	-	hypothetical protein
1252	 61.34	0	1336294..1337025	-	243	86608756	-	CYB_1281	-	biotin/lipoate A/B protein ligase family protein
1253	 56.13	0	1337043..1337507	-	154	86608757	-	CYB_1282	-	hypothetical protein
1254	 61.64	0	1337729..1338484	+	251	86608758	mtnN	CYB_1283	-	MTA/SAH nucleosidase
1255	 58.79	0	1338555..1339532	-	325	86608759	-	CYB_1284	-	nuclease, putative
1256	 59.89	0	1339837..1340559	-	240	86608760	-	CYB_1285	-	hypothetical protein
1257	 57.32	0	1340741..1342003	+	420	86608761	-	CYB_1286	-	hypothetical protein
1258	 61.56	0	1342377..1343864	+	495	86608762	-	CYB_1287	-	hypothetical protein
1259	 62.04	0	1343931..1344449	+	172	86608763	-	CYB_1288	-	hypothetical protein
1260	 62.18	0	1344744..1345835	+	363	86608764	lpxD	CYB_1289	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1261	 46.83	-2	1345865..1348027	-	720	86608765	-	CYB_1290	-	FkbM family methyltransferase
1262	 65.77	+1	1348354..1348464	+	36	86608766	-	CYB_1291	-	hypothetical protein
1263	 58.23	0	1348755..1349453	+	232	86608767	-	CYB_1292	-	hypothetical protein
1264	 48.68	-2	1349487..1352222	-	911	86608768	-	CYB_1293	-	macrocin-O-methyltransferase domain-containing protein
1265	 48.15	-2	1352304..1355057	-	917	86608769	-	CYB_1294	-	macrocin-O-methyltransferase domain-containing protein
1266	 51.41	-1	1355062..1357113	-	683	86608770	-	CYB_1295	-	FkbM family methyltransferase
1267	 53.79	-1	1357129..1357959	-	276	86608771	-	CYB_1296	-	hypothetical protein
1268	 54.93	0	1358130..1359347	-	405	86608772	-	CYB_1297	-	ISSoc1, transposase
1269	 61.14	0	1359648..1361204	-	518	86608773	crtH	CYB_1298	-	carotenoid isomerase
1270	 59.41	0	1361408..1362427	+	339	86608774	-	CYB_1300	-	Rieske family iron-sulfur cluster-binding protein
1271	 60.67	0	1362410..1363360	-	316	86608775	potB	CYB_1299	-	spermidine/putrescine ABC transporter, permease protein
1272	 60.95	0	1363354..1364508	-	384	86608776	potA	CYB_1301	-	spermidine/putrescine ABC transporter, ATP-binding protein
1273	 61.05	0	1364733..1365587	-	284	86608777	-	CYB_1302	-	leucine-rich repeat-containing protein
1274	 60.11	0	1365814..1366362	-	182	86608778	-	CYB_1303	-	hypothetical protein
1275	 62.22	0	1366407..1368746	-	779	86608779	dnaX	CYB_1304	-	DNA polymerase III, subunits gamma and tau
1276	 60.00	0	1368869..1369348	-	159	86608780	-	CYB_1305	-	hypothetical protein
1277	 61.51	0	1369405..1370121	-	238	86608781	coaE	CYB_1306	-	dephospho-CoA kinase
1278	 61.72	0	1370139..1371857	-	572	86608782	-	CYB_1307	-	alpha-isopropylmalate/homocitrate synthase family transferase
1279	 55.38	0	1371847..1372218	-	123	86608783	-	CYB_1308	-	hypothetical protein
1280	 60.69	0	1372687..1373607	+	306	86608784	-	CYB_1309	-	hypothetical protein
1281	 61.04	0	1373768..1375492	+	574	86608785	-	CYB_1310	-	hypothetical protein
1282	 53.55	-1	1375774..1376055	+	93	86608786	-	CYB_1311	-	hypothetical protein
1283	 65.13	+1	1376080..1376469	-	129	86608787	-	CYB_1312	-	putative lipoprotein
1284	 57.44	0	1376501..1377226	-	241	86608788	-	CYB_1313	-	hypothetical protein
1285	 57.19	0	1377268..1377837	-	189	86608789	-	CYB_1314	-	hypothetical protein
1286	 57.94	0	1377927..1378178	-	83	86608790	-	CYB_1315	-	hypothetical protein
1287	 56.23	0	1378426..1378770	-	114	86608791	-	CYB_1316	-	ArsR family transcriptional regulator
1288	 60.59	0	1379591..1380676	-	361	86608792	-	CYB_1318	-	Ser/Thr protein phosphatase family protein
1289	 58.16	0	1381004..1381438	+	144	86608793	-	CYB_1319	-	FUR family transcriptional regulator
1290	 60.64	0	1381486..1383591	-	701	86608794	-	CYB_1320	-	hypothetical protein
1291	 61.90	0	1383698..1384201	-	167	86608795	-	CYB_1321	-	acetyltransferase
1292	 56.28	0	1384266..1385459	-	397	86608796	-	CYB_1322	-	ISSoc1, transposase
1293	 59.19	0	1385548..1386015	-	155	86608797	-	CYB_1323	-	cyclase/dehydrase family protein
1294	 57.73	0	1386259..1387086	+	275	86608798	-	CYB_1325	-	hypothetical protein
1295	 60.11	0	1387083..1387433	-	116	86608799	-	CYB_1324	-	antibiotic biosynthesis monooxygenase domain-containing protein
58.48	MEAN

4.07	STD DEV
