IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

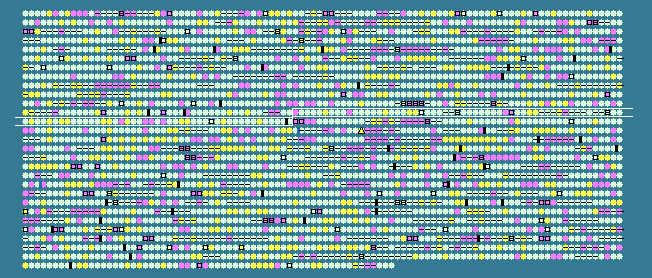

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1146	 52.46	-1	1212203..1212730	+	175	86608650	-	CYB_1174	-	FHA domain-containing protein
1147	 56.32	0	1212761..1213504	+	247	86608651	-	CYB_1175	-	hypothetical protein
1148	 57.73	0	1213522..1214304	+	260	86608652	-	CYB_1176	-	hypothetical protein
1149	 58.93	0	1214559..1215359	+	266	86608653	-	CYB_1177	-	putative lipoprotein
1150	 57.56	0	1215658..1216239	+	193	86608654	-	CYB_1178	-	RNA polymerase sigma factor
1151	 63.23	+1	1216236..1216991	+	251	86608655	-	CYB_1179	-	hypothetical protein
1152	 56.76	0	1217125..1217346	+	73	86608656	-	CYB_1180	-	hypothetical protein
1153	 59.42	0	1217387..1218214	+	275	86608657	-	CYB_1181	-	carbon-nitrogen family hydrolase
1154	 60.92	0	1218224..1218484	+	86	86608658	-	CYB_1182	-	glutaredoxin family protein
1155	 52.57	-1	1218522..1222019	-	1165	86608659	dnaE	CYB_1183	-	DNA polymerase III subunit alpha
1156	 60.58	0	1222137..1223204	+	355	86608660	selD	CYB_1184	-	selenide, water dikinase
1157	 59.24	0	1223348..1223845	+	165	86608661	-	CYB_1185	-	hypothetical protein
1158	 59.85	0	1223892..1225124	+	410	86608662	-	CYB_1186	-	oligopeptide ABC transporter, permease protein
1159	 58.70	0	1225172..1226113	-	313	86608663	-	CYB_1187	-	TPR domain-containing protein
1160	 57.89	0	1226375..1227001	+	208	86608664	-	CYB_1188	-	hypothetical protein
1161	 64.72	+1	1227223..1228095	-	290	86608665	-	CYB_1189	-	hypothetical protein
1162	 61.90	0	1228692..1229426	+	244	86608666	-	CYB_1190	-	HEAT repeat-containing PBS lyase
1163	 61.88	0	1229529..1230635	+	368	86608667	trmU	CYB_1191	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1164	 58.26	0	1230694..1231359	-	221	86608668	-	CYB_1192	-	hypothetical protein
1165	 62.12	0	1231467..1232786	-	439	86608669	-	CYB_1193	-	amine oxidase, flavin-containing
1166	 63.03	+1	1233137..1235416	-	759	86608670	-	CYB_1194	-	WD repeat-/protein kinase domain-containing protein
1167	 56.10	0	1235563..1236717	+	384	86608671	-	CYB_1195	-	ISSoc8, transposase
1168	 61.09	0	1236891..1239794	-	967	86608672	uvrA	CYB_1196	-	excinuclease ABC subunit A
1169	 61.22	0	1239978..1242344	+	788	86608673	-	CYB_1197	-	putative membrane-bound protease
1170	 58.81	0	1242592..1243941	+	449	86608674	-	CYB_1198	-	alkaline phosphatase
1171	 55.21	0	1243950..1244045	+	31	86608675	-	CYB_1199	-	hypothetical protein
1172	 55.40	0	1244278..1244703	+	141	86608676	-	CYB_1200	-	MarR family transcriptional regulator
1173	 56.47	0	1244786..1246021	+	411	86608677	-	CYB_1201	-	ISSoc1, transposase
1174	 61.13	0	1246086..1247060	-	324	86608678	-	CYB_1202	-	hydrophobic amino acid uptake ABC transporter permease
1175	 56.73	0	1247141..1247623	-	160	86608679	-	CYB_1203	-	hypothetical protein
1176	 57.49	0	1247663..1248196	+	177	86608680	-	CYB_1204	-	TM2 domain-containing protein
1177	 60.13	0	1248215..1248994	-	259	86608681	-	CYB_1205	-	putative ABC-2 type transporter, permease protein
1178	 60.47	0	1248994..1249929	-	311	86608682	-	CYB_1206	-	drug exporter ABC transporter ATP-binding protein
1179	 59.82	0	1250050..1253526	-	1158	86608683	mfd	CYB_1207	-	transcription-repair coupling factor
1180	 57.05	0	1253989..1255434	+	481	86608684	cydA	CYB_1208	-	cytochrome d ubiquinol oxidase, subunit I
1181	 54.48	0	1255628..1256677	+	349	86608685	cydB	CYB_1209	-	cytochrome d ubiquinol oxidase, subunit II
1182	 54.01	-1	1256771..1257394	-	207	86608686	-	CYB_1210	-	ISSoc2, transposase, truncation
1183	 57.41	0	1257376..1259115	-	579	86608687	-	CYB_1211	-	hypothetical protein
1184	 59.36	0	1259510..1260043	-	177	86608688	rimI	CYB_1212	-	ribosomal-protein-alanine acetyltransferase
1185	 62.00	0	1260050..1260499	-	149	86608689	-	CYB_1213	-	hypothetical protein
1186	 62.78	+1	1260496..1261680	-	394	86608690	purK	CYB_1214	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1187	 57.51	0	1261703..1261975	+	90	86608691	-	CYB_1215	-	hypothetical protein
1188	 57.89	0	1262126..1262524	+	132	86608692	-	CYB_1216	-	hypothetical protein
1189	 61.77	0	1262530..1263285	+	251	86608693	trmD	CYB_1217	-	tRNA (guanine-N(1)-)-methyltransferase
1190	 62.43	0	1263289..1263666	+	125	86608694	-	CYB_1218	-	hypothetical protein
1191	 54.21	-1	1263770..1264042	+	90	86608695	secE	CYB_1219	-	preprotein translocase subunit SecE
1192	 59.01	0	1264105..1264770	+	221	86608696	nusG	CYB_1220	-	transcription antitermination protein NusG
1193	 58.92	0	1264780..1265205	+	141	86608697	rplK	CYB_1221	-	50S ribosomal protein L11
1194	 58.65	0	1265312..1266022	+	236	86608698	rplA	CYB_1222	-	50S ribosomal protein L1
1195	 59.75	0	1266321..1266884	+	187	86608699	rplJ	CYB_1223	-	50S ribosomal protein L10
1196	 58.39	0	1266950..1267360	+	136	86608700	rplL	CYB_1224	-	50S ribosomal protein L7/L12
1197	 58.23	0	1267418..1267654	-	78	86608701	-	CYB_1225	-	hypothetical protein
1198	 57.93	0	1267757..1268992	+	411	86608702	-	CYB_1227	-	ISSoc1, transposase
1199	 55.67	0	1268972..1269817	-	281	86608703	-	CYB_1226	-	Rieske family iron-sulfur cluster-binding protein
1200	 59.71	0	1270032..1271426	+	464	86608704	-	CYB_1228	-	TonB family protein
1201	 55.38	0	1271496..1271681	-	61	86608705	rpsU	CYB_1229	-	30S ribosomal protein S21
1202	 62.70	+1	1272036..1273322	-	428	86608706	-	CYB_1230	-	trypsin domain-containing lipoprotein
1203	 60.46	0	1273448..1274140	+	230	86608707	-	CYB_1231	-	putative partition protein A
1204	 59.18	0	1274137..1274430	+	97	86608708	-	CYB_1232	-	hypothetical protein
1205	 63.02	+1	1274682..1275860	+	392	86608709	dxr	CYB_1233	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1206	 60.77	0	1275920..1277683	+	587	86608710	-	CYB_1234	-	heavy metal ABC transporter (HMT) family permease/ATP-binding protein
1207	 64.71	+1	1277744..1279276	+	510	86608711	murE	CYB_1235	-	UDP-N-acetylmuramyl-tripeptide synthetase
1208	 62.21	0	1279279..1280466	-	395	86608712	carA	CYB_1236	-	carbamoyl phosphate synthase small subunit
1209	 55.09	0	1280528..1281391	-	287	86608713	-	CYB_1237	-	type IV pilin, putative
1210	 56.87	0	1281432..1282544	-	370	86608714	-	CYB_1238	-	type IV pilin, putative
1211	 58.73	0	1282595..1283350	-	251	86608715	-	CYB_1239	-	type IV pilin, putative
1212	 60.26	0	1283415..1290932	-	2505	86608716	-	CYB_1240	-	hypothetical protein
1213	 59.17	0	1290942..1291061	-	39	86608717	-	CYB_1241	-	hypothetical protein
1214	 62.48	0	1291088..1291684	-	198	86608718	-	CYB_1242	-	DNA-binding response regulator
1215	 62.18	0	1291789..1292412	-	207	86608719	-	CYB_1243	-	pentapeptide repeat-containing protein
1216	 60.71	0	1292499..1293338	-	279	86608720	mutM	CYB_1244	-	formamidopyrimidine-DNA glycosylase
1217	 53.78	-1	1293385..1293609	-	74	86608721	psaE	CYB_1245	-	photosystem I reaction center subunit IV
1218	 62.82	+1	1293729..1294613	+	294	86608722	-	CYB_1246	-	penicillin-binding protein
1219	 55.56	0	1294730..1294882	+	50	86608723	-	CYB_1247	-	CAB/ELIP/HLIP family protein
1220	 61.60	0	1295153..1296829	-	558	86608724	nadE	CYB_1248	-	NAD+ synthetase
1221	 54.53	0	1296879..1297727	-	282	86608725	-	CYB_1249	-	sensor histidine kinase
1222	 51.33	-1	1297936..1300380	-	814	86608726	-	CYB_1250	-	sensory box protein
1223	 55.13	0	1300591..1302462	-	623	86608727	uvrC	CYB_1251	-	excinuclease ABC subunit C
1224	 54.17	-1	1303083..1303178	+	31	86608728	-	CYB_1252	-	hypothetical protein
1225	 61.85	0	1303586..1308193	+	1535	86608729	gltS	CYB_1253	-	ferredoxin-dependent glutamate synthase
1226	 57.42	0	1308298..1309389	+	363	86608730	acsF	CYB_1254	-	magnesium-protoporphyrin IX monomethyl ester cyclase
1227	 62.67	+1	1309437..1310912	+	491	86608731	-	CYB_1255	-	hypothetical protein
1228	 63.20	+1	1310954..1312915	+	653	86608732	-	CYB_1256	-	TPR domain-containing protein
1229	 59.43	0	1313018..1314289	+	423	86608733	-	CYB_1257	-	chromate transporter
1230	 58.16	0	1314364..1315503	-	379	86608734	lgt-1	CYB_1258	-	prolipoprotein diacylglyceryl transferase
1231	 57.26	0	1315983..1316333	+	116	86608735	-	CYB_1260	-	hypothetical protein
1232	 57.12	0	1316313..1317548	-	411	86608736	-	CYB_1259	-	ISSoc1, transposase
1233	 60.55	0	1317828..1319036	+	402	86608737	-	CYB_1261	-	coenzyme F420 hydrogenase/dehydrogenase family protein
1234	 63.58	+1	1319040..1320236	-	398	86608738	-	CYB_1262	-	aspartate aminotransferase
1235	 61.09	0	1320403..1321782	+	459	86608739	engA	CYB_1263	-	GTP-binding protein EngA
1236	 59.57	0	1321806..1322270	+	154	86608740	smpB	CYB_1264	-	SsrA-binding protein
1237	 58.21	0	1322410..1323615	+	401	86608741	-	CYB_1265	-	hypothetical protein
1238	 58.37	0	1323627..1324229	-	200	86608742	-	CYB_1266	-	glutathione S-transferase
1239	 58.16	0	1324328..1325515	-	395	86608743	-	CYB_1267	-	Rieske family iron-sulfur cluster-binding protein
1240	 62.89	+1	1325696..1326781	-	361	86608744	era	CYB_1268	-	GTP-binding protein Era
1241	 60.84	0	1327064..1328677	-	537	86608745	-	CYB_1269	-	SpoIID/LytB domain-containing protein
1242	 61.94	0	1328938..1329297	+	119	86608746	-	CYB_1270	-	hypothetical protein
1243	 60.47	0	1329387..1330193	+	268	86608747	-	CYB_1271	-	oxidoreductase, molybdopterin-binding subunit
1244	 55.86	0	1330656..1331201	+	181	86608748	-	CYB_1272	-	type IV pilin, putative
1245	 55.17	0	1331510..1331944	+	144	86608749	-	CYB_1274	-	hypothetical protein
58.48	MEAN

4.07	STD DEV
