IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

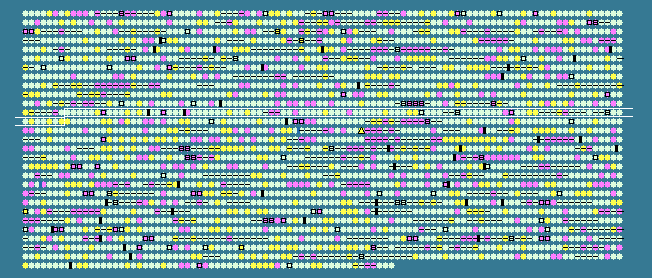

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1108	 57.85	0	1170896..1171462	-	188	86608612	-	CYB_1134	-	hypothetical protein
1109	 58.95	0	1171596..1172774	-	392	86608613	-	CYB_1135	-	arsenite-antimonite transporter ArsAB
1110	 59.65	0	1172963..1173361	+	132	86608614	-	CYB_1136	-	hypothetical protein
1111	 59.86	0	1173715..1174596	-	293	86608615	-	CYB_1137	-	hypothetical protein
1112	 59.33	0	1174615..1175091	-	158	86608616	-	CYB_1138	-	glyoxalase family protein
1113	 63.95	+1	1175391..1176530	+	379	86608617	-	CYB_1139	-	TonB family protein
1114	 53.11	-1	1176691..1177398	-	235	86608618	-	CYB_1140	-	transposase, truncation
1115	 61.42	0	1177669..1178793	+	374	86608619	gcvT	CYB_1141	-	glycine cleavage system aminomethyltransferase T
1116	 58.23	0	1178803..1179762	-	319	86608620	-	CYB_1142	-	RNA polymerase sigma factor
1117	 59.20	0	1180686..1181060	+	124	86608621	-	CYB_1143	-	hypothetical protein
1118	 64.73	+1	1181165..1182199	+	344	86608622	-	CYB_1144	-	pentapeptide repeat-containing protein
1119	 59.89	0	1182311..1184686	+	791	86608623	-	CYB_1145	-	putative phosphoketolase
1120	 64.13	+1	1184835..1185857	+	340	86608624	mraY	CYB_1146	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1121	 59.53	0	1186153..1188744	+	863	86608625	-	CYB_1147	-	glycosy hydrolase family protein
1122	 57.46	0	1189004..1189459	+	151	86608626	-	CYB_1150	-	hypothetical protein
1123	 59.87	0	1189456..1190367	-	303	86608627	-	CYB_1149	-	alpha/beta fold family hydrolase
1124	 54.86	0	1190676..1191869	+	397	86608628	-	CYB_1151	-	ISSoc1, transposase
1125	 60.85	0	1192105..1193532	+	475	86608629	-	CYB_1152	-	folate-biopterin transporter (FBT) family protein
1126	 57.89	0	1193650..1194105	+	151	86608630	-	CYB_1153	-	hypothetical protein
1127	 57.64	0	1194257..1195009	-	250	86608631	scpA	CYB_1154	-	segregation and condensation protein A
1128	 53.85	-1	1195446..1195601	-	51	86608632	-	CYB_1156	-	hypothetical protein
1129	 57.79	0	1195470..1195976	+	168	86608633	-	CYB_1157	-	hypothetical protein
1130	 58.64	0	1195964..1196860	+	298	86608634	-	CYB_1158	-	hypothetical protein
1131	 60.92	0	1197014..1198162	-	382	86608635	-	CYB_1159	-	hypothetical protein
1132	 57.66	0	1198195..1198971	-	258	86608636	-	CYB_1160	-	enoyl-(acyl carrier protein) reductase
1133	 61.41	0	1199191..1200996	-	601	86608637	aspS	CYB_1161	-	aspartyl-tRNA synthetase
1134	 61.26	0	1201069..1201974	-	301	86608638	-	CYB_1162	-	cation ABC transporter, cation-binding protein
1135	 64.57	+1	1202091..1202852	+	253	86608639	-	CYB_1163	-	manganese/zinc/iron chelate ABC transporter ATP-binding protein
1136	 60.55	0	1202877..1203710	+	277	86608640	-	CYB_1164	-	manganese/zinc/iron chelate ABC transporter permease
1137	 56.14	0	1203779..1204063	-	94	86608641	-	CYB_1165	-	putative RNA-binding protein
1138	 62.07	0	1204260..1205042	-	260	86608642	gidB	CYB_1166	-	glucose-inhibited division protein B
1139	 58.18	0	1205039..1206028	-	329	86608643	-	CYB_1167	-	hypothetical protein
1140	 58.78	0	1206389..1207999	+	536	86608644	guaA	CYB_1168	-	bifunctional GMP synthase/glutamine amidotransferase protein
1141	 56.31	0	1208045..1208266	-	73	86608645	-	CYB_1169	-	hypothetical protein
1142	 53.07	-1	1208269..1208577	-	102	86608646	-	CYB_1170	-	hypothetical protein
1143	 55.00	0	1208687..1209706	-	339	86608647	-	CYB_1171	-	putative cobalamin biosynthesis protein CobW
1144	 59.65	0	1210125..1211165	-	346	86608648	-	CYB_1172	-	hypothetical protein
1145	 59.38	0	1211146..1211790	-	214	86608649	-	CYB_1173	-	hypothetical protein
1146	 52.46	-1	1212203..1212730	+	175	86608650	-	CYB_1174	-	FHA domain-containing protein
1147	 56.32	0	1212761..1213504	+	247	86608651	-	CYB_1175	-	hypothetical protein
1148	 57.73	0	1213522..1214304	+	260	86608652	-	CYB_1176	-	hypothetical protein
1149	 58.93	0	1214559..1215359	+	266	86608653	-	CYB_1177	-	putative lipoprotein
1150	 57.56	0	1215658..1216239	+	193	86608654	-	CYB_1178	-	RNA polymerase sigma factor
1151	 63.23	+1	1216236..1216991	+	251	86608655	-	CYB_1179	-	hypothetical protein
1152	 56.76	0	1217125..1217346	+	73	86608656	-	CYB_1180	-	hypothetical protein
1153	 59.42	0	1217387..1218214	+	275	86608657	-	CYB_1181	-	carbon-nitrogen family hydrolase
1154	 60.92	0	1218224..1218484	+	86	86608658	-	CYB_1182	-	glutaredoxin family protein
1155	 52.57	-1	1218522..1222019	-	1165	86608659	dnaE	CYB_1183	-	DNA polymerase III subunit alpha
1156	 60.58	0	1222137..1223204	+	355	86608660	selD	CYB_1184	-	selenide, water dikinase
1157	 59.24	0	1223348..1223845	+	165	86608661	-	CYB_1185	-	hypothetical protein
1158	 59.85	0	1223892..1225124	+	410	86608662	-	CYB_1186	-	oligopeptide ABC transporter, permease protein
1159	 58.70	0	1225172..1226113	-	313	86608663	-	CYB_1187	-	TPR domain-containing protein
1160	 57.89	0	1226375..1227001	+	208	86608664	-	CYB_1188	-	hypothetical protein
1161	 64.72	+1	1227223..1228095	-	290	86608665	-	CYB_1189	-	hypothetical protein
1162	 61.90	0	1228692..1229426	+	244	86608666	-	CYB_1190	-	HEAT repeat-containing PBS lyase
1163	 61.88	0	1229529..1230635	+	368	86608667	trmU	CYB_1191	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1164	 58.26	0	1230694..1231359	-	221	86608668	-	CYB_1192	-	hypothetical protein
1165	 62.12	0	1231467..1232786	-	439	86608669	-	CYB_1193	-	amine oxidase, flavin-containing
1166	 63.03	+1	1233137..1235416	-	759	86608670	-	CYB_1194	-	WD repeat-/protein kinase domain-containing protein
1167	 56.10	0	1235563..1236717	+	384	86608671	-	CYB_1195	-	ISSoc8, transposase
1168	 61.09	0	1236891..1239794	-	967	86608672	uvrA	CYB_1196	-	excinuclease ABC subunit A
1169	 61.22	0	1239978..1242344	+	788	86608673	-	CYB_1197	-	putative membrane-bound protease
1170	 58.81	0	1242592..1243941	+	449	86608674	-	CYB_1198	-	alkaline phosphatase
1171	 55.21	0	1243950..1244045	+	31	86608675	-	CYB_1199	-	hypothetical protein
1172	 55.40	0	1244278..1244703	+	141	86608676	-	CYB_1200	-	MarR family transcriptional regulator
1173	 56.47	0	1244786..1246021	+	411	86608677	-	CYB_1201	-	ISSoc1, transposase
1174	 61.13	0	1246086..1247060	-	324	86608678	-	CYB_1202	-	hydrophobic amino acid uptake ABC transporter permease
1175	 56.73	0	1247141..1247623	-	160	86608679	-	CYB_1203	-	hypothetical protein
1176	 57.49	0	1247663..1248196	+	177	86608680	-	CYB_1204	-	TM2 domain-containing protein
1177	 60.13	0	1248215..1248994	-	259	86608681	-	CYB_1205	-	putative ABC-2 type transporter, permease protein
1178	 60.47	0	1248994..1249929	-	311	86608682	-	CYB_1206	-	drug exporter ABC transporter ATP-binding protein
1179	 59.82	0	1250050..1253526	-	1158	86608683	mfd	CYB_1207	-	transcription-repair coupling factor
1180	 57.05	0	1253989..1255434	+	481	86608684	cydA	CYB_1208	-	cytochrome d ubiquinol oxidase, subunit I
1181	 54.48	0	1255628..1256677	+	349	86608685	cydB	CYB_1209	-	cytochrome d ubiquinol oxidase, subunit II
1182	 54.01	-1	1256771..1257394	-	207	86608686	-	CYB_1210	-	ISSoc2, transposase, truncation
1183	 57.41	0	1257376..1259115	-	579	86608687	-	CYB_1211	-	hypothetical protein
1184	 59.36	0	1259510..1260043	-	177	86608688	rimI	CYB_1212	-	ribosomal-protein-alanine acetyltransferase
1185	 62.00	0	1260050..1260499	-	149	86608689	-	CYB_1213	-	hypothetical protein
1186	 62.78	+1	1260496..1261680	-	394	86608690	purK	CYB_1214	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1187	 57.51	0	1261703..1261975	+	90	86608691	-	CYB_1215	-	hypothetical protein
1188	 57.89	0	1262126..1262524	+	132	86608692	-	CYB_1216	-	hypothetical protein
1189	 61.77	0	1262530..1263285	+	251	86608693	trmD	CYB_1217	-	tRNA (guanine-N(1)-)-methyltransferase
1190	 62.43	0	1263289..1263666	+	125	86608694	-	CYB_1218	-	hypothetical protein
1191	 54.21	-1	1263770..1264042	+	90	86608695	secE	CYB_1219	-	preprotein translocase subunit SecE
1192	 59.01	0	1264105..1264770	+	221	86608696	nusG	CYB_1220	-	transcription antitermination protein NusG
1193	 58.92	0	1264780..1265205	+	141	86608697	rplK	CYB_1221	-	50S ribosomal protein L11
1194	 58.65	0	1265312..1266022	+	236	86608698	rplA	CYB_1222	-	50S ribosomal protein L1
1195	 59.75	0	1266321..1266884	+	187	86608699	rplJ	CYB_1223	-	50S ribosomal protein L10
1196	 58.39	0	1266950..1267360	+	136	86608700	rplL	CYB_1224	-	50S ribosomal protein L7/L12
1197	 58.23	0	1267418..1267654	-	78	86608701	-	CYB_1225	-	hypothetical protein
1198	 57.93	0	1267757..1268992	+	411	86608702	-	CYB_1227	-	ISSoc1, transposase
1199	 55.67	0	1268972..1269817	-	281	86608703	-	CYB_1226	-	Rieske family iron-sulfur cluster-binding protein
1200	 59.71	0	1270032..1271426	+	464	86608704	-	CYB_1228	-	TonB family protein
1201	 55.38	0	1271496..1271681	-	61	86608705	rpsU	CYB_1229	-	30S ribosomal protein S21
1202	 62.70	+1	1272036..1273322	-	428	86608706	-	CYB_1230	-	trypsin domain-containing lipoprotein
1203	 60.46	0	1273448..1274140	+	230	86608707	-	CYB_1231	-	putative partition protein A
1204	 59.18	0	1274137..1274430	+	97	86608708	-	CYB_1232	-	hypothetical protein
1205	 63.02	+1	1274682..1275860	+	392	86608709	dxr	CYB_1233	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1206	 60.77	0	1275920..1277683	+	587	86608710	-	CYB_1234	-	heavy metal ABC transporter (HMT) family permease/ATP-binding protein
1207	 64.71	+1	1277744..1279276	+	510	86608711	murE	CYB_1235	-	UDP-N-acetylmuramyl-tripeptide synthetase
58.48	MEAN

4.07	STD DEV
