IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

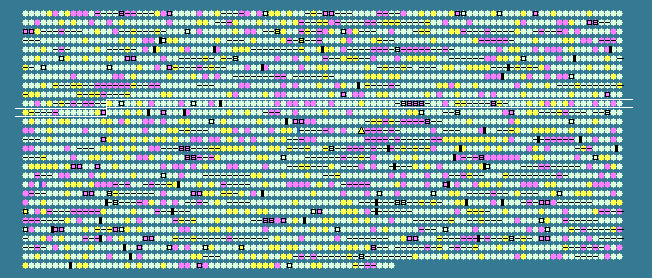

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.48 STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1015	 62.58	+1	1081523..1082305	+	260	86608519	cobA	CYB_1040	-	uroporphyrin-III C-methyltransferase
1016	 60.58	0	1082302..1083090	+	262	86608520	-	CYB_1041	-	hypothetical protein
1017	 55.56	0	1083185..1084426	+	413	86608521	-	CYB_1042	-	ISSoc1, transposase
1018	 58.41	0	1084594..1085283	+	229	86608522	-	CYB_1044	-	LuxR family DNA-binding response regulator
1019	 59.09	0	1085269..1085532	-	87	86608523	-	CYB_1043	-	nuclease
1020	 62.86	+1	1085681..1086127	+	148	86608524	-	CYB_1046	-	hypothetical protein
1021	 59.65	0	1085983..1086096	-	37	86608525	-	CYB_1045	-	hypothetical protein
1022	 50.72	-1	1086266..1086748	+	160	86608526	-	CYB_1047	-	hypothetical protein
1023	 61.35	0	1087213..1087833	+	206	86608527	-	CYB_1048	-	BioY family protein
1024	 56.12	0	1088232..1089179	-	315	86608528	gshB	CYB_1049	-	glutathione synthetase
1025	 57.97	0	1089414..1090160	+	248	86608529	-	CYB_1050	-	pentapeptide repeat-containing protein
1026	 56.54	0	1090200..1090436	-	78	86608530	rpmB	CYB_1051	-	50S ribosomal protein L28
1027	 54.82	0	1090461..1090823	-	120	86608531	-	CYB_1052	-	hypothetical protein
1028	 60.00	0	1090989..1092098	+	369	86608532	-	CYB_1054	-	dockerin repeat-containing protein
1029	 57.20	0	1092095..1093351	-	418	86608533	-	CYB_1053	-	putative transposase
1030	 61.01	0	1093775..1094923	+	382	86608534	-	CYB_1055	-	hypothetical protein
1031	 58.41	0	1095279..1095896	+	205	86608535	-	CYB_1056	-	HD domain-containing protein
1032	 54.79	0	1095967..1096404	+	145	86608536	-	CYB_1057	-	anti-oxidant AhpCTSA family protein
1033	 60.39	0	1096453..1097280	+	275	86608537	-	CYB_1058	-	D-alanyl-D-alanine carboxypeptidase
1034	 58.91	0	1097611..1099053	+	480	86608538	zds	CYB_1060	-	carotene 7,8-desaturase
1035	 58.29	0	1099406..1099978	+	190	86608539	-	CYB_1061	-	hypothetical protein
1036	 56.89	0	1100018..1100590	+	190	86608540	-	CYB_1062	-	hypothetical protein
1037	 61.93	0	1100688..1102058	-	456	86608541	-	CYB_1063	-	cytosine deaminase
1038	 55.45	0	1102133..1102462	-	109	86608542	-	CYB_1064	-	hypothetical protein
1039	 59.35	0	1102633..1103001	-	122	86608543	-	CYB_1065	-	hypothetical protein
1040	 57.47	0	1103050..1104822	-	590	86608544	-	CYB_1066	-	hypothetical protein
1041	 57.26	0	1104958..1106244	-	428	86608545	glgC	CYB_1067	-	glucose-1-phosphate adenylyltransferase
1042	 60.41	0	1106376..1107158	+	260	86608546	-	CYB_1068	-	putative chromosome partitioning protein ParA
1043	 53.83	-1	1107299..1107664	+	121	86608547	-	CYB_1069	-	hypothetical protein
1044	 58.77	0	1107831..1109021	+	396	86608548	sat	CYB_1070	-	sulfate adenylyltransferase
1045	 51.64	-1	1109359..1109571	-	70	86608549	-	CYB_1071	-	hypothetical protein
1046	 54.23	-1	1109890..1110315	-	141	86608550	-	CYB_1072	-	TPR domain-containing protein
1047	 59.90	0	1110359..1111186	-	275	86608551	-	CYB_1073	-	hemolysin A
1048	 54.95	0	1111282..1112109	-	275	86608552	pstB-1	CYB_1074	-	phosphate ABC transporter, ATP-binding protein
1049	 53.09	-1	1112192..1113082	-	296	86608553	pstA-1	CYB_1075	-	phosphate ABC transporter, permease protein PtsA
1050	 55.01	0	1113089..1114057	-	322	86608554	pstC-1	CYB_1076	-	phosphate ABC transporter, permease protein PstC
1051	 56.27	0	1114091..1115167	-	358	86608555	pstS-1	CYB_1077	-	phosphate ABC transporter, periplasmic phosphate-binding protein
1052	 46.67	-2	1115457..1115576	-	39	86608556	-	CYB_1078	-	hypothetical protein
1053	 56.06	0	1115617..1115748	+	43	86608557	-	CYB_1079	-	hypothetical protein
1054	 55.56	0	1115958..1116407	+	149	86608558	rplI	CYB_1080	-	ribosomal protein L9
1055	 58.90	0	1116586..1118361	+	591	86608559	dnaB	CYB_1081	-	replicative DNA helicase
1056	 59.53	0	1118493..1119389	+	298	86608560	-	CYB_1082	-	universal stress protein
1057	 63.91	+1	1119436..1120269	+	277	86608561	-	CYB_1083	-	circadian phase modifier CpmA-like protein
1058	 57.55	0	1120530..1121417	+	295	86608562	-	CYB_1084	-	TerC family membrane protein
1059	 60.11	0	1121523..1121705	-	60	86608563	-	CYB_1085	-	hypothetical protein
1060	 61.21	0	1121622..1122428	+	268	86608564	mkl	CYB_1086	-	ABC transporter, ATP-binding protein
1061	 59.31	0	1122428..1123651	+	407	86608565	-	CYB_1087	-	mce related protein
1062	 61.47	0	1123828..1125675	+	615	86608566	glmS	CYB_1089	-	glucosamine--fructose-6-phosphate aminotransferase, isomerizing
1063	 57.08	0	1125636..1126115	-	159	86608567	-	CYB_1088	-	MerR family transcriptional regulator
1064	 56.12	0	1126243..1126479	-	78	86608568	-	CYB_1090	-	ISSoc11, transposase orfB
1065	 54.26	-1	1126685..1127458	-	257	86608569	-	CYB_1091	-	ISSoc11, transposase orfA
1066	 44.71	-2	1127859..1128236	+	125	86608570	-	CYB_1092	-	ISSoc13, transposase orfA
1067	 43.14	-2	1128194..1128601	+	135	86608571	-	CYB_1093	-	ISSoc13, transposase orfB
1068	 55.88	0	1128616..1129227	-	203	86608572	rpsD	CYB_1094	-	30S ribosomal protein S4
1069	 60.16	0	1129404..1130540	-	378	86608573	gmd	CYB_1095	-	GDP-mannose 4,6-dehydratase
1070	 61.68	0	1130673..1132055	-	460	86608574	-	CYB_1096	-	nicotinate phosphoribosyltransferase
1071	 48.23	-2	1132131..1132271	-	46	86608575	-	CYB_1097	-	putative lipoprotein
1072	 61.77	0	1132452..1133432	+	326	86608576	-	CYB_1098	-	hypothetical protein
1073	 65.21	+1	1133482..1134786	+	434	86608577	hisZ	CYB_1100	-	ATP phosphoribosyltransferase regulatory subunit
1074	 63.86	+1	1134770..1135801	-	343	86608578	-	CYB_1099	-	DNA polymerase III subunit delta'
1075	 58.44	0	1135785..1136027	+	80	86608579	-	CYB_1102	-	hypothetical protein
1076	 57.22	0	1135853..1136032	-	59	86608580	-	CYB_1101	-	hypothetical protein
1077	 60.62	0	1136309..1136788	-	159	86608581	-	CYB_1103	-	hypothetical protein
1078	 58.86	0	1136813..1138579	-	588	86608582	-	CYB_1104	-	hypothetical protein
1079	 47.50	-2	1139571..1139810	-	79	86608583	-	CYB_1105	-	putative transposase, truncation
1080	 63.29	+1	1140273..1142549	+	758	86608584	recJ-2	CYB_1106	-	single-stranded-DNA-specific exonuclease RecJ
1081	 61.54	0	1142684..1146001	+	1105	86608585	-	CYB_1107	-	exonuclease SbcC
1082	 59.80	0	1146007..1146399	-	130	86608586	-	CYB_1108	-	hypothetical protein
1083	 57.20	0	1146498..1146761	-	87	86608587	-	CYB_1109	-	hypothetical protein
1084	 55.76	0	1146761..1147090	-	109	86608588	-	CYB_1110	-	hypothetical protein
1085	 65.06	+1	1147123..1148619	-	498	86608589	-	CYB_1111	-	CobN/magnesium chelatase domain-containing protein
1086	 57.59	0	1148655..1149833	-	392	86608590	tal	CYB_1112	-	transaldolase/EF-hand domain-containing protein
1087	 63.21	+1	1150124..1151077	-	317	86608591	-	CYB_1113	-	RluA family pseudouridine synthase
1088	 53.12	-1	1151222..1151317	+	31	86608592	-	CYB_1114	-	hypothetical protein
1089	 62.29	0	1151415..1153880	+	821	86608593	ppsA	CYB_1115	-	phosphoenolpyruvate synthase
1090	 61.88	0	1153962..1155236	+	424	86608594	-	CYB_1116	-	branched-chain alpha-keto acid dehydrogenase subunit E2
1091	 62.05	0	1155328..1156215	-	295	86608595	lipA-1	CYB_1117	-	lipoyl synthase
1092	 52.56	-1	1156169..1156324	+	51	86608596	-	CYB_1118	-	hypothetical protein
1093	 61.37	0	1156391..1158391	+	666	86608597	tkt	CYB_1119	-	transketolase
1094	 59.69	0	1158799..1158927	-	42	86608598	-	CYB_1120	-	hypothetical protein
1095	 58.39	0	1159139..1159597	+	152	86608599	-	CYB_1121	-	hypothetical protein
1096	 48.39	-2	1159652..1159744	+	30	86608600	-	CYB_1122	-	hypothetical protein
1097	 60.43	0	1160015..1160992	+	325	86608601	-	CYB_1123	-	hypothetical protein
1098	 55.21	0	1161074..1161361	-	95	86608602	-	CYB_1124	-	hypothetical protein
1099	 52.10	-1	1161389..1162006	-	205	86608603	-	CYB_1125	-	hypothetical protein
1100	 60.60	0	1162028..1163857	-	609	86608604	proS	CYB_1126	-	prolyl-tRNA synthetase
1101	 62.97	+1	1163984..1167148	-	1054	86608605	infB	CYB_1127	-	translation initiation factor IF-2
1102	 64.65	+1	1167223..1167321	+	32	86608606	-	CYB_1128	-	hypothetical protein
1103	 58.08	0	1167545..1167835	-	96	86608607	-	CYB_1129	-	hypothetical protein
1104	 56.37	0	1167880..1168899	-	339	86608608	-	CYB_1130	-	response regulator
1105	 56.14	0	1168856..1168969	-	37	86608609	-	CYB_1131	-	hypothetical protein
1106	 53.76	-1	1169534..1169626	+	30	86608610	-	CYB_1132	-	hypothetical protein
1107	 55.79	0	1169694..1170557	-	287	86608611	-	CYB_1133	-	HflC/HflK family protein
1108	 57.85	0	1170896..1171462	-	188	86608612	-	CYB_1134	-	hypothetical protein
1109	 58.95	0	1171596..1172774	-	392	86608613	-	CYB_1135	-	arsenite-antimonite transporter ArsAB
1110	 59.65	0	1172963..1173361	+	132	86608614	-	CYB_1136	-	hypothetical protein
1111	 59.86	0	1173715..1174596	-	293	86608615	-	CYB_1137	-	hypothetical protein
1112	 59.33	0	1174615..1175091	-	158	86608616	-	CYB_1138	-	glyoxalase family protein
1113	 63.95	+1	1175391..1176530	+	379	86608617	-	CYB_1139	-	TonB family protein
1114	 53.11	-1	1176691..1177398	-	235	86608618	-	CYB_1140	-	transposase, truncation
58.48	MEAN

4.07	STD DEV
