IslandPath Analysis: Synechococcus sp. JA-2-3B'a(2-13)

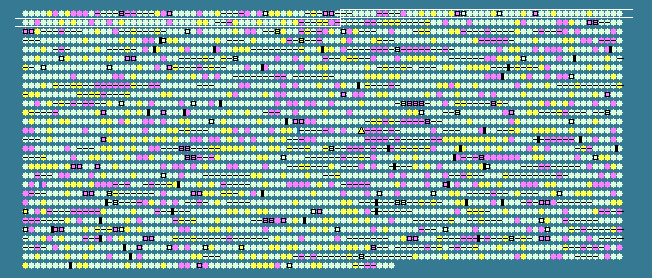

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 58.48   STD DEV: 4.07
Synechococcus sp. JA-2-3B'a(2-13), complete genome - 1..3046682
2862 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
54	 58.52	0	68199..68468	+	89	86607557	-	CYB_0055	-	hypothetical protein
55	 59.46	0	68551..69216	+	221	86607558	-	CYB_0056	-	guanylate kinase, putative
56	 59.26	0	69559..70017	+	152	86607559	-	CYB_0057	-	S-adenosylmethionine decarboxylase proenzyme
57	 60.17	0	70137..71075	+	312	86607560	speE	CYB_0058	-	spermidine synthase
58	 58.42	0	71168..72319	+	383	86607561	-	CYB_0060	-	putative UDP-sulfoquinovose synthase
59	 61.40	0	72316..73227	-	303	86607562	-	CYB_0059	-	histone deacetylase family protein
60	 52.65	-1	73285..73605	-	106	86607563	-	CYB_0061	-	hypothetical protein
61	 53.23	-1	74202..74573	-	123	86607564	-	CYB_0062	-	iojap-like protein
62	 57.91	0	74616..75209	-	197	86607565	-	CYB_0063	-	HD domain-containing protein
63	 56.79	0	75214..77025	-	603	86607566	lepA	CYB_0064	-	GTP-binding protein LepA
64	 47.16	-2	77357..77884	-	175	86607567	-	CYB_0065	-	hypothetical protein
65	 55.42	0	78035..79021	-	328	86607568	glyQ	CYB_0066	-	glycyl-tRNA synthetase subunit alpha
66	 58.30	0	79074..79838	-	254	86607569	-	CYB_0067	-	T1 family peptidase
67	 63.04	+1	79887..81374	-	495	86607570	-	CYB_0068	-	GTP-binding protein
68	 60.35	0	81528..81812	+	94	86607571	-	CYB_0069	-	hypothetical protein
69	 62.39	0	81871..82455	+	194	86607572	-	CYB_0070	-	WD-40-like beta propeller repeat-containing protein
70	 60.84	0	82505..83689	+	394	86607573	-	CYB_0071	-	succinyldiaminopimelate transaminase
71	 57.22	0	83850..84548	+	232	86607574	-	CYB_0072	-	hypothetical protein
72	 62.63	+1	84796..86109	+	437	86607575	hisD	CYB_0073	-	histidinol dehydrogenase
73	 53.23	-1	86288..87061	+	257	86607576	-	CYB_0074	-	ISSoc11, transposase orfA
74	 56.82	0	87267..87530	+	87	86607577	-	CYB_0075	-	ISSoc11, transposase orfB
75	 61.93	0	87777..90329	+	850	86607578	-	CYB_0076	-	hypothetical protein
76	 58.70	0	90396..90809	-	137	86607579	-	CYB_0077	-	hypothetical protein
77	 58.15	0	90876..91556	+	226	86607580	-	CYB_0078	-	RNA pseudouridine synthase family protein
78	 59.41	0	91835..93184	-	449	86607581	purA	CYB_0079	-	adenylosuccinate synthetase
79	 62.47	0	93396..94895	-	499	86607582	-	CYB_0080	-	S41 family peptidase
80	 55.58	0	95176..96330	+	384	86607583	-	CYB_0081	-	ISSoc8, transposase
81	 57.51	0	96348..98018	-	556	86607584	tig	CYB_0082	-	trigger factor
82	 57.29	0	98090..98473	-	127	86607585	-	CYB_0083	-	hypothetical protein
83	 60.40	0	98558..99610	-	350	86607586	-	CYB_0084	-	cytochrome c assembly protein
84	 63.16	+1	99710..101248	+	512	86607587	-	CYB_0085	-	hypothetical protein
85	 58.89	0	101494..102624	-	376	86607588	-	CYB_0086	-	hypothetical protein
86	 54.11	-1	102812..104029	+	405	86607589	-	CYB_0087	-	ISSoc1, transposase
87	 61.71	0	104064..105293	+	409	86607590	xseA	CYB_0088	-	exodeoxyribonuclease VII large subunit
88	 55.27	0	105274..105510	+	78	86607591	xseB	CYB_0089	-	exodeoxyribonuclease VII, small subunit
89	 62.36	0	105603..106484	+	293	86607592	folD	CYB_0090	-	FolD bifunctional protein
90	 58.72	0	107027..107731	-	234	86607593	-	CYB_0091	-	hypothetical protein
91	 59.22	0	107841..108458	-	205	86607594	-	CYB_0092	-	pyridoxamine 5'-phosphate oxidase family protein
92	 58.76	0	108515..109690	-	391	86607595	-	CYB_0093	-	acetyltransferase
93	 57.95	0	110017..110670	-	217	86607596	-	CYB_0094	-	hypothetical protein
94	 60.79	0	110944..112338	+	464	86607597	murA	CYB_0095	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
95	 62.08	0	112532..114667	+	711	86607598	-	CYB_0096	-	Slt family transglycosylase
96	 60.88	0	114811..115398	+	195	86607599	sixA	CYB_0097	-	phosphohistidine phosphatase SixA
97	 60.54	0	115467..115760	-	97	86607600	-	CYB_0098	-	hypothetical protein
98	 60.06	0	115840..116520	+	226	86607601	-	CYB_0100	-	DnaJ family protein
99	 59.08	0	116512..117381	-	289	86607602	-	CYB_0099	-	S49 family peptidase
100	 60.77	0	117452..118333	-	293	86607603	-	CYB_0101	-	hypothetical protein
101	 56.17	0	118335..119306	-	323	86607604	-	CYB_0102	-	beta-carotene ketolase, putative
102	 57.32	0	119664..119909	+	81	86607605	psaK	CYB_0103	-	photosystem I reaction center protein PsaK
103	 49.61	-2	120040..120168	+	42	86607606	psbK	CYB_0104	-	photosystem II reaction center protein K
104	 58.70	0	120507..121046	-	179	86607607	-	CYB_0105	-	hypothetical protein
105	 56.60	0	121122..121568	-	148	86607608	-	CYB_0106	-	hypothetical protein
106	 60.34	0	121855..122913	+	352	86607609	chlI	CYB_0107	-	magnesium chelatase, ATPase subunit I
107	 63.09	+1	122953..123651	-	232	86607610	-	CYB_0108	-	hypothetical protein
108	 57.87	0	124060..124593	-	177	86607611	nucH	CYB_0109	-	thermonuclease
109	 62.02	0	124796..124924	-	42	86607612	-	CYB_0110	-	hypothetical protein
110	 61.22	0	125417..126004	+	195	86607613	-	CYB_0111	-	CAAX amino terminal protease family protein
111	 57.71	0	126236..127117	+	293	86607614	-	CYB_0112	-	phospholipase/carboxylesterase family protein
112	 54.84	0	127262..127912	+	216	86607615	-	CYB_0113	-	anti-oxidant AhpCTSA family protein
113	 56.32	0	128097..128666	-	189	86607616	scpB	CYB_0114	-	segregation and condensation protein B
114	 58.69	0	128766..130922	-	718	86607617	-	CYB_0115	-	NAD(P)H-quinone oxidoreductase subunit F
115	 53.99	-1	130928..131140	+	70	86607618	-	CYB_0116	-	hypothetical protein
116	 59.10	0	131259..131615	+	118	86607619	-	CYB_0117	-	single-strand DNA-binding protein
117	 62.70	+1	131641..132396	-	251	86607620	cobK	CYB_0118	-	cobalt-precorrin-6x reductase
118	 56.98	0	132488..133003	+	171	86607621	-	CYB_0119	-	hypothetical protein
119	 61.44	0	133034..133855	+	273	86607622	-	CYB_0120	-	MOSC domain-containing protein
120	 60.16	0	133905..135134	+	409	86607623	ispG	CYB_0121	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
121	 56.41	0	135204..135632	-	142	86607624	-	CYB_0122	-	hypothetical protein
122	 56.85	0	135720..136391	+	223	86607625	-	CYB_0123	-	hypothetical protein
123	 58.92	0	136597..136893	+	98	86607626	-	CYB_0124	-	hypothetical protein
124	 57.09	0	136913..137173	-	86	86607627	grxC	CYB_0125	-	glutaredoxin 3
125	 53.36	-1	137266..140061	-	931	86607628	polA	CYB_0126	-	DNA polymerase I
126	 60.38	0	140385..141068	+	227	86607629	-	CYB_0127	-	putative polysaccharide deacetylase
127	 59.16	0	141133..141891	+	252	86607630	-	CYB_0128	-	pspA/IM30 family protein
128	 61.14	0	142155..142679	+	174	86607631	psbP	CYB_0129	-	photosystem II oxygen evolving complex protein PsbP
129	 57.11	0	142995..143789	+	264	86607632	icc	CYB_0131	-	icc protein
130	 63.88	+1	143786..144610	-	274	86607633	-	CYB_0130	-	ABC transporter, permease protein
131	 64.19	+1	144607..145536	-	309	86607634	-	CYB_0132	-	ABC transporter, permease protein
132	 60.26	0	145666..146820	+	384	86607635	-	CYB_0133	-	hypothetical protein
133	 61.51	0	147255..148340	-	361	86607636	-	CYB_0134	-	polysaccharide pyruvyl-transferase
134	 56.26	0	148418..149311	-	297	86607637	-	CYB_0135	-	hypothetical protein
135	 54.32	-1	149363..149767	-	134	86607638	psbU	CYB_0136	-	photosystem II complex extrinsic protein precursor U
136	 62.69	+1	149926..152892	+	988	86607639	gcvP	CYB_0137	-	glycine dehydrogenase
137	 60.27	0	152926..153597	+	223	86607640	-	CYB_0138	-	hypothetical protein
138	 60.27	0	153600..154037	+	145	86607641	-	CYB_0139	-	hypothetical protein
139	 58.76	0	154075..154656	+	193	86607642	-	CYB_0140	-	AhpC/TSA family protein
140	 62.98	+1	154702..156357	+	551	86607643	-	CYB_0141	-	hypothetical protein
141	 57.02	0	159250..160389	+	379	86607644	-	CYB_0142	-	cyclopropane fatty acyl phospholipid synthase
142	 56.31	0	160487..160930	+	147	86607645	-	CYB_0143	-	SufE family Fe-S metabolism protein
143	 58.38	0	160944..162065	+	373	86607646	-	CYB_0144	-	putative zinc ABC transporter, periplasmic zinc-binding protein
144	 62.30	0	162062..162862	+	266	86607647	-	CYB_0145	-	manganese/zinc/iron chelate ABC transporter ATP-binding protein
145	 59.74	0	162873..163709	+	278	86607648	-	CYB_0147	-	manganese/zinc/iron chelate ABC transporter permease
146	 62.32	0	163678..164529	-	283	86607649	-	CYB_0146	-	hypothetical protein
147	 55.00	0	165050..165229	+	59	86607650	rpmF	CYB_0148	-	50S ribosomal protein L32
148	 59.95	0	165341..165757	+	138	86607651	-	CYB_0149	-	DnaJ domain-containing protein
149	 55.30	0	165885..166148	+	87	86607652	-	CYB_0150	-	hypothetical protein
150	 62.06	0	166156..166914	+	252	86607653	-	CYB_0151	-	glyoxalase II family protein
151	 62.90	+1	167037..168230	-	397	86607654	-	CYB_0152	-	major facilitator transporter
152	 46.38	-2	168273..168617	-	114	86607655	-	CYB_0153	-	hypothetical protein
153	 53.01	-1	168927..169358	-	143	86607656	crcB	CYB_0154	-	crcB protein
58.48	MEAN

4.07	STD DEV
