IslandPath Analysis: Synechococcus sp. JA-3-3Ab

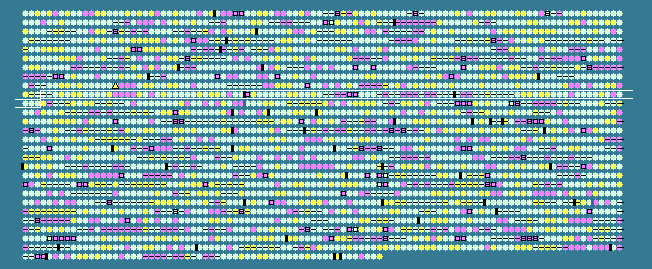

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.19 STD DEV: 4.44
Synechococcus sp. JA-3-3Ab, complete genome - 1..2932766
2760 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
904	 58.12	0	954669..955745	-	358	86605646	-	CYA_0944	-	putative secreted protein
905	 62.99	0	955764..956606	+	280	86605647	nadC	CYA_0945	-	nicotinate-nucleotide pyrophosphorylase
906	 60.45	0	956763..957695	+	310	86605648	nadA	CYA_0946	-	quinolinate synthetase
907	 64.96	+1	957733..959253	+	506	86605649	nadB	CYA_0948	-	L-aspartate oxidase
908	 62.20	0	959250..960659	-	469	86605650	gnd	CYA_0947	-	6-phosphogluconate dehydrogenase, decarboxylating
909	 66.87	+1	960752..961249	-	165	86605651	-	CYA_0949	-	pentapeptide repeat-containing protein
910	 64.66	+1	961326..962519	+	397	86605652	-	CYA_0950	-	hypothetical protein
911	 56.94	0	962731..964725	+	664	86605653	-	CYA_0951	-	peroxisomal fatty acyl CoA ABC transporter transmembrane ATP-binding protein
912	 61.78	0	964842..966620	+	592	86605654	sir	CYA_0952	-	sulfite reductase subunit beta
913	 58.59	0	966736..967527	+	263	86605655	-	CYA_0953	-	TPR repeat-containing protein
914	 57.39	0	967595..967939	-	114	86605656	-	CYA_0954	-	anti-anti-sigma factor family protein
915	 64.73	+1	968098..969234	+	378	86605657	-	CYA_0955	-	glycosyl transferase, group 2
916	 47.11	-2	969244..970194	-	316	86605658	-	CYA_0956	-	D12 class N6 adenine-specific DNA methyltransferase
917	 49.72	-2	970268..970444	-	58	86605659	-	CYA_0957	-	hypothetical protein
918	 51.52	-1	970713..970877	-	54	86605660	-	CYA_0958	-	hypothetical protein
919	 53.16	-1	971755..972450	+	231	86605661	-	CYA_0959	-	glutamine amidotransferase, class I
920	 64.11	0	972527..973936	+	469	86605662	murD	CYA_0960	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
921	 61.58	0	973845..975005	+	386	86605663	-	CYA_0961	-	putative cell division protein FtsW
922	 56.18	0	975020..975553	-	177	86605664	-	CYA_0962	-	hypothetical protein
923	 63.17	0	976929..977528	+	199	86605665	-	CYA_0965	-	hypothetical protein
924	 64.71	+1	977468..978337	-	289	86605666	-	CYA_0964	-	alpha/beta fold family hydrolase
925	 59.31	0	978380..979045	-	221	86605667	-	CYA_0966	-	Crp/FNR family transcriptional regulator
926	 62.69	0	979418..980197	+	259	86605668	surE-2	CYA_0967	-	acid phosphatase SurE
927	 60.39	0	980254..980715	-	153	86605669	-	CYA_0968	-	hypothetical protein
928	 62.52	0	980722..981372	-	216	86605670	hisH	CYA_0969	-	imidazole glycerol phosphate synthase subunit HisH
929	 56.86	0	982540..983253	-	237	86605671	grpE	CYA_0971	-	co-chaperone GrpE
930	 64.50	0	983430..985091	-	553	86605672	-	CYA_0972	-	putative 2`,3`-cyclic-nucleotide 2`-phosphodiesterase
931	 60.93	0	985155..986375	-	406	86605673	-	CYA_0973	-	hypothetical protein
932	 66.45	+1	986439..987371	-	310	86605674	-	CYA_0974	-	hypothetical protein
933	 64.12	0	987514..989007	-	497	86605675	-	CYA_0975	-	putative S-layer protein
934	 63.30	0	989224..990264	-	346	86605676	tas	CYA_0976	-	aldo/keto reductase Tas
935	 56.21	0	990346..992028	-	560	86605677	-	CYA_0977	-	hypothetical protein
936	 58.13	0	992523..993647	+	374	86605678	-	CYA_0978	-	response regulator
937	 60.00	0	993659..993928	-	89	86605679	-	CYA_0979	-	BolA/YrbA family protein
938	 55.03	-1	994257..995468	-	403	86605680	-	CYA_0981	-	ISSoc1, transposase
939	 65.66	+1	995539..996033	-	164	86605681	-	CYA_0982	-	hypothetical protein
940	 62.85	0	996509..997660	-	383	86605682	-	CYA_0983	-	carboxylesterase
941	 62.19	0	997798..998757	+	319	86605683	-	CYA_0984	-	LysR family transcriptional regulator
942	 61.58	0	998871..999911	+	346	86605684	-	CYA_0985	-	hypothetical protein
943	 62.55	0	1000284..1001570	-	428	86605685	-	CYA_0986	-	Rho termination factor domain-containing protein
944	 58.33	0	1001623..1001730	-	35	86605686	-	CYA_0987	-	hypothetical protein
945	 63.88	0	1001745..1002821	+	358	86605687	-	CYA_0989	-	hypothetical protein
946	 63.75	0	1001774..1002013	-	79	86605688	-	CYA_0988	-	hypothetical protein
947	 62.47	0	1002934..1004052	+	372	86605689	-	CYA_0990	-	heptosyltransferase family protein
948	 61.61	0	1004332..1005240	+	302	86605690	-	CYA_0991	-	hypothetical protein
949	 66.22	+1	1005261..1006382	-	373	86605691	-	CYA_0992	-	alcohol dehydrogenase, iron-containing
950	 59.87	0	1006632..1007750	+	372	86605692	pilM	CYA_0993	-	type 4 fimbrial biogenesis protein PilM
951	 57.59	0	1007814..1008518	+	234	86605693	pilN	CYA_0994	-	type 4 fimbrial biogenesis protein PilN
952	 58.51	0	1008518..1009240	+	240	86605694	-	CYA_0995	-	hypothetical protein
953	 50.78	-2	1009528..1011699	+	723	86605695	-	CYA_0996	-	putative type IV pilus secretin PilQ
954	 51.90	-1	1011746..1012510	+	254	86605696	-	CYA_0997	-	hypothetical protein
955	 45.50	-2	1012515..1013081	-	188	86605697	-	CYA_0998	-	ISSoc4, transposase orfB
956	 46.87	-2	1013063..1013461	-	132	86605698	-	CYA_0999	-	ISSoc4, transposase orfA
957	 57.64	0	1013568..1013966	+	132	86605699	-	CYA_1000	-	hypothetical protein
958	 59.61	0	1014352..1014918	-	188	86605700	-	CYA_1001	-	hypothetical protein
959	 63.02	0	1015046..1016581	+	511	86605701	-	CYA_1002	-	Orn/Lys/Arg decarboxylase
960	 60.32	0	1016586..1018019	-	477	86605702	-	CYA_1003	-	HlyC/CorC (HCC) family transporter
961	 50.70	-2	1018222..1018578	-	118	86605703	-	CYA_1004	-	peptidase propeptide/YPEB domain-containing protein
962	 60.26	0	1018844..1019764	+	306	86605704	ilvE	CYA_1005	-	branched-chain amino acid aminotransferase
963	 58.48	0	1019842..1020354	+	170	86605705	-	CYA_1006	-	putative purine phosphoribosyltransferase
964	 51.06	-2	1020398..1024249	-	1283	86605706	-	CYA_1007	-	FkbM family methyltransferase
965	 46.27	-2	1025028..1025978	-	316	86605707	-	CYA_1008	-	hypothetical protein
966	 49.71	-2	1025994..1026683	-	229	86605708	-	CYA_1009	-	2OG-Fe(II) oxygenase family oxidoreductase
967	 58.97	0	1027337..1027531	-	64	86605709	-	CYA_1010	-	hypothetical protein
968	 54.04	-1	1027704..1029731	+	675	86605710	-	CYA_1011	-	FkbM family methyltransferase
969	 47.25	-2	1029768..1032461	+	897	86605711	-	CYA_1012	-	macrocin-O-methyltransferase domain-containing protein
970	 57.30	0	1032528..1033253	-	241	86605712	-	CYA_1013	-	hypothetical protein
971	 61.92	0	1034023..1035054	-	343	86605713	lpxD	CYA_1015	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
972	 60.89	0	1035070..1035588	-	172	86605714	-	CYA_1016	-	hypothetical protein
973	 59.51	0	1036398..1037417	+	339	86605715	-	CYA_1019	-	hypothetical protein
974	 54.17	-1	1037440..1038135	+	231	86605716	-	CYA_1020	-	hypothetical protein
975	 56.26	0	1038333..1041368	+	1011	86605717	-	CYA_1021	-	hypothetical protein
976	 62.74	0	1041547..1042437	+	296	86605718	-	CYA_1022	-	leucine-rich repeat-containing protein
977	 58.89	0	1042530..1042799	+	89	86605719	-	CYA_1023	-	hypothetical protein
978	 64.20	0	1042833..1043561	+	242	86605720	-	CYA_1024	-	ABC transporter, ATP-binding protein
979	 62.91	0	1043739..1043951	+	70	86605721	-	CYA_1025	-	CP12 domain-containing protein
980	 59.95	0	1044010..1044813	-	267	86605722	-	CYA_1026	-	iron permease
981	 57.42	0	1044863..1045273	-	136	86605723	msrB	CYA_1027	-	methionine-R-sulfoxide reductase
982	 59.91	0	1045718..1046161	+	147	86605724	-	CYA_1028	-	hypothetical protein
983	 61.92	0	1046250..1047260	+	336	86605725	-	CYA_1029	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
984	 64.09	0	1047276..1049177	+	633	86605726	-	CYA_1030	-	R3H domain-containing protein
985	 64.01	0	1049194..1050096	-	300	86605727	ubiA	CYA_1031	-	prenyltransferase
986	 60.27	0	1050354..1051103	+	249	86605728	-	CYA_1033	-	DNA-binding response regulator
987	 67.94	+1	1051100..1052437	-	445	86605729	-	CYA_1032	-	polyA polymerase family protein
988	 64.42	0	1052607..1053632	-	341	86605730	hemH	CYA_1034	-	ferrochelatase
989	 62.09	0	1055040..1055432	-	130	86605731	-	CYA_1035	-	hypothetical protein
990	 57.26	0	1055745..1056233	+	162	86605732	-	CYA_1037	-	hypothetical protein
991	 60.27	0	1056280..1058187	+	635	86605733	-	CYA_1038	-	hypothetical protein
992	 54.42	-1	1058181..1059176	+	331	86605734	-	CYA_1039	-	hypothetical protein
993	 61.21	0	1059442..1059936	+	164	86605735	-	CYA_1040	-	hexapaptide repeat-containing transferase
994	 59.95	0	1060292..1061749	-	485	86605736	-	CYA_1041	-	hypothetical protein
995	 62.12	0	1061915..1063738	-	607	86605737	-	CYA_1042	-	hypothetical protein
996	 60.15	0	1063841..1064101	-	86	86605738	-	CYA_1043	-	hypothetical protein
997	 64.63	+1	1064207..1065829	-	540	86605739	-	CYA_1044	-	S15 family X-Pro dipeptidyl-peptidase
998	 60.94	0	1066041..1066232	-	63	86605740	-	CYA_1045	-	hypothetical protein
999	 55.56	-1	1066355..1066525	+	56	86605741	-	CYA_1046	-	hypothetical protein
1000	 60.92	0	1066528..1067049	+	173	86605742	-	CYA_1047	-	acetyltransferase
1001	 57.04	0	1067117..1067407	+	96	86605743	phhB	CYA_1048	-	pterin-4-alpha-carbinolamine dehydratase
1002	 57.99	0	1067688..1068644	+	318	86605744	-	CYA_1049	-	NAD-dependent epimerase/dehydratase family protein
1003	 60.18	0	1068748..1069734	+	328	86605745	-	CYA_1050	-	ABC transporter, ATP-binding protein
60.19	MEAN

4.44	STD DEV
