IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. JA-3-3Ab

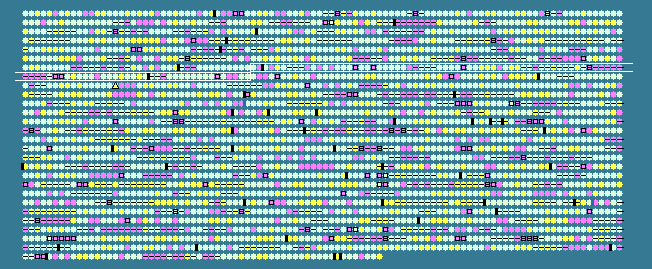

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.19 STD DEV: 4.44
Synechococcus sp. JA-3-3Ab, complete genome - 1..2932766
2760 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
639	 62.67	0	678143..679594	-	483	86605381	zds	CYA_0668	-	carotene 7,8-desaturase
640	 47.62	-2	679605..679709	-	34	86605382	-	CYA_0669	-	hypothetical protein
641	 61.36	0	679854..680588	-	244	86605383	-	CYA_0671	-	D-alanyl-D-alanine carboxypeptidase
642	 55.71	-1	680628..681065	-	145	86605384	-	CYA_0672	-	anti-oxidant AhpCTSA family protein
643	 64.10	0	681136..681759	-	207	86605385	-	CYA_0673	-	HD domain-containing protein
644	 57.83	0	683434..684870	+	478	86605387	mgtE-1	CYA_0675	-	magnesium transporter
645	 58.24	0	684900..685172	+	90	86605388	-	CYA_0676	-	hypothetical protein
646	 59.40	0	685207..685908	+	233	86605389	-	CYA_0677	-	mgtC family protein
647	 59.46	0	686139..686762	-	207	86605390	-	CYA_0678	-	hypothetical protein
648	 52.03	-1	687174..687296	+	40	86605391	-	CYA_0679	-	hypothetical protein
649	 59.45	0	687319..687720	+	133	86605392	-	CYA_0680	-	hypothetical protein
650	 55.29	-1	688002..688256	+	84	86605393	-	CYA_0682	-	hypothetical protein
651	 60.22	0	688253..688795	-	180	86605394	-	CYA_0681	-	hypothetical protein
652	 55.56	-1	688930..689640	-	236	86605395	-	CYA_0683	-	hypothetical protein
653	 58.13	0	689690..690649	-	319	86605396	-	CYA_0684	-	nucleotidyl transferase family protein
654	 57.41	0	691106..691969	+	287	86605397	-	CYA_0685	-	cystine ABC transporter, cystine-binding protein
655	 56.88	0	692083..692787	+	234	86605398	-	CYA_0686	-	cystine ABC transporter, permease protein
656	 55.94	0	693323..694534	+	403	86605399	-	CYA_0687	-	ISSoc1, transposase
657	 60.26	0	694687..696402	+	571	86605400	sdhA	CYA_0688	-	succinate dehydrogenase flavoprotein subunit
658	 59.08	0	696542..697939	+	465	86605401	-	CYA_0689	-	beta alanine--pyruvate transaminase
659	 56.22	0	698056..699204	-	382	86605402	-	CYA_0690	-	ISSoc1, transposase
660	 58.00	0	699490..699639	-	49	86605403	-	CYA_0691	-	hypothetical protein
661	 60.88	0	699774..701018	+	414	86605404	-	CYA_0693	-	GTP-binding domain-containing protein
662	 61.40	0	701015..701869	-	284	86605405	lipA-1	CYA_0692	-	lipoyl synthase
663	 56.97	0	702091..702585	-	164	86605406	-	CYA_0694	-	hypothetical protein
664	 56.96	0	703051..703287	-	78	86605407	-	CYA_0695	-	hypothetical protein
665	 49.83	-2	703721..704017	+	98	86605408	-	CYA_0696	-	hypothetical protein
666	 56.24	0	703998..704966	+	322	86605409	-	CYA_0697	-	MazG family protein
667	 59.09	0	705228..705359	+	43	86605410	-	CYA_0698	-	hypothetical protein
668	 57.59	0	705467..706513	+	348	86605411	-	CYA_0699	-	2OG-Fe(II) oxygenase family oxidoreductase
669	 62.53	0	706635..707576	+	313	86605412	-	CYA_0700	-	putative protease
670	 57.99	0	707669..708175	+	168	86605413	-	CYA_0701	-	hypothetical protein
671	 63.22	0	708185..710911	-	908	86605414	-	CYA_0702	-	polyA polymerase family protein
672	 57.92	0	711147..711695	-	182	86605415	frr	CYA_0703	-	ribosome recycling factor
673	 56.85	0	711934..712473	+	179	86605416	-	CYA_0705	-	hypothetical protein
674	 55.36	-1	712445..713638	-	397	86605417	-	CYA_0704	-	ISSoc1, transposase
675	 59.91	0	713715..714350	-	211	86605418	-	CYA_0706	-	hypothetical protein
676	 58.33	0	714927..715322	+	131	86605419	-	CYA_0708	-	hypothetical protein
677	 66.04	+1	715289..715768	-	159	86605420	-	CYA_0707	-	hypothetical protein
678	 64.64	+1	715879..717159	+	426	86605421	ahcY	CYA_0709	-	S-adenosyl-L-homocysteine hydrolase
679	 65.84	+1	717300..718511	-	403	86605422	argG	CYA_0710	-	argininosuccinate synthase
680	 53.22	-1	718783..718953	-	56	86605423	-	CYA_0711	-	hypothetical protein
681	 57.43	0	719078..719575	+	165	86605424	-	CYA_0712	-	hypothetical protein
682	 65.29	+1	719654..720526	+	290	86605425	lipA-2	CYA_0714	-	lipoyl synthase
683	 64.03	0	720523..721737	-	404	86605426	-	CYA_0713	-	GTP-binding domain-containing protein
684	 56.86	0	721730..721882	+	50	86605427	-	CYA_0715	-	hypothetical protein
685	 60.67	0	721907..722056	+	49	86605428	-	CYA_0716	-	hypothetical protein
686	 48.48	-2	722156..722287	+	43	86605429	-	CYA_0717	-	hypothetical protein
687	 58.73	0	722265..722768	+	167	86605430	aroQ	CYA_0718	-	3-dehydroquinate dehydratase
688	 59.22	0	723012..723548	-	178	86605431	-	CYA_0719	-	thioredoxin
689	 64.18	0	723925..727215	+	1096	86605432	-	CYA_0721	-	SbcC family exonuclease
690	 61.57	0	727212..727643	-	143	86605433	-	CYA_0720	-	hypothetical protein
691	 60.67	0	727936..728202	-	88	86605434	-	CYA_0722	-	hypothetical protein
692	 57.32	0	728199..728519	-	106	86605435	-	CYA_0723	-	hypothetical protein
693	 67.20	+1	728569..730068	-	499	86605436	-	CYA_0724	-	CobN/magnesium chelatase domain-containing protein
694	 58.86	0	730086..731264	-	392	86605437	tal	CYA_0725	-	transaldolase/EF-hand domain-containing protein
695	 55.50	-1	731379..732659	-	426	86605438	-	CYA_0726	-	ISSoc2, transposase
696	 52.19	-1	732514..733107	-	197	86605439	-	CYA_0727	-	ISSoc2, resolvase
697	 55.31	-1	733729..734001	-	90	86605440	cas2-2	CYA_0728	-	CRISPR-associated Cas2 family protein
698	 50.21	-2	734001..734948	-	315	86605441	cas1-1	CYA_0729	-	CRISPR-associated Cas1 family protein
699	 50.39	-2	734975..735607	-	210	86605442	cse3	CYA_0730	-	CRISPR-associated Cse3 family protein
700	 54.17	-1	735589..736212	-	207	86605443	cas5e	CYA_0731	-	CRISPR-associated Cas5 family Ecoli subtype protein
701	 48.73	-2	736216..737358	-	380	86605444	cse4	CYA_0732	-	CRISPR-associated Cse4 family protein
702	 44.33	-2	737425..738024	-	199	86605445	cse2	CYA_0733	-	CRISPR-associated Cse2 family protein
703	 47.43	-2	738036..739610	-	524	86605446	cse1	CYA_0734	-	CRISPR-associated Cse1 family protein
704	 56.11	0	739627..742308	-	893	86605447	cas3	CYA_0735	-	CRISPR-associated helicase Cas3
705	 57.65	0	742311..743219	-	302	86605448	-	CYA_0736	-	hypothetical protein
706	 55.23	-1	743274..743990	+	238	90296793	-	CYA_0737	-	ISSoc8, transposase, interruption-N
707	 55.10	-1	744741..745103	+	120	90296794	-	CYA_0739	-	ISSoc8, transposase, interruption-C
708	 56.90	0	745048..745221	-	57	86605449	-	CYA_0738	-	hypothetical protein
709	 65.06	+1	745386..746318	-	310	86605450	-	CYA_0740	-	RluA family pseudouridine synthase
710	 63.41	0	746652..749111	+	819	86605451	ppsA	CYA_0741	-	phosphoenolpyruvate synthase
711	 63.25	0	749181..750440	+	419	86605452	-	CYA_0742	-	branched-chain alpha-keto acid dehydrogenase subunit E2
712	 58.62	0	750971..752635	+	554	86605453	-	CYA_0743	-	putative lipoprotein
713	 54.03	-1	752909..753541	-	210	86605454	-	CYA_0744	-	NADH dehydrogenase subunit I
714	 58.38	0	753577..754698	-	373	86605455	-	CYA_0745	-	NADH dehydrogenase subunit H
715	 61.76	0	754760..754963	-	67	86605456	-	CYA_0746	-	hypothetical protein
716	 60.17	0	754994..756178	-	394	86605457	-	CYA_0747	-	NAD(P)H-quinone oxidoreductase subunit H
717	 63.84	0	756346..756663	+	105	86605458	-	CYA_0748	-	hypothetical protein
718	 59.86	0	756755..757312	-	185	86605459	-	CYA_0749	-	carboxymuconolactone decarboxylase family protein
719	 60.32	0	757386..757637	-	83	86605460	-	CYA_0750	-	hypothetical protein
720	 65.30	+1	758348..759151	+	267	86605461	ureD	CYA_0753	-	urease accessory protein UreD
721	 62.31	0	759189..760703	+	504	86605462	-	CYA_0754	-	hypothetical protein
722	 61.86	0	760890..762491	-	533	86605463	-	CYA_0756	-	dolichyl-phosphate-mannose-protein mannosyltransferase
723	 58.88	0	762688..763470	-	260	86605464	-	CYA_0757	-	hypothetical protein
724	 56.21	0	763464..764027	-	187	86605465	-	CYA_0758	-	hypothetical protein
725	 61.19	0	764247..765707	-	486	86605466	ftsY	CYA_0759	-	signal recognition particle-docking protein FtsY
726	 59.84	0	765802..766650	-	282	86605467	purU	CYA_0760	-	formyltetrahydrofolate deformylase
727	 59.00	0	766952..767290	-	112	86605468	tatA-1	CYA_0761	-	twin-arginine translocation protein TatA
728	 61.47	0	767499..770363	+	954	86605469	secA	CYA_0762	-	preprotein translocase subunit SecA
729	 61.79	0	770446..771204	-	252	86605470	-	CYA_0763	-	pspA/IM30 family protein
730	 62.87	0	771239..771949	-	236	86605471	-	CYA_0764	-	putative polysaccharide deacetylase
731	 62.84	0	771959..774466	-	835	86605472	-	CYA_0765	-	U32 family peptidase
732	 58.73	0	774623..774748	-	41	86605473	-	CYA_0766	-	hypothetical protein
733	 55.36	-1	774780..775973	-	397	86605474	-	CYA_0767	-	ISSoc1, transposase
734	 60.40	0	776204..776698	-	164	86605475	sixA	CYA_0768	-	phosphohistidine phosphatase SixA
735	 54.09	-1	776958..777299	+	113	86605476	trx-1	CYA_0769	-	thioredoxin
736	 55.18	-1	777430..778500	+	356	86605477	-	CYA_0770	-	hypothetical protein
737	 62.85	0	778523..779203	+	226	86605478	trpF	CYA_0771	-	N-(5'-phosphoribosyl)anthranilate isomerase
738	 61.01	0	779226..780056	-	276	86605479	-	CYA_0772	-	hypothetical protein
60.19	MEAN

4.44	STD DEV
