IslandPath Analysis: Synechococcus sp. JA-3-3Ab

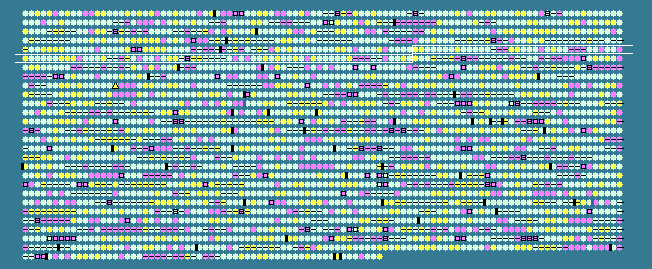

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.19 STD DEV: 4.44
Synechococcus sp. JA-3-3Ab, complete genome - 1..2932766
2760 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
466	 64.66	+1	501723..502670	-	315	86605202	-	CYA_0484	-	NAD-dependent epimerase/dehydratase family protein
467	 65.12	+1	502667..504085	-	472	86605203	-	CYA_0485	-	UDP-glucose dehydrogenase
468	 63.06	0	504227..505141	+	304	86605204	-	CYA_0486	-	cation transporter
469	 58.19	0	505488..505664	+	58	86605205	-	CYA_0487	-	hypothetical protein
470	 60.71	0	505954..506490	+	178	86605206	-	CYA_0488	-	HNH endonuclease domain-containing protein
471	 62.61	0	506500..507435	-	311	86605207	-	CYA_0489	-	alpha/beta fold family hydrolase
472	 63.41	0	507552..508166	+	204	86605208	ruvA	CYA_0490	-	Holliday junction DNA helicase motor protein
473	 64.74	+1	508163..508786	+	207	86605209	nadD	CYA_0491	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
474	 59.44	0	508947..509195	-	82	86605210	psaC	CYA_0492	-	photosystem I subunit VII
475	 59.79	0	509434..509811	+	125	86605211	-	CYA_0493	-	hypothetical protein
476	 63.47	0	509831..510205	-	124	86605212	-	CYA_0494	-	hypothetical protein
477	 61.53	0	510208..510849	-	213	86605213	-	CYA_0495	-	hypothetical protein
478	 61.90	0	510982..512283	-	433	86605214	-	CYA_0496	-	putative gamma-glutamyl phosphate reductase
479	 58.94	0	512401..512853	-	150	86605215	-	CYA_0497	-	hypothetical protein
480	 56.42	0	512911..514188	-	425	86605216	-	CYA_0498	-	hypothetical protein
481	 54.93	-1	514185..515624	-	479	86605217	-	CYA_0499	-	hypothetical protein
482	 64.14	0	515750..516856	+	368	86605218	-	CYA_0500	-	putative glutamate--cysteine ligase
483	 64.49	0	518175..519785	-	536	86605219	-	CYA_0502	-	transporter, monovalent cation:proton antiporter-2 (CPA2) family/universal stress family protein
484	 60.71	0	520081..520668	-	195	86605220	-	CYA_0503	-	hypothetical protein
485	 62.21	0	520709..521404	-	231	86605221	hisIE	CYA_0504	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
486	 63.50	0	521665..523812	-	715	86605222	-	CYA_0505	-	polysaccharide deacetylase family protein
487	 56.30	0	524217..524708	-	163	86605223	-	CYA_0506	-	putative phycobilisome linker polypeptide, phycocyanin-associated, rod
488	 62.36	0	524898..525431	+	177	86605224	-	CYA_0507	-	hypothetical protein
489	 65.44	+1	527198..529402	+	734	86605227	-	CYA_0510	-	CobN/magnesium chelatase domain-containing protein
490	 60.00	0	529494..529808	-	104	86605228	-	CYA_0511	-	putative RNA-binding protein
491	 63.38	0	530063..532801	-	912	86605229	valS	CYA_0512	-	valyl-tRNA synthetase
492	 53.43	-1	532955..533377	+	140	86605230	-	CYA_0513	-	MerR family transcriptional regulator
493	 49.69	-2	533412..533570	+	52	86605231	-	CYA_0514	-	putative lipoprotein
494	 52.42	-1	533422..533835	+	137	86605232	-	CYA_0515	-	hypothetical protein
495	 58.39	0	533975..534796	-	273	86605233	cdsA	CYA_0516	-	phosphatidate cytidylyltransferase
496	 61.40	0	534777..534947	-	56	86605234	-	CYA_0517	-	hypothetical protein
497	 54.17	-1	534953..535072	+	39	86605235	-	CYA_0518	-	hypothetical protein
498	 60.48	0	535116..536117	+	333	86605236	-	CYA_0519	-	dehydrogenase E1 component, alpha subunit
499	 60.28	0	536338..537918	+	526	86605237	-	CYA_0520	-	NAD(P)H-quinone oxidoreductase subunit 4
500	 53.33	-1	538113..538292	-	59	86605238	-	CYA_0521	-	hypothetical protein
501	 64.35	0	538610..539299	-	229	86605239	-	CYA_0522	-	V4R domain-containing protein
502	 57.29	0	539316..539795	-	159	86605240	-	CYA_0523	-	putative phycobilisome protein
503	 58.48	0	539818..540696	-	292	86605241	-	CYA_0524	-	putative phycobilisome protein
504	 58.48	0	540751..541434	-	227	86605242	bchJ	CYA_0525	-	putative bacteriochlorophyll 4-vinyl reductase
505	 61.11	0	541607..542092	-	161	86605243	-	CYA_0526	-	iron-sulfur cluster-binding protein
506	 62.59	0	542537..543100	+	187	86605244	-	CYA_0528	-	putative phycobilisome linker polypeptide
507	 64.38	0	543064..544068	-	334	86605245	-	CYA_0527	-	taurine ABC transporter periplasmic substrate-binding protein
508	 67.40	+1	544262..545764	+	500	86605246	cobA/hemD	CYA_0529	-	uroporphyrin-III C-methyltransferase/uroporphyrinogen-III synthase
509	 63.88	0	545801..546625	+	274	86605247	menB	CYA_0530	-	naphthoate synthase
510	 56.40	0	546670..549456	+	928	86605248	polA	CYA_0531	-	DNA polymerase I
511	 61.30	0	549522..549782	+	86	86605249	grxC	CYA_0532	-	glutaredoxin 3
512	 60.61	0	549834..550130	-	98	86605250	-	CYA_0533	-	hypothetical protein
513	 61.55	0	550279..550806	-	175	86605251	-	CYA_0534	-	UbiE/COQ5 family methlytransferase
514	 64.07	0	550816..551700	-	294	86605252	-	CYA_0535	-	arginase family protein
515	 58.59	0	551962..552357	+	131	86605253	psaD	CYA_0536	-	photosystem I reaction center subunit II
516	 60.26	0	552727..553335	-	202	86605254	-	CYA_0537	-	anti-oxidant AhpCTSA family protein
517	 56.19	0	553397..553501	+	34	86605255	-	CYA_0538	-	hypothetical protein
518	 64.14	0	553498..553734	+	78	86605256	-	CYA_0539	-	hypothetical protein
519	 56.98	0	553736..553993	-	85	86605257	-	CYA_0540	-	hypothetical protein
520	 47.92	-2	553993..554184	+	63	86605258	-	CYA_0541	-	hypothetical protein
521	 63.51	0	554249..555292	+	347	86605259	glpX	CYA_0542	-	fructose 1,6-bisphosphatase II
522	 61.50	0	555611..556906	+	431	86605260	hemA	CYA_0543	-	glutamyl-tRNA reductase
523	 56.48	0	557019..557126	+	35	86605261	-	CYA_0544	-	hypothetical protein
524	 62.05	0	557310..559127	+	605	86605262	typA	CYA_0545	-	GTP-binding protein TypA
525	 65.05	+1	559138..561246	-	702	86605263	-	CYA_0546	-	hypothetical protein
526	 66.06	+1	561284..562600	-	438	86605264	cinA	CYA_0547	-	competence/damage-inducible protein CinA
527	 62.02	0	562722..563216	-	164	86605265	-	CYA_0548	-	acetyltransferase
528	 51.99	-1	563304..563780	-	158	86605266	-	CYA_0549	-	ISSoc3, orfA transposase
529	 65.26	+1	565110..565394	-	94	86605267	-	CYA_0551	-	hypothetical protein
530	 64.82	+1	565575..566657	+	360	86605268	-	CYA_0553	-	CobQ/CobB/MinD/ParA nucleotide binding domain-containing protein
531	 60.43	0	566654..567022	-	122	86605269	-	CYA_0552	-	putative lipoprotein
532	 62.70	0	567087..569000	-	637	86605270	-	CYA_0554	-	OMP85 family membrane protein
533	 62.93	0	569380..569727	-	115	86605271	-	CYA_0555	-	hypothetical protein
534	 61.76	0	570008..570109	+	33	86605272	-	CYA_0557	-	hypothetical protein
535	 60.45	0	570096..570899	-	267	86605273	cysE	CYA_0556	-	serine O-acetyltransferase
536	 55.26	-1	571083..571424	+	113	86605274	-	CYA_0558	-	glutaredoxin-like protein
537	 60.28	0	571433..571714	+	93	86605275	bolA	CYA_0559	-	BolA protein
538	 53.28	-1	572078..572428	+	116	86605276	-	CYA_0560	-	hypothetical protein
539	 62.72	0	572482..575142	-	886	86605277	topA	CYA_0561	-	DNA topoisomerase I
540	 59.05	0	575343..575762	+	139	86605278	-	CYA_0562	-	glyoxalase family protein
541	 63.92	0	575990..578068	-	692	86605279	dnaX	CYA_0563	-	DNA polymerase III, subunits gamma and tau
542	 62.01	0	578157..578693	-	178	86605280	-	CYA_0564	-	hypothetical protein
543	 65.95	+1	578722..579414	-	230	86605281	coaE	CYA_0565	-	dephospho-CoA kinase
544	 63.25	0	579514..581181	-	555	86605282	-	CYA_0566	-	alpha-isopropylmalate/homocitrate synthase family transferase
545	 59.95	0	581171..581542	-	123	86605283	-	CYA_0567	-	hypothetical protein
546	 64.61	0	581831..582655	+	274	86605284	-	CYA_0568	-	PP-loop family protein
547	 63.00	0	582703..584529	+	608	86605285	-	CYA_0569	-	hypothetical protein
548	 56.38	0	584810..585091	+	93	86605286	-	CYA_0570	-	hypothetical protein
549	 67.73	+1	585116..585490	-	124	86605287	-	CYA_0571	-	putative lipoprotein
550	 57.86	0	585522..586202	-	226	86605288	-	CYA_0572	-	hypothetical protein
551	 60.96	0	586289..586831	-	180	86605289	-	CYA_0573	-	hypothetical protein
552	 57.95	0	587313..587771	+	152	86605290	-	CYA_0574	-	S-adenosylmethionine decarboxylase proenzyme
553	 62.83	0	587800..588738	+	312	86605291	speE	CYA_0575	-	spermidine synthase
554	 58.94	0	588838..589989	+	383	86605292	-	CYA_0577	-	putative UDP-sulfoquinovose synthase
555	 63.71	0	589986..590897	-	303	86605293	-	CYA_0576	-	histone deacetylase family protein
556	 52.96	-1	590947..591267	-	106	86605294	-	CYA_0578	-	hypothetical protein
557	 52.05	-1	591438..591608	-	56	86605295	-	CYA_0579	-	hypothetical protein
558	 52.21	-1	591848..592186	-	112	86605296	-	CYA_0580	-	iojap protein
559	 57.94	0	592232..592873	-	213	86605297	-	CYA_0581	-	HD domain-containing protein
560	 58.22	0	592866..594677	-	603	86605298	lepA	CYA_0582	-	GTP-binding protein LepA
561	 50.48	-2	594944..595468	-	174	86605299	-	CYA_0583	-	hypothetical protein
562	 59.68	0	595616..596602	-	328	86605300	glyQ	CYA_0584	-	glycyl-tRNA synthetase subunit alpha
563	 58.24	0	596648..597418	-	256	86605301	-	CYA_0585	-	T1 family peptidase
564	 63.76	0	597478..598887	-	469	86605302	-	CYA_0586	-	GTP-binding domain-containing protein
565	 60.35	0	599119..599403	+	94	86605303	-	CYA_0587	-	hypothetical protein
60.19	MEAN

4.44	STD DEV
