IslandPath Analysis: Synechococcus sp. JA-3-3Ab

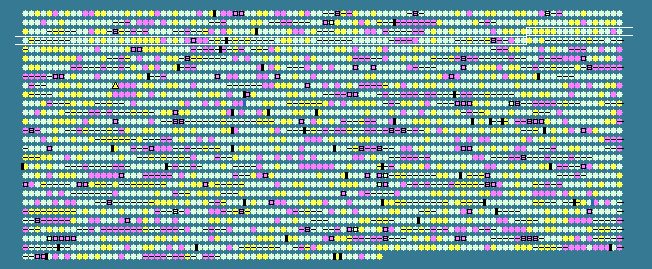

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.19 STD DEV: 4.44
Synechococcus sp. JA-3-3Ab, complete genome - 1..2932766
2760 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
285	 58.33	0	306111..306386	+	91	86605021	-	CYA_0300	-	MoaD family protein
286	 64.80	+1	306404..306991	+	195	86605022	-	CYA_0301	-	DNA-3-methyladenine glycosylase
287	 65.96	+1	307008..308276	+	422	86605023	-	CYA_0302	-	hypothetical protein
288	 66.09	+1	308636..310549	+	637	86605024	-	CYA_0304	-	NHL repeat-containing protein
289	 65.85	+1	310546..312012	-	488	86605025	phrB-1	CYA_0303	-	deoxyribodipyrimidine photolyase
290	 63.61	0	312014..312340	-	108	86605026	hup-1	CYA_0305	-	DNA-binding protein HU
291	 60.15	0	312458..312718	-	86	86605027	-	CYA_0306	-	hypothetical protein
292	 58.33	0	312834..313277	+	147	86605028	pmgA	CYA_0307	-	pmgA protein
293	 64.88	+1	313288..315018	-	576	86605029	-	CYA_0308	-	hypothetical protein
294	 63.44	0	315172..317649	+	825	86605030	pheT	CYA_0309	-	phenylalanyl-tRNA synthetase subunit beta
295	 62.57	0	317853..318755	+	300	86605031	argB	CYA_0310	-	acetylglutamate kinase
296	 63.68	0	318965..320803	+	612	86605032	-	CYA_0311	-	ABC transporter, permease/ATP-binding protein
297	 61.83	0	321183..321554	+	123	86605033	-	CYA_0312	-	hypothetical protein
298	 60.25	0	321745..323256	+	503	86605034	-	CYA_0313	-	AAA family ATPase
299	 56.70	0	323388..323738	+	116	86605035	-	CYA_0314	-	hypothetical protein
300	 63.60	0	323857..325095	-	412	86605036	pgk	CYA_0315	-	phosphoglycerate kinase
301	 63.07	0	325273..326691	+	472	86605037	pds	CYA_0316	-	phytoene desaturase
302	 64.10	0	326768..327703	+	311	86605038	crtB	CYA_0317	-	phytoene synthase
303	 62.13	0	327727..328542	+	271	86605039	-	CYA_0319	-	ABC-2 transporter, permease protein
304	 62.48	0	328539..333596	-	1685	86605040	-	CYA_0318	-	DEAD-box ATP dependent DNA helicase
305	 57.00	0	333689..333895	-	68	86605041	-	CYA_0320	-	hypothetical protein
306	 61.95	0	333924..338501	-	1525	86605042	-	CYA_0321	-	hypothetical protein
307	 63.39	0	338498..341392	-	964	86605043	-	CYA_0322	-	putative helicase
308	 61.43	0	341673..342188	+	171	86605044	-	CYA_0323	-	cyclic nucleotide-binding protein, trunction
309	 59.90	0	342373..343392	+	339	86605045	gap-2	CYA_0325	-	glyceraldehyde-3-phosphate dehydrogenase, type I
310	 61.69	0	343377..343979	-	200	86605046	-	CYA_0324	-	2',5' RNA ligase family protein
311	 62.65	0	344149..344571	+	140	86605047	-	CYA_0327	-	ferredoxin-like protein
312	 66.19	+1	344559..345191	-	210	86605048	-	CYA_0326	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
313	 59.86	0	346459..347148	-	229	86605049	-	CYA_0329	-	hypothetical protein
314	 65.31	+1	347318..348421	+	367	86605050	-	CYA_0330	-	FAD-dependent oxidoreductase
315	 58.33	0	348529..348828	+	99	86605051	-	CYA_0331	-	hypothetical protein
316	 59.48	0	349032..350660	+	542	86605052	groEL	CYA_0332	-	chaperonin GroEL
317	 64.96	+1	350698..352224	-	508	86605053	lysS	CYA_0333	-	lysyl-tRNA synthetase
318	 62.40	0	352271..353185	-	304	86605054	-	CYA_0334	-	hypothetical protein
319	 65.68	+1	353548..354966	-	472	86605055	radA	CYA_0335	-	DNA repair protein RadA
320	 67.99	+1	355019..356155	-	378	86605056	aroC	CYA_0336	-	chorismate synthase
321	 68.44	+1	356210..356944	-	244	86605057	-	CYA_0337	-	pantothenate kinase
322	 68.72	+1	356934..357665	-	243	86605058	-	CYA_0338	-	hypothetical protein
323	 64.75	+1	357668..358867	-	399	86605059	trpB	CYA_0339	-	tryptophan synthase subunit beta
324	 51.94	-1	359124..359483	+	119	86605060	-	CYA_0340	-	hypothetical protein
325	 61.66	0	359627..360145	+	172	86605061	-	CYA_0341	-	hypothetical protein
326	 64.99	+1	360158..360754	+	198	86605062	-	CYA_0342	-	hypothetical protein
327	 63.29	0	360754..362295	+	513	86605063	-	CYA_0343	-	DnaK family protein
328	 50.41	-2	362387..362509	+	40	86605064	-	CYA_0344	-	hypothetical protein
329	 55.66	-1	362789..364069	-	426	86605065	-	CYA_0345	-	ISSoc2, transposase
330	 53.24	-1	363924..364541	-	205	86605066	-	CYA_0346	-	ISSoc2, resolvase
331	 56.30	0	364609..364743	-	44	86605067	-	CYA_0347	-	hypothetical protein
332	 61.07	0	365438..366295	+	285	86605068	-	CYA_0348	-	HAD family hydrolase
333	 63.93	0	366346..368466	+	706	86605069	-	CYA_0349	-	UvrD/REP helicase domain-containing protein
334	 61.94	0	368586..369452	+	288	86605070	nusB	CYA_0350	-	transcription antitermination factor NusB
335	 60.14	0	370022..370573	+	183	86605071	-	CYA_0352	-	NADPH-dependent FMN reductase
336	 64.29	0	370637..371056	-	139	86605072	-	CYA_0353	-	putative lipoprotein
337	 62.42	0	371225..372874	+	549	86605073	-	CYA_0355	-	hypothetical protein
338	 64.91	+1	372868..374061	-	397	86605074	-	CYA_0354	-	glycosyl transferase, group 1 family protein
339	 60.14	0	374064..374477	-	137	86605075	-	CYA_0356	-	hypothetical protein
340	 60.54	0	374567..375007	-	146	86605076	-	CYA_0357	-	hypothetical protein
341	 59.18	0	375090..375971	-	293	86605077	-	CYA_0358	-	cation transporter, voltage-gated ion channel cation transporter
342	 61.28	0	376112..376705	+	197	86605078	maf	CYA_0360	-	Maf-like protein
343	 60.96	0	376702..378174	-	490	86605079	gatB	CYA_0359	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
344	 66.67	+1	378240..378395	-	51	86605080	-	CYA_0361	-	hypothetical protein
345	 64.74	+1	378672..378827	-	51	86605081	-	CYA_0362	-	putative acylphosphatase
346	 61.68	0	378824..379144	-	106	86605082	-	CYA_0363	-	hypothetical protein
347	 62.44	0	379184..380626	+	480	86605083	-	CYA_0364	-	gamma-aminobutyraldehyde dehydrogenase
348	 67.51	+1	380752..382770	+	672	86605084	chlD	CYA_0365	-	magnesium chelatase, ATPase subunit D
349	 60.53	0	382852..383601	+	249	86605085	-	CYA_0366	-	hypothetical protein
350	 61.71	0	383965..384408	-	147	86605086	-	CYA_0367	-	glyoxalase family protein
351	 60.84	0	384547..385575	+	342	86605087	mreB	CYA_0368	-	rod shape-determining protein
352	 62.90	0	385636..386379	+	247	86605088	mreC	CYA_0369	-	rod shape-determining protein
353	 62.38	0	386366..386995	+	209	86605089	mreD	CYA_0370	-	rod shape-determining protein MreD
354	 57.02	0	387283..387510	+	75	86605090	-	CYA_0371	-	iron-sulfur cluster-binding protein
355	 63.43	0	387549..388073	-	174	86605091	-	CYA_0372	-	hypothetical protein
356	 62.62	0	388505..390457	-	650	86605092	-	CYA_0373	-	serine/threonine protein kinase
357	 63.52	0	390588..391445	+	285	86605093	-	CYA_0375	-	inositol monophosphate family protein
358	 62.70	0	391400..392383	-	327	86605094	-	CYA_0374	-	glycosyl transferase, group 2 family protein
359	 62.17	0	392445..393533	-	362	86605095	hemE	CYA_0376	-	uroporphyrinogen decarboxylase
360	 61.41	0	393758..394651	+	297	86605096	crtE	CYA_0377	-	geranylgeranyl diphosphate synthase
361	 60.81	0	394648..395193	+	181	86605097	-	CYA_0378	-	hypothetical protein
362	 61.17	0	395236..395853	+	205	86605098	-	CYA_0379	-	hypothetical protein
363	 55.56	-1	395885..396721	+	278	86605099	-	CYA_0380	-	hypothetical protein
364	 49.06	-2	396773..397039	-	88	86605100	-	CYA_0381	-	hypothetical protein
365	 55.43	-1	397453..398280	+	275	86605101	-	CYA_0383	-	hypothetical protein
366	 54.58	-1	398277..398516	-	79	86605102	-	CYA_0382	-	hypothetical protein
367	 58.55	0	398920..399153	+	77	86605103	-	CYA_0384	-	hypothetical protein
368	 60.17	0	399356..400294	-	312	86605104	-	CYA_0385	-	hypothetical protein
369	 64.61	0	400816..401931	-	371	86605105	ribD	CYA_0386	-	riboflavin biosynthesis protein RibD
370	 63.10	0	402053..403651	+	532	86605106	pgi	CYA_0387	-	glucose-6-phosphate isomerase
371	 61.11	0	403771..404922	+	383	86605107	opcA	CYA_0388	-	opcA protein
372	 61.81	0	405100..405408	-	102	86605108	-	CYA_0389	-	CAB/ELIP/HLIP family protein
373	 60.27	0	405519..405737	-	72	86605109	-	CYA_0390	-	CAB/ELIP/HLIP family protein
374	 61.55	0	405906..407195	+	429	86605110	-	CYA_0391	-	SufS family cysteine desulfurase
375	 64.70	+1	407196..408311	+	371	86605111	-	CYA_0392	-	aldo/keto reductase family oxidoreductase
376	 61.72	0	408404..408787	-	127	86605112	-	CYA_0393	-	hypothetical protein
377	 59.29	0	408911..409588	+	225	86605113	-	CYA_0394	-	hypothetical protein
378	 63.71	0	409596..410339	+	247	86605114	-	CYA_0396	-	hypothetical protein
379	 55.66	-1	410293..411573	-	426	86605115	-	CYA_0395	-	ISSoc2, transposase
380	 52.19	-1	411428..412021	-	197	86605116	-	CYA_0397	-	ISSoc2, resolvase
381	 63.41	0	412218..412985	+	255	86605117	tpiA	CYA_0398	-	triosephosphate isomerase
382	 51.82	-1	412991..415792	-	933	86605118	treY	CYA_0399	-	malto-oligosyltrehalose synthase
383	 61.59	0	415943..416356	+	137	86605119	-	CYA_0400	-	hypothetical protein
384	 59.38	0	416555..417418	+	287	86605120	-	CYA_0401	-	M48A family peptidase
60.19	MEAN

4.44	STD DEV
