IslandPath Analysis: Synechococcus sp. JA-3-3Ab

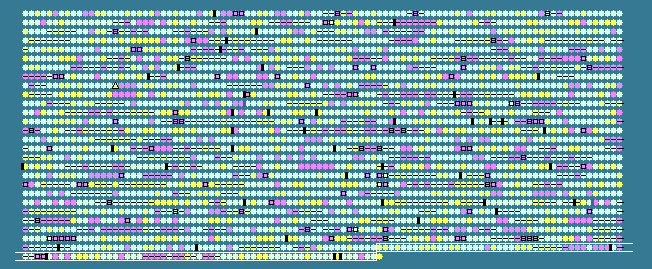

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.19 STD DEV: 4.44
Synechococcus sp. JA-3-3Ab, complete genome - 1..2932766
2760 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2660	 67.74	+1	2818865..2820454	-	529	86607403	-	CYA_2800	-	putative hydantoin utilization protein B
2661	 63.75	0	2820451..2820759	-	102	86607404	-	CYA_2802	-	hypothetical protein
2662	 59.38	0	2820791..2821531	-	246	86607405	-	CYA_2803	-	PDZ domain-containing protein
2663	 64.98	+1	2821568..2822518	-	316	86607406	pip	CYA_2804	-	prolyl aminopeptidase
2664	 62.45	0	2822552..2824759	-	735	86607407	-	CYA_2805	-	glycosy hydrolase family protein
2665	 61.88	0	2824935..2825477	+	180	86607408	-	CYA_2806	-	HNH endonuclease domain-containing protein
2666	 62.77	0	2825525..2826088	+	187	86607409	-	CYA_2807	-	CpeS-like protein
2667	 66.67	+1	2826212..2828101	+	629	86607410	-	CYA_2809	-	AAA family ATPase
2668	 64.35	0	2828098..2829564	-	488	86607411	glcD	CYA_2808	-	glycolate oxidase, subunit GlcD
2669	 64.57	0	2829694..2830884	+	396	86607412	-	CYA_2810	-	hypothetical protein
2670	 60.20	0	2831007..2831207	+	66	86607413	rpmI	CYA_2811	-	50S ribosomal protein L35
2671	 61.34	0	2831330..2831686	+	118	86607414	rplT	CYA_2812	-	50S ribosomal protein L20
2672	 66.29	+1	2831691..2832491	+	266	86607415	-	CYA_2814	-	amino acid transporter, amino acid-binding protein
2673	 64.56	0	2832488..2834101	-	537	86607416	purH	CYA_2813	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
2674	 60.39	0	2834360..2835076	+	238	86607417	-	CYA_2815	-	MotA/TolQ/ExbB family proton transporter
2675	 61.03	0	2835080..2835505	+	141	86607418	-	CYA_2816	-	ExbD/TolR family proton transporter
2676	 63.07	0	2835539..2836483	-	314	86607419	argF	CYA_2817	-	ornithine carbamoyltransferase
2677	 61.81	0	2836589..2837884	-	431	86607420	prc-2	CYA_2818	-	C-terminal processing peptidase
2678	 55.38	-1	2837907..2838101	-	64	86607421	-	CYA_2819	-	hypothetical protein
2679	 64.18	0	2838133..2839500	+	455	86607422	proA	CYA_2820	-	gamma-glutamyl phosphate reductase
2680	 58.42	0	2839764..2840309	+	181	86607423	-	CYA_2821	-	putative RNA-binding protein
2681	 59.87	0	2840401..2841195	+	264	86607424	-	CYA_2822	-	DSBA thioredoxin domain-containing protein
2682	 63.36	0	2841219..2841914	+	231	86607425	-	CYA_2823	-	HNH endonuclease domain-containing protein
2683	 67.17	+1	2841989..2843173	-	394	86607426	-	CYA_2824	-	sporulation and cell division repeat-containing protein
2684	 64.03	0	2843283..2843699	-	138	86607427	-	CYA_2825	-	hypothetical protein
2685	 65.00	+1	2843803..2846259	+	818	86607428	recJ-2	CYA_2826	-	single-stranded-DNA-specific exonuclease RecJ
2686	 63.21	0	2846282..2846947	+	221	86607429	-	CYA_2827	-	Ser/Thr protein phosphatase family protein
2687	 65.82	+1	2846998..2847591	+	197	86607430	rdgB	CYA_2828	-	non-canonical purine NTP pyrophosphatase
2688	 64.08	0	2847784..2848905	+	373	86607431	-	CYA_2829	-	hypothetical protein
2689	 65.85	+1	2848921..2849535	+	204	86607432	tmk	CYA_2830	-	thymidylate kinase
2690	 59.88	0	2849659..2850645	+	328	86607433	-	CYA_2831	-	CHAD domain-containing protein
2691	 56.71	0	2850743..2851807	+	354	86607434	-	CYA_2832	-	polyamine transporter, polyamine-binding protein
2692	 50.88	-2	2851881..2852051	+	56	86607435	-	CYA_2834	-	CAB/ELIP/HLIP family protein
2693	 53.73	-1	2851884..2852084	-	66	86607436	-	CYA_2833	-	hypothetical protein
2694	 55.00	-1	2852088..2852207	-	39	86607437	-	CYA_2835	-	hypothetical protein
2695	 59.08	0	2852264..2856835	-	1523	86607438	-	CYA_2836	-	sensory box histidine kinase/response regulator
2696	 50.26	-2	2857206..2857583	+	125	86607439	-	CYA_2837	-	hypothetical protein
2697	 53.54	-1	2857857..2858252	+	131	86607440	-	CYA_2838	-	hypothetical protein
2698	 47.31	-2	2858386..2858478	+	30	86607441	-	CYA_2839	-	hypothetical protein
2699	 59.51	0	2859006..2860109	+	367	86607442	tgt	CYA_2841	-	queuine tRNA-ribosyltransferase
2700	 54.41	-1	2860211..2860822	+	203	86607443	-	CYA_2842	-	hypothetical protein
2701	 58.70	0	2860886..2862127	+	413	86607444	-	CYA_2843	-	hypothetical protein
2702	 62.29	0	2862134..2862430	+	98	86607445	-	CYA_2844	-	hypothetical protein
2703	 46.37	-2	2862567..2862965	+	132	86607446	-	CYA_2845	-	ISSoc4, transposase orfA
2704	 45.29	-2	2863004..2863513	+	169	86607447	-	CYA_2846	-	ISSoc4, transposase orfB
2705	 60.18	0	2863854..2864408	+	184	86607448	scpB	CYA_2848	-	segregation and condensation protein B
2706	 56.07	0	2864615..2865265	-	216	86607449	-	CYA_2849	-	anti-oxidant AhpCTSA family protein
2707	 59.87	0	2865498..2866601	+	367	86607450	-	CYA_2850	-	hypothetical protein
2708	 52.17	-1	2866651..2867733	-	360	86607451	-	CYA_2851	-	small conductance mechanosensitive ion channel (MscS) family protein
2709	 60.57	0	2867888..2868757	-	289	86607452	-	CYA_2852	-	phospholipase/carboxylesterase
2710	 65.13	+1	2868880..2869464	-	194	86607453	-	CYA_2853	-	CAAX amino terminal protease family protein
2711	 64.72	+1	2869616..2870695	-	359	86607454	-	CYA_2854	-	polysaccharide pyruvyl transferase
2712	 57.14	0	2871121..2871414	-	97	86607455	-	CYA_2855	-	hypothetical protein
2713	 64.50	0	2871556..2873538	+	660	86607456	-	CYA_2856	-	1A family penicillin-binding protein
2714	 61.67	0	2873535..2873894	+	119	86607457	-	CYA_2857	-	hypothetical protein
2715	 60.33	0	2874084..2874683	+	199	86607458	sodB	CYA_2858	-	superoxide dismutase, Fe
2716	 63.21	0	2874783..2876375	-	530	86607459	-	CYA_2859	-	serine/threonine protein kinase
2717	 50.54	-2	2876391..2876576	+	61	86607460	-	CYA_2860	-	hypothetical protein
2718	 61.86	0	2876637..2878715	+	692	86607461	-	CYA_2861	-	monovalent cation:proton antiporter-2 (CPA2) family protein
2719	 63.11	0	2879174..2881366	+	730	86607462	glyS	CYA_2862	-	glycyl-tRNA synthetase subunit beta
2720	 61.15	0	2881409..2882332	-	307	86607463	-	CYA_2863	-	fructosamine kinase family protein
2721	 56.07	0	2882340..2882792	-	150	86607464	-	CYA_2864	-	hypothetical protein
2722	 55.37	-1	2882905..2883444	-	179	86607465	-	CYA_2865	-	putative small GTP-binding protein
2723	 54.95	-1	2883501..2884055	-	184	86607466	-	CYA_2866	-	hypothetical protein
2724	 52.85	-1	2884109..2884477	-	122	86607467	-	CYA_2867	-	roadblock/LC7 domain-contain protein
2725	 59.52	0	2884602..2885483	-	293	86607468	-	CYA_2868	-	hypothetical protein
2726	 56.71	0	2885818..2886651	-	277	86607469	-	CYA_2869	-	hypothetical protein
2727	 55.56	-1	2886813..2887649	-	278	86607470	-	CYA_2870	-	hypothetical protein
2728	 65.35	+1	2887938..2890445	-	835	86607471	-	CYA_2871	-	copper-translocating P-type ATPase
2729	 62.96	0	2890538..2890807	-	89	86607472	-	CYA_2872	-	hypothetical protein
2730	 63.27	0	2890820..2892085	-	421	86607473	fabF	CYA_2873	-	3-oxoacyl-(acyl carrier protein) synthase II
2731	 53.25	-1	2892183..2892428	-	81	86607474	acpP	CYA_2874	-	acyl carrier protein
2732	 56.36	0	2892660..2892950	+	96	86607475	rpsF	CYA_2875	-	ribosomal protein S6
2733	 62.41	0	2893038..2893436	+	132	86607476	-	CYA_2876	-	putative single-strand binding protein
2734	 63.02	0	2893463..2894092	+	209	86607477	-	CYA_2877	-	zinc carboxypeptidase
2735	 57.42	0	2894125..2894838	+	237	86607478	-	CYA_2878	-	universal stress protein
2736	 61.18	0	2894859..2896280	-	473	86607479	-	CYA_2879	-	hypothetical protein
2737	 65.20	+1	2896298..2897866	-	522	86607480	-	CYA_2880	-	hypothetical protein
2738	 60.05	0	2897891..2898676	-	261	86607481	-	CYA_2881	-	hypothetical protein
2739	 63.11	0	2898673..2899683	-	336	86607482	-	CYA_2882	-	ABC transporter, ATP-binding protein
2740	 64.49	0	2899886..2900941	-	351	86607483	purM	CYA_2883	-	phosphoribosylformylglycinamidine cyclo-ligase
2741	 65.31	+1	2901087..2902190	+	367	86607484	-	CYA_2884	-	rare lipoprotein A family protein
2742	 58.55	0	2902191..2903213	-	340	86607485	-	CYA_2885	-	response regulator
2743	 57.64	0	2903225..2906293	-	1022	86607486	-	CYA_2886	-	sensory box histidine kinase
2744	 61.06	0	2906453..2907451	-	332	86607487	prs	CYA_2887	-	ribose-phosphate pyrophosphokinase
2745	 59.95	0	2907571..2909103	+	510	86607488	-	CYA_2888	-	sugar ABC transporter, ATP-binding protein
2746	 61.86	0	2909517..2914181	+	1554	86607489	-	CYA_2889	-	TM2 domain-containing protein
2747	 60.95	0	2914272..2915582	+	436	86607490	-	CYA_2890	-	putative rod shape-determining protein RodA
2748	 67.89	+1	2915932..2917158	+	408	86607491	-	CYA_2891	-	aminotransferase, class V
2749	 63.22	0	2917183..2917791	+	202	86607492	-	CYA_2892	-	hypothetical protein
2750	 61.85	0	2917951..2918697	-	248	86607493	uppS	CYA_2893	-	undecaprenyl diphosphate synthase
2751	 60.39	0	2918703..2919626	-	307	86607494	-	CYA_2894	-	hypothetical protein
2752	 63.04	0	2919862..2921238	-	458	86607495	lysA	CYA_2895	-	diaminopimelate decarboxylase
2753	 63.73	0	2921618..2922979	-	453	86607496	miaB	CYA_2897	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
2754	 62.81	0	2923162..2924511	-	449	86607497	purA	CYA_2899	-	adenylosuccinate synthetase
2755	 62.28	0	2924669..2926240	-	523	86607498	-	CYA_2900	-	S41 family peptidase
2756	 58.16	0	2926369..2926956	-	195	86607499	-	CYA_2901	-	hypothetical protein
2757	 53.68	-1	2926874..2928259	-	461	86607500	-	CYA_2902	-	hypothetical protein
2758	 62.24	0	2928366..2931908	-	1180	86607501	smc	CYA_2903	-	chromosome segregation protein SMC
2759	 59.84	0	2931984..2932364	-	126	86607502	rnpA	CYA_2904	-	ribonuclease P
60.19	MEAN

4.44	STD DEV
