IslandPath Analysis: Synechococcus sp. JA-3-3Ab

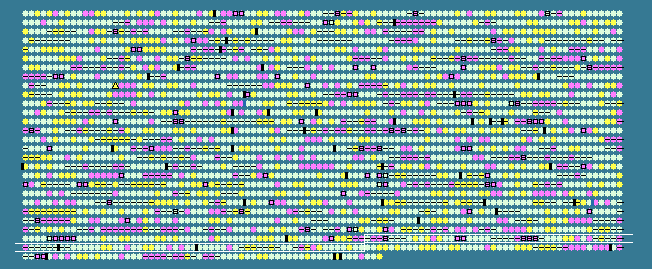

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.19 STD DEV: 4.44
Synechococcus sp. JA-3-3Ab, complete genome - 1..2932766
2760 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2558	 57.47	0	2706717..2708738	+	673	86607302	-	CYA_2692	-	FHA domain-containing protein
2559	 51.88	-1	2708985..2709437	+	150	86607303	-	CYA_2693	-	hypothetical protein
2560	 53.56	-1	2709546..2710163	+	205	86607304	-	CYA_2694	-	ISSoc2, resolvase
2561	 56.00	0	2710018..2711283	+	421	86607305	-	CYA_2695	-	ISSoc2, transposase
2562	 59.26	0	2711745..2712014	+	89	86607306	-	CYA_2696	-	hypothetical protein
2563	 58.26	0	2712109..2712762	+	217	86607307	-	CYA_2697	-	putative guanylate kinase
2564	 59.31	0	2714420..2715112	+	230	86607308	-	CYA_2699	-	DNA-binding response regulator
2565	 61.14	0	2715285..2716424	+	379	86607309	lgt-2	CYA_2700	-	prolipoprotein diacylglyceryl transferase
2566	 64.10	0	2718426..2719907	-	493	86607310	-	CYA_2702	-	M50 family peptidase
2567	 59.89	0	2719954..2721045	-	363	86607311	acsF	CYA_2703	-	magnesium-protoporphyrin IX monomethyl ester cyclase
2568	 64.93	+1	2721145..2725752	-	1535	86607312	gltS	CYA_2704	-	ferredoxin-dependent glutamate synthase
2569	 47.41	-2	2725833..2725967	-	44	86607313	-	CYA_2705	-	hypothetical protein
2570	 64.18	0	2726041..2726886	-	281	86607314	-	CYA_2706	-	hypothetical protein
2571	 59.60	0	2727113..2727310	+	65	86607315	-	CYA_2707	-	hypothetical protein
2572	 63.04	0	2727385..2728404	+	339	86607316	-	CYA_2708	-	drug exporter ABC transporter ATP-binding protein
2573	 46.37	-2	2728530..2728928	+	132	86607317	-	CYA_2709	-	ISSoc4, transposase orfA
2574	 45.33	-2	2728910..2729476	+	188	86607318	-	CYA_2710	-	ISSoc4, transposase orfB
2575	 61.40	0	2729586..2730440	+	284	86607319	-	CYA_2711	-	drug exporter ABC transporter permease
2576	 61.57	0	2730464..2730679	-	71	86607320	-	CYA_2712	-	hypothetical protein
2577	 58.76	0	2730798..2731442	+	214	86607321	-	CYA_2713	-	hypothetical protein
2578	 63.25	0	2731625..2734870	-	1081	86607322	-	CYA_2714	-	GAF domain/histidine kinase domain-containing protein
2579	 61.67	0	2734803..2736242	-	479	86607323	gltX	CYA_2715	-	glutamyl-tRNA synthetase
2580	 62.11	0	2736469..2736819	+	116	86607324	-	CYA_2716	-	hypothetical protein
2581	 59.58	0	2736917..2737156	+	79	86607325	-	CYA_2717	-	hypothetical protein
2582	 61.33	0	2737203..2738195	-	330	86607326	-	CYA_2718	-	hypothetical protein
2583	 56.38	0	2738226..2738507	-	93	86607327	-	CYA_2719	-	hypothetical protein
2584	 47.70	-2	2739836..2740009	+	57	90296799	-	CYA_2721	-	ISSoc3, orfA transposase, interruption-N
2585	 46.42	-2	2740043..2740447	+	134	86607328	-	CYA_2722	-	ISSoc4, transposase orfA
2586	 52.70	-1	2741015..2741329	+	104	90296800	-	CYA_2724	-	ISSoc3, orfA transposase, interruption-C
2587	 59.22	0	2741474..2741728	+	84	86607329	-	CYA_2725	-	hypothetical protein
2588	 62.62	0	2741783..2742499	+	238	86607330	-	CYA_2726	-	putative outer membrane protein
2589	 59.67	0	2742709..2744052	+	447	86607331	-	CYA_2727	-	response regulator
2590	 57.94	0	2744120..2744623	+	167	86607332	-	CYA_2728	-	hypothetical protein
2591	 66.44	+1	2744659..2745534	+	291	86607333	aroE	CYA_2729	-	shikimate 5-dehydrogenase
2592	 63.72	0	2745811..2747475	+	554	86607334	-	CYA_2730	-	hypothetical protein
2593	 50.00	-2	2747491..2747706	+	71	86607335	-	CYA_2731	-	hypothetical protein
2594	 60.38	0	2747913..2749709	-	598	86607336	argS	CYA_2732	-	arginyl-tRNA synthetase
2595	 51.43	-1	2749921..2750025	+	34	86607337	-	CYA_2733	-	hypothetical protein
2596	 63.62	0	2750055..2750906	+	283	86607338	-	CYA_2734	-	electron transfer flavoprotein, beta subunit/FixA family protein
2597	 64.16	0	2751044..2752162	+	372	86607339	-	CYA_2735	-	electron transfer flavoprotein, alpha subunit/FixB family protein
2598	 61.75	0	2752181..2752465	-	94	86607340	-	CYA_2736	-	hypothetical protein
2599	 58.79	0	2752755..2753897	+	380	86607341	-	CYA_2737	-	response regulator
2600	 51.94	-1	2754125..2754511	+	128	86607342	-	CYA_2738	-	response regulator
2601	 56.56	0	2754508..2754873	+	121	86607343	-	CYA_2739	-	response regulator
2602	 59.35	0	2755039..2755503	+	154	86607344	cheW	CYA_2740	-	chemotaxis protein cheW
2603	 62.51	0	2755812..2758262	+	816	86607345	-	CYA_2741	-	putative methyl-accepting chemotaxis protein
2604	 63.28	0	2758450..2763711	+	1753	86607346	-	CYA_2742	-	sensor histidine kinase/response regulator
2605	 59.22	0	2763846..2764490	+	214	86607347	-	CYA_2743	-	hypothetical protein
2606	 63.02	0	2764603..2766219	+	538	86607348	lnt	CYA_2744	-	apolipoprotein N-acyltransferase
2607	 62.21	0	2766533..2767138	+	201	86607349	cbiT	CYA_2746	-	precorrin-6B methylase
2608	 56.86	0	2767286..2767540	+	84	86607350	-	CYA_2747	-	hypothetical protein
2609	 58.68	0	2767600..2767962	-	120	86607351	-	CYA_2748	-	RlpA family protein, truncation
2610	 57.94	0	2768582..2768833	+	83	86607352	-	CYA_2750	-	ferredoxin-thioredoxin reductase, variable subunit
2611	 58.86	0	2768830..2769303	-	157	86607353	-	CYA_2749	-	hypothetical protein
2612	 62.13	0	2769533..2771449	+	638	86607354	hflB	CYA_2751	-	cell division protein FtsH
2613	 60.96	0	2771629..2773785	-	718	86607355	-	CYA_2752	-	putative alpha-glucan phosphorylase
2614	 64.67	+1	2774241..2775344	-	367	86607356	-	CYA_2753	-	SpoIID/LytB domain-containing protein
2615	 68.95	+1	2775738..2776262	-	174	86607357	-	CYA_2754	-	cytidine/deoxycytidylate deaminase zinc-binding domain-containing protein
2616	 62.61	0	2776450..2777682	+	410	86607358	-	CYA_2755	-	S1C family peptidase
2617	 63.01	0	2778001..2779584	+	527	86607359	-	CYA_2756	-	protein kinase
2618	 53.17	-1	2779652..2780014	-	120	86607360	-	CYA_2757	-	hypothetical protein
2619	 62.04	0	2781031..2782305	-	424	86607361	-	CYA_2758	-	oxidoreductase, FAD-dependent
2620	 62.70	0	2782776..2785574	+	932	86607362	-	CYA_2759	-	cation transport ATPase
2621	 63.76	0	2785628..2786557	-	309	86607363	-	CYA_2760	-	NAD-dependent epimerase/dehydratase family protein
2622	 64.17	0	2786900..2787499	+	199	86607364	-	CYA_2761	-	hypothetical protein
2623	 61.90	0	2787500..2788486	-	328	86607365	hemB	CYA_2762	-	delta-aminolevulinic acid dehydratase
2624	 56.91	0	2789589..2789711	+	40	86607367	-	CYA_2764	-	hypothetical protein
2625	 47.01	-2	2789830..2789946	+	38	86607368	psbI	CYA_2765	-	photosystem II reaction center I protein I
2626	 58.50	0	2790058..2790498	-	146	86607369	-	CYA_2766	-	putative lipoprotein
2627	 50.00	-2	2790553..2790654	+	33	86607370	-	CYA_2768	-	hypothetical protein
2628	 62.09	0	2790651..2791283	-	210	86607371	-	CYA_2767	-	BioY family protein
2629	 63.27	0	2791340..2792134	+	264	86607372	-	CYA_2769	-	inositol monophosphatase family protein
2630	 57.52	0	2792561..2793019	-	152	86607373	-	CYA_2771	-	hypothetical protein
2631	 61.68	0	2793174..2795138	+	654	86607374	-	CYA_2773	-	sensor histidine kinase
2632	 62.26	0	2795117..2795275	-	52	86607375	-	CYA_2772	-	hypothetical protein
2633	 60.14	0	2795279..2795845	-	188	86607376	-	CYA_2774	-	putative cyclase/dehydrase
2634	 63.01	0	2795942..2796187	-	81	86607377	-	CYA_2775	-	hypothetical protein
2635	 55.56	-1	2796321..2796410	+	29	86607378	petN	CYA_2776	-	cytochrome b6-f complex, subunit VIII
2636	 61.38	0	2796426..2796614	+	62	86607379	-	CYA_2777	-	hypothetical protein
2637	 62.34	0	2796655..2797047	-	130	86607380	-	CYA_2778	-	hypothetical protein
2638	 64.47	0	2797035..2799542	-	835	86607381	-	CYA_2779	-	sensor histidine kinase
2639	 64.63	+1	2799667..2800452	-	261	86607382	-	CYA_2780	-	TatD family hydrolase
2640	 60.24	0	2800623..2801213	+	196	86607383	-	CYA_2781	-	hypothetical protein
2641	 59.80	0	2801731..2802735	+	334	86607384	-	CYA_2782	-	iron ABC transporter iron-binding subunit
2642	 64.03	0	2802736..2804442	+	568	86607385	-	CYA_2783	-	iron ABC transporter permease
2643	 62.09	0	2804390..2804542	+	50	86607386	-	CYA_2784	-	hypothetical protein
2644	 58.61	0	2804598..2805950	+	450	86607387	ugpB	CYA_2785	-	glycerol-3-phosphate ABC transporter, glycerol-3-phosphate binding protein
2645	 57.93	0	2806202..2807254	+	350	86607388	upgA	CYA_2786	-	glycerol-3-phosphate ABC transporter, permease protein
2646	 57.01	0	2807279..2807713	-	144	86607389	-	CYA_2787	-	hypothetical protein
2647	 53.62	-1	2807749..2808024	-	91	86607390	rpsO	CYA_2788	-	ribosomal protein S15
2648	 65.05	+1	2808113..2808793	+	226	86607391	-	CYA_2789	-	phycocyanin alpha subunit phycocyanobilin lyase, CpcF subunit-like protein
2649	 55.14	-1	2808860..2809345	-	161	86607392	apcD	CYA_2790	-	allophycocyanin alpha, B subunit
2650	 64.33	0	2809533..2810900	-	455	86607393	pilT-2	CYA_2791	-	twitching mobility protein PilT
2651	 60.72	0	2811142..2811831	-	229	86607394	folE	CYA_2792	-	GTP cyclohydrolase I
2652	 59.23	0	2811955..2812680	-	241	86607395	-	CYA_2793	-	short chain dehydrogenase
2653	 61.32	0	2812905..2814101	+	398	86607396	-	CYA_2794	-	iron ABC transporter ATP-binding protein
2654	 61.63	0	2814557..2815450	+	297	86607397	-	CYA_2795	-	chloroplast envelope protein translocase (CEPT or Tic-Toc) family protein
2655	 64.80	+1	2815492..2816349	+	285	86607398	-	CYA_2796	-	HemK family methyltransferase
2656	 62.26	0	2816491..2817261	+	256	86607399	-	CYA_2797	-	sensor histidine kinase
2657	 59.70	0	2817287..2817688	-	133	86607400	-	CYA_2798	-	putative photosystem II protein
60.19	MEAN

4.44	STD DEV
