IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. JA-3-3Ab

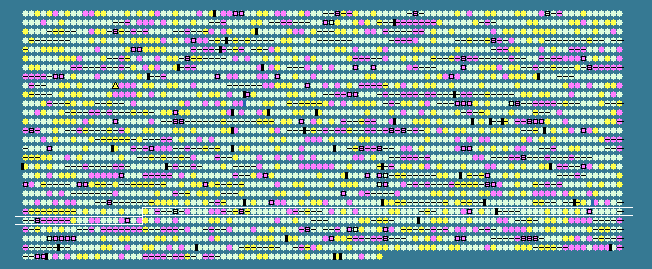

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.19 STD DEV: 4.44
Synechococcus sp. JA-3-3Ab, complete genome - 1..2932766
2760 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2221	 65.37	+1	2343138..2346233	+	1031	86606965	infB	CYA_2338	-	translation initiation factor IF-2
2222	 61.86	0	2346336..2348165	+	609	86606966	proS	CYA_2339	-	prolyl-tRNA synthetase
2223	 55.66	-1	2348187..2348804	+	205	86606967	-	CYA_2340	-	hypothetical protein
2224	 60.87	0	2348801..2349076	+	91	86606968	-	CYA_2341	-	hypothetical protein
2225	 63.08	0	2349173..2350231	-	352	86606969	-	CYA_2342	-	hypothetical protein
2226	 61.97	0	2350437..2350862	-	141	86606970	-	CYA_2343	-	ISSoc1, transposase, truncation
2227	 58.92	0	2350926..2351390	-	154	86606971	-	CYA_2344	-	hypothetical protein
2228	 56.59	0	2351600..2351728	+	42	86606972	-	CYA_2345	-	hypothetical protein
2229	 61.62	0	2352095..2354095	-	666	86606973	tkt	CYA_2346	-	transketolase
2230	 62.51	0	2354507..2355397	+	296	86606974	lipA-3	CYA_2347	-	lipoyl synthase
2231	 59.64	0	2356031..2356699	-	222	86606975	-	CYA_2348	-	TetR family transcriptional regulator
2232	 55.37	-1	2357019..2357912	+	297	86606976	-	CYA_2349	-	fatty acid desaturase
2233	 54.44	-1	2358244..2358513	-	89	86606977	-	CYA_2350	-	hypothetical protein
2234	 50.76	-2	2358672..2358935	-	87	86606978	-	CYA_2351	-	LuxR family transcriptional regulator
2235	 63.49	0	2359086..2360345	-	419	86606979	-	CYA_2352	-	sensor histidine kinase
2236	 64.18	0	2360426..2361190	-	254	86606980	-	CYA_2353	-	short chain dehydrogenase/reductase family oxidoreductase
2237	 51.78	-1	2362620..2363096	+	158	86606981	-	CYA_2355	-	ISSoc3, orfA transposase
2238	 64.44	0	2363124..2364110	-	328	86606982	panE-2	CYA_2356	-	2-dehydropantoate 2-reductase
2239	 60.19	0	2364133..2364240	-	35	86606983	petM	CYA_2357	-	cytochrome b6-f complex subunit PetM
2240	 60.72	0	2364734..2365792	+	352	86606984	psbD-1	CYA_2358	-	photosystem II protein D2
2241	 61.74	0	2365935..2367356	+	473	86606985	psbC	CYA_2359	-	photosystem II 44 kDa subunit reaction center protein
2242	 62.51	0	2367488..2368546	+	352	86606986	cobW	CYA_2360	-	cobalamin biosynthesis protein CobW
2243	 62.28	0	2368608..2369564	-	318	86606987	-	CYA_2361	-	NAD-dependent epimerase/dehydratase family protein
2244	 60.53	0	2369787..2370812	+	341	86606988	-	CYA_2362	-	OppBC ABC transporter family permease
2245	 54.29	-1	2370850..2373006	+	718	86606989	-	CYA_2363	-	hypothetical protein
2246	 55.47	-1	2373011..2373751	-	246	86606990	-	CYA_2364	-	hypothetical protein
2247	 62.99	0	2373876..2374745	-	289	86606991	fabD	CYA_2365	-	malonyl CoA-acyl carrier protein transacylase
2248	 66.77	+1	2374765..2375772	-	335	86606992	fabH	CYA_2366	-	3-oxoacyl-(acyl-carrier-protein) synthase III
2249	 63.37	0	2375778..2376869	-	363	86606993	plsX	CYA_2367	-	putative glycerol-3-phosphate acyltransferase PlsX
2250	 60.15	0	2377352..2379085	-	577	86606994	-	CYA_2368	-	hypothetical protein
2251	 61.35	0	2379498..2380418	+	306	86606995	trpC	CYA_2369	-	indole-3-glycerol-phosphate synthase
2252	 56.67	0	2380459..2380698	+	79	86606996	-	CYA_2370	-	hypothetical protein
2253	 63.59	0	2380763..2380957	+	64	86606997	-	CYA_2371	-	copper metallochaperone
2254	 63.97	0	2381068..2383401	+	777	86606998	-	CYA_2372	-	copper-translocating P-type ATPase
2255	 62.29	0	2383610..2384638	+	342	86606999	cbiX	CYA_2373	-	sirohydrochlorin cobaltochelatase
2256	 56.08	0	2384822..2385643	+	273	86607000	-	CYA_2375	-	hypothetical protein
2257	 61.00	0	2385640..2386257	-	205	86607001	-	CYA_2374	-	PAP/fibrillin family protein
2258	 60.59	0	2386313..2387020	-	235	86607002	-	CYA_2376	-	Sua5/YciO/YrdC/YwlC family protein
2259	 59.82	0	2387042..2387377	-	111	86607003	-	CYA_2377	-	hypothetical protein
2260	 63.30	0	2387352..2388509	-	385	86607004	obgE	CYA_2378	-	GTPase ObgE
2261	 59.57	0	2388710..2389681	+	323	86607005	rpsA	CYA_2379	-	30S ribosomal protein S1
2262	 64.76	+1	2389689..2389793	+	34	86607006	-	CYA_2380	-	hypothetical protein
2263	 63.95	0	2389808..2391094	+	428	86607007	-	CYA_2381	-	resolvase family site-specific recombinase
2264	 61.50	0	2391460..2392311	+	283	86607008	chlL	CYA_2382	-	protochlorophyllide reductase iron-sulfur ATP-binding protein
2265	 62.07	0	2392470..2393447	+	325	86607009	-	CYA_2383	-	protochlorophyllide oxidoreductase
2266	 62.67	0	2393477..2394877	+	466	86607010	chlN	CYA_2385	-	light-independent protochlorophyllide reductase subunit N
2267	 59.07	0	2394874..2395110	-	78	86607011	-	CYA_2384	-	hypothetical protein
2268	 64.91	+1	2395186..2396496	-	436	86607012	hemL	CYA_2386	-	glutamate-1-semialdehyde aminotransferase
2269	 61.90	0	2396575..2397813	-	412	86607013	ispG	CYA_2387	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
2270	 58.62	0	2398539..2399060	-	173	86607014	-	CYA_2388	-	hypothetical protein
2271	 65.17	+1	2399147..2399950	+	267	86607015	cobK	CYA_2390	-	cobalt-precorrin-6x reductase
2272	 60.50	0	2399908..2400264	-	118	86607016	-	CYA_2389	-	single-strand DNA-binding protein
2273	 60.62	0	2400637..2402787	+	716	86607017	-	CYA_2391	-	NAD(P)H-quinone oxidoreductase subunit F
2274	 51.85	-1	2402868..2403461	+	197	86607018	-	CYA_2392	-	ISSoc2, resolvase
2275	 55.97	0	2403316..2404596	+	426	86607019	-	CYA_2393	-	ISSoc2, transposase
2276	 62.18	0	2405090..2405869	-	259	86607020	-	CYA_2394	-	DNA-binding response regulator
2277	 63.69	0	2405868..2407043	+	391	86607021	fni	CYA_2395	-	isopentenyl pyrophosphate isomerase
2278	 60.78	0	2407304..2408917	-	537	86607022	-	CYA_2396	-	hypothetical protein
2279	 60.70	0	2409118..2409318	-	66	86607023	-	CYA_2398	-	hypothetical protein
2280	 60.20	0	2409290..2409985	-	231	86607024	-	CYA_2399	-	hypothetical protein
2281	 57.49	0	2410282..2410488	+	68	86607025	-	CYA_2400	-	hypothetical protein
2282	 62.79	0	2410355..2412211	+	618	86607026	-	CYA_2401	-	S8A family peptidase
2283	 59.46	0	2412211..2412432	+	73	86607027	-	CYA_2402	-	hypothetical protein
2284	 61.39	0	2412534..2412893	-	119	86607028	-	CYA_2403	-	pentapeptide repeat-containing protein
2285	 61.36	0	2414646..2415662	-	338	86607029	-	CYA_2405	-	putative adenylate cyclase
2286	 61.32	0	2415796..2416281	+	161	86607030	-	CYA_2406	-	hypothetical protein
2287	 62.70	0	2416329..2417261	+	310	86607031	ribF	CYA_2407	-	riboflavin biosynthesis protein RibF
2288	 66.41	+1	2417309..2418088	-	259	86607032	cobS	CYA_2408	-	cobalamin synthase
2289	 59.71	0	2418121..2418465	-	114	86607033	-	CYA_2409	-	hypothetical protein
2290	 58.27	0	2418526..2419740	-	404	86607034	rpoD	CYA_2410	-	RNA polymerase sigma factor RpoD
2291	 63.96	0	2420392..2424051	+	1219	86607035	metH	CYA_2411	-	methionine synthase
2292	 59.95	0	2424056..2424829	-	257	86607036	potC	CYA_2412	-	spermidine/putrescine ABC transporter, permease protein PotC
2293	 64.23	0	2425128..2425949	-	273	86607037	-	CYA_2413	-	alpha/beta fold family hydrolase
2294	 58.17	0	2426047..2426199	-	50	86607038	-	CYA_2414	-	hypothetical protein
2295	 51.78	-1	2426212..2426688	-	158	86607039	-	CYA_2415	-	ISSoc3, orfA transposase
2296	 60.57	0	2427961..2428911	-	316	86607040	-	CYA_2417	-	LysR family transcriptional regulator
2297	 58.64	0	2429181..2429828	-	215	86607041	-	CYA_2418	-	hypothetical protein
2298	 63.39	0	2430090..2430578	-	162	86607042	yqeG	CYA_2419	-	HAD family phosphatase
2299	 62.92	0	2430622..2431743	-	373	86607043	-	CYA_2420	-	hypothetical protein
2300	 60.78	0	2431864..2432628	-	254	86607044	pyrH	CYA_2421	-	uridylate kinase
2301	 57.52	0	2432727..2432879	-	50	86607045	-	CYA_2422	-	hypothetical protein
2302	 57.80	0	2432987..2433358	-	123	86607046	-	CYA_2423	-	hypothetical protein
2303	 55.50	-1	2433346..2434626	-	426	86607047	-	CYA_2424	-	ISSoc2, transposase
2304	 51.85	-1	2434481..2435074	-	197	86607048	-	CYA_2425	-	ISSoc2, resolvase
2305	 55.00	-1	2436836..2436955	-	39	86607049	psbJ	CYA_2427	-	photosystem II reaction center protein J
2306	 51.59	-1	2437096..2437221	-	41	86607050	psbL	CYA_2428	-	photosystem II reaction center protein PsbL
2307	 46.53	-2	2437227..2437370	-	47	86607051	psbF	CYA_2429	-	cytochrome b559 subunit beta
2308	 52.03	-1	2437454..2437699	-	81	86607052	psbE	CYA_2430	-	cytochrome b559 subunit alpha
2309	 63.96	0	2438016..2439716	+	566	86607053	-	CYA_2431	-	S-layer domain-containing protein
2310	 62.93	0	2440022..2441761	-	579	86607054	-	CYA_2432	-	putative exopolyphosphatase
2311	 59.38	0	2441939..2443750	+	603	86607055	thrS	CYA_2433	-	threonyl-tRNA synthetase
2312	 54.87	-1	2443789..2444127	+	112	86607056	-	CYA_2434	-	carbohydrate ABC transporter ATP-binding protein
2313	 51.66	-1	2444148..2445353	+	401	86607057	-	CYA_2435	-	acetamidase/formamidase family protein
2314	 60.08	0	2445984..2447531	+	515	86607058	-	CYA_2437	-	carbohydrate ABC transporter ATP-binding protein
2315	 63.23	0	2447528..2449129	-	533	86607059	malQ	CYA_2436	-	4-alpha-glucanotransferase
2316	 63.17	0	2449285..2449941	-	218	86607060	pyrE	CYA_2438	-	orotate phosphoribosyltransferase
2317	 51.52	-1	2450193..2450786	+	197	86607061	-	CYA_2439	-	ISSoc2, resolvase
2318	 55.74	-1	2450641..2451921	+	426	86607062	-	CYA_2440	-	ISSoc2, transposase
2319	 60.27	0	2451933..2452448	-	171	86607063	-	CYA_2441	-	MarR family transcriptional regulator
2320	 53.62	-1	2452624..2452761	-	45	86607064	-	CYA_2442	-	hypothetical protein
60.19	MEAN

4.44	STD DEV
