IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. JA-3-3Ab

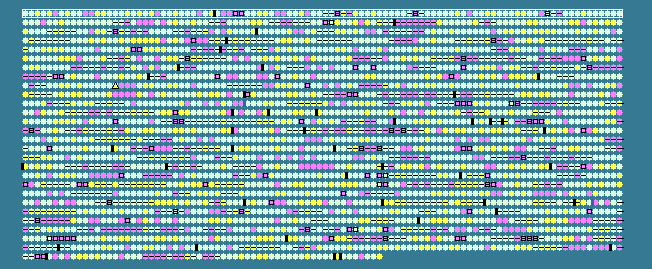

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.19 STD DEV: 4.44
Synechococcus sp. JA-3-3Ab, complete genome - 1..2932766
2760 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 57.19	0	71..1474	+	467	86604734	dnaA	CYA_0001	-	chromosomal replication initiation protein
2	 62.75	0	1645..2334	+	229	86604735	-	CYA_0003	-	hypothetical protein
3	 66.18	+1	2331..3152	-	273	86604736	-	CYA_0002	-	hypothetical protein
4	 62.53	0	3256..5142	-	628	86604737	-	CYA_0004	-	FtsH family metalloprotease
5	 64.73	+1	5268..6143	-	291	86604738	-	CYA_0005	-	short chain dehydrogenase/reductase family oxidoreductase
6	 56.14	0	6134..6247	+	37	86604739	-	CYA_0006	-	hypothetical protein
7	 60.96	0	6354..7019	+	221	86604740	-	CYA_0007	-	hypothetical protein
8	 64.82	+1	7057..9606	-	849	86604741	-	CYA_0008	-	type II DNA topoisomerase, A subunit
9	 61.97	0	9806..11209	+	467	86604742	-	CYA_0009	-	phosphoglucomutase/phosphomannomutase family protein
10	 58.52	0	11268..11660	-	130	86604743	-	CYA_0010	-	glyoxalase family protein
11	 56.65	0	11810..13177	-	455	86604744	thiC	CYA_0011	-	thiamine biosynthesis protein ThiC
12	 45.03	-2	13486..14220	-	244	86604745	-	CYA_0012	-	hypothetical protein
13	 65.59	+1	14217..14957	-	246	86604746	-	CYA_0013	-	hypothetical protein
14	 65.59	+1	14998..15462	-	154	86604747	-	CYA_0014	-	GUN4-like family protein
15	 56.82	0	15513..16040	-	175	86604748	-	CYA_0015	-	hypothetical protein
16	 62.61	0	16201..16965	-	254	86604749	gvpW	CYA_0016	-	gas vesicle protein W
17	 62.32	0	17166..17786	+	206	86604750	-	CYA_0018	-	hypothetical protein
18	 64.89	+1	17769..18500	-	243	86604751	surE	CYA_0017	-	stationary phase survival protein SurE
19	 62.60	0	18689..19720	+	343	86604752	gap-1	CYA_0020	-	glyceraldehyde-3-phosphate dehydrogenase, type I
20	 65.88	+1	19706..20212	-	168	86604753	folK	CYA_0019	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
21	 61.02	0	20219..20590	-	123	86604754	folB	CYA_0021	-	dihydroneopterin aldolase
22	 63.68	0	20577..21446	-	289	86604755	folP	CYA_0022	-	dihydropteroate synthase
23	 50.00	-2	21788..21895	-	35	86604756	-	CYA_0023	-	hypothetical protein
24	 60.99	0	22084..23175	-	363	86604757	-	CYA_0024	-	translation-associated GTPase
25	 62.51	0	23329..24723	-	464	86604758	rumA	CYA_0025	-	23S rRNA (uracil-5-)-methyltransferase RumA
26	 65.89	+1	24911..26074	-	387	86604759	-	CYA_0026	-	O-antigen polymerase family protein
27	 62.57	0	26202..26567	-	121	86604760	-	CYA_0027	-	ferredoxin, 2Fe-2S
28	 59.16	0	26693..27145	+	150	86604761	-	CYA_0028	-	putative mannose-6-phosphate isomerase
29	 61.38	0	27153..29534	-	793	86604762	-	CYA_0029	-	M48B family peptidase
30	 54.81	-1	29715..30161	-	148	86604763	-	CYA_0030	-	FUR family transcriptional regulator
31	 62.99	0	30488..30868	+	126	86604764	-	CYA_0031	-	hypothetical protein
32	 66.12	+1	30915..32189	+	424	86604765	-	CYA_0032	-	putative D-alanyl-D-alanine carboxypeptidase/D-alanyl-D-alanine-endopeptidase
33	 59.94	0	32567..33220	+	217	86604766	-	CYA_0034	-	hypothetical protein
34	 56.69	0	33590..34060	+	156	86604767	psaL-1	CYA_0035	-	photosystem I reaction center protein subunit XI
35	 50.88	-2	34110..34223	+	37	86604768	psaI	CYA_0036	-	photosystem I reaction center subunit VIII
36	 46.62	-2	34557..34955	+	132	86604769	-	CYA_0037	-	ISSoc4, transposase orfA
37	 46.56	-2	34937..35488	+	183	86604770	-	CYA_0038	-	ISSoc4, transposase orfB
38	 62.78	0	35581..37047	-	488	86604771	-	CYA_0039	-	hypothetical protein
39	 61.86	0	37430..38884	+	484	86604772	-	CYA_0041	-	bacteriochlorophyll delivery (BCD) family transporter
40	 64.63	0	38881..39174	-	97	86604773	-	CYA_0040	-	hypothetical protein
41	 63.96	0	39584..41692	+	702	86604774	-	CYA_0042	-	WD domain-/G-beta repeat-containing protein
42	 63.51	0	41742..43040	+	432	86604775	-	CYA_0043	-	amine oxidase, flavin-containing
43	 56.10	0	43128..43799	+	223	86604776	-	CYA_0044	-	hypothetical protein
44	 56.10	0	43925..44719	+	264	86604777	-	CYA_0045	-	hypothetical protein
45	 62.62	0	44778..45890	-	370	86604778	trmU	CYA_0046	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
46	 63.35	0	45989..46711	-	240	86604779	-	CYA_0047	-	HEAT repeat-containing PBS lyase
47	 64.48	0	46915..47829	+	304	86604780	-	CYA_0048	-	hypothetical protein
48	 56.09	0	48013..48570	-	185	86604781	-	CYA_0049	-	hypothetical protein
49	 60.65	0	48908..49837	+	309	86604782	-	CYA_0050	-	TPR repeat-containing protein
50	 62.71	0	49892..51004	-	370	86604783	-	CYA_0051	-	oligopeptide ABC transporter, permease protein
51	 59.54	0	50663..51715	+	350	86604784	-	CYA_0054	-	hypothetical protein
52	 60.68	0	51170..51670	-	166	86604785	-	CYA_0052	-	hypothetical protein
53	 45.68	-2	51700..52647	-	315	86604786	-	CYA_0053	-	ISSoc4, transposase orfAB
54	 64.59	0	52802..53860	-	352	86604787	selD	CYA_0055	-	selenide, water dikinase
55	 54.68	-1	53979..57464	+	1161	86604788	dnaE	CYA_0057	-	DNA polymerase III subunit alpha
56	 66.30	+1	57450..57725	-	91	86604789	-	CYA_0056	-	glutaredoxin family protein
57	 63.16	0	57735..58562	-	275	86604790	-	CYA_0058	-	carbon-nitrogen family hydrolase
58	 59.91	0	58599..58820	-	73	86604791	-	CYA_0059	-	hypothetical protein
59	 64.25	0	59052..59795	-	247	86604792	-	CYA_0060	-	hypothetical protein
60	 58.08	0	59792..60373	-	193	86604793	-	CYA_0061	-	RNA polymerase sigma factor
61	 61.96	0	60603..61409	-	268	86604794	-	CYA_0062	-	putative lipoprotein
62	 57.26	0	61552..61668	-	38	86604795	-	CYA_0063	-	hypothetical protein
63	 58.75	0	61714..62496	-	260	86604796	-	CYA_0064	-	hypothetical protein
64	 58.20	0	62514..63257	-	247	86604797	-	CYA_0065	-	hypothetical protein
65	 59.47	0	63306..63791	-	161	86604798	-	CYA_0066	-	FHA domain-containing protein
66	 51.78	-1	65283..65759	+	158	86604799	-	CYA_0068	-	ISSoc3, orfA transposase
67	 60.75	0	66081..66722	+	213	86604800	-	CYA_0069	-	hypothetical protein
68	 62.74	0	66762..67652	+	296	86604801	-	CYA_0070	-	hypothetical protein
69	 59.79	0	68588..69808	+	406	86604802	chlP	CYA_0072	-	geranylgeranyl reductase
70	 60.40	0	69815..70660	-	281	86604803	-	CYA_0073	-	hypothetical protein
71	 61.84	0	71021..72367	+	448	86604804	secD	CYA_0074	-	preprotein translocase subunit SecD
72	 60.54	0	72364..73359	+	331	86604805	secF	CYA_0075	-	preprotein translocase subunit SecF
73	 67.01	+1	73398..75167	-	589	86604806	-	CYA_0076	-	hypothetical protein
74	 62.48	0	75903..77240	+	445	86604807	murF	CYA_0077	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
75	 55.86	0	77338..77559	+	73	86604808	-	CYA_0078	-	hypothetical protein
76	 57.54	0	77913..78449	+	178	86604809	-	CYA_0079	-	fasciclin domain-containing protein
77	 57.94	0	78557..79003	-	148	86604810	-	CYA_0080	-	hypothetical protein
78	 64.83	+1	79112..80905	+	597	86604811	menD	CYA_0082	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
79	 64.71	+1	80829..81851	-	340	86604812	miaA	CYA_0081	-	tRNA delta(2)-isopentenylpyrophosphate transferase
80	 62.53	0	82003..82824	+	273	86604813	-	CYA_0083	-	hypothetical protein
81	 62.03	0	82982..83692	-	236	86604814	rpe	CYA_0084	-	ribulose-phosphate 3-epimerase
82	 60.22	0	83852..84037	-	61	86604815	-	CYA_0085	-	hypothetical protein
83	 63.99	0	84185..84595	+	136	86604816	-	CYA_0086	-	glyoxalase family protein
84	 66.67	+1	84592..86178	+	528	86604817	-	CYA_0088	-	carbohydrate kinase family protein
85	 62.94	0	86175..87005	-	276	86604818	-	CYA_0087	-	putative undecaprenol kinase
86	 61.84	0	87209..87829	-	206	86604819	-	CYA_0089	-	hypothetical protein
87	 53.23	-1	88002..88187	-	61	86604820	-	CYA_0090	-	hypothetical protein
88	 59.14	0	88306..89487	-	393	86604821	-	CYA_0091	-	ISSoc1, transposase
89	 59.45	0	89675..90367	-	230	86604822	-	CYA_0092	-	hypothetical protein
90	 55.56	-1	90367..91023	-	218	86604823	-	CYA_0093	-	response regulator
91	 59.96	0	91262..92380	+	372	86604824	-	CYA_0094	-	UbiE/COQ5 family methlytransferase
92	 60.40	0	92497..92991	+	164	86604825	-	CYA_0095	-	hypothetical protein
93	 59.13	0	93105..93449	+	114	86604826	-	CYA_0096	-	hypothetical protein
94	 63.97	0	93643..95199	+	518	86604827	-	CYA_0097	-	major facilitator transporter
95	 58.82	0	95249..95350	+	33	86604828	-	CYA_0098	-	hypothetical protein
96	 62.80	0	95382..96572	+	396	86604829	-	CYA_0099	-	glycosyl transferase, group 1
97	 61.92	0	96917..98413	+	498	86604830	-	CYA_0100	-	GAF/SpoIIE domain-containing protein
98	 57.53	0	98507..98725	+	72	86604831	-	CYA_0102	-	hypothetical protein
99	 61.11	0	98709..98816	-	35	86604832	-	CYA_0101	-	hypothetical protein
100	 62.65	0	98857..100326	+	489	86604833	argH	CYA_0103	-	argininosuccinate lyase
60.19	MEAN

4.44	STD DEV
