IslandPath Analysis: Synechococcus sp. JA-3-3Ab

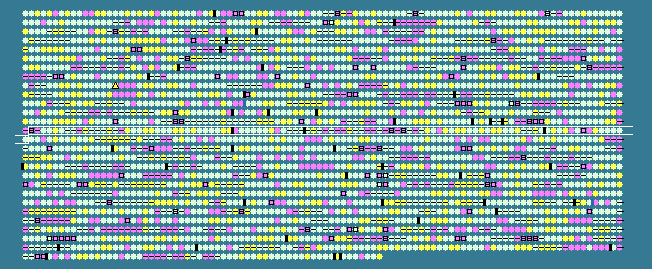

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.19 STD DEV: 4.44
Synechococcus sp. JA-3-3Ab, complete genome - 1..2932766
2760 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1302	 55.66	-1	1385449..1386729	+	426	86606046	-	CYA_1375	-	ISSoc2, transposase
1303	 56.25	0	1386920..1387207	+	95	86606047	-	CYA_1376	-	hypothetical protein
1304	 63.04	0	1387257..1387394	-	45	86606048	-	CYA_1377	-	hypothetical protein
1305	 60.90	0	1387369..1387680	+	103	86606049	-	CYA_1378	-	hypothetical protein
1306	 65.25	+1	1388536..1389240	+	234	86606050	-	CYA_1381	-	DnaJ domain-containing protein
1307	 59.62	0	1389237..1389761	-	174	86606051	-	CYA_1380	-	hypothetical protein
1308	 62.08	0	1389990..1390490	-	166	86606052	-	CYA_1382	-	hypothetical protein
1309	 59.11	0	1390490..1390939	-	149	86606053	-	CYA_1383	-	FUR family transcriptional regulator
1310	 53.40	-1	1390974..1391297	-	107	86606054	-	CYA_1384	-	hypothetical protein
1311	 66.49	+1	1391449..1392576	+	375	86606055	-	CYA_1386	-	hypothetical protein
1312	 61.44	0	1392525..1392830	-	101	86606056	clpS	CYA_1385	-	ATP-dependent Clp protease adaptor
1313	 62.36	0	1393034..1394890	-	618	86606057	-	CYA_1387	-	hypothetical protein
1314	 63.38	0	1394953..1395348	-	131	86606058	-	CYA_1388	-	hypothetical protein
1315	 66.07	+1	1395439..1396113	+	224	86606059	-	CYA_1389	-	riboflavin biosynthesis protein RibD domain-containing protein
1316	 58.47	0	1396327..1396509	-	60	86606060	-	CYA_1390	-	hypothetical protein
1317	 55.22	-1	1396721..1396921	+	66	86606061	-	CYA_1391	-	hypothetical protein
1318	 64.50	0	1397091..1398893	+	600	86606062	-	CYA_1393	-	TPR repeat-containing protein
1319	 60.79	0	1398863..1399594	-	243	86606063	-	CYA_1392	-	DNA-binding response regulator
1320	 63.13	0	1400048..1400953	-	301	86606064	recO	CYA_1394	-	DNA repair protein RecO
1321	 64.25	0	1400950..1401651	-	233	86606065	deoC	CYA_1395	-	deoxyribose-phosphate aldolase
1322	 63.71	0	1401835..1402206	+	123	86606066	-	CYA_1396	-	hypothetical protein
1323	 63.45	0	1402203..1402730	+	175	86606067	-	CYA_1397	-	hypothetical protein
1324	 60.41	0	1402734..1404284	-	516	86606068	metG	CYA_1398	-	methionyl-tRNA synthetase
1325	 62.71	0	1404262..1406232	+	656	86606069	-	CYA_1399	-	hypothetical protein
1326	 64.83	+1	1406262..1406588	+	108	86606070	-	CYA_1400	-	hypothetical protein
1327	 63.93	0	1406653..1407894	+	413	86606071	-	CYA_1401	-	hypothetical protein
1328	 61.50	0	1407996..1408382	-	128	86606072	-	CYA_1402	-	hypothetical protein
1329	 64.16	0	1408487..1409005	+	172	86606073	petC	CYA_1403	-	cytochrome b6-f complex iron-sulfur subunit
1330	 61.99	0	1409483..1410466	+	327	86606074	petA	CYA_1404	-	apocytochrome f
1331	 63.10	0	1410528..1411340	-	270	86606075	-	CYA_1405	-	PhzF family phenazine biosynthesis protein
1332	 58.65	0	1411585..1411896	+	103	86606076	groES	CYA_1406	-	co-chaperonin GroES
1333	 61.22	0	1411963..1413597	+	544	86606077	groEL	CYA_1407	-	chaperonin GroEL
1334	 65.10	+1	1413771..1414598	+	275	86606078	-	CYA_1408	-	hypothetical protein
1335	 64.35	0	1414754..1415917	+	387	86606079	-	CYA_1409	-	inositol-5-monophosphate dehydrogenase
1336	 55.29	-1	1416275..1417909	+	544	86606080	-	CYA_1411	-	S-layer domain-containing protein
1337	 56.99	0	1418354..1419934	+	526	86606081	-	CYA_1412	-	putative S-layer protein
1338	 60.83	0	1420078..1420917	-	279	86606082	-	CYA_1413	-	hypothetical protein
1339	 62.78	0	1420985..1422682	-	565	86606083	-	CYA_1414	-	SulP family sulfate permease
1340	 63.48	0	1422999..1425539	+	846	86606084	gyrA	CYA_1415	-	DNA gyrase subunit A
1341	 58.59	0	1425730..1426125	+	131	86606085	-	CYA_1416	-	hypothetical protein
1342	 68.96	+1	1426263..1427396	+	377	86606086	-	CYA_1417	-	glycerate kinase
1343	 54.60	-1	1427568..1427882	+	104	86606087	psbW	CYA_1418	-	photosystem II reaction center protein Psb28
1344	 63.20	0	1427888..1429417	-	509	86606088	gatA	CYA_1419	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
1345	 61.32	0	1429598..1429915	-	105	86606089	-	CYA_1420	-	hypothetical protein
1346	 58.41	0	1430023..1430361	-	112	86606090	-	CYA_1421	-	hypothetical protein
1347	 59.85	0	1430501..1431175	-	224	86606091	-	CYA_1423	-	hypothetical protein
1348	 59.58	0	1431242..1431622	-	126	86606092	-	CYA_1424	-	hypothetical protein
1349	 73.33	+2	1431698..1431787	-	29	86606093	-	CYA_1425	-	hypothetical protein
1350	 58.33	0	1431851..1432150	-	99	86606094	-	CYA_1426	-	ferredoxin, 2Fe-2S
1351	 52.38	-1	1432352..1432498	+	48	86606095	-	CYA_1427	-	hypothetical protein
1352	 59.55	0	1432665..1434956	+	763	86606096	-	CYA_1428	-	putative lipoprotein
1353	 56.23	0	1435208..1437325	+	705	86606097	-	CYA_1430	-	putative lipoprotein
1354	 53.70	-1	1437306..1437467	-	53	86606098	-	CYA_1429	-	hypothetical protein
1355	 65.48	+1	1437521..1438027	+	168	86606099	-	CYA_1431	-	pentapeptide repeat-containing protein
1356	 57.49	0	1438097..1438597	+	166	86606100	-	CYA_1432	-	hypothetical protein
1357	 62.91	0	1438736..1439401	+	221	86606101	-	CYA_1433	-	putative lipoprotein
1358	 49.46	-2	1439403..1439495	+	30	86606102	-	CYA_1434	-	hypothetical protein
1359	 54.45	-1	1439922..1441664	+	580	86606103	-	CYA_1435	-	putative lipoprotein
1360	 61.74	0	1441806..1443266	-	486	86606104	-	CYA_1436	-	M8 family peptidase
1361	 55.16	-1	1443425..1444693	+	422	86606105	-	CYA_1437	-	hypothetical protein
1362	 55.56	-1	1445169..1446401	-	410	86606106	-	CYA_1438	-	ISSoc2, transposase
1363	 53.03	-1	1446256..1446849	-	197	86606107	-	CYA_1439	-	ISSoc2, resolvase
1364	 54.03	-1	1446917..1447375	-	152	86606108	-	CYA_1440	-	ISSoc14, transposase, truncation
1365	 62.30	0	1447464..1448585	-	373	86606109	-	CYA_1441	-	carbohydrate ABC transporter ATP-binding protein
1366	 55.33	-1	1448815..1449255	-	146	86606110	-	CYA_1442	-	small heat shock protein (HSP20) family protein
1367	 57.69	0	1449434..1449745	-	103	86606111	-	CYA_1443	-	hypothetical protein
1368	 65.26	+1	1449821..1452454	-	877	86606112	acnB	CYA_1444	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1369	 61.79	0	1452529..1453614	-	361	86606113	prfA	CYA_1445	-	peptide chain release factor 1
1370	 54.95	-1	1453685..1453906	-	73	86606114	rpmE	CYA_1446	-	50S ribosomal protein L31
1371	 64.98	+1	1453984..1454397	-	137	86606115	rpsI	CYA_1447	-	30S ribosomal protein S9
1372	 61.40	0	1454394..1454849	-	151	86606116	rplM	CYA_1448	-	50S ribosomal protein L13
1373	 65.62	+1	1454899..1455762	-	287	86606117	truA	CYA_1449	-	tRNA pseudouridine synthase A
1374	 66.95	+1	1455768..1456118	-	116	86606118	rplQ	CYA_1450	-	50S ribosomal protein L17
1375	 59.14	0	1456191..1457186	-	331	86606119	rpoA	CYA_1451	-	DNA-directed RNA polymerase subunit alpha
1376	 61.24	0	1457309..1457695	-	128	86606120	rpsK	CYA_1452	-	30S ribosomal protein S11
1377	 64.06	0	1457784..1458167	-	127	86606121	rpsM	CYA_1453	-	30S ribosomal protein S13
1378	 63.25	0	1458381..1458497	-	38	86606122	rpmJ	CYA_1454	-	ribosomal protein L36
1379	 67.39	+1	1458692..1460623	+	643	86606123	-	CYA_1455	-	hypothetical protein
1380	 65.80	+1	1460682..1461719	+	345	86606124	-	CYA_1456	-	hypothetical protein
1381	 63.46	0	1461999..1463558	+	519	86606125	-	CYA_1457	-	dolichyl-phosphate-mannose-protein mannosyltransferase
1382	 61.33	0	1463667..1464716	+	349	86606126	-	CYA_1458	-	oxidoreductase, NAD-binding
1383	 63.84	0	1464769..1465722	+	317	86606127	-	CYA_1459	-	hypothetical protein
1384	 62.33	0	1465840..1466739	-	299	86606128	-	CYA_1460	-	prephenate dehydratase
1385	 57.74	0	1466743..1467078	-	111	86606129	-	CYA_1461	-	competence protein
1386	 65.97	+1	1467548..1468837	-	429	86606130	alr	CYA_1462	-	alanine racemase
1387	 62.82	0	1468878..1469918	-	346	86606131	sppA-2	CYA_1463	-	signal peptide peptidase SppA, 36K type
1388	 63.18	0	1470893..1472410	+	505	86606132	-	CYA_1465	-	hypothetical protein
1389	 66.58	+1	1472452..1474845	+	797	86606133	priA	CYA_1466	-	primosome assembly protein PriA
1390	 59.35	0	1475005..1476111	+	368	86606134	-	CYA_1467	-	isopropylmalate/isohomocitrate dehydrogenase family protein
1391	 65.80	+1	1476143..1477069	-	308	86606135	-	CYA_1468	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
1392	 53.25	-1	1477084..1477329	+	81	86606136	-	CYA_1469	-	hypothetical protein
1393	 63.11	0	1477378..1478613	+	411	86606137	-	CYA_1470	-	hypothetical protein
1394	 55.74	-1	1478619..1479899	-	426	86606138	-	CYA_1471	-	ISSoc2, transposase
1395	 53.40	-1	1479754..1480371	-	205	86606139	-	CYA_1472	-	ISSoc2, resolvase
1396	 63.90	0	1481805..1482455	+	216	86606140	-	CYA_1473	-	putative cob(I)alamin adenosyltransferase
1397	 61.78	0	1482540..1483133	+	197	86606141	dcd	CYA_1474	-	deoxycytidine triphosphate deaminase
1398	 63.56	0	1483225..1484415	+	396	86606142	queA	CYA_1476	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1399	 62.81	0	1484412..1485188	-	258	86606143	-	CYA_1475	-	hydrolase, haloacid dehalogenase family protein
1400	 63.35	0	1485217..1486212	-	331	86606144	-	CYA_1477	-	aldo/keto reductase family oxidoreductase
1401	 61.71	0	1486245..1486910	+	221	86606145	-	CYA_1478	-	hypothetical protein
60.19	MEAN

4.44	STD DEV
