IslandPath Analysis: Synechococcus sp. JA-3-3Ab

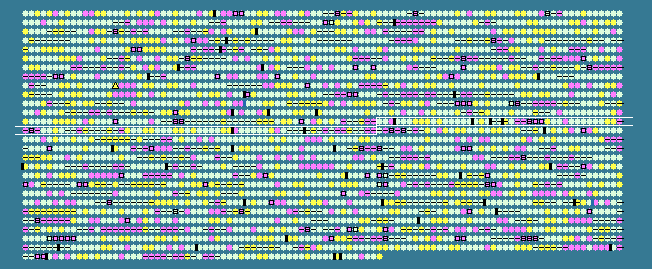

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.19 STD DEV: 4.44
Synechococcus sp. JA-3-3Ab, complete genome - 1..2932766
2760 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1260	 63.47	0	1341633..1342853	-	406	86606004	argJ	CYA_1327	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1261	 61.59	0	1343098..1343904	+	268	86606005	-	CYA_1328	-	ABC transporter, ATP-binding protein
1262	 56.52	0	1344208..1345005	+	265	86606006	-	CYA_1329	-	ABC transporter, permease protein
1263	 61.01	0	1345253..1345906	-	217	86606007	-	CYA_1331	-	Crp/FNR family transcriptional regulator
1264	 59.41	0	1346103..1347674	-	523	86606008	-	CYA_1332	-	hypothetical protein
1265	 61.40	0	1347730..1348299	-	189	86606009	-	CYA_1333	-	hypothetical protein
1266	 64.77	+1	1348335..1349336	-	333	86606010	-	CYA_1334	-	zinc-binding dehydrogenase family oxidoreductase
1267	 64.58	0	1349497..1349640	+	47	86606011	-	CYA_1335	-	hypothetical protein
1268	 65.49	+1	1349640..1350317	+	225	86606012	-	CYA_1336	-	hypothetical protein
1269	 59.52	0	1350319..1350822	-	167	86606013	apcB-1	CYA_1337	-	allophycocyanin, beta subunit
1270	 65.00	+1	1351048..1351947	-	299	86606014	truB	CYA_1338	-	tRNA pseudouridine synthase B
1271	 63.28	0	1352022..1353053	+	343	86606015	-	CYA_1339	-	hypothetical protein
1272	 59.44	0	1353066..1354061	-	331	86606016	trpS	CYA_1340	-	tryptophanyl-tRNA synthetase
1273	 62.50	0	1354154..1354489	+	111	86606017	-	CYA_1341	-	hypothetical protein
1274	 58.62	0	1354567..1355088	+	173	86606018	ycf3	CYA_1342	-	photosystem I assembly protein Ycf3
1275	 57.14	0	1355156..1355449	+	97	86606019	gatC	CYA_1343	-	glutamyl-tRNA(Gln) amidotransferase, C subunit
1276	 62.36	0	1356160..1358178	-	672	86606020	tynA	CYA_1346	-	tyramine oxidase
1277	 65.91	+1	1358712..1358843	-	43	86606021	-	CYA_1347	-	hypothetical protein
1278	 59.30	0	1359018..1361663	+	881	86606022	-	CYA_1349	-	sensory box histidine kinase
1279	 61.52	0	1361894..1362340	+	148	86606023	-	CYA_1350	-	hypothetical protein
1280	 63.38	0	1362669..1362881	-	70	86606024	-	CYA_1351	-	hypothetical protein
1281	 65.12	+1	1363311..1364600	-	429	86606025	folC	CYA_1353	-	folylpolyglutamate synthase
1282	 60.98	0	1364668..1366251	-	527	86606026	serA	CYA_1354	-	D-3-phosphoglycerate dehydrogenase
1283	 56.36	0	1366455..1366745	-	96	86606027	-	CYA_1355	-	hypothetical protein
1284	 54.95	-1	1367432..1367542	-	36	86606028	-	CYA_1356	-	hypothetical protein
1285	 46.37	-2	1367795..1368193	+	132	86606029	-	CYA_1358	-	ISSoc4, transposase orfA
1286	 45.68	-2	1368175..1368741	+	188	86606030	-	CYA_1360	-	ISSoc4, transposase orfB
1287	 53.86	-1	1368726..1369295	-	189	86606031	-	CYA_1359	-	ISSoc5, transposase, truncation
1288	 66.01	+1	1369435..1371735	+	766	86606032	purL	CYA_1361	-	phosphoribosylformylglycinamidine synthase II
1289	 61.29	0	1371802..1373232	-	476	86606033	trxB	CYA_1362	-	thioredoxin-disulfide reductase
1290	 58.18	0	1373605..1375029	+	474	86606034	glnA	CYA_1363	-	glutamine synthetase, type I
1291	 51.70	-1	1375295..1375942	+	215	86606035	-	CYA_1364	-	hypothetical protein
1292	 62.62	0	1376021..1376737	+	238	86606036	-	CYA_1365	-	short chain dehydrogenase/reductase family oxidoreductase
1293	 62.20	0	1376917..1378974	+	685	86606037	napA	CYA_1366	-	monovalent cation:proton antiporter-2 (CPA2) family protein
1294	 60.77	0	1379067..1379558	-	163	86606038	-	CYA_1367	-	hypothetical protein
1295	 62.83	0	1379706..1380305	-	199	86606039	recR	CYA_1368	-	recombination protein RecR
1296	 60.12	0	1380327..1380662	-	111	86606040	-	CYA_1369	-	hypothetical protein
1297	 60.20	0	1380830..1381726	+	298	86606041	-	CYA_1370	-	putative sn-glycerol-3-phosphate ABC transporter, permease protein
1298	 64.81	+1	1381763..1383271	+	502	86606042	ubiD	CYA_1371	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
1299	 63.87	0	1383293..1384507	+	404	86606043	-	CYA_1372	-	arsenite-antimonite (ArsAB) efflux family protein
1300	 56.28	0	1384524..1384889	-	121	86606044	-	CYA_1373	-	hypothetical protein
1301	 52.91	-1	1384977..1385594	+	205	86606045	-	CYA_1374	-	ISSoc2, resolvase
1302	 55.66	-1	1385449..1386729	+	426	86606046	-	CYA_1375	-	ISSoc2, transposase
1303	 56.25	0	1386920..1387207	+	95	86606047	-	CYA_1376	-	hypothetical protein
1304	 63.04	0	1387257..1387394	-	45	86606048	-	CYA_1377	-	hypothetical protein
1305	 60.90	0	1387369..1387680	+	103	86606049	-	CYA_1378	-	hypothetical protein
1306	 65.25	+1	1388536..1389240	+	234	86606050	-	CYA_1381	-	DnaJ domain-containing protein
1307	 59.62	0	1389237..1389761	-	174	86606051	-	CYA_1380	-	hypothetical protein
1308	 62.08	0	1389990..1390490	-	166	86606052	-	CYA_1382	-	hypothetical protein
1309	 59.11	0	1390490..1390939	-	149	86606053	-	CYA_1383	-	FUR family transcriptional regulator
1310	 53.40	-1	1390974..1391297	-	107	86606054	-	CYA_1384	-	hypothetical protein
1311	 66.49	+1	1391449..1392576	+	375	86606055	-	CYA_1386	-	hypothetical protein
1312	 61.44	0	1392525..1392830	-	101	86606056	clpS	CYA_1385	-	ATP-dependent Clp protease adaptor
1313	 62.36	0	1393034..1394890	-	618	86606057	-	CYA_1387	-	hypothetical protein
1314	 63.38	0	1394953..1395348	-	131	86606058	-	CYA_1388	-	hypothetical protein
1315	 66.07	+1	1395439..1396113	+	224	86606059	-	CYA_1389	-	riboflavin biosynthesis protein RibD domain-containing protein
1316	 58.47	0	1396327..1396509	-	60	86606060	-	CYA_1390	-	hypothetical protein
1317	 55.22	-1	1396721..1396921	+	66	86606061	-	CYA_1391	-	hypothetical protein
1318	 64.50	0	1397091..1398893	+	600	86606062	-	CYA_1393	-	TPR repeat-containing protein
1319	 60.79	0	1398863..1399594	-	243	86606063	-	CYA_1392	-	DNA-binding response regulator
1320	 63.13	0	1400048..1400953	-	301	86606064	recO	CYA_1394	-	DNA repair protein RecO
1321	 64.25	0	1400950..1401651	-	233	86606065	deoC	CYA_1395	-	deoxyribose-phosphate aldolase
1322	 63.71	0	1401835..1402206	+	123	86606066	-	CYA_1396	-	hypothetical protein
1323	 63.45	0	1402203..1402730	+	175	86606067	-	CYA_1397	-	hypothetical protein
1324	 60.41	0	1402734..1404284	-	516	86606068	metG	CYA_1398	-	methionyl-tRNA synthetase
1325	 62.71	0	1404262..1406232	+	656	86606069	-	CYA_1399	-	hypothetical protein
1326	 64.83	+1	1406262..1406588	+	108	86606070	-	CYA_1400	-	hypothetical protein
1327	 63.93	0	1406653..1407894	+	413	86606071	-	CYA_1401	-	hypothetical protein
1328	 61.50	0	1407996..1408382	-	128	86606072	-	CYA_1402	-	hypothetical protein
1329	 64.16	0	1408487..1409005	+	172	86606073	petC	CYA_1403	-	cytochrome b6-f complex iron-sulfur subunit
1330	 61.99	0	1409483..1410466	+	327	86606074	petA	CYA_1404	-	apocytochrome f
1331	 63.10	0	1410528..1411340	-	270	86606075	-	CYA_1405	-	PhzF family phenazine biosynthesis protein
1332	 58.65	0	1411585..1411896	+	103	86606076	groES	CYA_1406	-	co-chaperonin GroES
1333	 61.22	0	1411963..1413597	+	544	86606077	groEL	CYA_1407	-	chaperonin GroEL
1334	 65.10	+1	1413771..1414598	+	275	86606078	-	CYA_1408	-	hypothetical protein
1335	 64.35	0	1414754..1415917	+	387	86606079	-	CYA_1409	-	inositol-5-monophosphate dehydrogenase
1336	 55.29	-1	1416275..1417909	+	544	86606080	-	CYA_1411	-	S-layer domain-containing protein
1337	 56.99	0	1418354..1419934	+	526	86606081	-	CYA_1412	-	putative S-layer protein
1338	 60.83	0	1420078..1420917	-	279	86606082	-	CYA_1413	-	hypothetical protein
1339	 62.78	0	1420985..1422682	-	565	86606083	-	CYA_1414	-	SulP family sulfate permease
1340	 63.48	0	1422999..1425539	+	846	86606084	gyrA	CYA_1415	-	DNA gyrase subunit A
1341	 58.59	0	1425730..1426125	+	131	86606085	-	CYA_1416	-	hypothetical protein
1342	 68.96	+1	1426263..1427396	+	377	86606086	-	CYA_1417	-	glycerate kinase
1343	 54.60	-1	1427568..1427882	+	104	86606087	psbW	CYA_1418	-	photosystem II reaction center protein Psb28
1344	 63.20	0	1427888..1429417	-	509	86606088	gatA	CYA_1419	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
1345	 61.32	0	1429598..1429915	-	105	86606089	-	CYA_1420	-	hypothetical protein
1346	 58.41	0	1430023..1430361	-	112	86606090	-	CYA_1421	-	hypothetical protein
1347	 59.85	0	1430501..1431175	-	224	86606091	-	CYA_1423	-	hypothetical protein
1348	 59.58	0	1431242..1431622	-	126	86606092	-	CYA_1424	-	hypothetical protein
1349	 73.33	+2	1431698..1431787	-	29	86606093	-	CYA_1425	-	hypothetical protein
1350	 58.33	0	1431851..1432150	-	99	86606094	-	CYA_1426	-	ferredoxin, 2Fe-2S
1351	 52.38	-1	1432352..1432498	+	48	86606095	-	CYA_1427	-	hypothetical protein
1352	 59.55	0	1432665..1434956	+	763	86606096	-	CYA_1428	-	putative lipoprotein
1353	 56.23	0	1435208..1437325	+	705	86606097	-	CYA_1430	-	putative lipoprotein
1354	 53.70	-1	1437306..1437467	-	53	86606098	-	CYA_1429	-	hypothetical protein
1355	 65.48	+1	1437521..1438027	+	168	86606099	-	CYA_1431	-	pentapeptide repeat-containing protein
1356	 57.49	0	1438097..1438597	+	166	86606100	-	CYA_1432	-	hypothetical protein
1357	 62.91	0	1438736..1439401	+	221	86606101	-	CYA_1433	-	putative lipoprotein
1358	 49.46	-2	1439403..1439495	+	30	86606102	-	CYA_1434	-	hypothetical protein
1359	 54.45	-1	1439922..1441664	+	580	86606103	-	CYA_1435	-	putative lipoprotein
60.19	MEAN

4.44	STD DEV
